1 x Self Drilling Hexagonal Head 4.8X19 Sheet Metal Thread Steel G omits 500A
1 x Self Drilling Hexagonal Head 4.8X19 Sheet Metal Thread Steel G omits 500A
1 x Self Drilling Hexagonal Head 4.8X19 Sheet Metal Thread Steel G omits 500A
  • On sale!
  • -30%
1 x Self Drilling Hexagonal Head 4.8X19 Sheet...
1 x Self Drilling Hexagonal Head 4.8X19 Sheet...
1 x Self Drilling Hexagonal Head 4.8X19 Sheet...

1 x Self Drilling Hexagonal Head 4.8X19 Sheet Metal Thread Steel G omits 500A

3127101957_1
In stock 127833 Pièces
£0.97 Incl VAT £1.39 -30%
Decreasing prices by quantity
Number of pieces 1 100 200 1000
Lot price VAT included £0.97 £2.34 £2.55 £10.51
DIN 7504K+ EMBASE CRANTEE, VS3124 - Self Drilling Hexagonal Head 4.8X19 Sheet Metal Thread Steel G omits 500A"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 1000 units

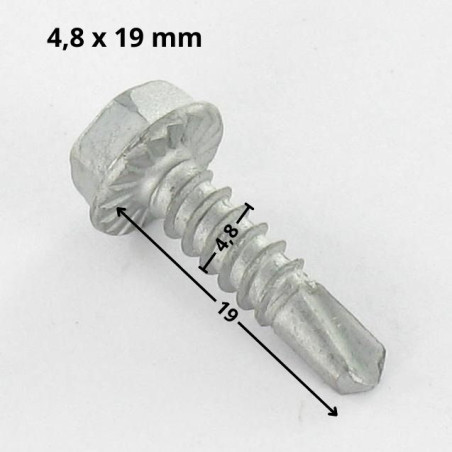

Dimensions shown in millimeters (mm)

Diameter
Class 4.8
Length
19
Size Drive Type
KEY Of 8
Material
Steel
Coating
GEOMET
COLOR
Black
Norm
DIN 7504K+ Flange NOTCHED VS3124
Sub product family
Hex Head
Mounting pressure (N)
250
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
6.5
Maximum thickness to be fixed
8.7
Head thickness
3.8-4.3
Base diameter
9.8-10.5
127833 Items
3663072478534
Self Drilling Hexagonal Head 4.8X19 Sheet Metal Thread Steel G omits 500A Other Reference : 3617500040541 3663072478534
Flottille d. (vis-express.fr)
2025-11-02

Fixing the 2 mm bolts to the chassis 2 mm bolts on a 1 m x 1 m chassis made of 30 x 30 square tubing


Eric D. (vis-express.fr)
2025-08-24

pool liner rail fixing


Xavier F. (vis-express.fr)
2024-05-05

To fix Attach parts
