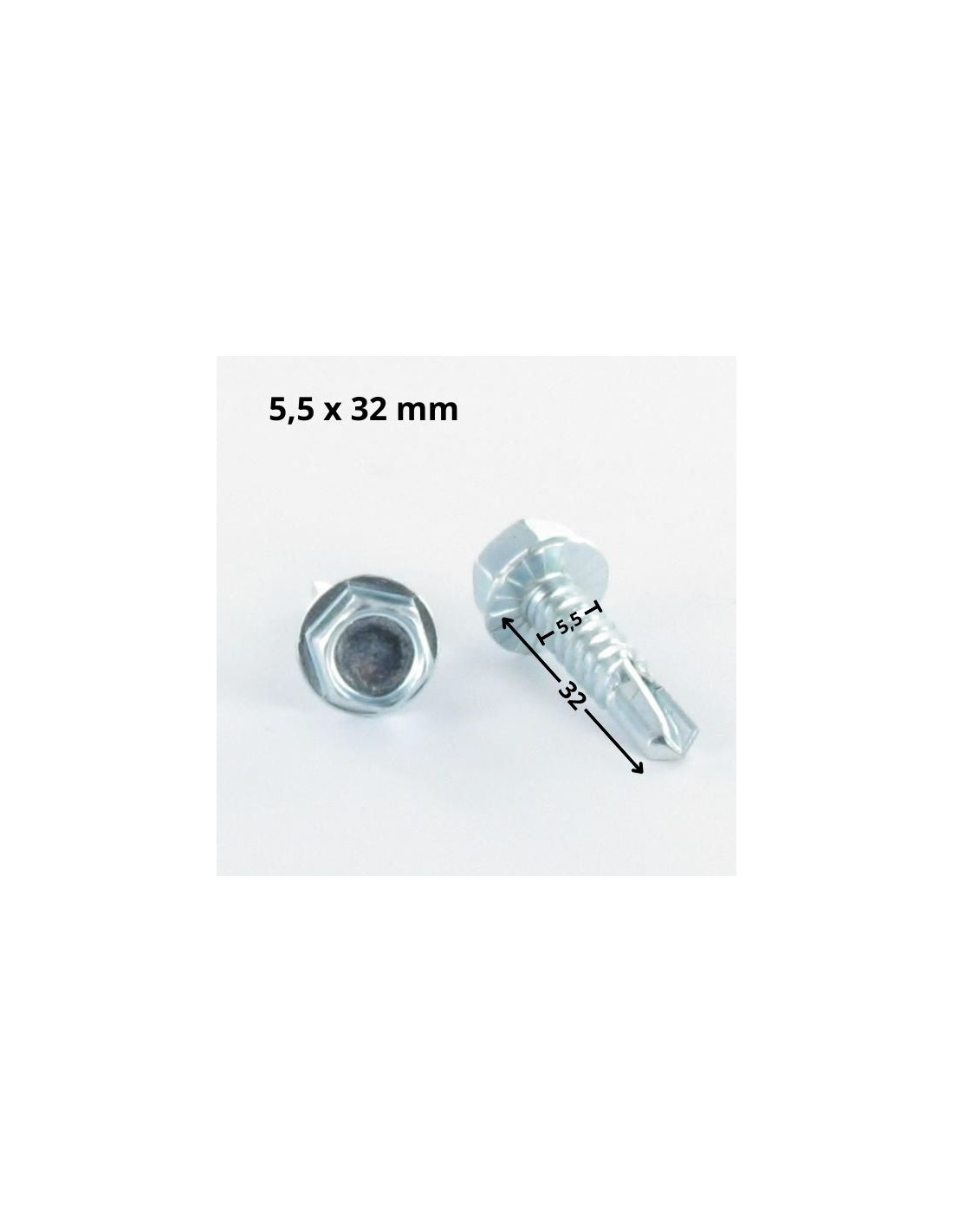

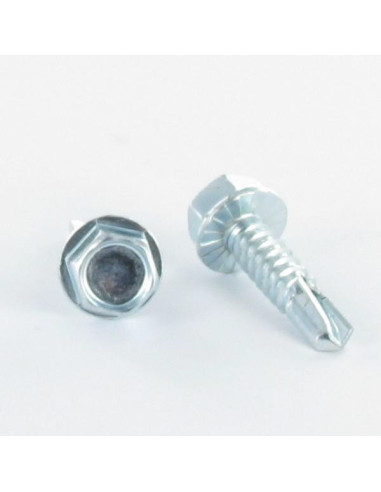

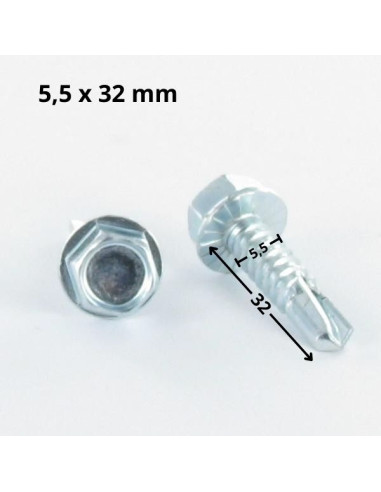

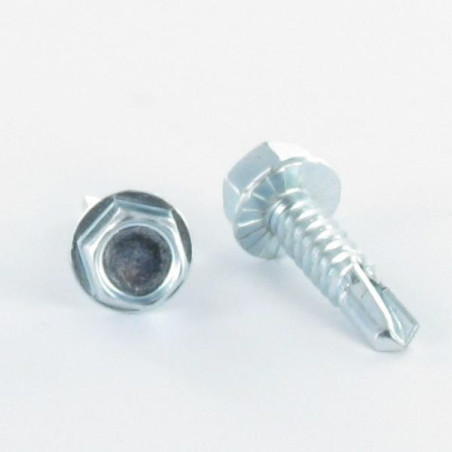

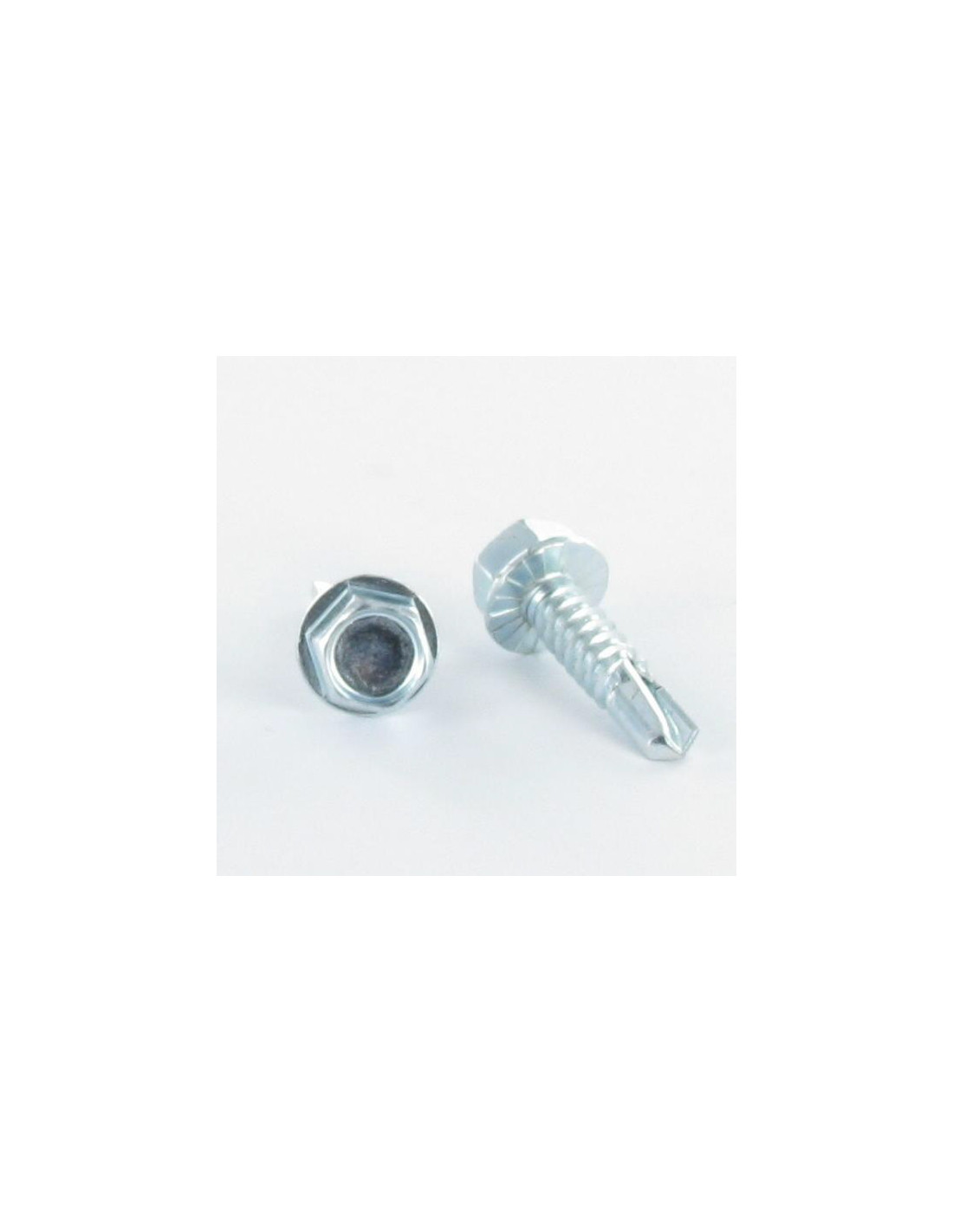

1 x Self Drilling Hexagonal Head 5.5X32 Sheet Metal Thread Zinc Plated
1 x Self Drilling Hexagonal Head 5.5X32 Sheet Metal Thread Zinc Plated
1 x Self Drilling Hexagonal Head 5.5X32 Sheet...
1 x Self Drilling Hexagonal Head 5.5X32 Sheet...

1 x Self Drilling Hexagonal Head 5.5X32 Sheet Metal Thread Zinc Plated

3127123202_1
In stock 27390 Pièces
£1.39 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 500
Lot price VAT included £1.39 £3.34 £5.73 £13.54
DIN 7504K+ EMBASE CRANTEE, VS3124 - Self Drilling Hexagonal Head 5.5X32 Sheet Metal Thread Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 500 units

Dimensions shown in millimeters (mm)

Diameter
5.5
Length
32
Size Drive Type
KEY Of 8
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN 7504K+ Flange NOTCHED VS3124
Sub product family
Hex Head
Mounting pressure (N)
350
Rotation speed (rpm)
1000-1800
Minimum breaking torque (N.m)
10
Maximum thickness to be fixed
21.5
Head thickness
4.8-5.4
Base diameter
10-11
27390 Items
3663072039353
Self Drilling Hexagonal Head 5.5X32 Sheet Metal Thread Zinc Plated Other Reference : THT8.55032 VIS A5.5-32 022558 VCKH5532 QUI1169 9VATH155032 555102 1007183 51703 10000013 02145532 3663072039353
Therache N. (vis-express.fr)
2025-08-17

Window installation


Vicenté-José D. (vis-express.fr)
2024-11-24

To fix 2 mesh hooks H rmann brand of 1 m each


YVES C. (vis-express.fr)
2024-02-25

Sliding gate mesh rack fixing. The screws supplied with the material are of poor quality and as there will be a thick shim, I need a length of 32 mm.
