1 x Self Drilling Hexagonal Head 5.5X19 Sheet...

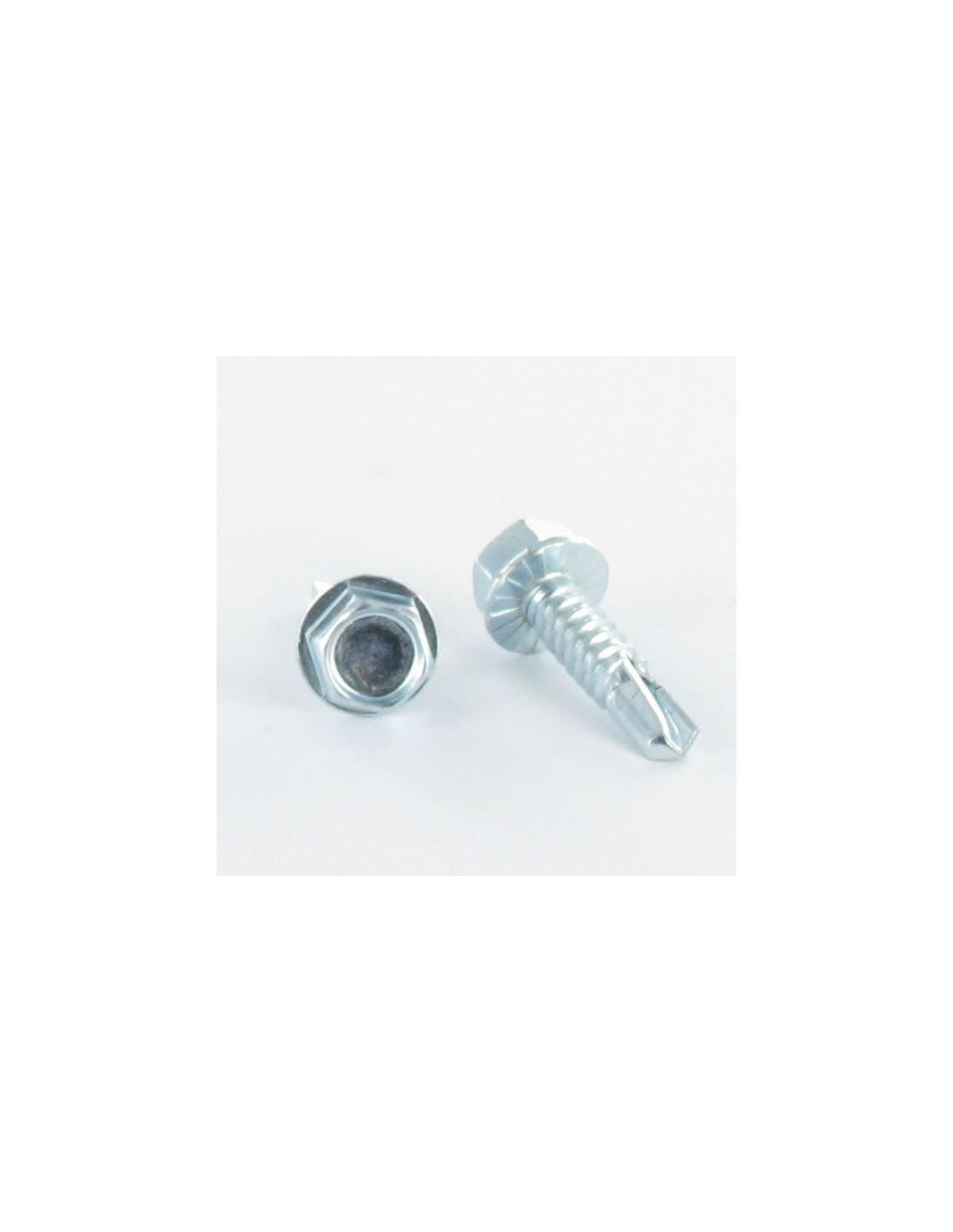

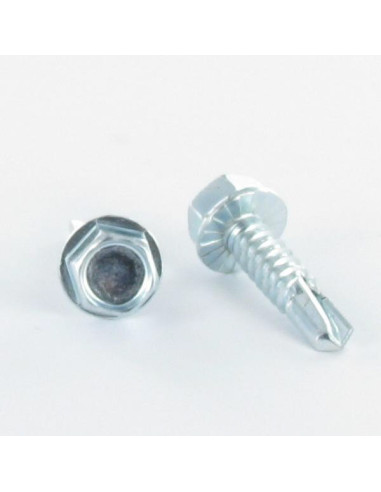

1 x Self Drilling Hexagonal Head 5.5X19 Sheet Metal Thread Zinc Plated

3127122002_1
In stock 185957 Pièces
€3.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 100
Lot price VAT included €3.50 €7.05 €8.40 €8.45
DIN 7504K+ EMBASE CRANTEE, VS3124 - Self Drilling Hexagonal Head 5.5X19 Sheet Metal Thread Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 100 units

Dimensions shown in millimeters (mm)

Diameter
5.5
Length
19
Size Drive Type
KEY Of 8
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN 7504K+ Flange NOTCHED VS3124
Sub product family
Hex Head
Mounting pressure (N)
350
Rotation speed (rpm)
1000-1800
Minimum breaking torque (N.m)
10
Maximum thickness to be fixed
8.7
Head thickness
4.8-5.4
Base diameter
10-11
185957 Items
3663072304857
Self Drilling Hexagonal Head 5.5X19 Sheet Metal Thread Zinc Plated Other Reference : 3617500155009 3663072304857
