1 x Self Drilling Hexagonal Head 4.8X19 Sheet...

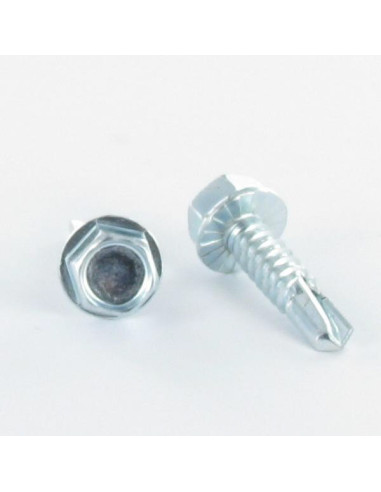

1 x Self Drilling Hexagonal Head 4.8X19 Sheet Metal Thread Zinc Plated LAQ Ral7016/Anthracite Grey

3127101932_1
In stock 82091 Pièces
£3.04 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 500
Lot price VAT included £3.04 £7.33 £10.67 £25.30
DIN 7504K+ EMBASE CRANTEE, VS3124 - Self Drilling Hexagonal Head 4.8X19 Sheet Metal Thread Zinc Plated LAQ Ral7016/Anthracite Grey"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 500 units

Dimensions shown in millimeters (mm)

Diameter
Class 4.8
Length
19
Size Drive Type
KEY Of 8
Material
Steel
Coating
ZINGUE White
COLOR
Ral7016/Anthracite Grey
Norm
DIN 7504K+ Flange NOTCHED VS3124
Sub product family
Hex Head
Mounting pressure (N)
250
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
6.5
Maximum thickness to be fixed
8.7
Head thickness
3.8-4.3
Base diameter
9.8-10.5
82091 Items
3663072235304
Self Drilling Hexagonal Head 4.8X19 Sheet Metal Thread Zinc Plated LAQ Ral7016/Anthracite Grey Other Reference : 3617500071880 3663072235304
Georges B. (vis-express.fr)
2025-03-23

tunnel greenhouse assembly
