1 x Self Drilling Hexagonal Head 4.2X25 Sheet Metal Thread Zinc Plated
1 x Self Drilling Hexagonal Head 4.2X25 Sheet Metal Thread Zinc Plated
1 x Self Drilling Hexagonal Head 4.2X25 Sheet...
1 x Self Drilling Hexagonal Head 4.2X25 Sheet...

1 x Self Drilling Hexagonal Head 4.2X25 Sheet Metal Thread Zinc Plated

3127802502_1
In stock 67897 Pièces
€1.60 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 1000
Lot price VAT included €1.60 €3.85 €5.90 €28.00
DIN 7504K+ EMBASE CRANTEE, VS3124 - Self Drilling Hexagonal Head 4.2X25 Sheet Metal Thread Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 1000 units

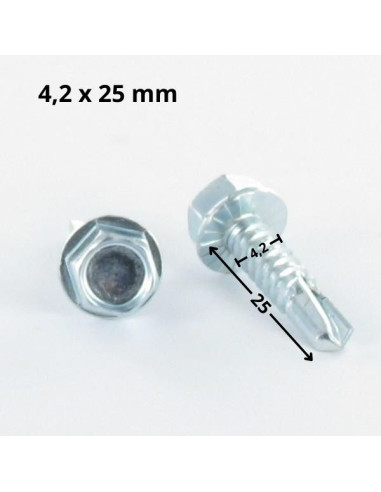

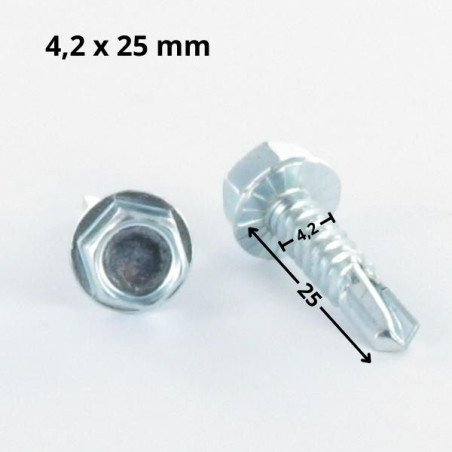

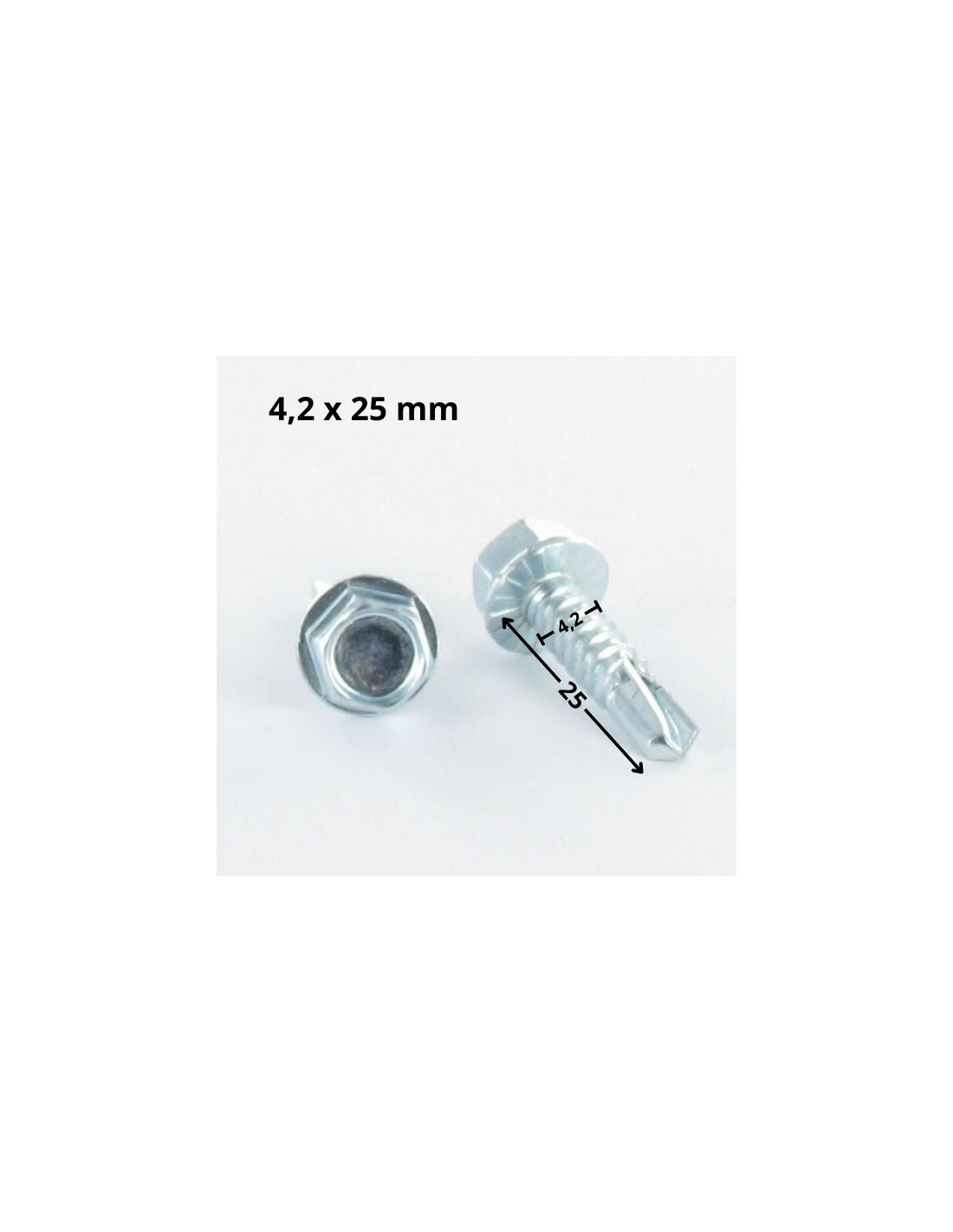

Dimensions shown in millimeters (mm)

Diameter
4.2
Length
25
Size Drive Type
KEY Of 7
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN 7504K+ Flange NOTCHED VS3124
Sub product family
Hex Head
Mounting pressure (N)
250
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
4.5
Maximum thickness to be fixed
16.3
Head thickness
3.6-4.1
Base diameter
8.1-8.8
67897 Items
3663072039711
Self Drilling Hexagonal Head 4.2X25 Sheet Metal Thread Zinc Plated Other Reference : THT7.42025 VISAUTOPTH4. K07107 VAT015 GVA425 01G0501800 MP015139 110117 VTAPTH42X25 002966 51702 AN AN VZH04025Z01 S002029850 3663072039711
Martin N. (vis-express.fr)
2026-02-01

Hello, I'm going to attach some components to galvanized tubes. The screws will only pierce the tubes and will hold the parts by crushing the flange. Drilling galvanized tubes, 48 mm diameter
