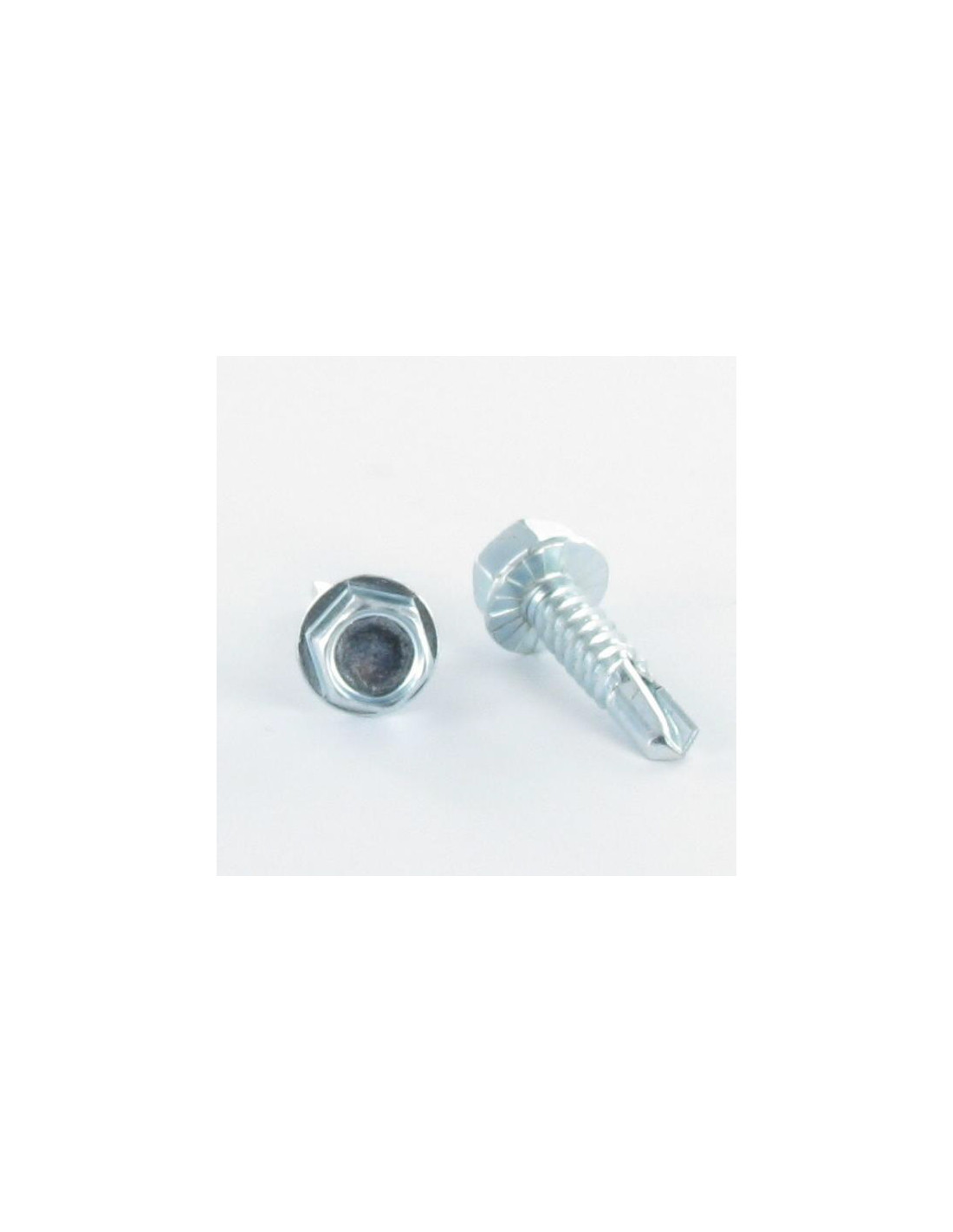

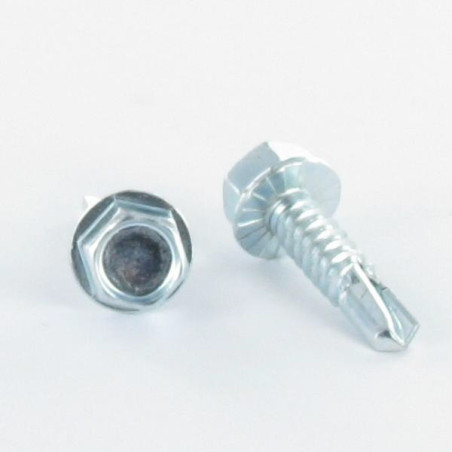

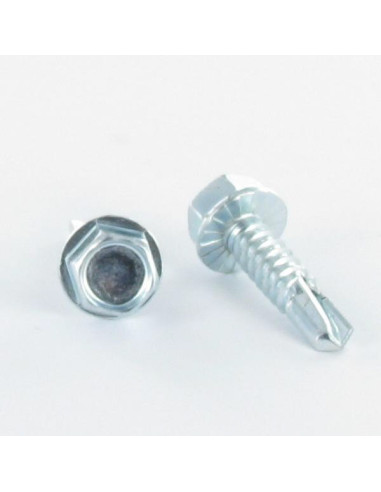

1 x Self Drilling Hexagonal Head 6.3X25 Sheet Metal Thread Zinc Plated
1 x Self Drilling Hexagonal Head 6.3X25 Sheet Metal Thread Zinc Plated
1 x Self Drilling Hexagonal Head 6.3X25 Sheet...
1 x Self Drilling Hexagonal Head 6.3X25 Sheet...

1 x Self Drilling Hexagonal Head 6.3X25 Sheet Metal Thread Zinc Plated

3127142502_1
In stock 385828 Pièces
€1.60 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 500
Lot price VAT included €1.60 €3.85 €7.50 €17.85
DIN 7504K+ EMBASE CRANTEE, VS3124 - Self Drilling Hexagonal Head 6.3X25 Sheet Metal Thread Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 500 units

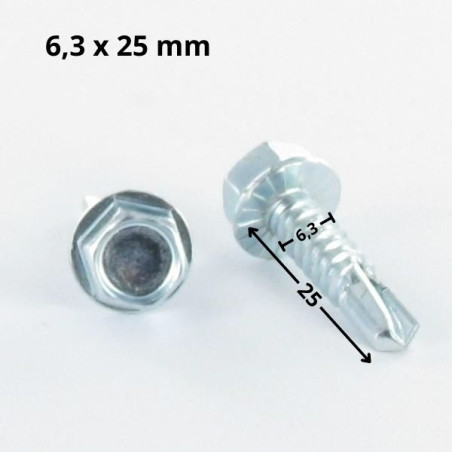

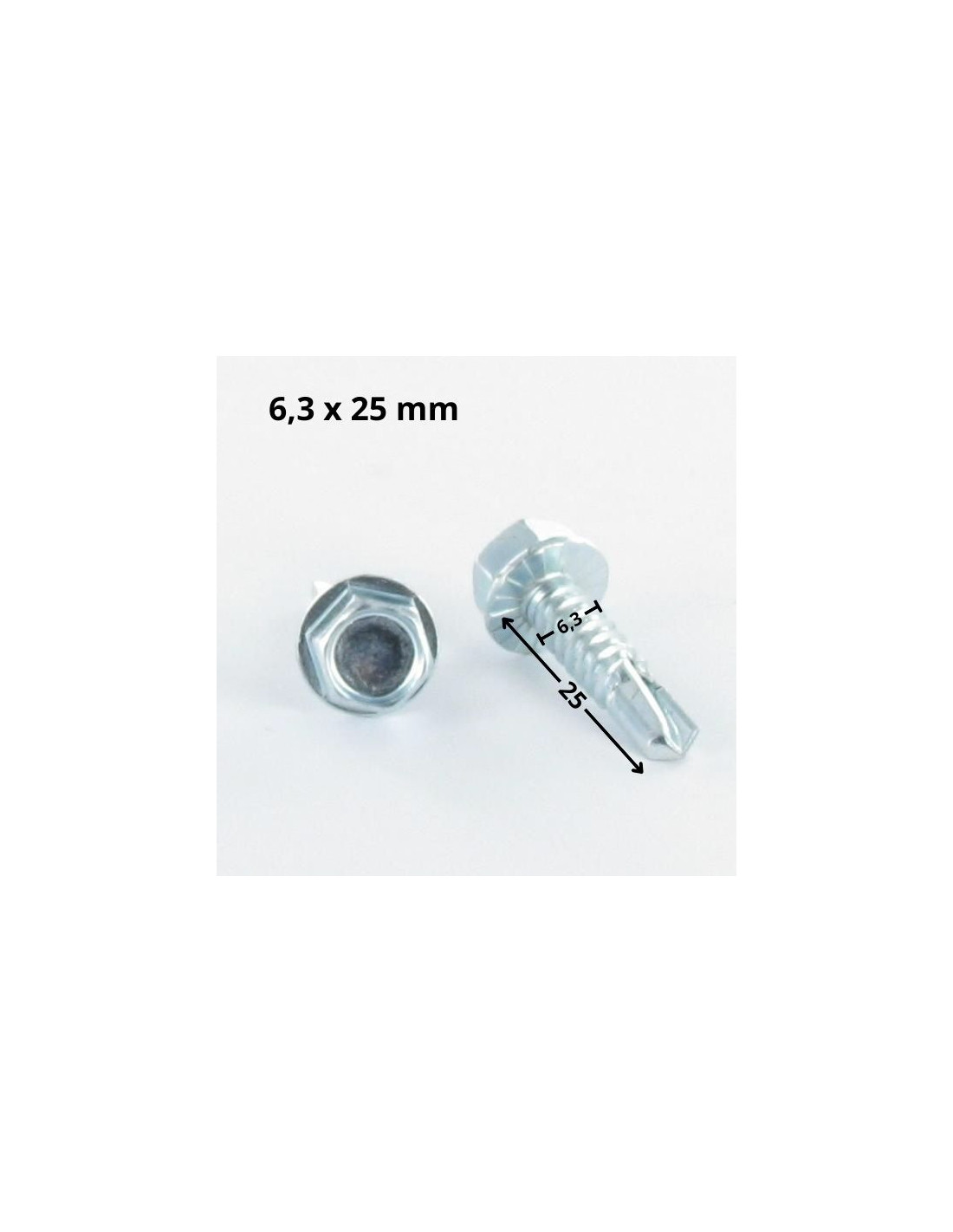

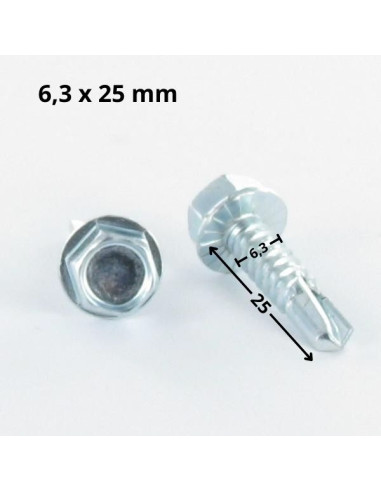

Dimensions shown in millimeters (mm)

Diameter
6.3
Length
25
Size Drive Type
KEY Of 10
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN 7504K+ Flange NOTCHED VS3124
Sub product family
Hex Head
Mounting pressure (N)
350
Rotation speed (rpm)
1000-1800
Minimum breaking torque (N.m)
14
Maximum thickness to be fixed
13
Head thickness
5.3-5.9
Base diameter
12.2-13.5
385828 Items
3663072039469
Self Drilling Hexagonal Head 6.3X25 Sheet Metal Thread Zinc Plated Other Reference : THT10.63025 VISAUTOPTH6. AUTO6.3X25 C08000735 YVISAUTTHZN6 VISAAPTH0632 14318 LDU2514000 V021362500 BOVHAM6325 V021362500 VAT020 VAUTH6.3X25Z 170010035 0059203 2364005 VAH63025Z VISQ770 V021362500 VI-ZPETHD06. 05170327 6X25 CN54048 VP209A-MAT02 V00058 2009-07323 08303015 2400902 bvis0061 104308 VIS-AUTOPERC 10.06.005 1212103 502541 5040263250 1310500 840984 1212103 6325 7504KAZ6.325 S01014 QUI0584 A A53030 VIS140 AN FD26232G 451VI9018 11420009 961425000 FASTO25 9VATH163025 VIS0036 VAF625 MV0010 PERTH6.3X25 CS70931 12405 LDU2514000 VISPERF6.3X2 VISA/FTH6.3X F00190 0003015 AUTO 6X25 V963-025 V021362500 VIS140 16H033025 MP015139 VATH/63-25 PMM1586 VAH63025Z VAUTH6.3X25Z 310460 10.06.005 140300757631 12405 10.06.005 1 2204-555 FVIAZIH 020001002030 12405 12405 0BVA0625 VAU.TH6.3/25 6639066 AN 110127 VTAPTH63X25 VAUTH6.3X2 02146325 VISTECKS625 100514 264146 VZAPTH63L25 1000 VAFH63.25 V021362500 1310500 AN MPTBVA6.3025 V021362500 3273 1001A0089 VIS0070 210079 29183300 VZ093 94036 31453 251071 1-001-08-05 VN703570L VISTECKS625 0329500 5103 5103 TS L 2 MOIS VZH06025Z01 S002029650 59203 AN VIS0036 AN V021362500 3663072039469
laurent g. (vis-express.fr)
2024-09-08

fixing metal profile veranda
