1 x Self Drilling Hexagonal Head 4.2X38 Sheet...

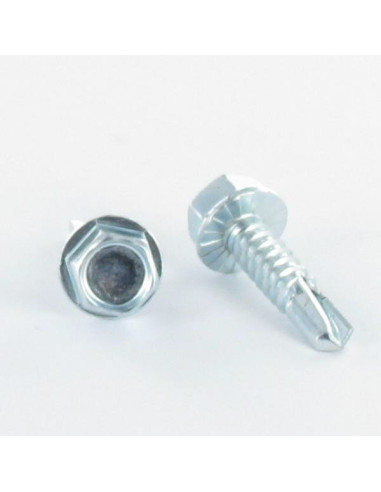

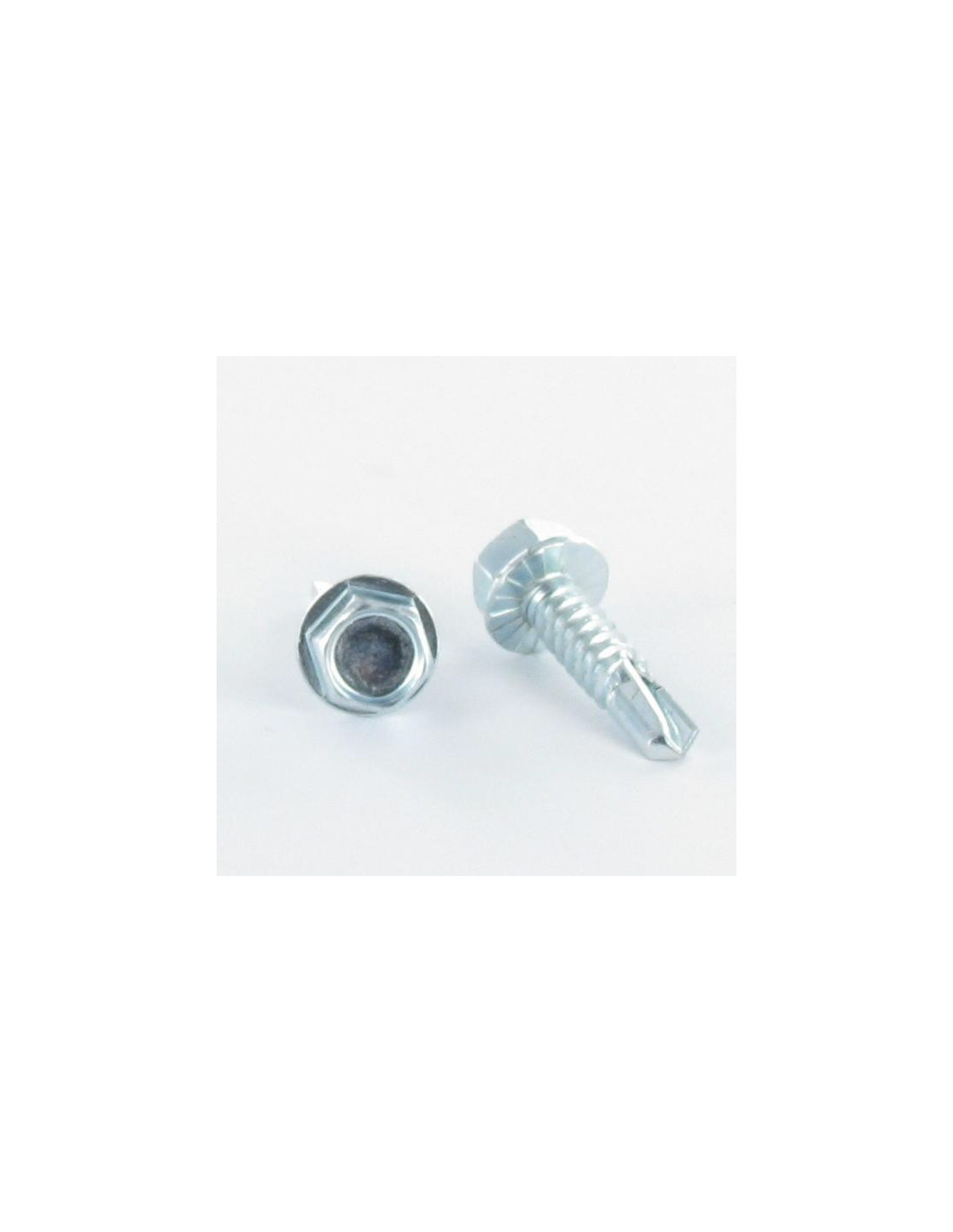

1 x Self Drilling Hexagonal Head 4.2X38 Sheet Metal Thread Zinc Plated

3127803802_1
In stock 50839 Pièces
€3.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 500
Lot price VAT included €3.50 €8.45 €9.20 €13.70
DIN 7504K+ EMBASE CRANTEE, VS3124 - Self Drilling Hexagonal Head 4.2X38 Sheet Metal Thread Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 500 units

Dimensions shown in millimeters (mm)

Diameter
4.2
Length
38
Size Drive Type
KEY Of 7
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN 7504K+ Flange NOTCHED VS3124
Sub product family
Hex Head
Mounting pressure (N)
250
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
4.5
Maximum thickness to be fixed
29
Head thickness
3.6-4.1
Base diameter
8.1-8.8
50839 Items
3663072039735
Self Drilling Hexagonal Head 4.2X38 Sheet Metal Thread Zinc Plated Other Reference : 3617500097613 VAT017 990199010010 MP015229 AN 3663072039735
