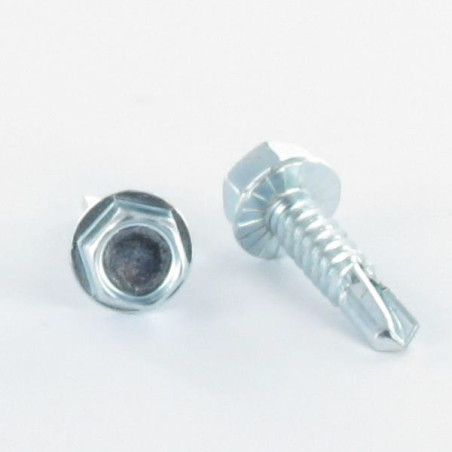

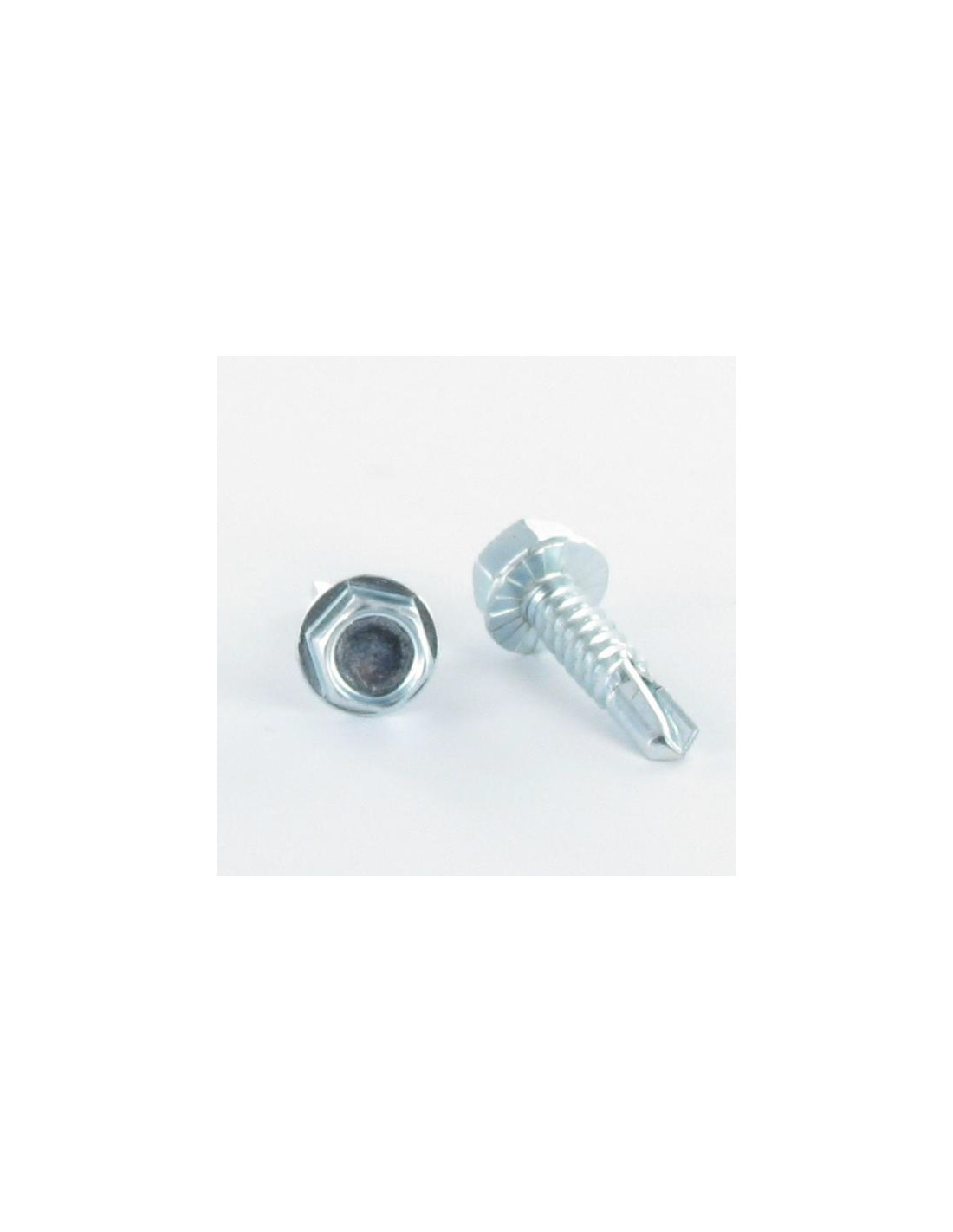

1 x Self Drilling Hexagonal Head 4.2X16 Sheet Metal Thread Zinc Plated
1 x Self Drilling Hexagonal Head 4.2X16 Sheet Metal Thread Zinc Plated
1 x Self Drilling Hexagonal Head 4.2X16 Sheet...
1 x Self Drilling Hexagonal Head 4.2X16 Sheet...

1 x Self Drilling Hexagonal Head 4.2X16 Sheet Metal Thread Zinc Plated

3127801602_1
In stock 17426 Pièces
£1.39 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 1000
Lot price VAT included £1.39 £3.34 £3.64 £11.45
DIN 7504K+ EMBASE CRANTEE, VS3124 - Self Drilling Hexagonal Head 4.2X16 Sheet Metal Thread Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 1000 units

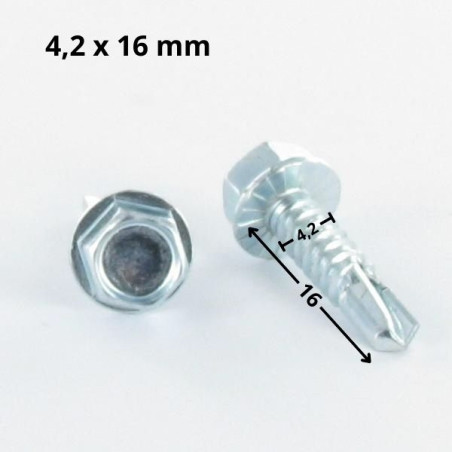

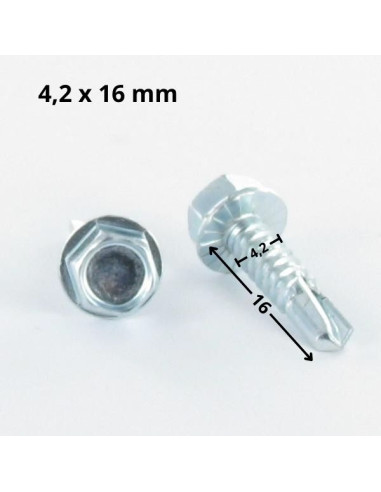

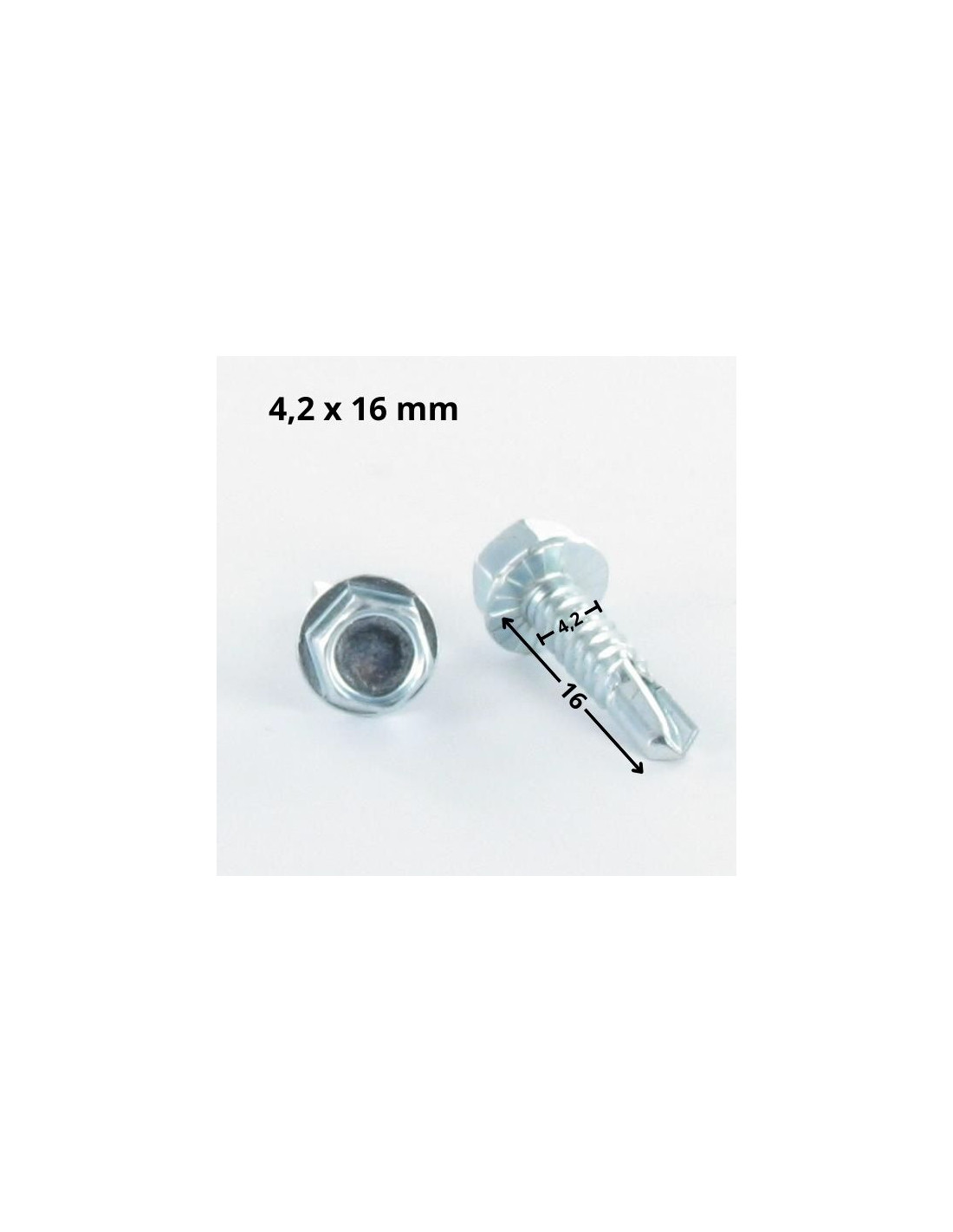

Dimensions shown in millimeters (mm)

Diameter
4.2
Length
16
Size Drive Type
KEY Of 7
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN 7504K+ Flange NOTCHED VS3124
Sub product family
Hex Head
Mounting pressure (N)
250
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
4.5
Maximum thickness to be fixed
7.3
Head thickness
3.6-4.1
Base diameter
8.1-8.8
17426 Items
3663072039698
Self Drilling Hexagonal Head 4.2X16 Sheet Metal Thread Zinc Plated Other Reference : THT7.42016 447VPTH42X16 4.2*016 VIS_4.2X16 GV07 1549 VISAUTOPTHM4 1549 5040242160 260052 533303 A00024086 9VATH142016 PERTH4.2X16 943110 943110 QC5102 VATH/42-16 ZAHAK4.2*15. NFF11278 13177 AR03498 VI092727 OBVA0416 110115 VTAPTH42X16 VISVISATH042 CD20074.0421 AN VI092727 03239500 S002029600 090006 AO2724 3663072039698
Naser D. (vis-express.fr)
2025-08-17

GALVANIZED SHEET METAL SCREW ZINC PLATED SCREW


Naser D. (vis-express.fr)
2025-08-17

GALVANIZED SHEET METAL SCREW ZINC PLATED SCREW


Naser D. (vis-express.fr)
2025-05-11

screw the t screw the t steel


Naser D. (vis-express.fr)
2025-04-27

SCREW THE STEEL SHEET SCREW THE STEEL SHEET


Xavier D. (vis-express.fr)
2025-02-16

Fixing placo rails to a wall-hung toilet frame Geberit duofix 112 cm x 50 cm
