1 x Self Drilling Hexagonal Head 4.8X22 Sheet Metal Thread Zinc Plated
1 x Self Drilling Hexagonal Head 4.8X22 Sheet Metal Thread Zinc Plated
1 x Self Drilling Hexagonal Head 4.8X22 Sheet...
1 x Self Drilling Hexagonal Head 4.8X22 Sheet...

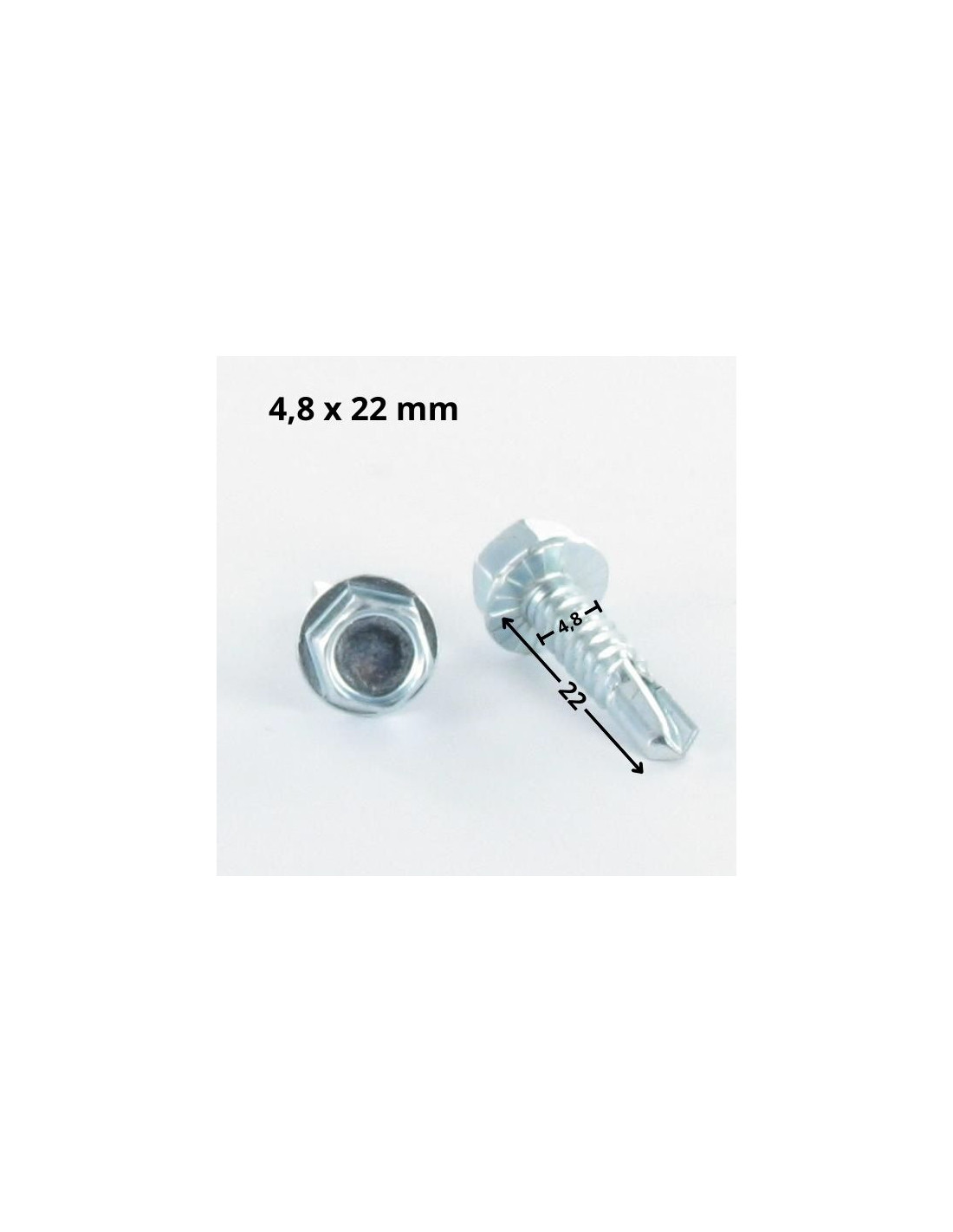

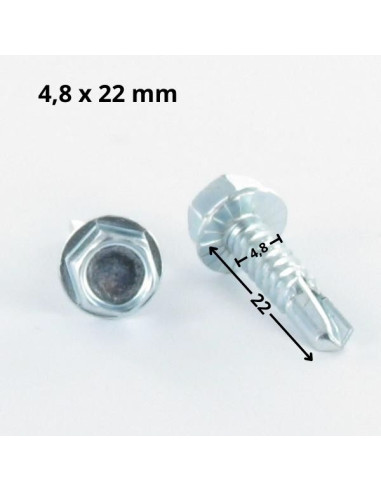

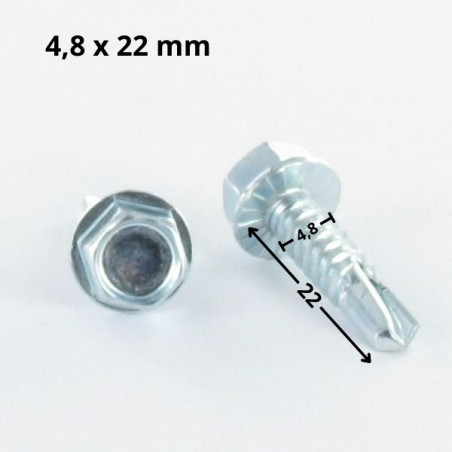

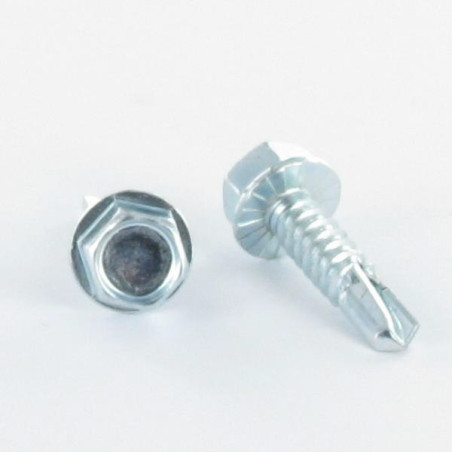

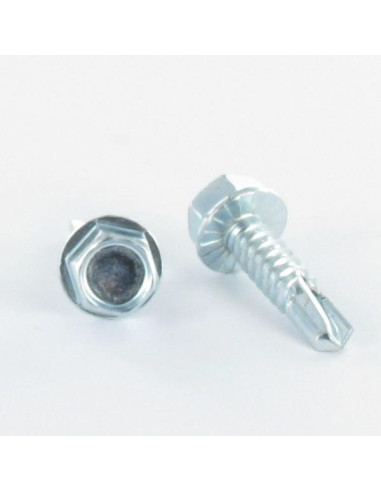

1 x Self Drilling Hexagonal Head 4.8X22 Sheet Metal Thread Zinc Plated

3127102202_1
In stock 22130 Pièces
€1.60 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 1000
Lot price VAT included €1.60 €3.85 €4.20 €17.50
DIN 7504K+ EMBASE CRANTEE, VS3124 - Self Drilling Hexagonal Head 4.8X22 Sheet Metal Thread Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 1000 units

Dimensions shown in millimeters (mm)

Diameter
Class 4.8
Length
22
Size Drive Type
KEY Of 8
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN 7504K+ Flange NOTCHED VS3124
Sub product family
Hex Head
Mounting pressure (N)
250
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
6.5
Maximum thickness to be fixed
13.3
Head thickness
3.8-4.3
Base diameter
9.8-10.5
22130 Items
3663072180093
Self Drilling Hexagonal Head 4.8X22 Sheet Metal Thread Zinc Plated Other Reference : 3617500193452 VAUTOPTH4.2X 2BOAFQ422G 50402482220 VCKH4822 VIS016 23794824 9728550 500013 V948.022 1007815 901000919 02144822 VISAUTOPTH4. 1001240 1136 3780 3663072180093
