1 x Self Drilling Hexagonal Head 3.5X16 Sheet...

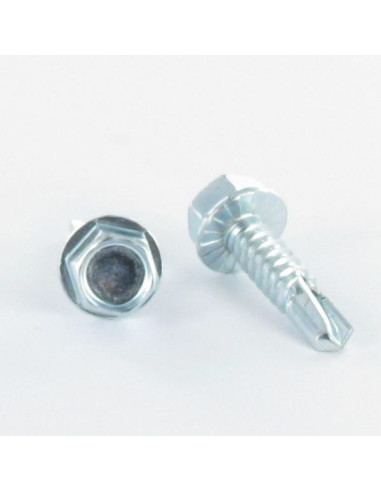

1 x Self Drilling Hexagonal Head 3.5X16 Sheet Metal Thread Zinc Plated

3127601602_1
In stock 105468 Pièces
£3.04 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 1000
Lot price VAT included £3.04 £7.33 £7.98 £9.20
DIN 7504K+ EMBASE CRANTEE, VS3124 - Self Drilling Hexagonal Head 3.5X16 Sheet Metal Thread Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 1000 units

Dimensions shown in millimeters (mm)

Diameter
3.5
Length
16
Size Drive Type
KEY Of 5.5
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN 7504K+ Flange NOTCHED VS3124
Sub product family
Hex Head
Mounting pressure (N)
150
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
2.8
Maximum thickness to be fixed
9.2
Head thickness
3-3.4
Base diameter
7.6-8.3
105468 Items
3663072039636
Self Drilling Hexagonal Head 3.5X16 Sheet Metal Thread Zinc Plated Other Reference : THT5.35016 RVISTH3.5X16 QVISAP35160Z1 VIS0061 RVISTH35X16 MP015129 1310403 3663072039636
