3707401012_1
In stock 28466 Pièces
€1.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500 2000
Lot price VAT included €1.85 €3.70 €6.05 €25.30 €101.20

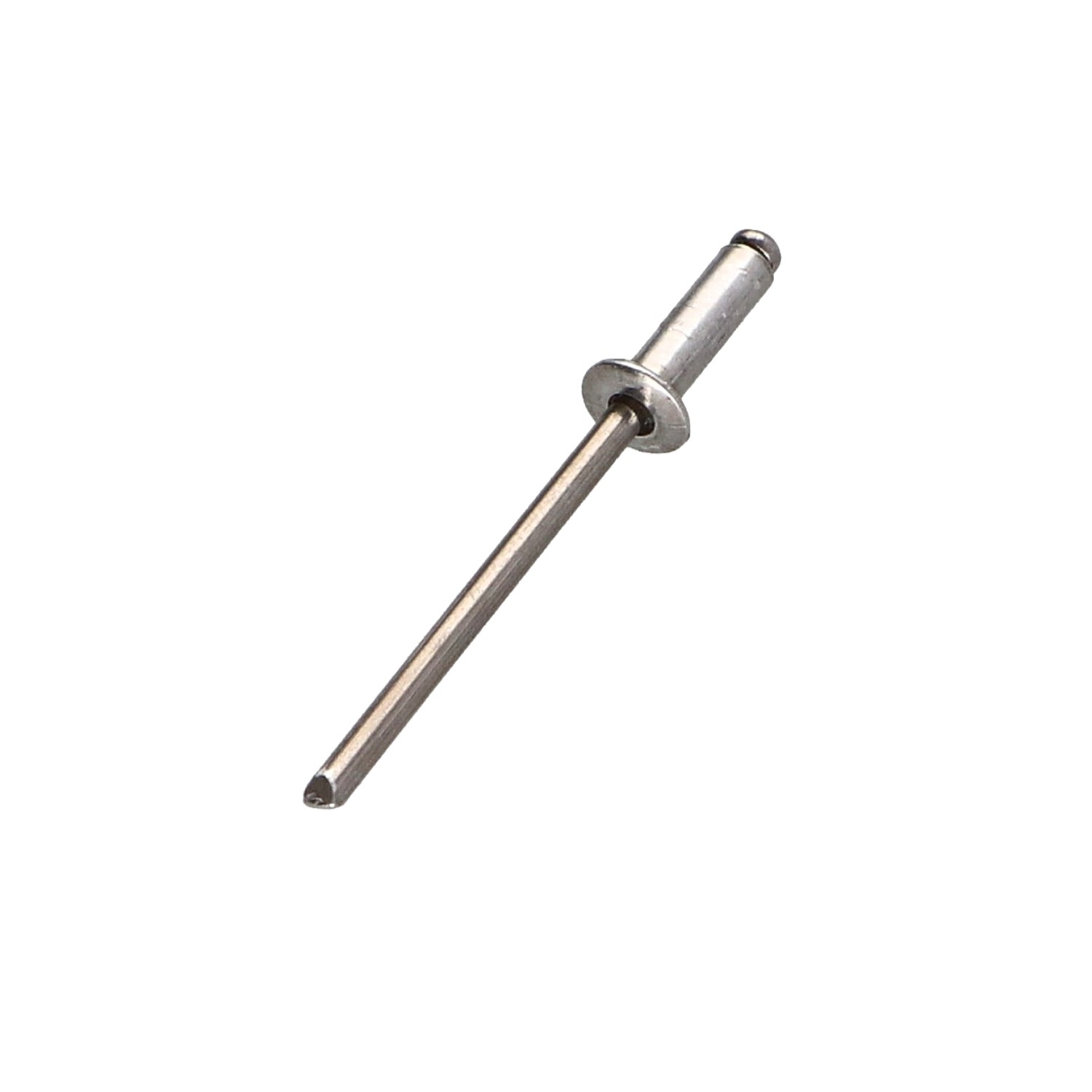

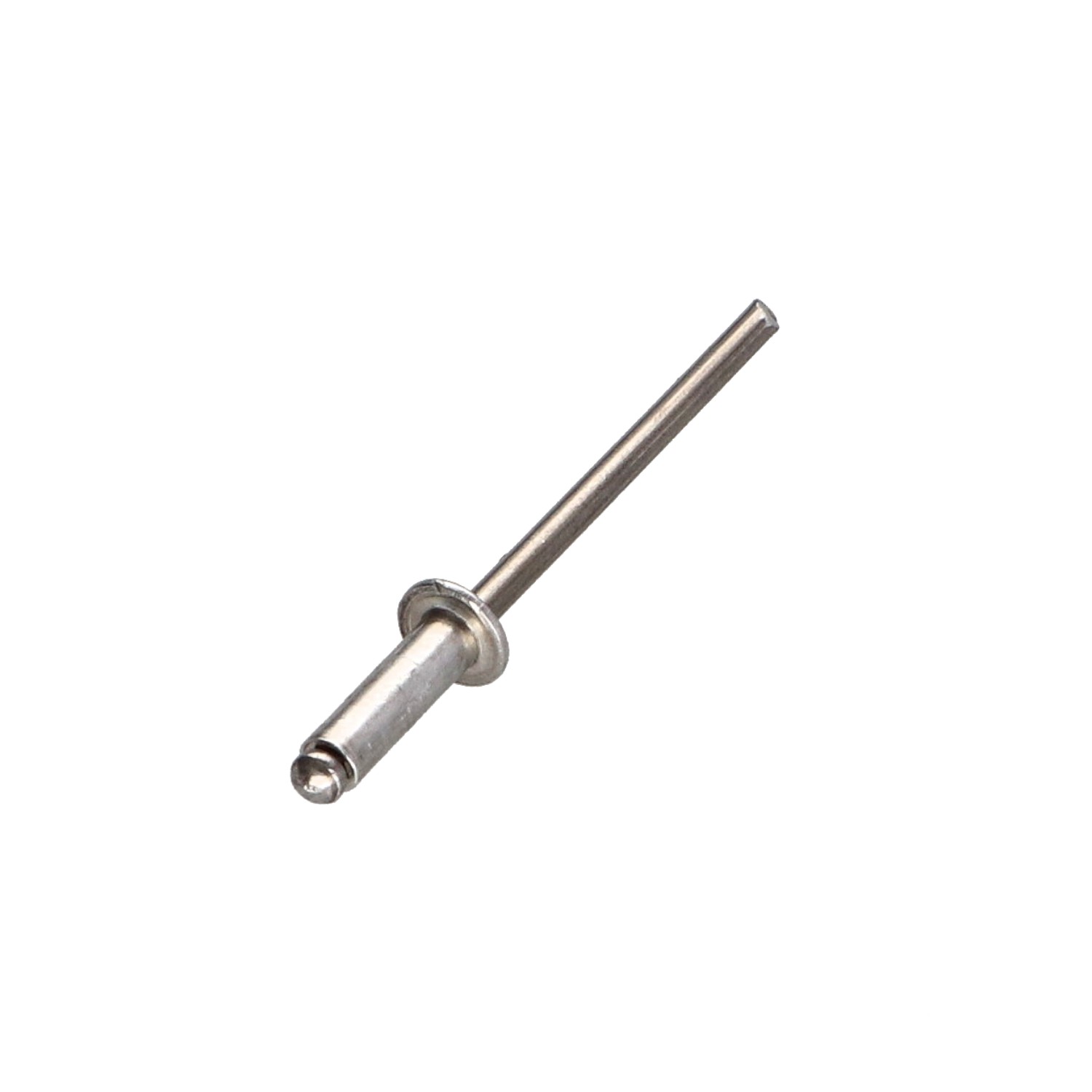

Rivet alu 4X10 Thickness Of Panel 4 to 6 Flat Head YOUR
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units
  • 2000 Units

Dimensions shown in millimeters (mm)

Diameter
4
Diameter Head
8
Material
BODY Aluminium / rod Aluminium
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
800
Clamping thickness
4 a 6 mm
Rivet body length
10
Unit weight
0.9 GR
Head shape
Round Head standard
Hole diameter
4.2
Tensile strength
1200
28466 Items
3663072230934

Application

  • signage
  • ventilation / ducts
  • DIY & light assembly
  • outdoor equipment
Rivet alu 4X10 Thickness Of Panel 4 to 6 Flat Head YOUR
Diameter = 4, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL)

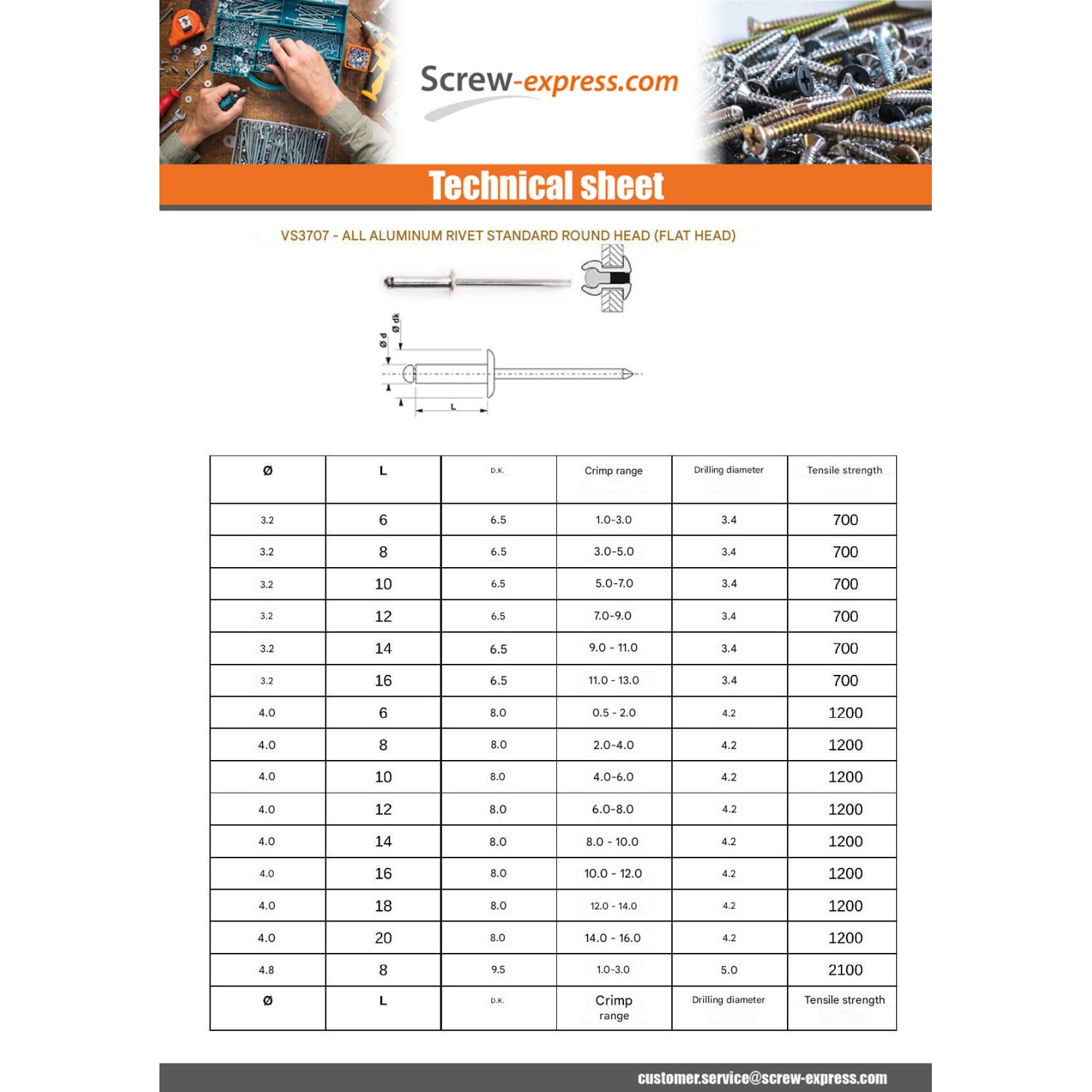

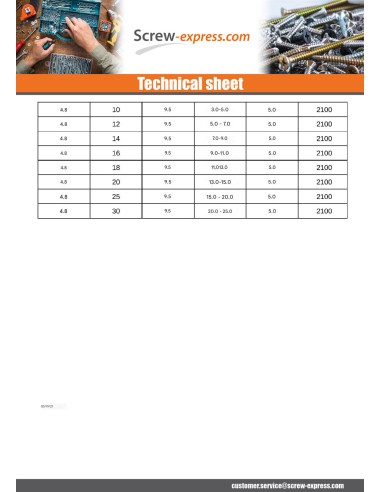

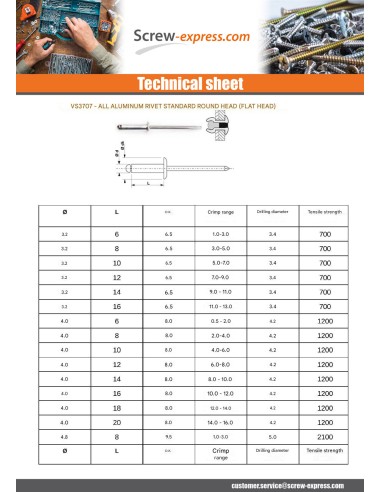

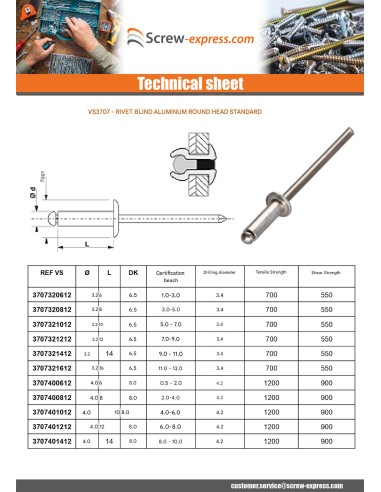

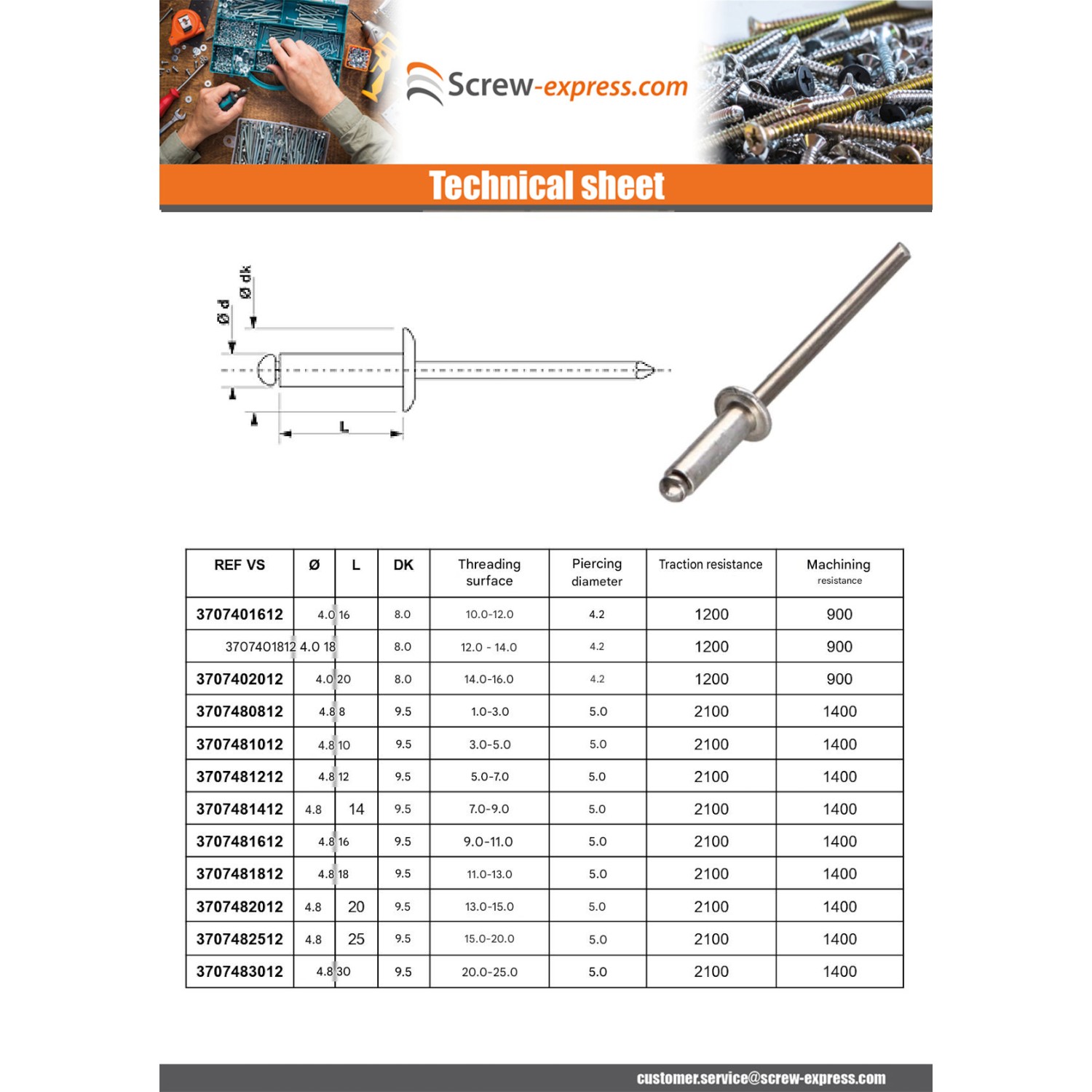

dimensional guide (mm)
Body diameter 3.2 4 4.8
Head diameter 6.5 4 4.8
Drilling diameter 3.4 4.2 5
longueur tige 25 27 27
resistance a la traction 1100 1500 2100
Shear strength 800 1000 1400
la longueur du corps est indique dans la designation

Other Reference : 102140101 00970035 QIA510 1603 304130 2001441 MVISACI00678 6470254 / AN 3663072230934
Julie P. (vis-express.fr)
2026-04-05

It will be used to rivet mesh panels, steel trays or fixing rails.


Jean Marc j. (vis-express.fr)
2026-04-05

Fixing an aluminum curtain support rail


Quentin L. (vis-express.fr)
2024-11-10

Rail mounting coupling All Aluminum Rivet 4X10 Clamping thickness 4A6 Flat T TA


Alexandre B. (vis-express.fr)
2024-10-20

fixing t the cap t engine r novation tractor 1997
