3707320812_1
In stock 25485 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €3.85 €7.70 €9.25 €15.55

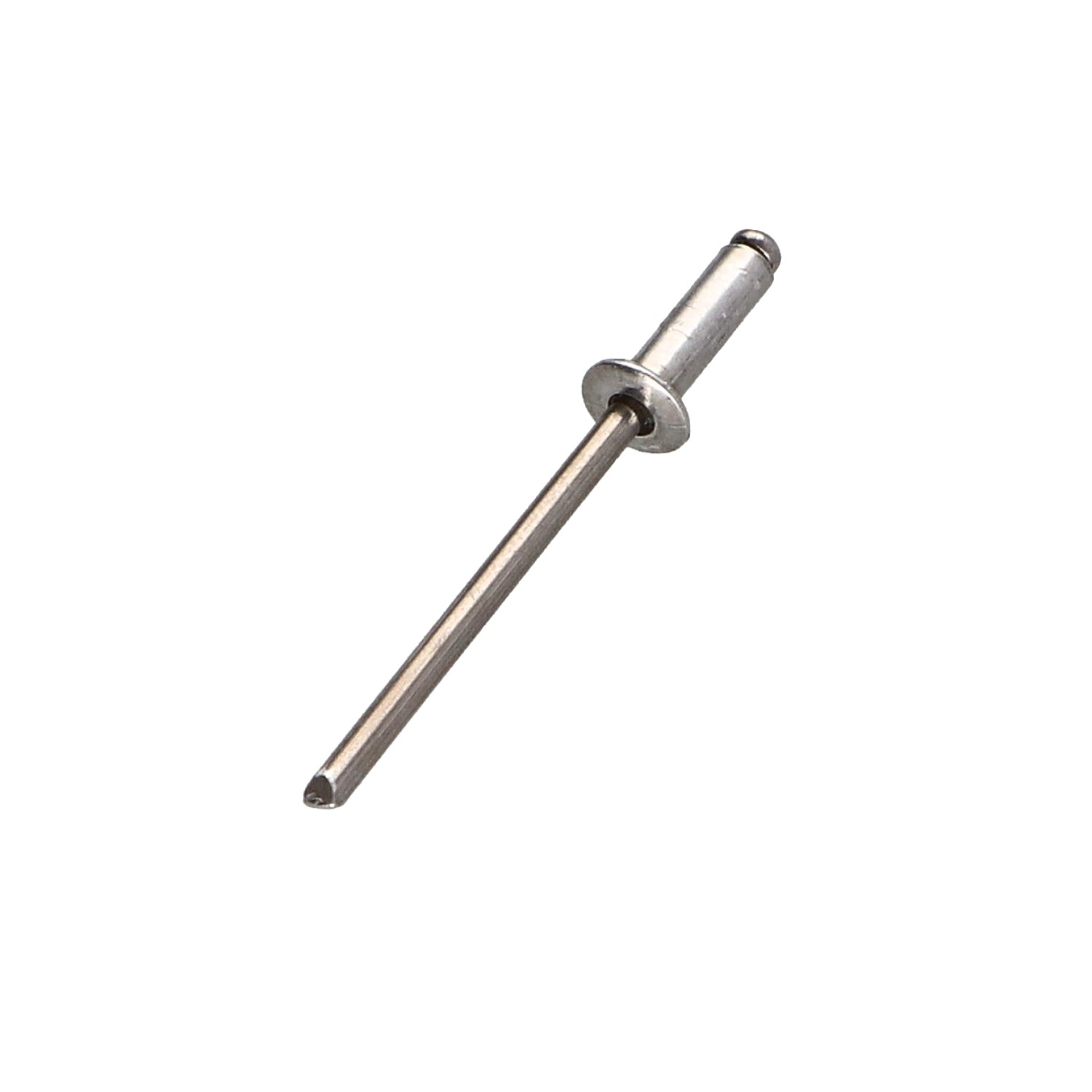

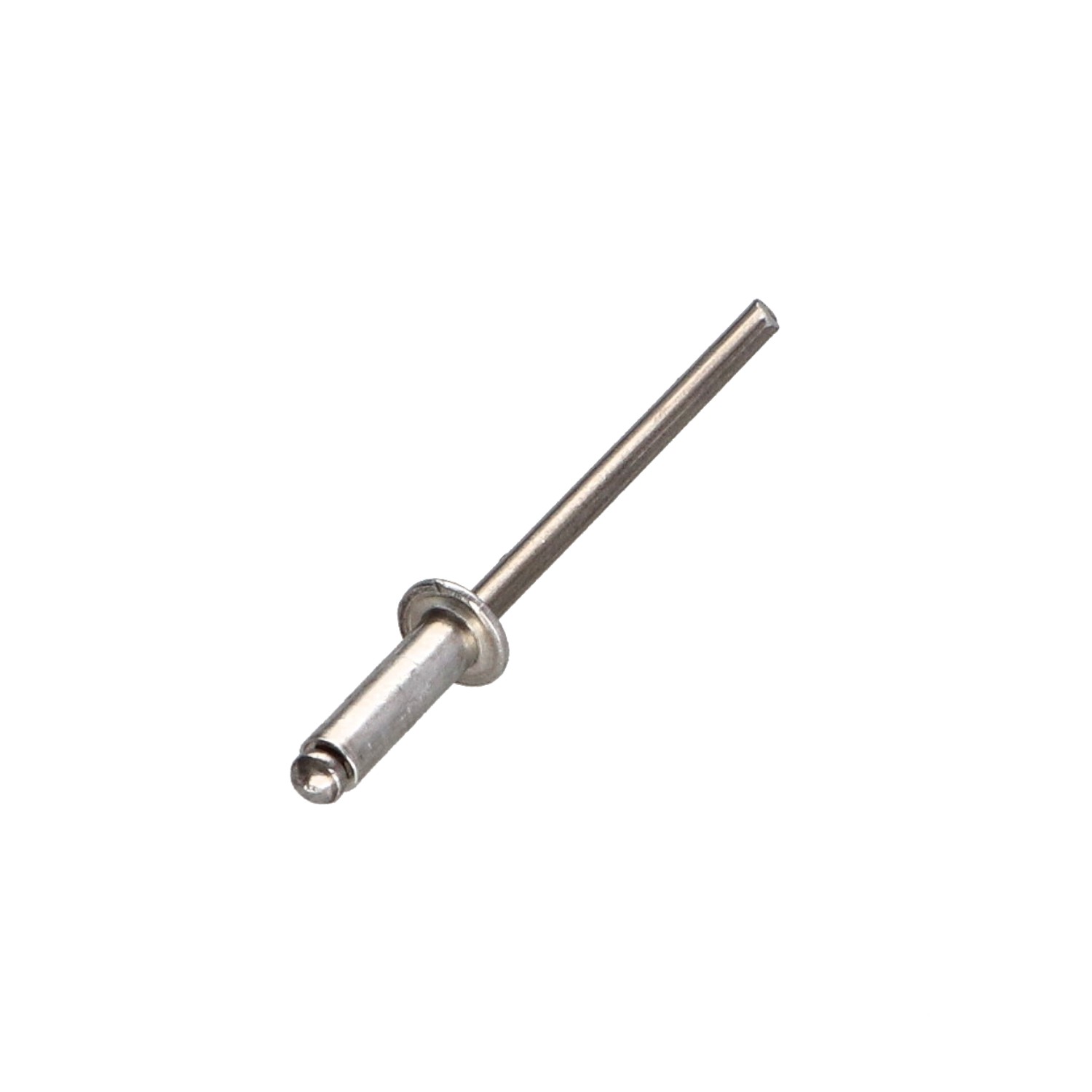

Rivet alu 3.2X8 Thickness Of Panel 3 to 5 Flat Head YOUR
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
3.2
Diameter Head
6
Material
BODY Aluminium / rod Aluminium
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
500
Clamping thickness
3 a 5 mm
Rivet body length
8
Unit weight
0.5 GR
Head shape
Round Head standard
Hole diameter
3.4
Tensile strength
700
25485 Items
3663072302655

Application

  • signage
  • ventilation / ducts
  • DIY & light assembly
  • outdoor equipment
Rivet alu 3.2X8 Thickness Of Panel 3 to 5 Flat Head YOUR
Diameter = 3.2, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL)

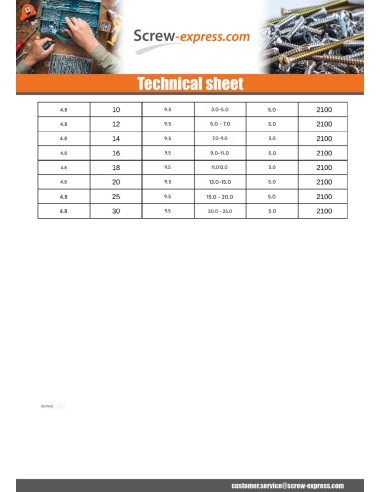

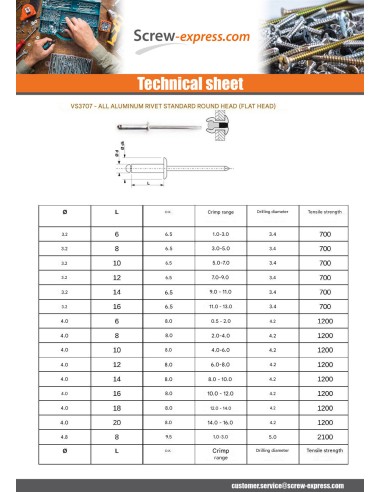

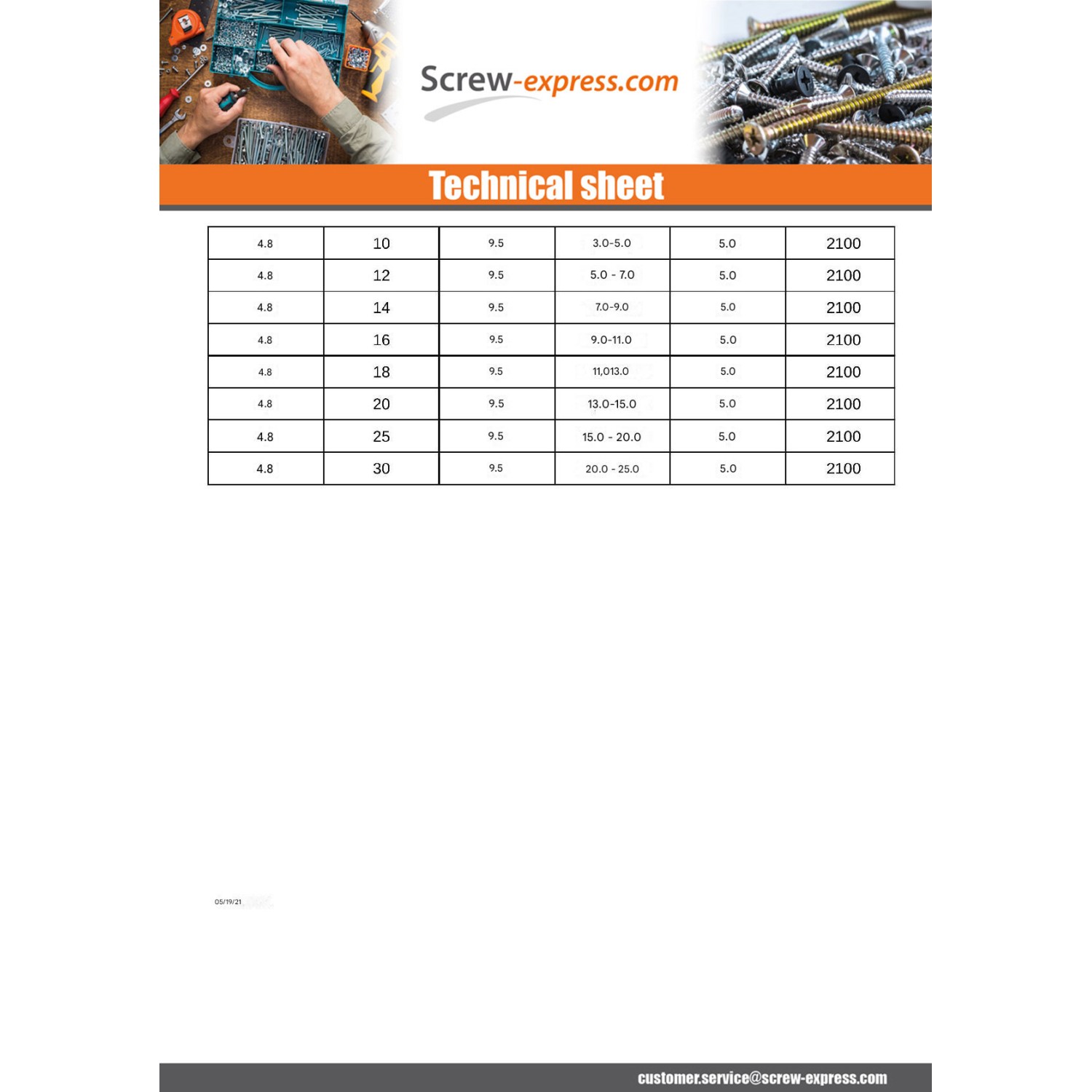

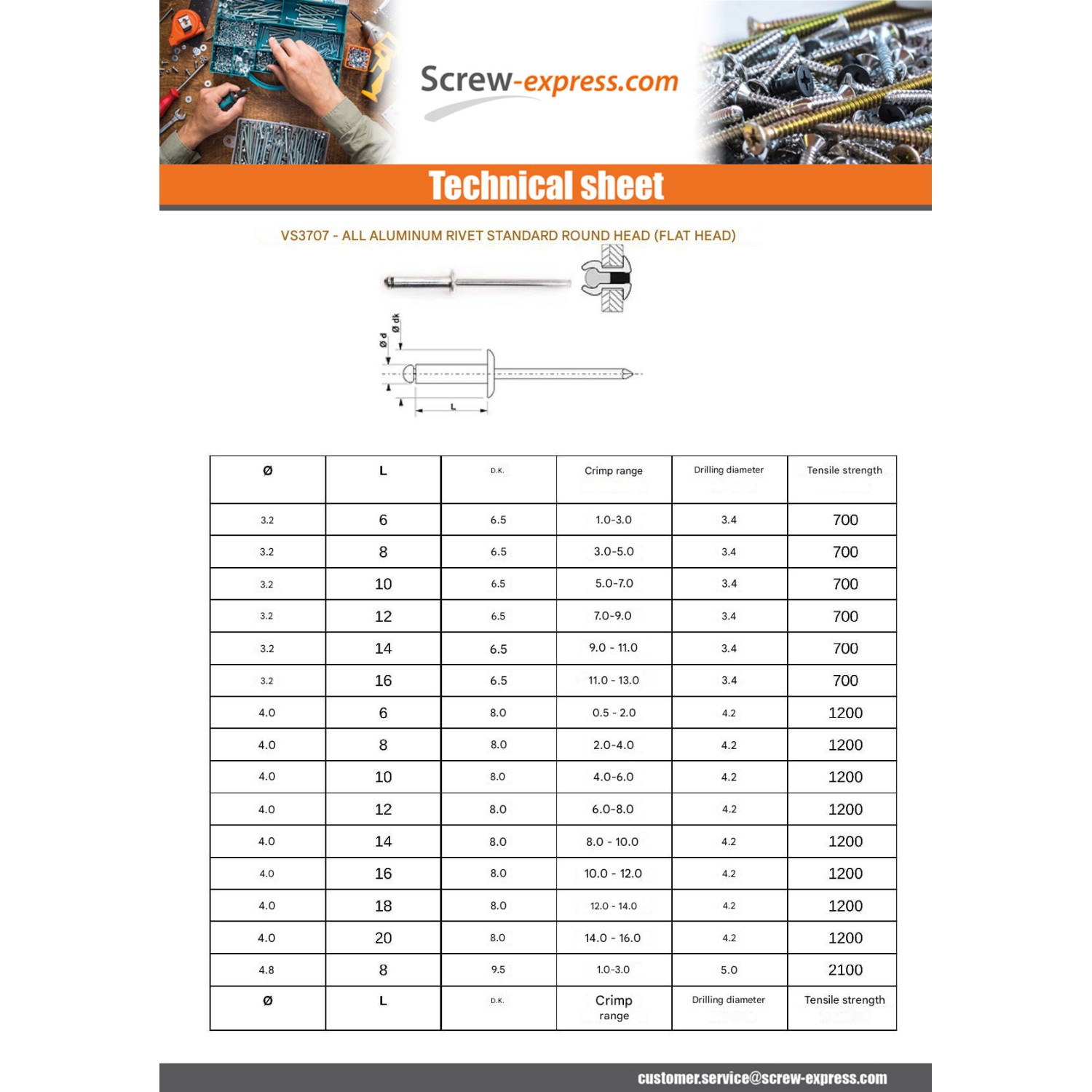

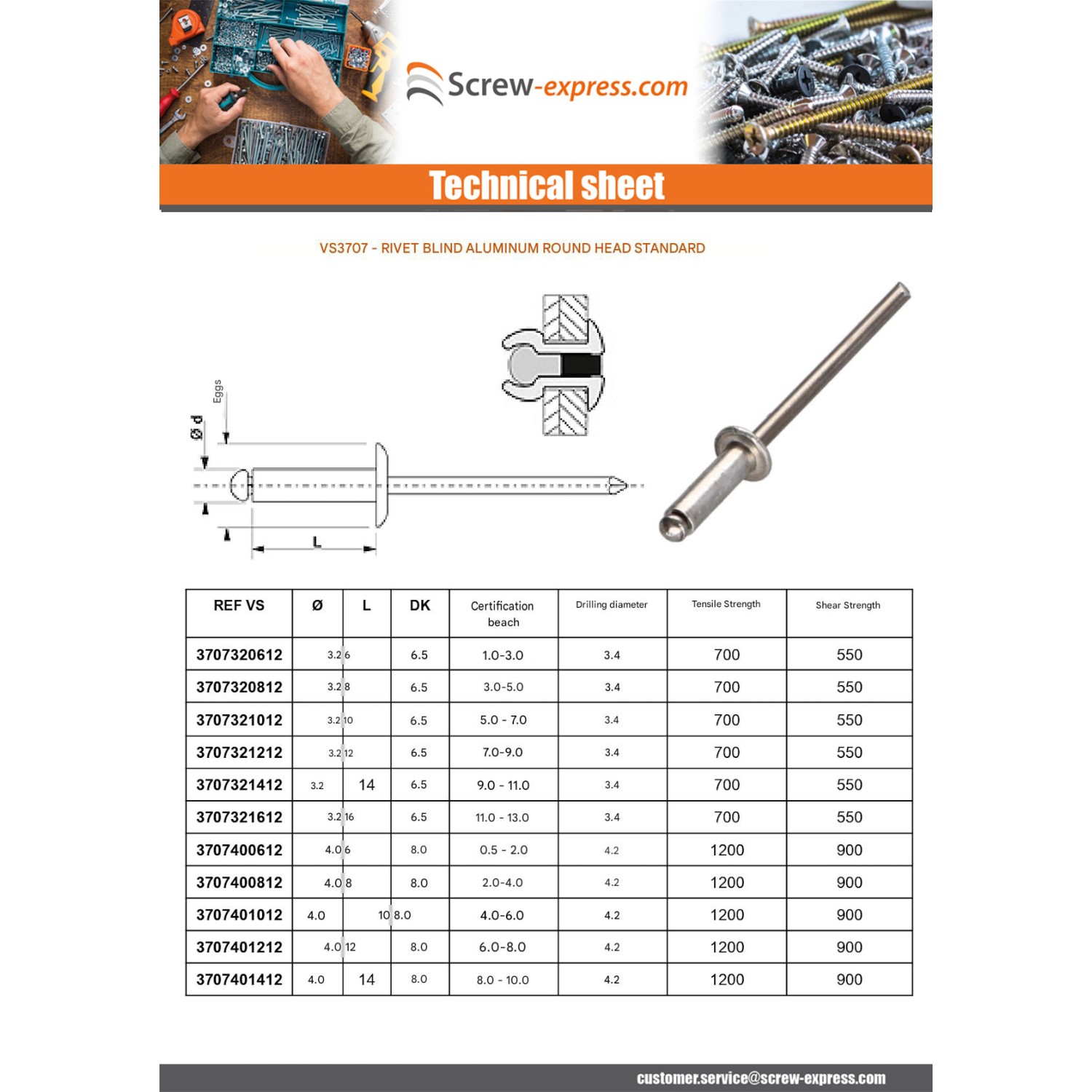

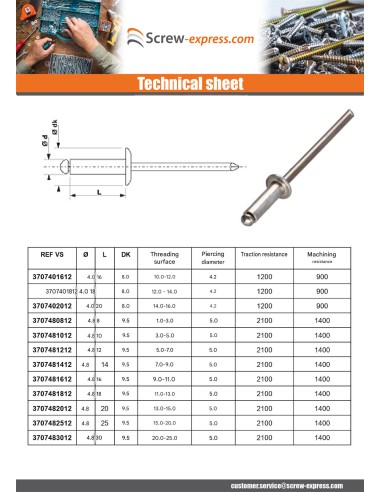

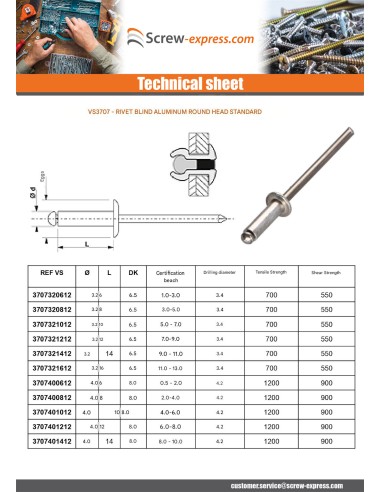

dimensional guide (mm)
Body diameter 3.2 4 4.8
Head diameter 6.5 4 4.8
Drilling diameter 3.4 4.2 5
longueur tige 25 27 27
resistance a la traction 1100 1500 2100
Shear strength 800 1000 1400
la longueur du corps est indique dans la designation

Other Reference : 102132081 QIA328 57517 506060 VRI000308 CO210003 3663072302655
