3707481612_1
In stock 13943 Pièces
€1.70 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500 2000
Lot price VAT included €1.70 €3.40 €10.00 €41.50 €166.00

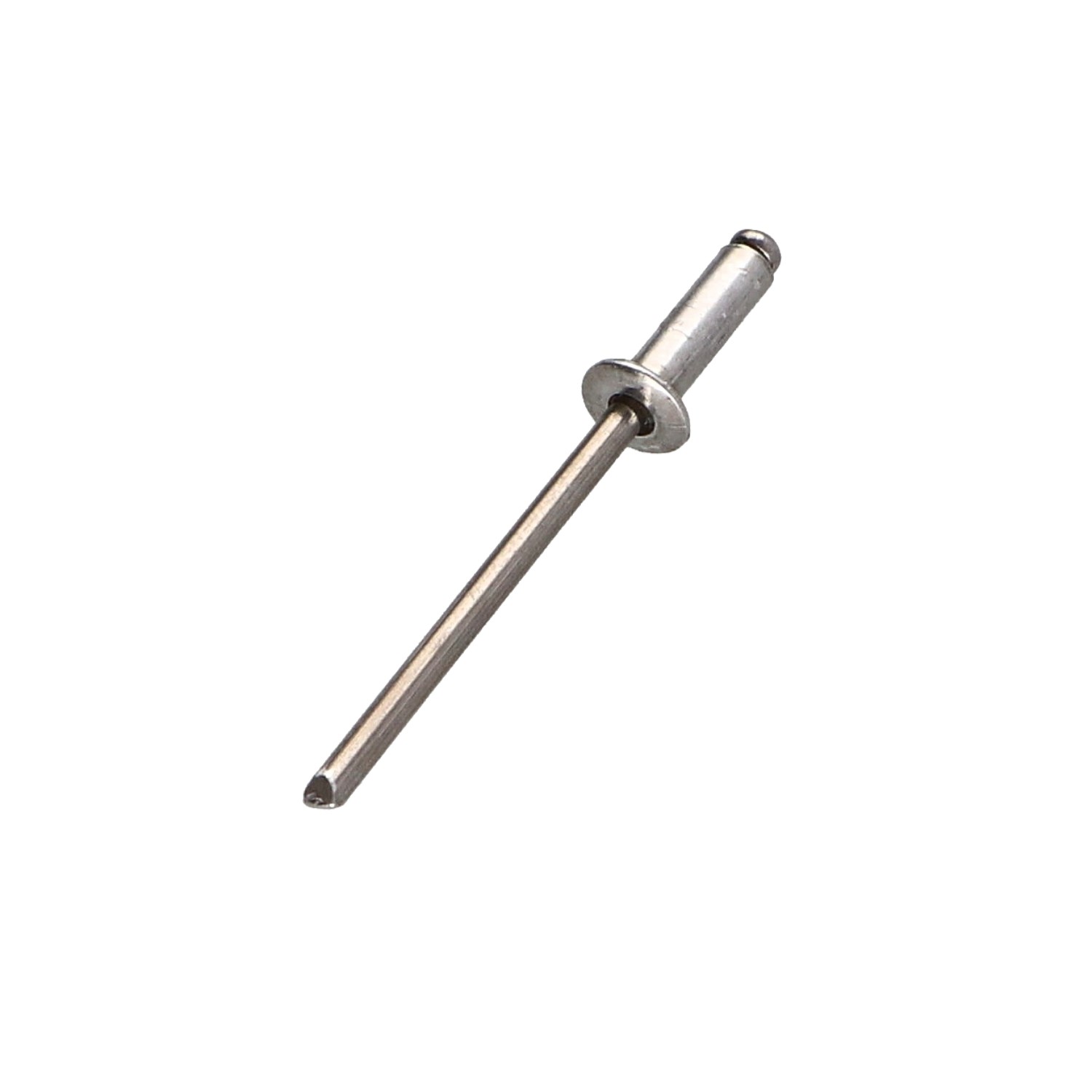

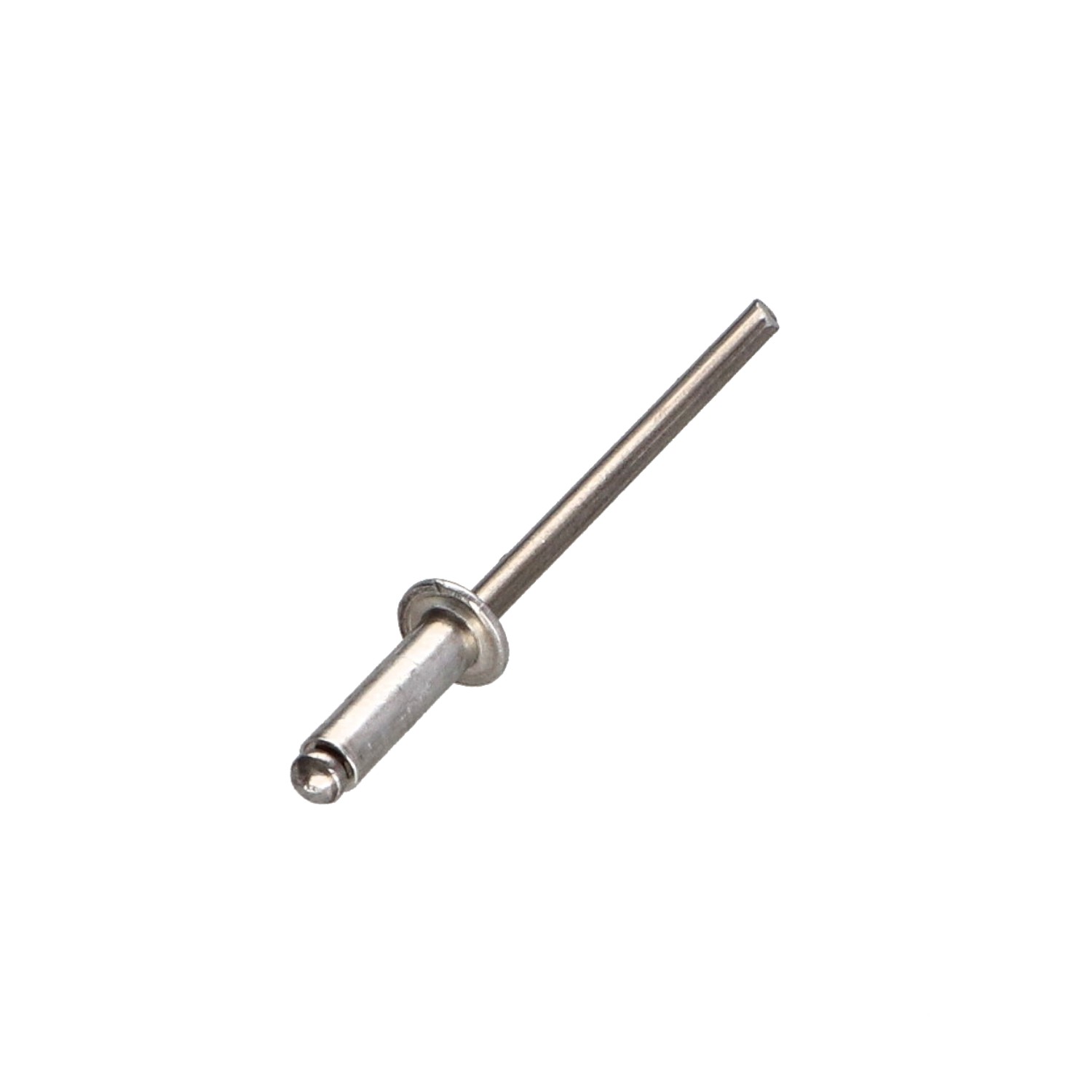

Rivet alu 4.8X16 Thickness Of Panel 9 to 11 Flat Head YOUR
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units
  • 2000 Units

Dimensions shown in millimeters (mm)

Diameter
4.8
Diameter Head
9.5
Material
BODY Aluminium / rod Aluminium
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1300
Clamping thickness
9 a 11 mm
Rivet body length
16
Unit weight
1.7 GR
Head shape
Round Head standard
Hole diameter
5
Tensile strength
2000
13943 Items
3663072064751

Application

  • signage
  • ventilation / ducts
  • DIY & light assembly
  • outdoor equipment
Rivet alu 4.8X16 Thickness Of Panel 9 to 11 Flat Head YOUR
Diameter = Class 4.8, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL)

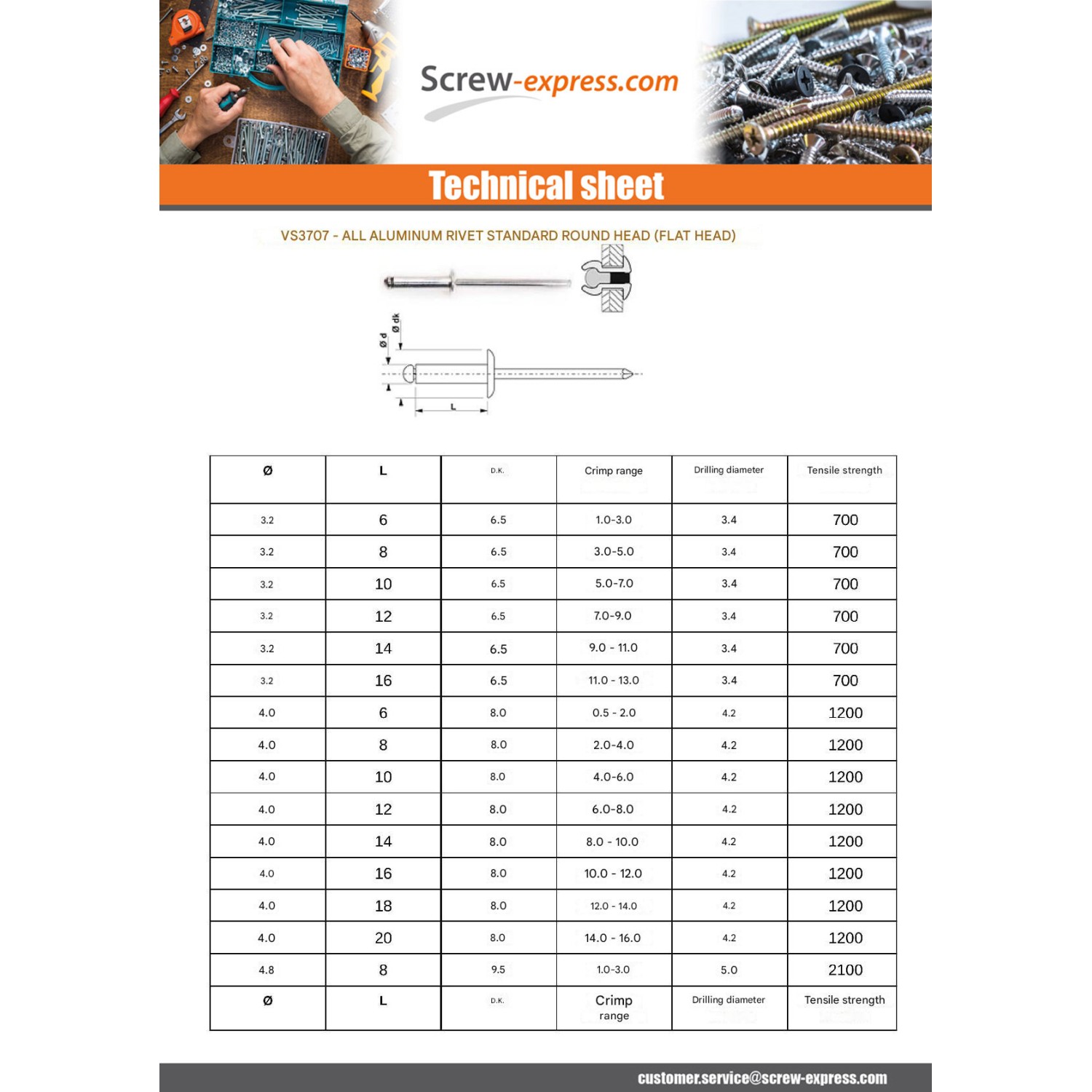

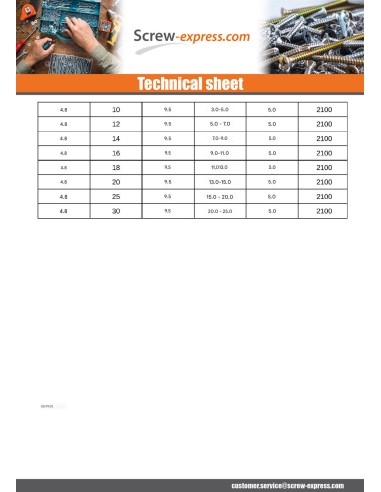

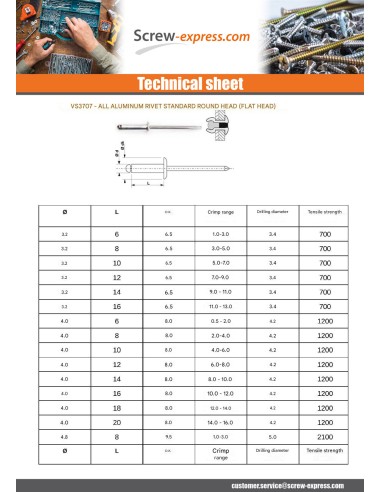

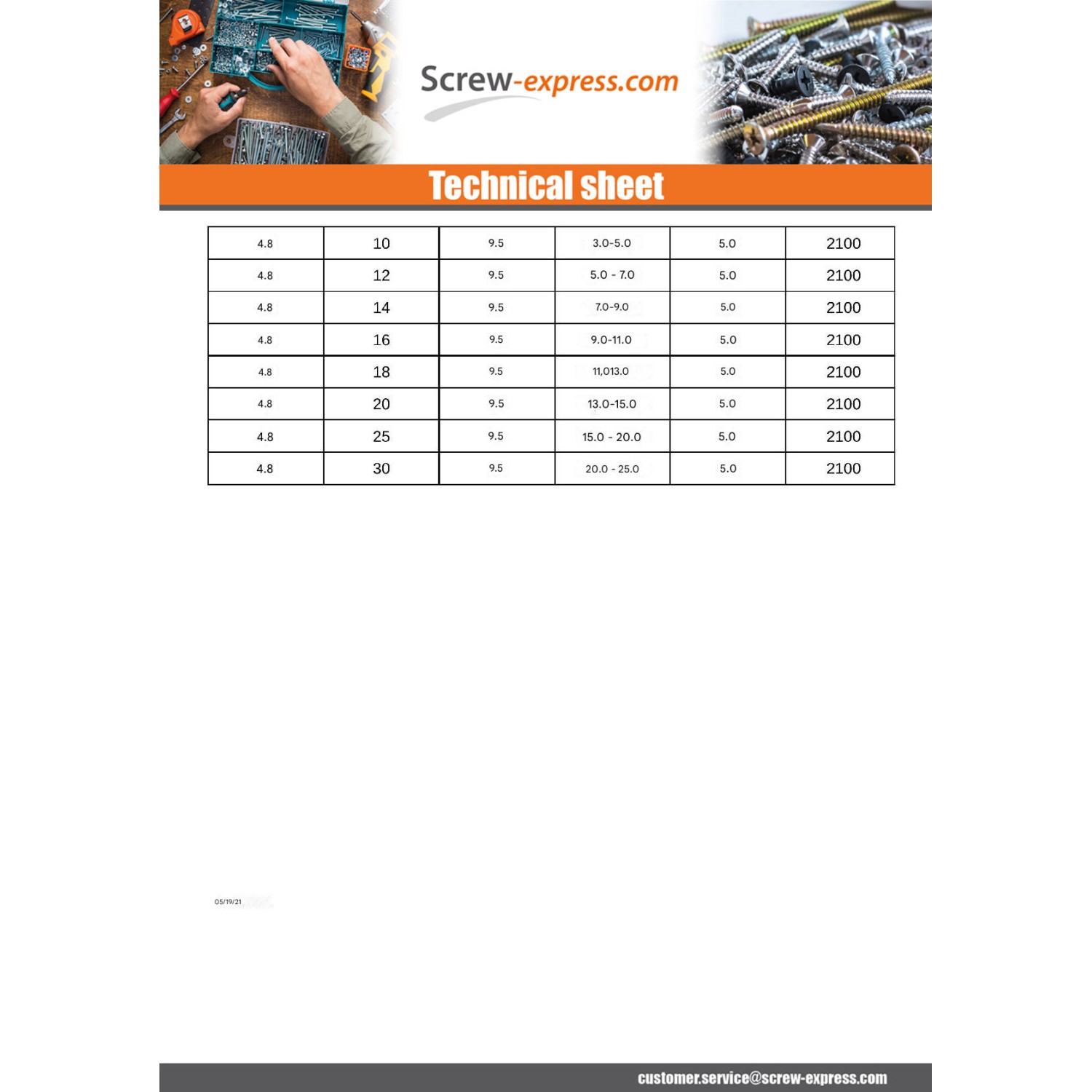

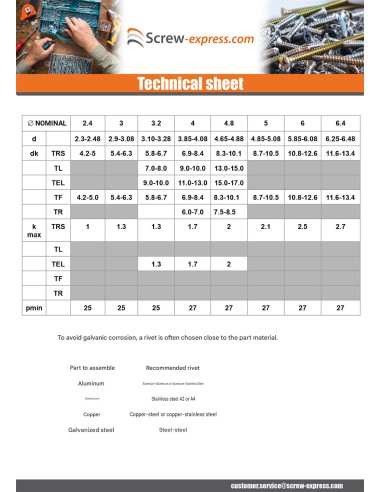

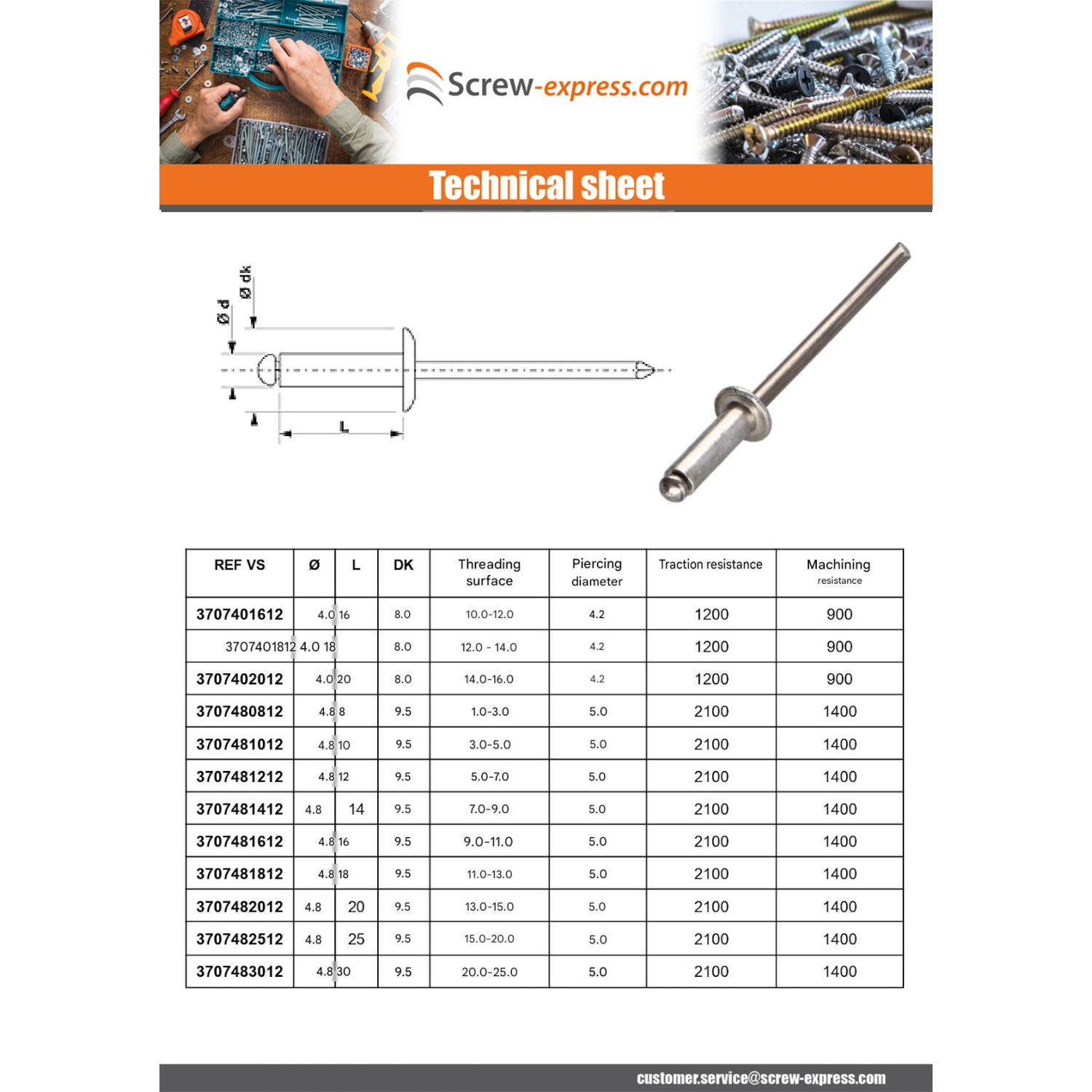

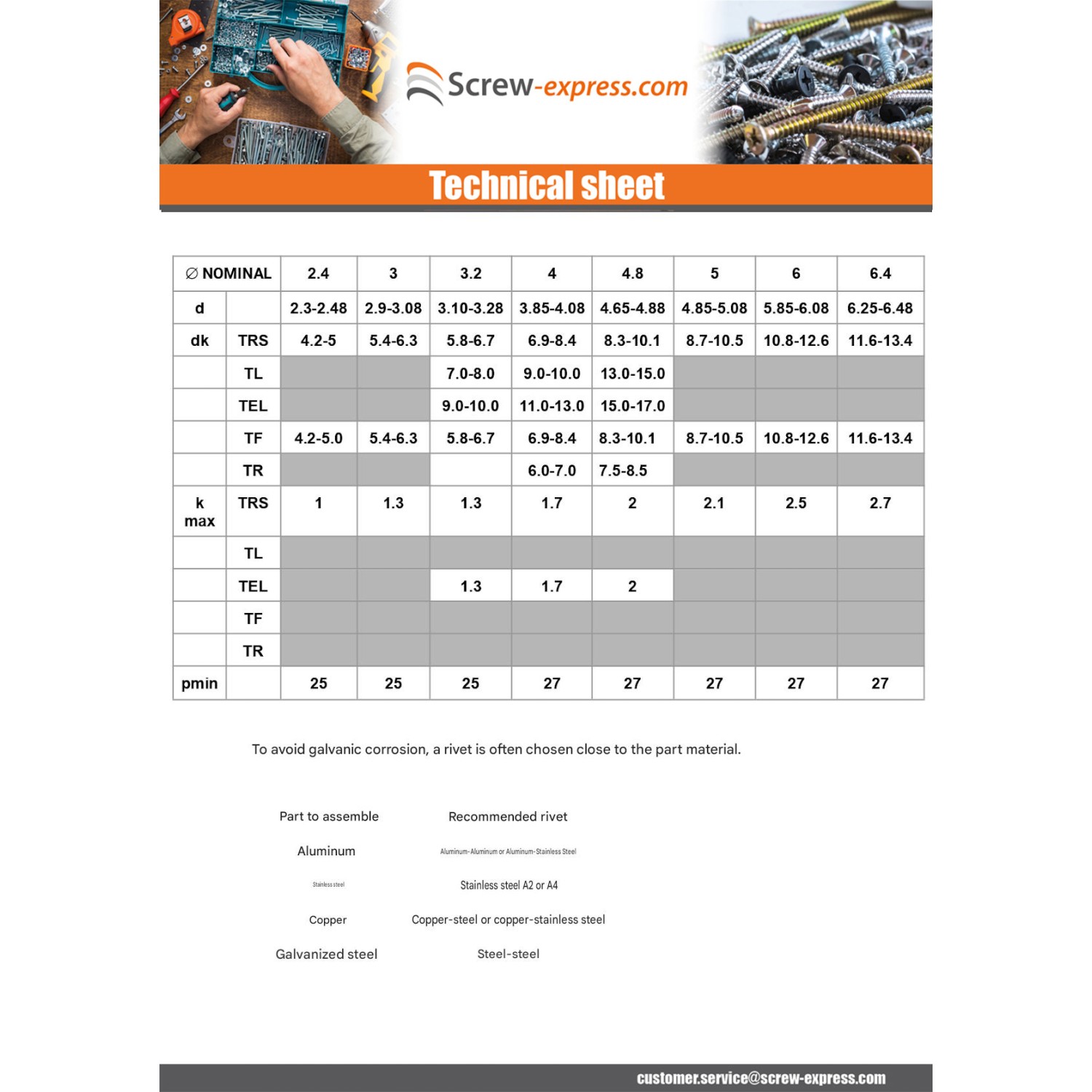

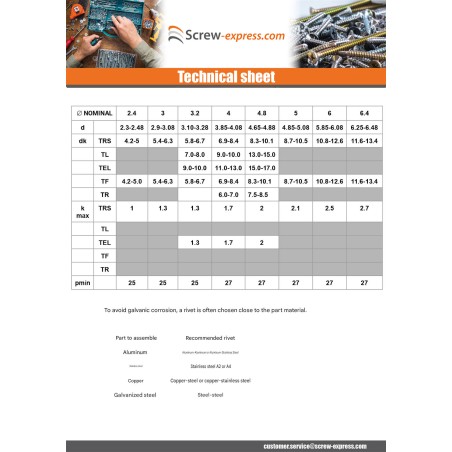

dimensional guide (mm)
Body diameter 3.2 4 4.8
Head diameter 6.5 4 4.8
Drilling diameter 3.4 4.2 5
longueur tige 25 27 27
resistance a la traction 1100 1500 2100
Shear strength 800 1000 1400
la longueur du corps est indique dans la designation

Other Reference : 102148161 R002479 AN /AN 20910213 80005016 A008954 3663072064751
