3707401812_1
In stock 7130 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €3.85 €7.70 €9.25 €24.45

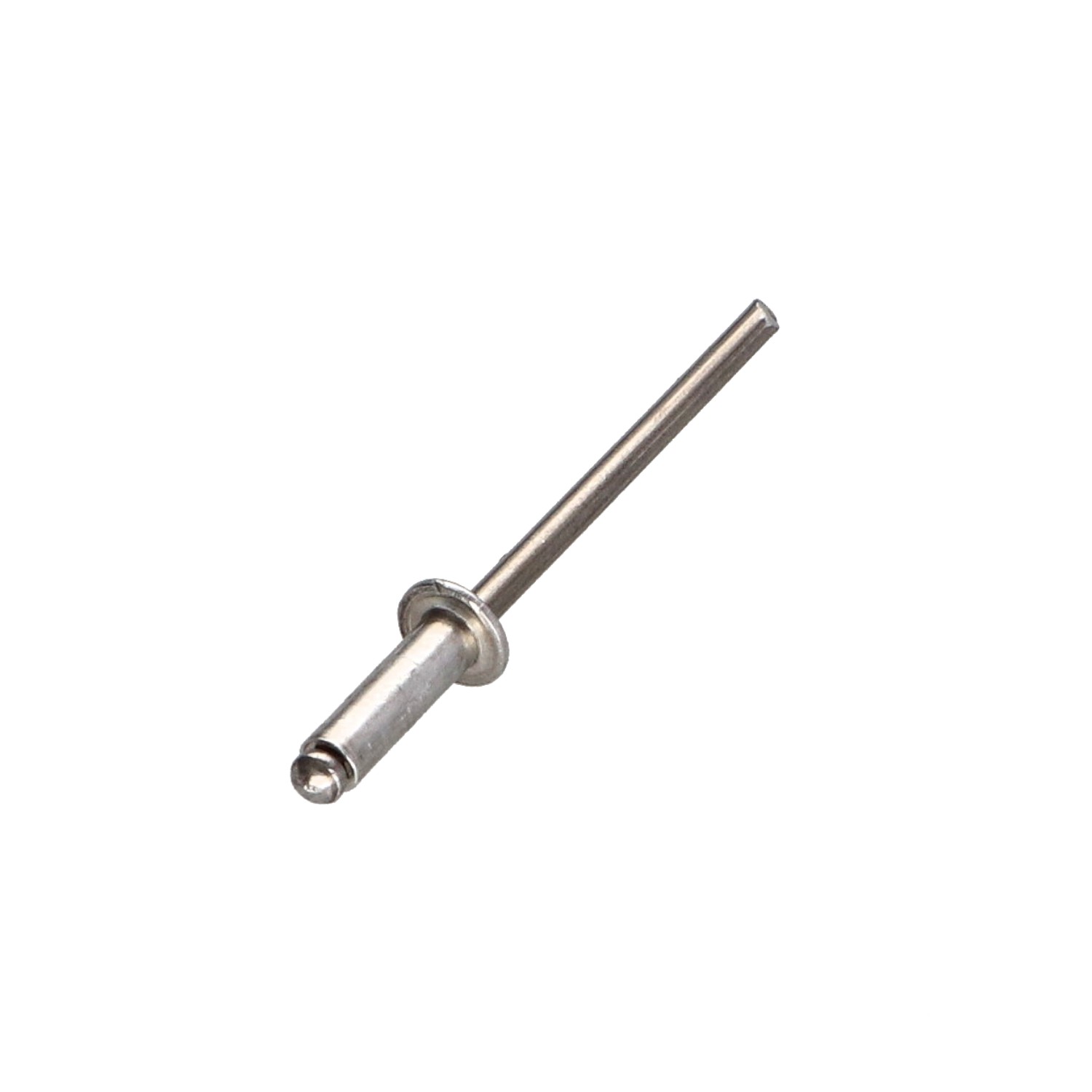

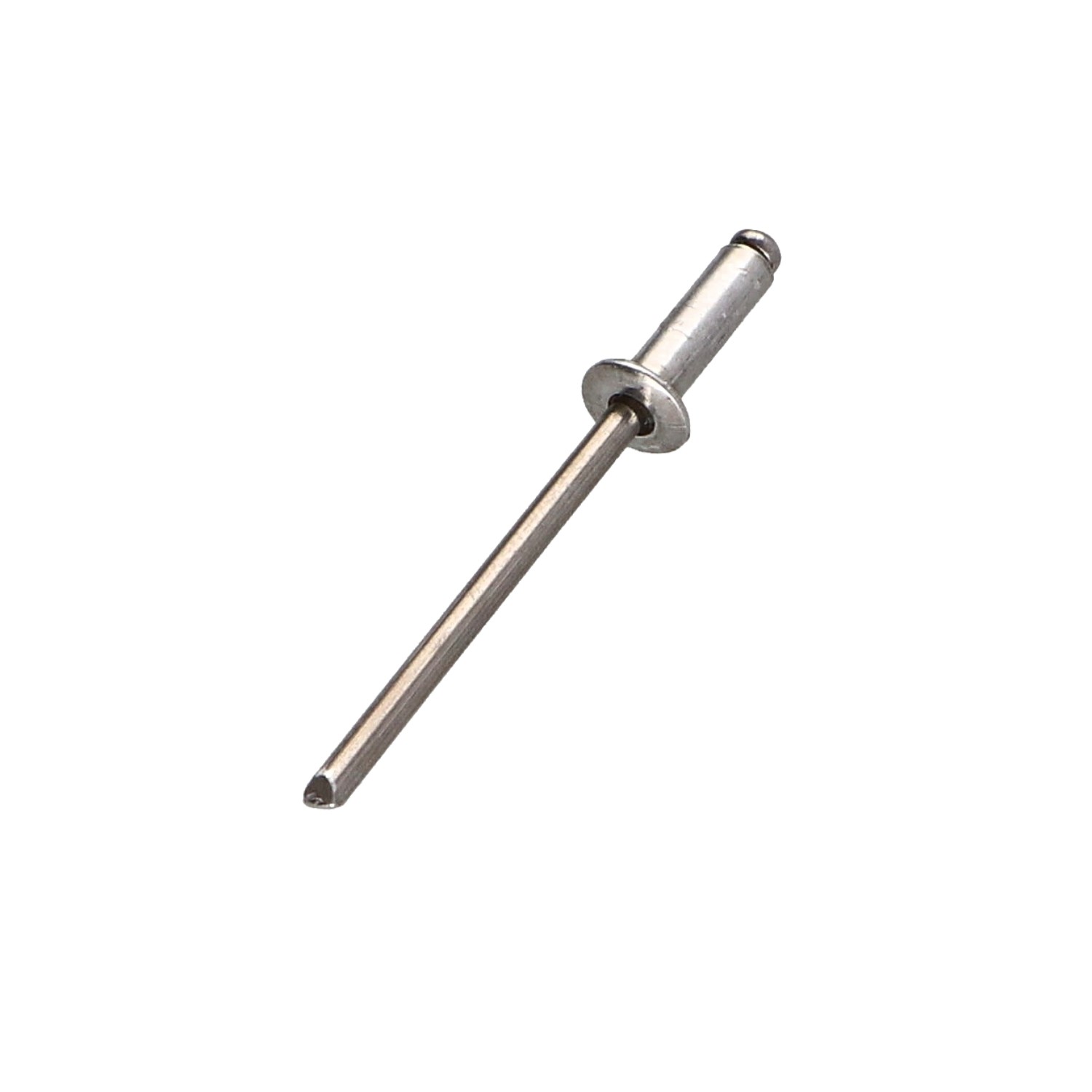

Rivet alu 4X18 Thickness Of Panel 12 to 14 Flat Head YOUR
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

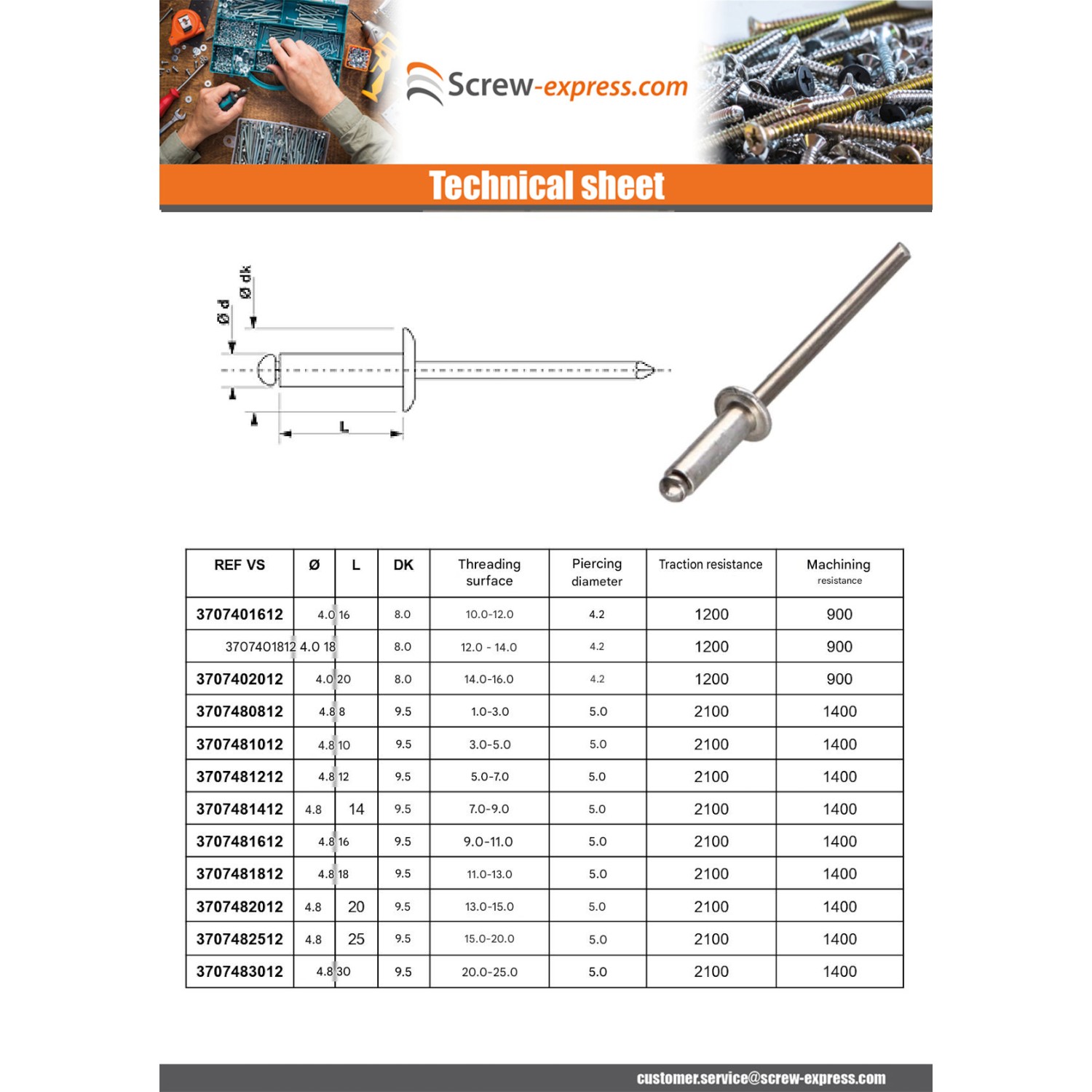

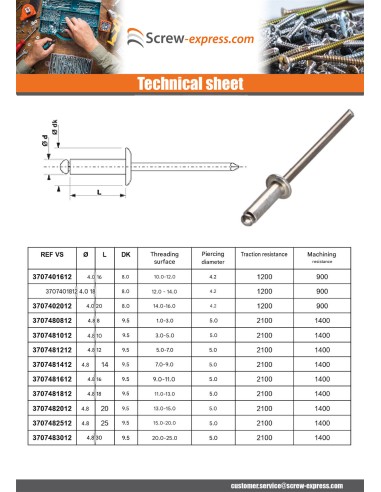

Dimensions shown in millimeters (mm)

Diameter
4
Diameter Head
8
Material
BODY Aluminium / rod Aluminium
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
800
Clamping thickness
12 a 14 mm
Rivet body length
18
Unit weight
1.1 GR
Head shape
Round Head standard
Hole diameter
4.2
Tensile strength
1200
7130 Items
3663072302716

Application

  • signage
  • ventilation / ducts
  • DIY & light assembly
  • outdoor equipment
Rivet alu 4X18 Thickness Of Panel 12 to 14 Flat Head YOUR
Diameter = 4, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL)

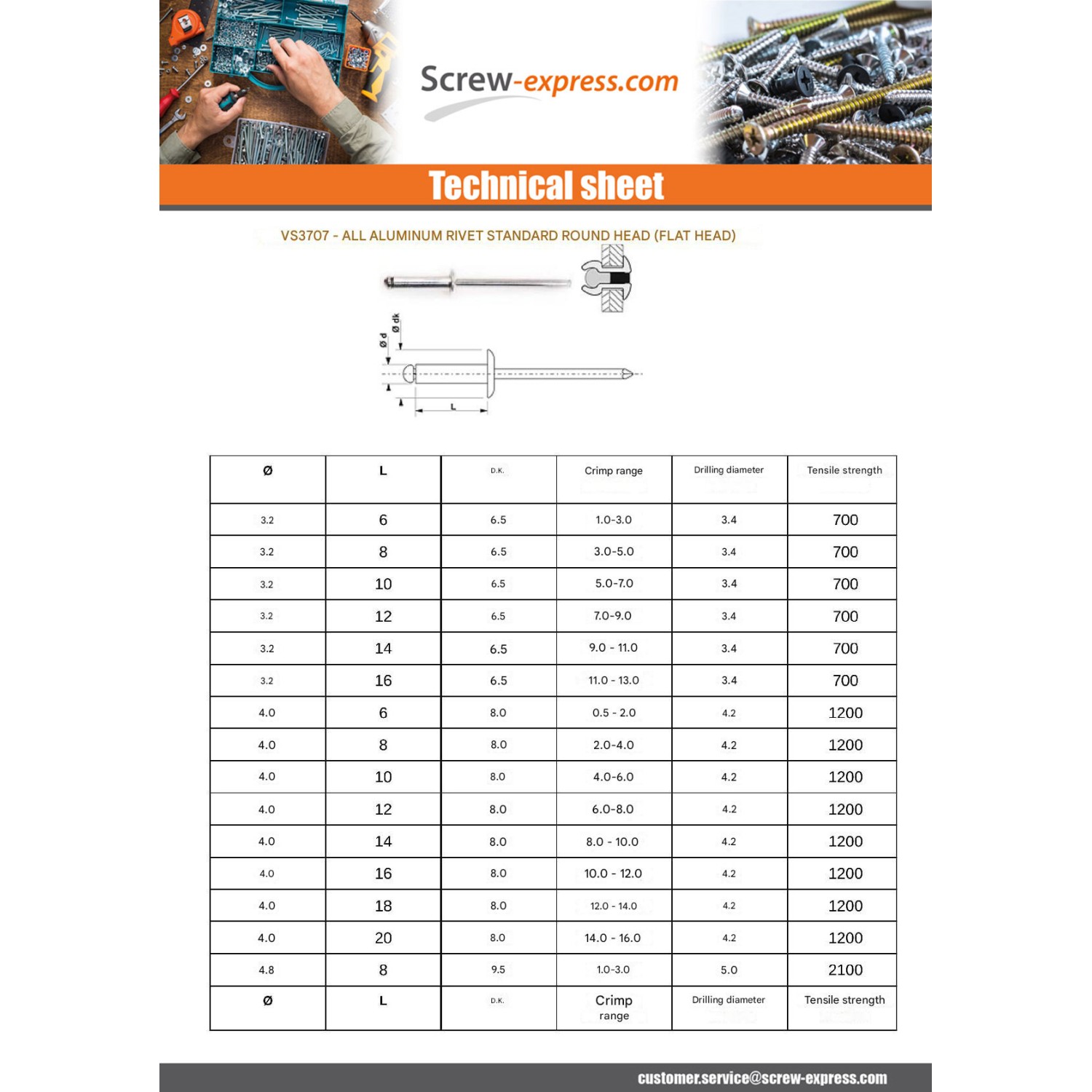

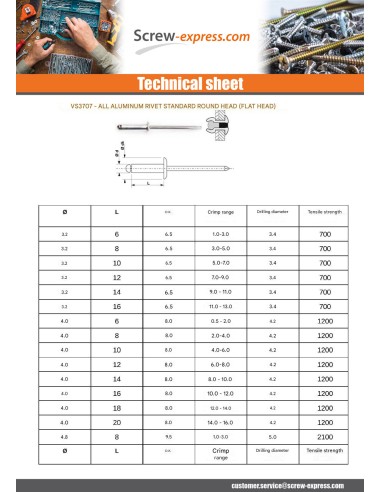

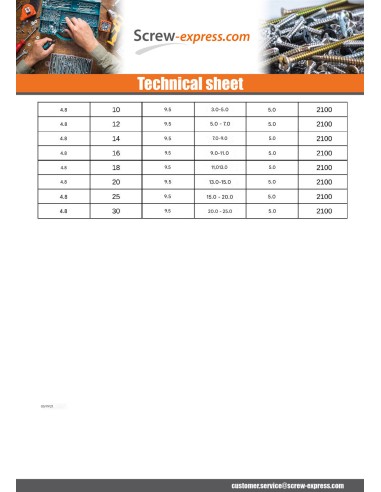

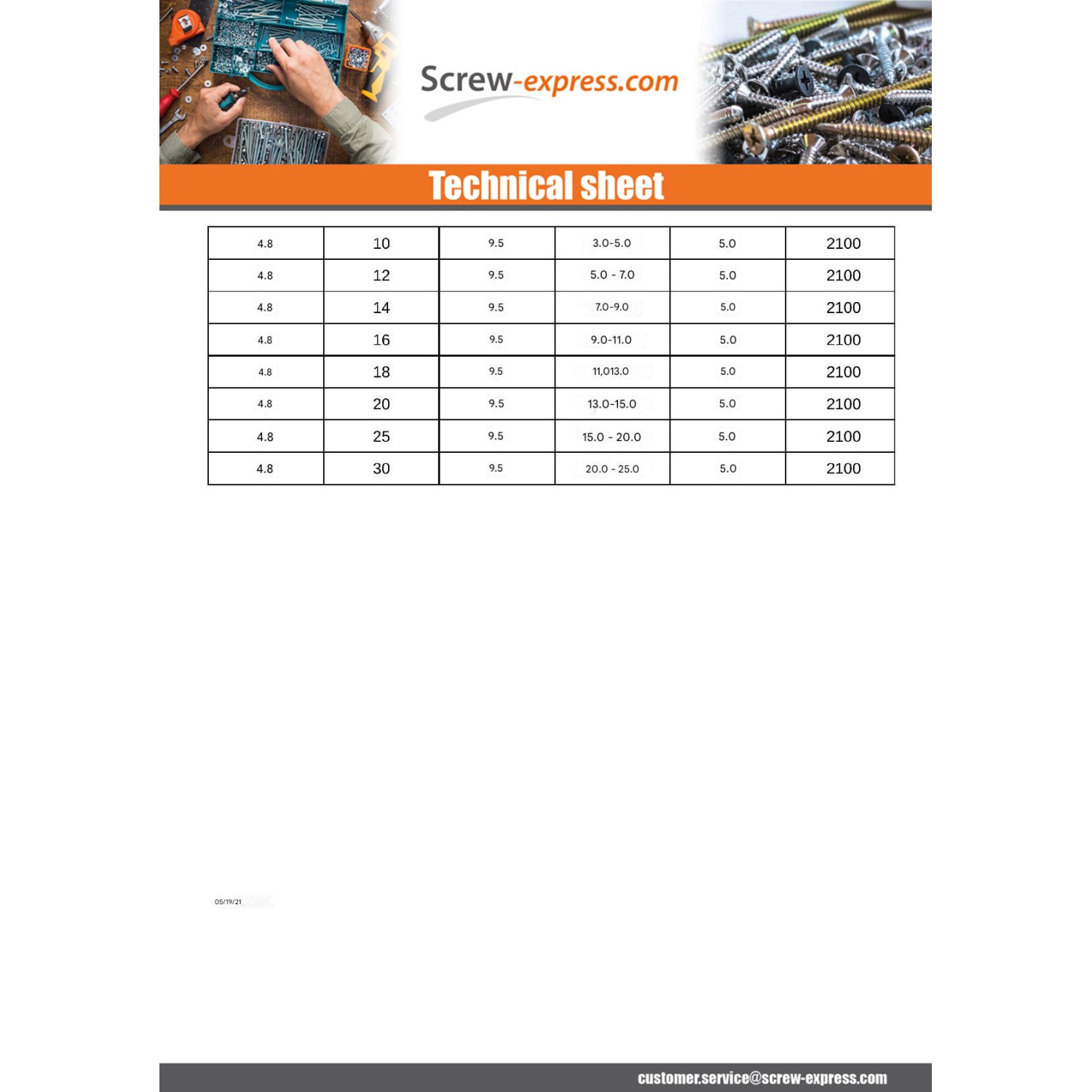

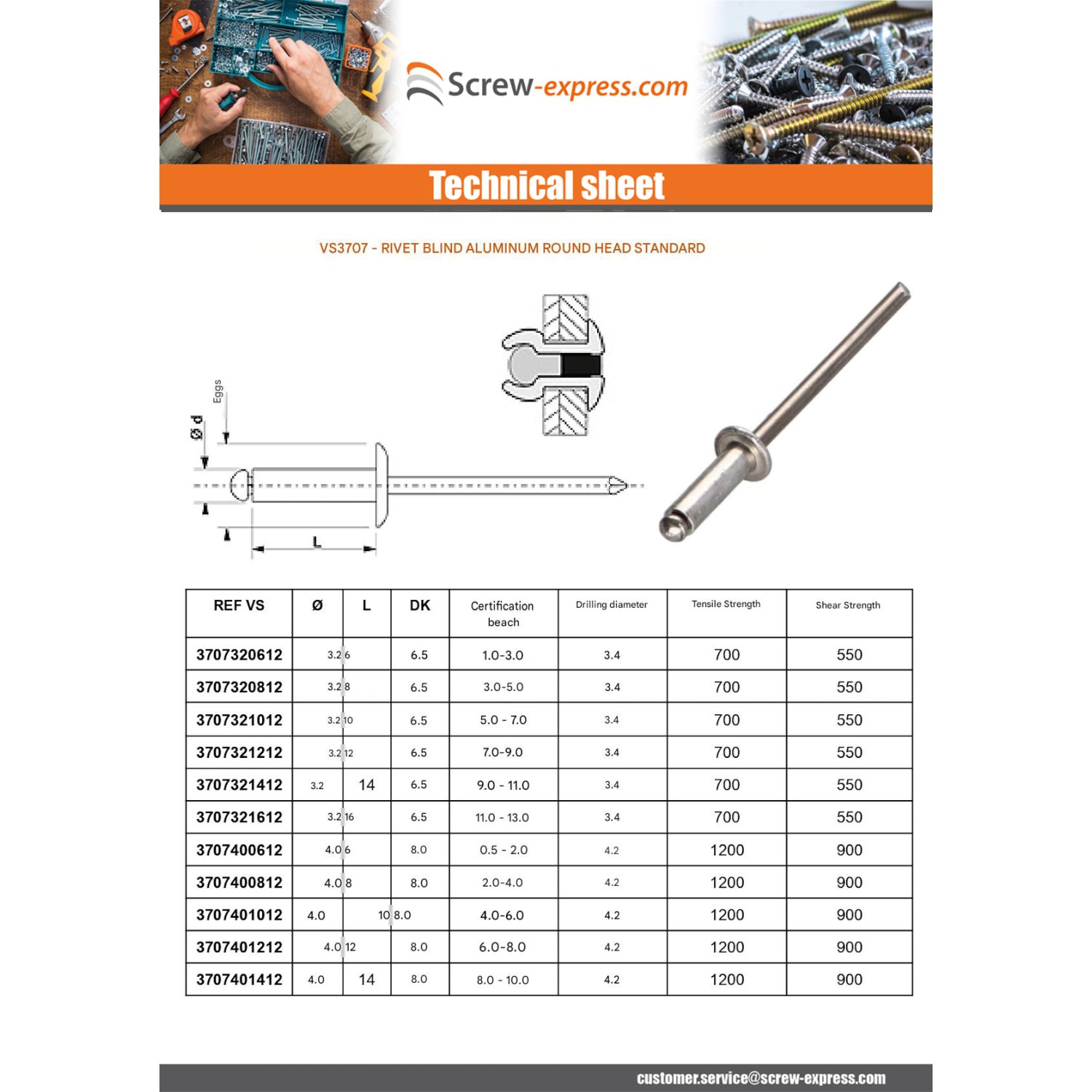

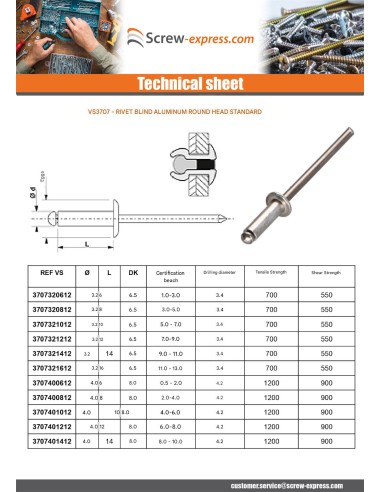

dimensional guide (mm)
Body diameter 3.2 4 4.8
Head diameter 6.5 4 4.8
Drilling diameter 3.4 4.2 5
longueur tige 25 27 27
resistance a la traction 1100 1500 2100
Shear strength 800 1000 1400
la longueur du corps est indique dans la designation

Other Reference : 102140181 0846/0418 (P00000328) 3663072302716
