3707482012_1
In stock 5475 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €4.25 €8.45 €15.05 €71.40

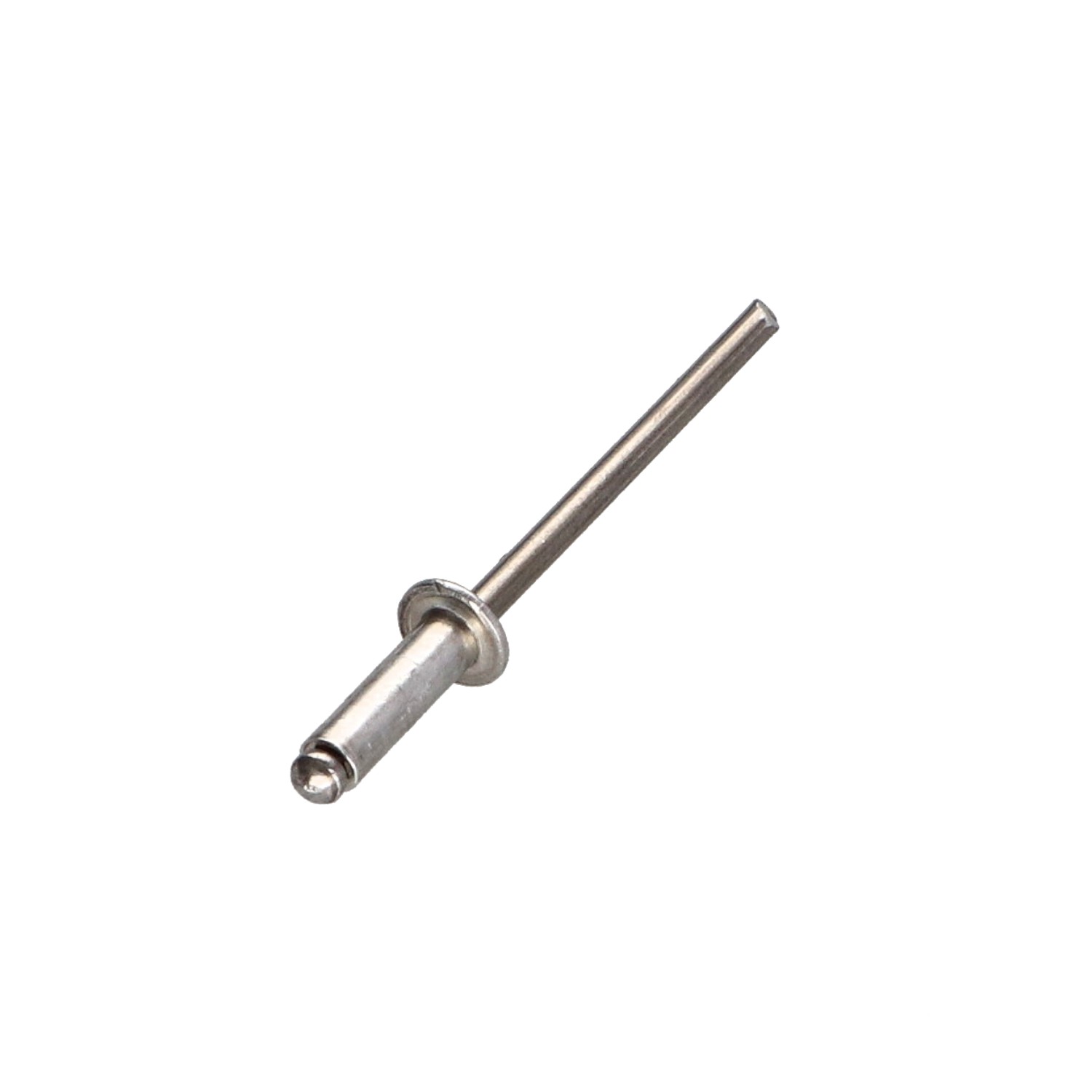

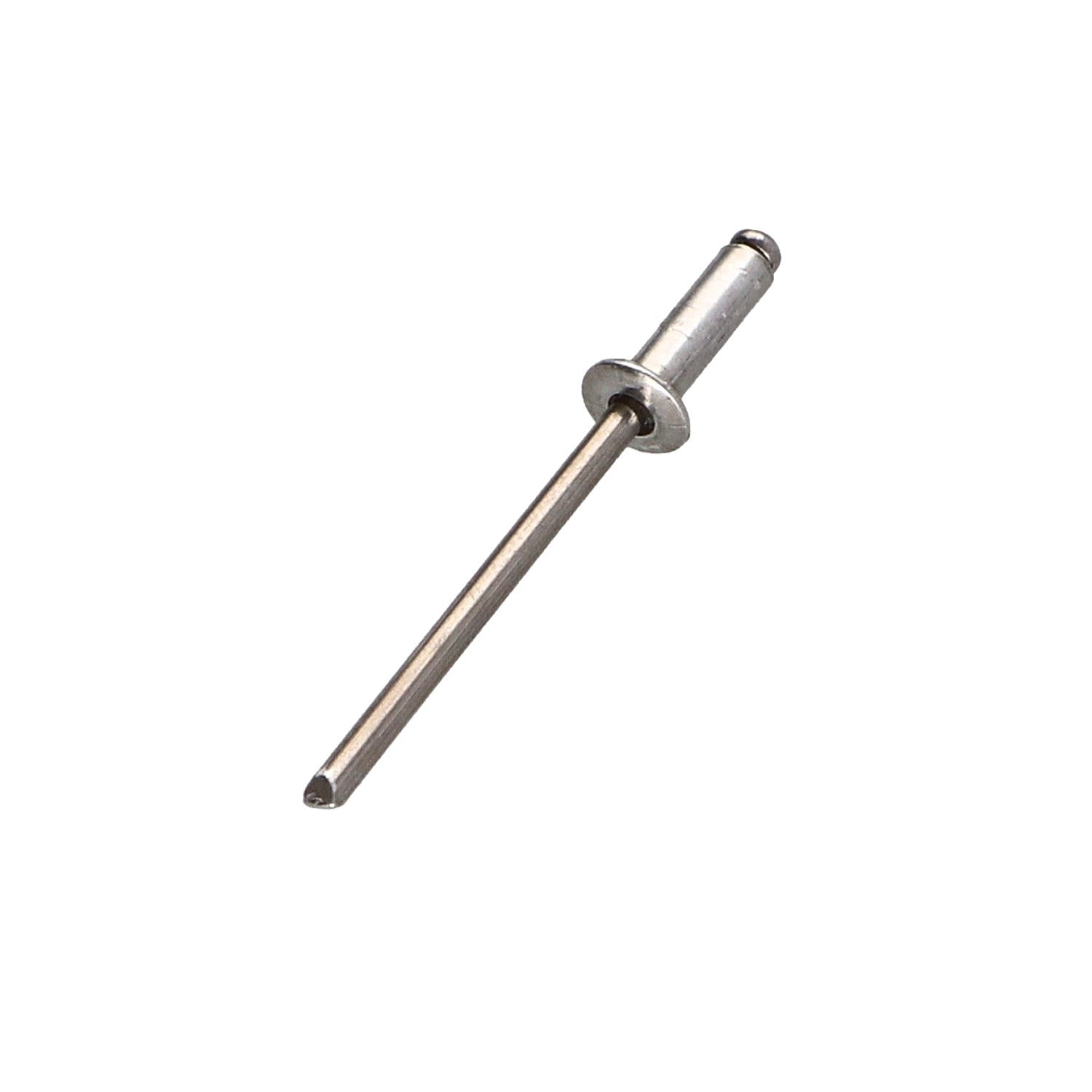

Rivet alu 4.8X20 Thickness Of Panel 13 to 15 Flat Head YOUR
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

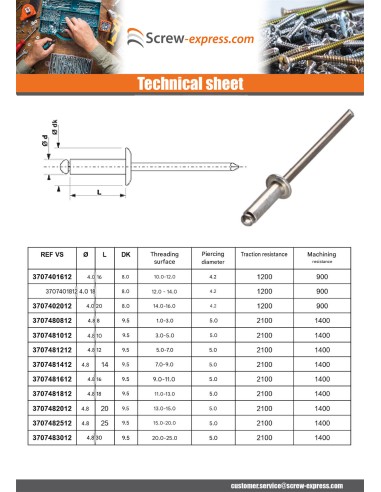

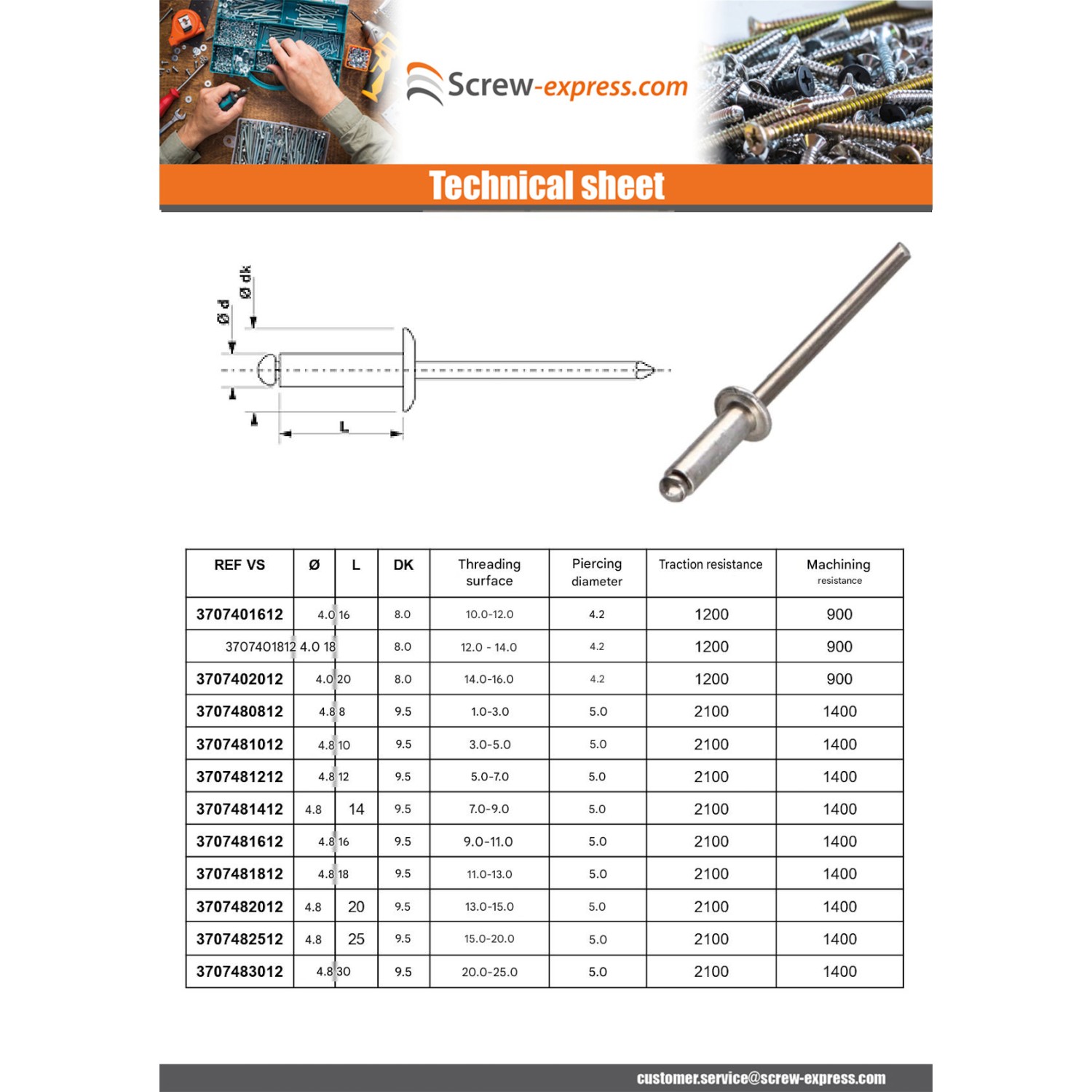

Dimensions shown in millimeters (mm)

Diameter
4.8
Diameter Head
9.5
Material
BODY Aluminium / rod Aluminium
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1300
Clamping thickness
13 a 15 mm
Rivet body length
20
Unit weight
1.9 GR
Head shape
Round Head standard
Hole diameter
5
Tensile strength
2000
5475 Items
3663072302747

Application

  • signage
  • ventilation / ducts
  • DIY & light assembly
  • outdoor equipment
Rivet alu 4.8X20 Thickness Of Panel 13 to 15 Flat Head YOUR
Diameter = Class 4.8, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL)

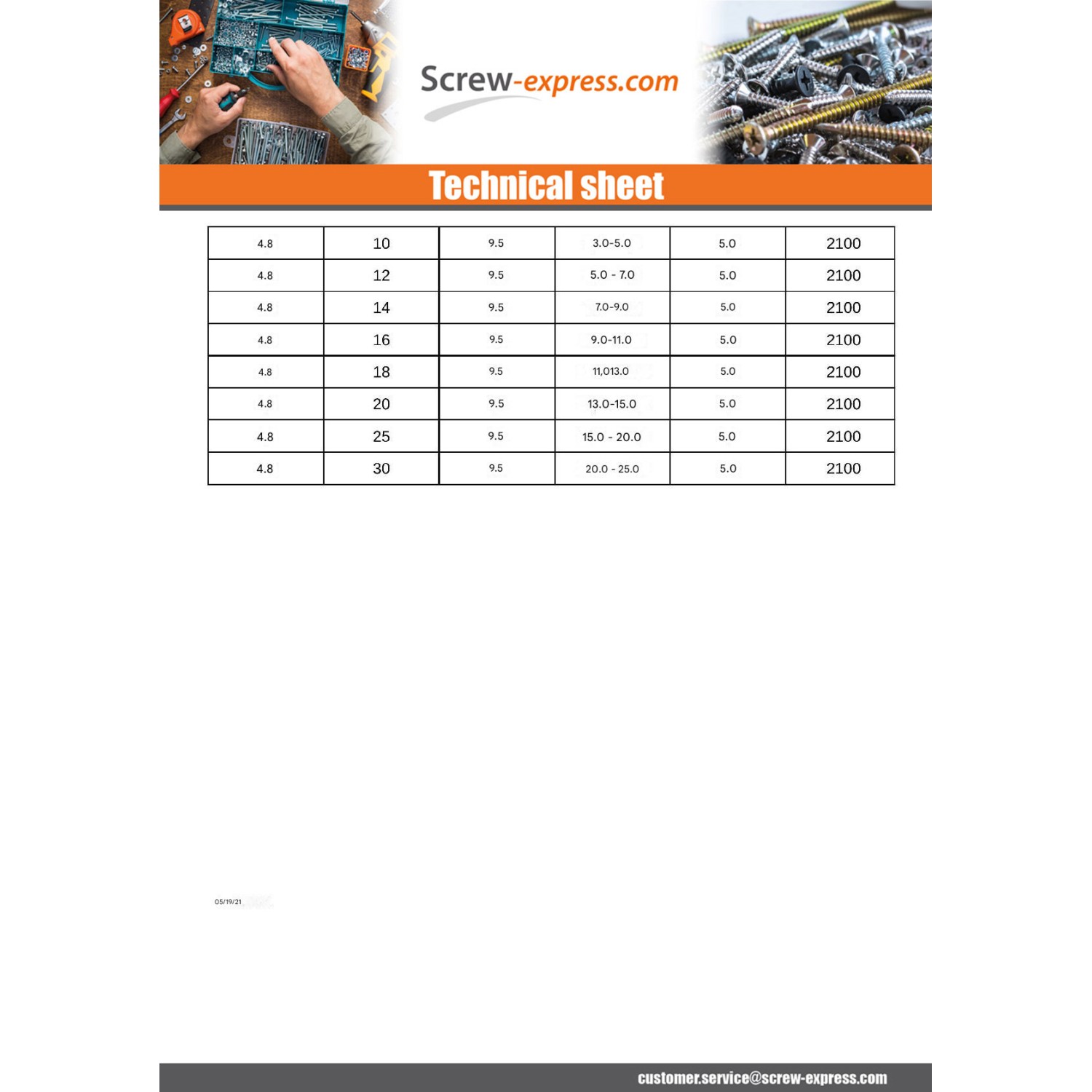

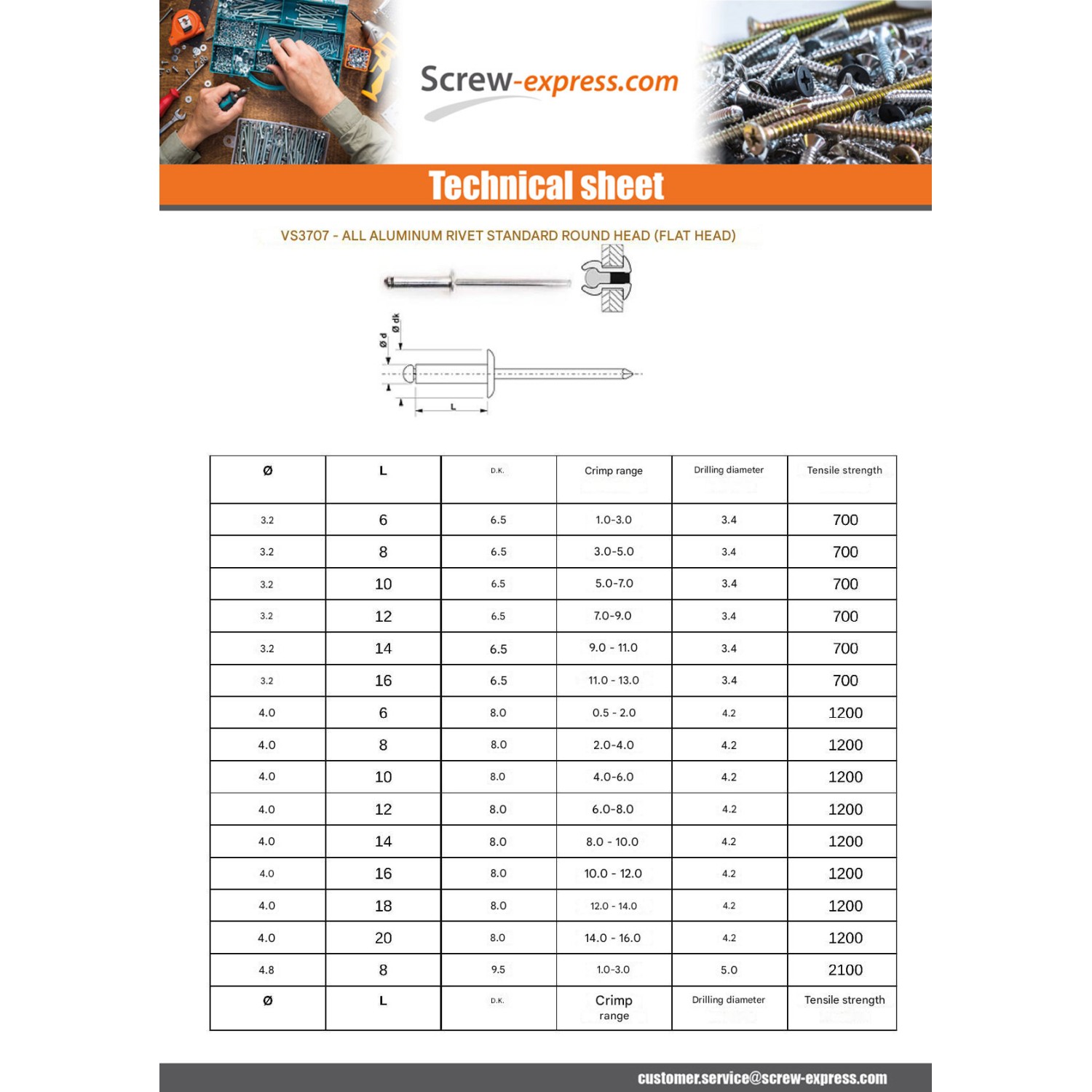

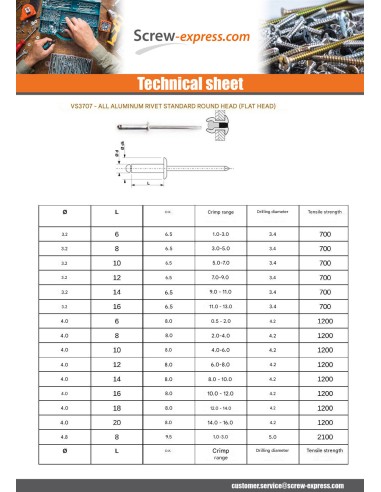

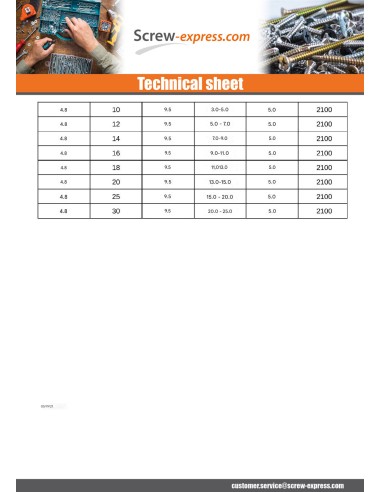

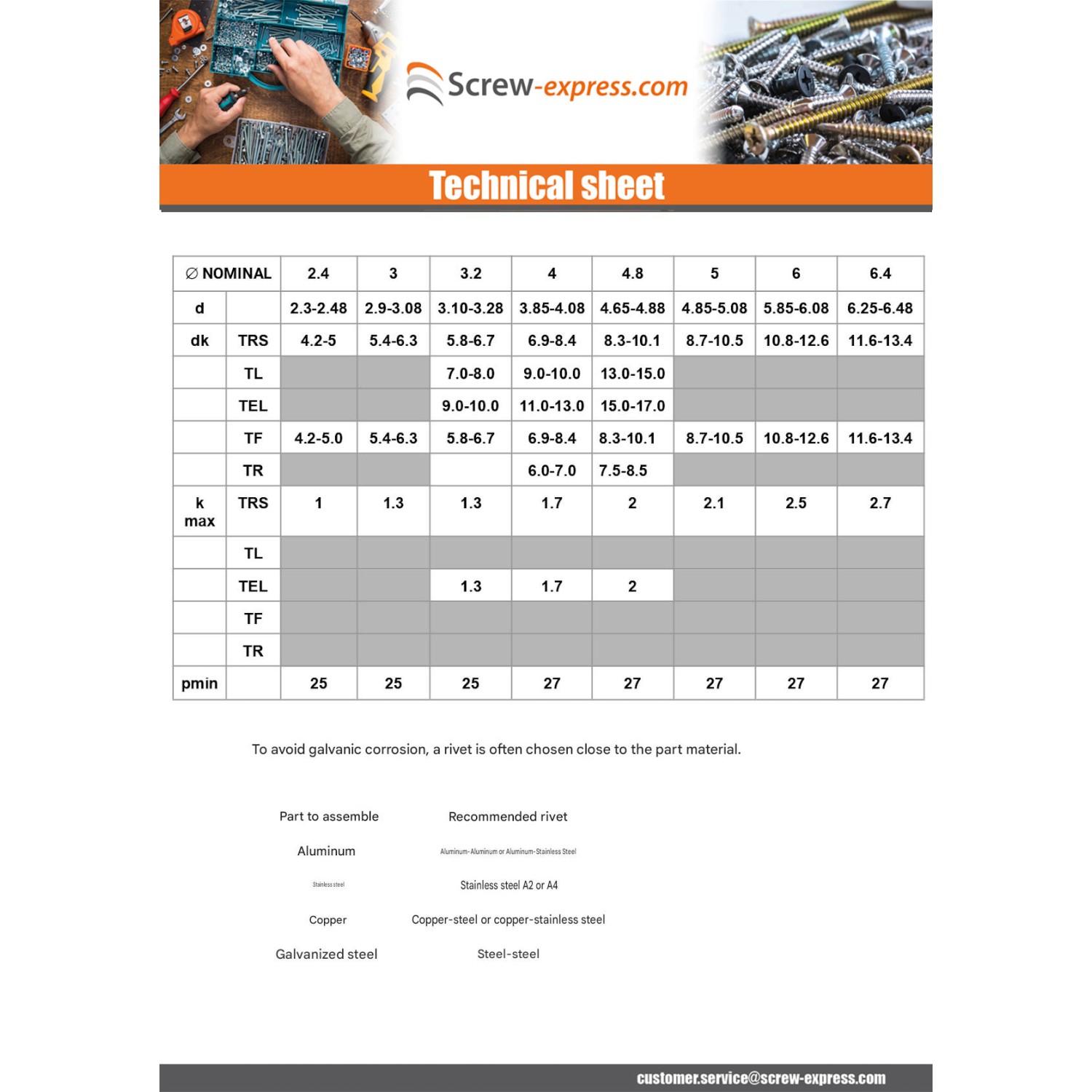

dimensional guide (mm)
Body diameter 3.2 4 4.8
Head diameter 6.5 4 4.8
Drilling diameter 3.4 4.2 5
longueur tige 25 27 27
resistance a la traction 1100 1500 2100
Shear strength 800 1000 1400
la longueur du corps est indique dans la designation

Other Reference : 102148201 / CDE / CDE /AN VISS114 000DR928 3663072302747
