3707400812_1
In stock 19548 Pièces
€1.70 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500 2000
Lot price VAT included €1.70 €3.40 €5.25 €21.75 €87.00

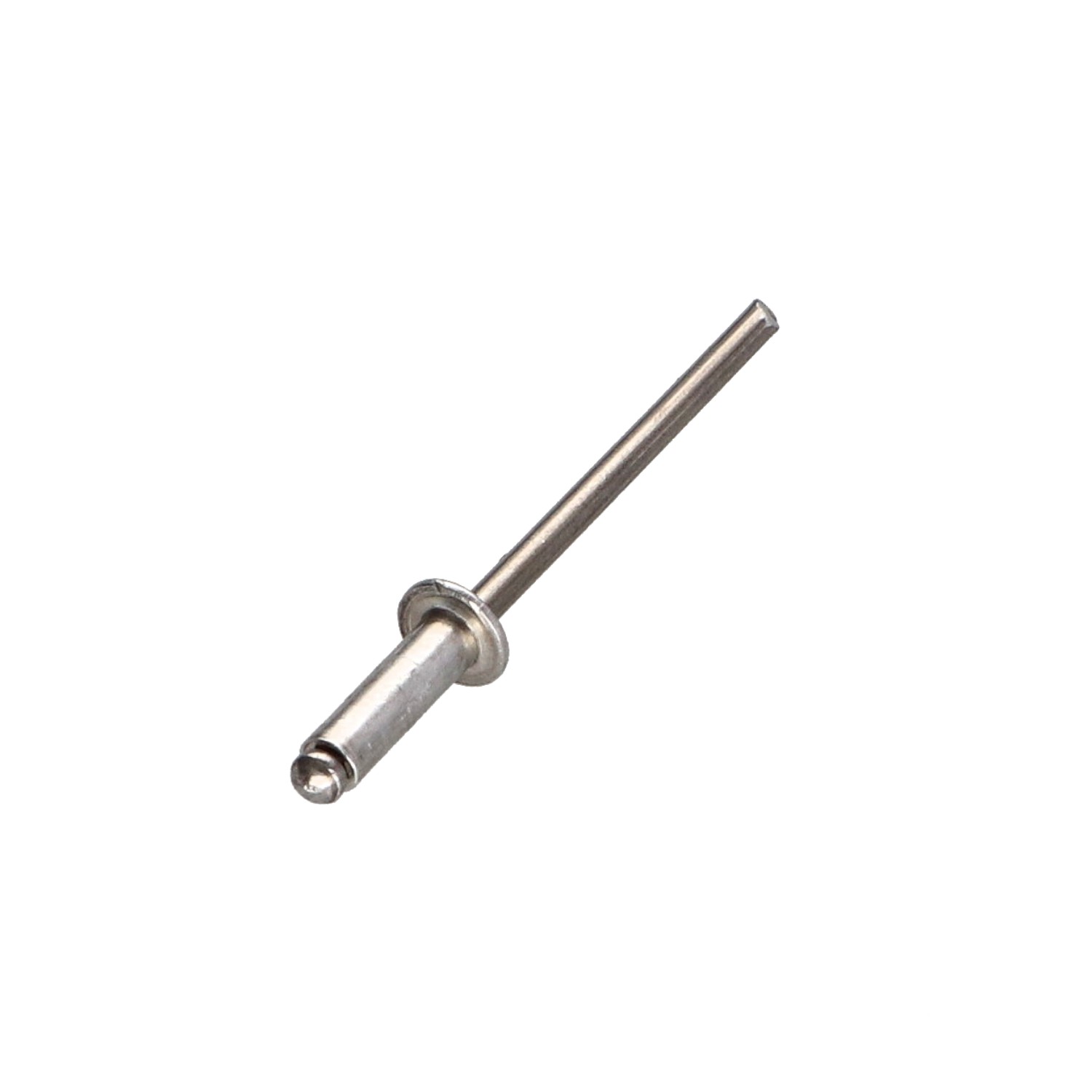

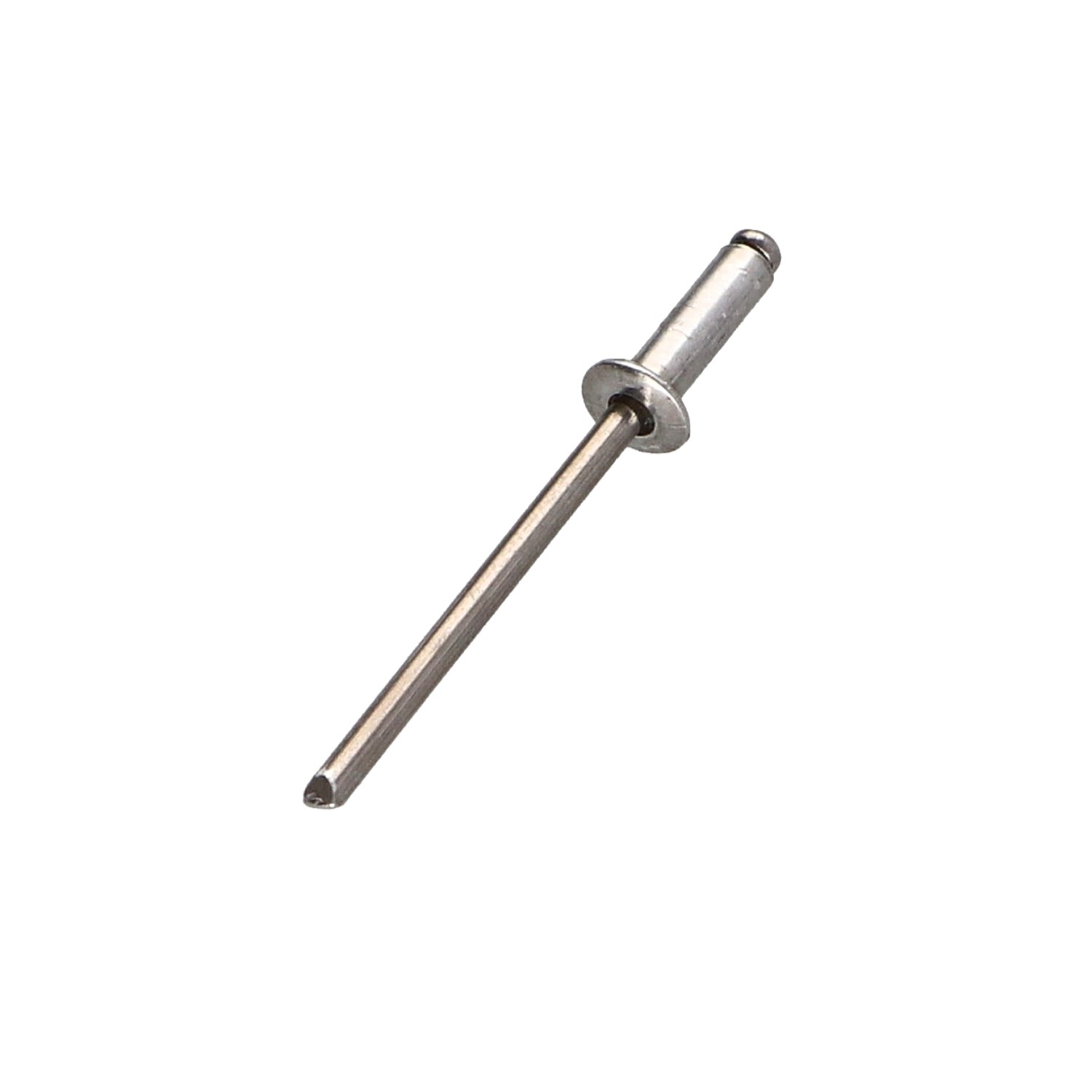

Rivet alu 4X8 Thickness Of Panel 2 to 4 Flat Head YOUR
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units
  • 2000 Units

Dimensions shown in millimeters (mm)

Diameter
4
Diameter Head
8
Material
BODY Aluminium / rod Aluminium
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
800
Clamping thickness
2 a 4 mm
Rivet body length
8
Unit weight
0.8 GR
Head shape
Round Head standard
Hole diameter
4.2
Tensile strength
1200
19548 Items
3663072064713

Application

  • signage
  • ventilation / ducts
  • DIY & light assembly
  • outdoor equipment
Rivet alu 4X8 Thickness Of Panel 2 to 4 Flat Head YOUR
Diameter = 4, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL)

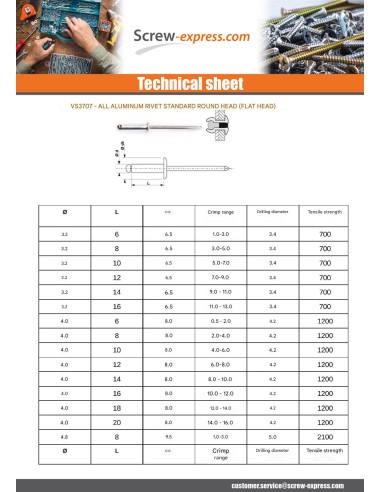

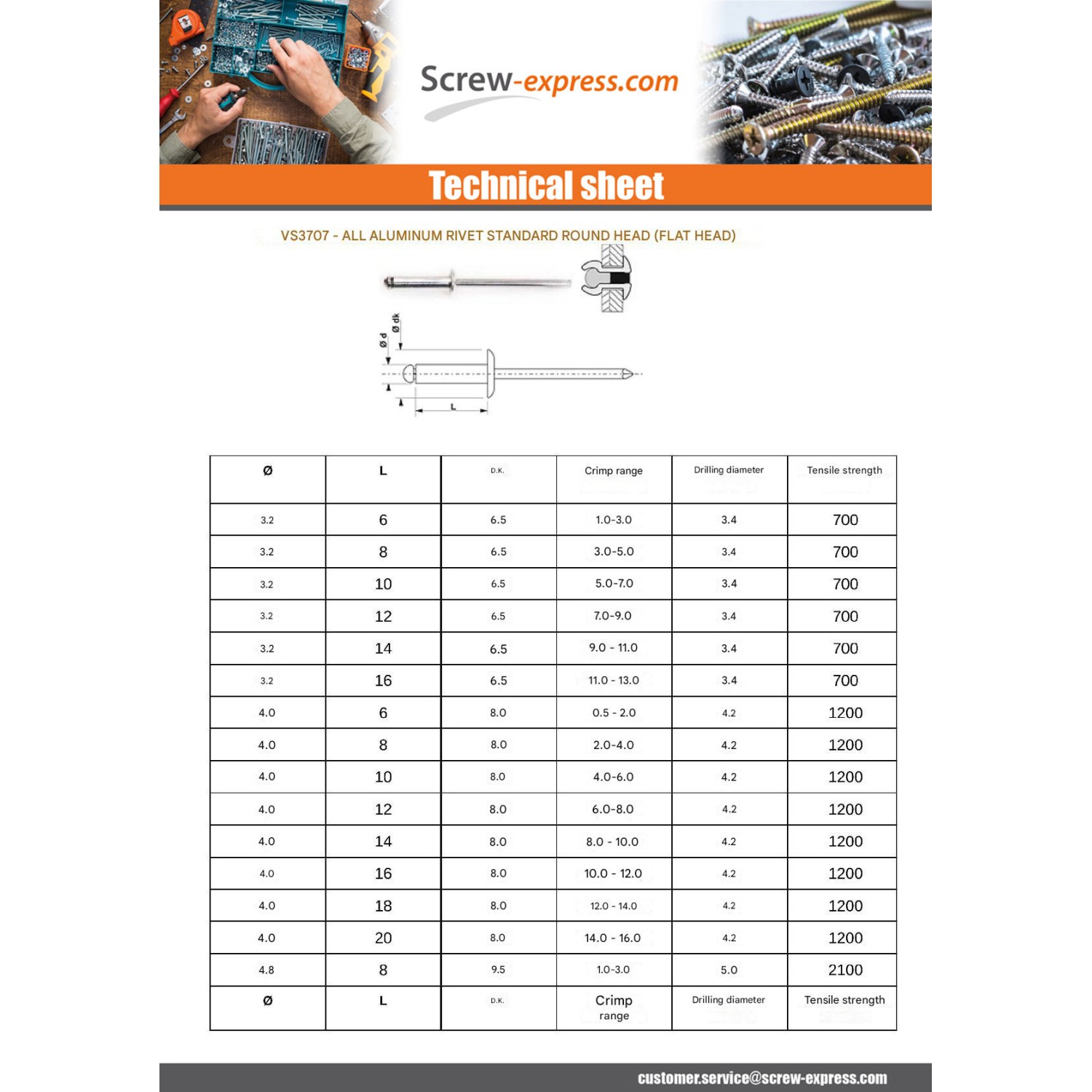

dimensional guide (mm)
Body diameter 3.2 4 4.8
Head diameter 6.5 4 4.8
Drilling diameter 3.4 4.2 5
longueur tige 25 27 27
resistance a la traction 1100 1500 2100
Shear strength 800 1000 1400
la longueur du corps est indique dans la designation

Other Reference : 102140081 RIV-ALU-4X8 / CDE C171014.00 RIV4X8 911542 911542 000DR915 3663072064713
