3707481628_1
In stock 2843 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €3.85 €7.70 €34.90 €165.85

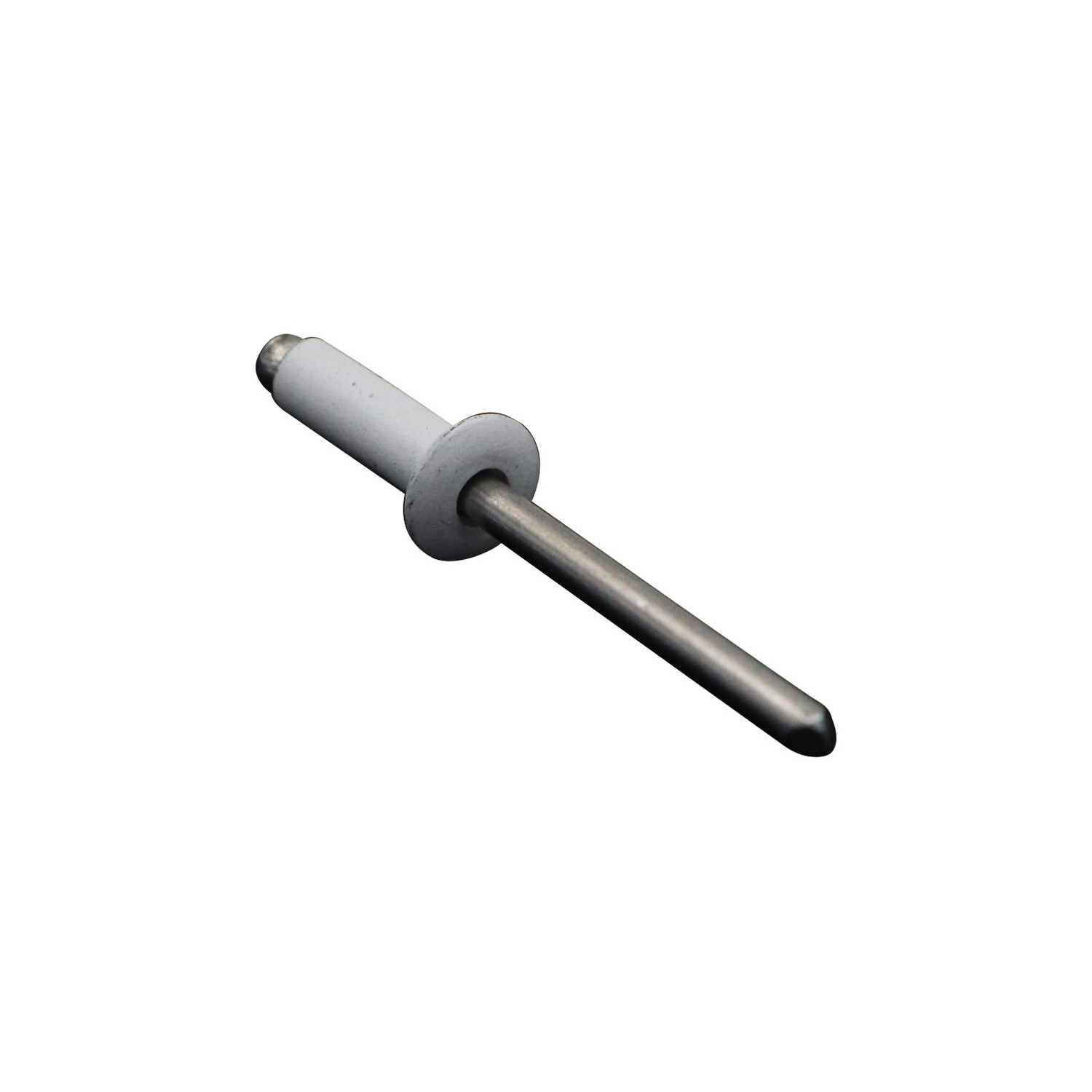

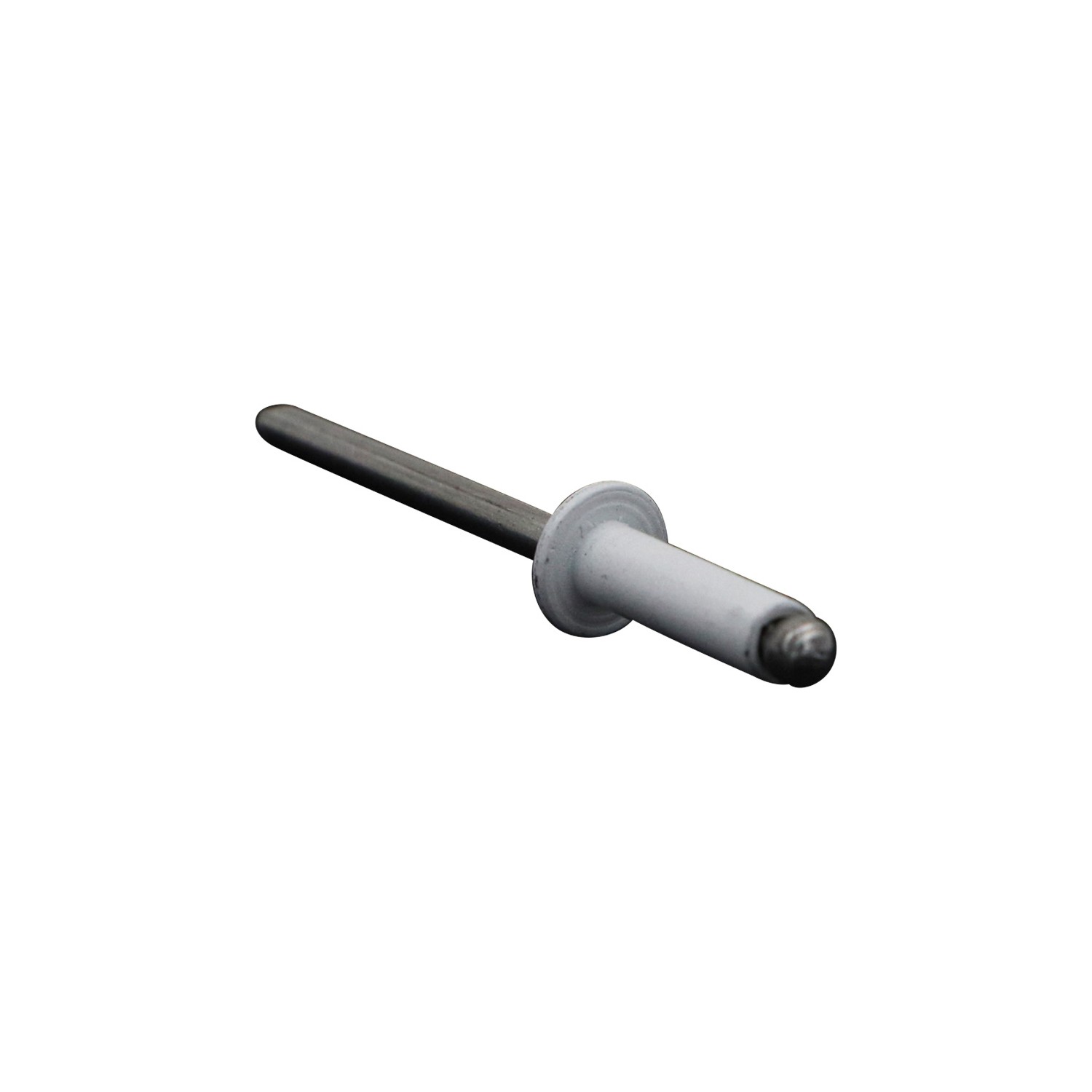

Rivet alu 4.8X16 Flat Head Ral9016/Traffic Signalisation
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
4.8
Diameter Head
9.5
Material
BODY Aluminium / rod Aluminium
COLOR
Ral9016/Traffic Signalisation
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1300
Clamping thickness
9 A 11
Rivet body length
16
Unit weight
1.7 GR
Head shape
Round Head standard
Hole diameter
5
Tensile strength
2000
2843 Items
3663072347854

Application

  • signage
  • ventilation / ducts
  • DIY & light assembly
  • outdoor equipment
Rivet alu 4.8X16 Flat Head Ral9016/Traffic Signalisation
Diameter = Class 4.8, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL)

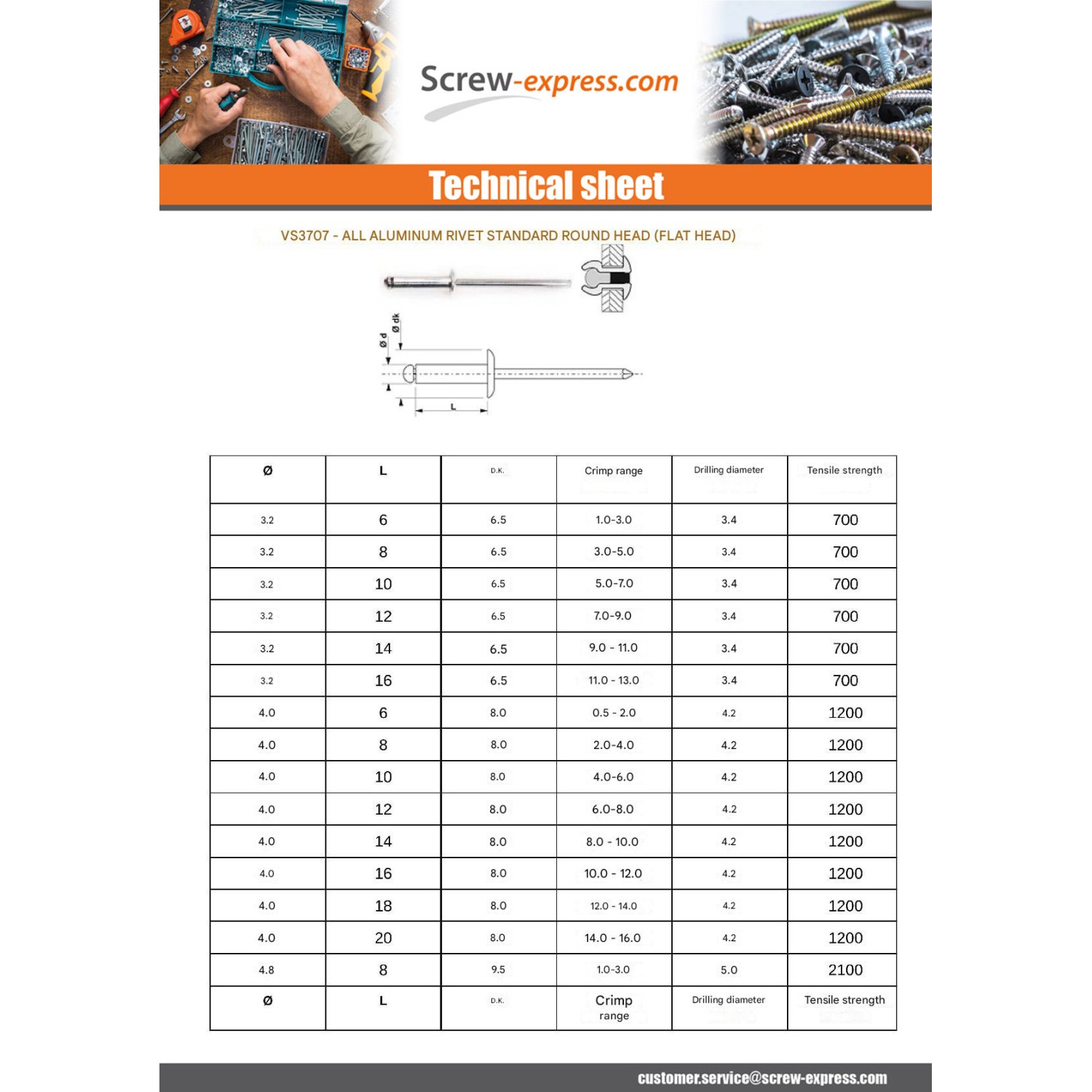

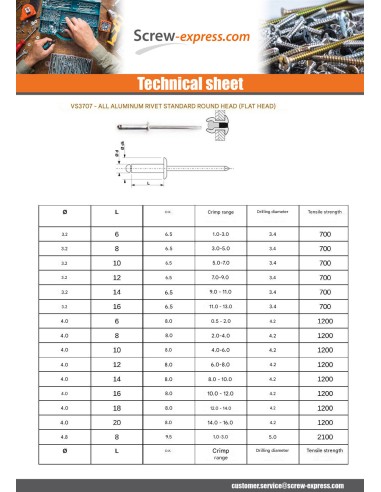

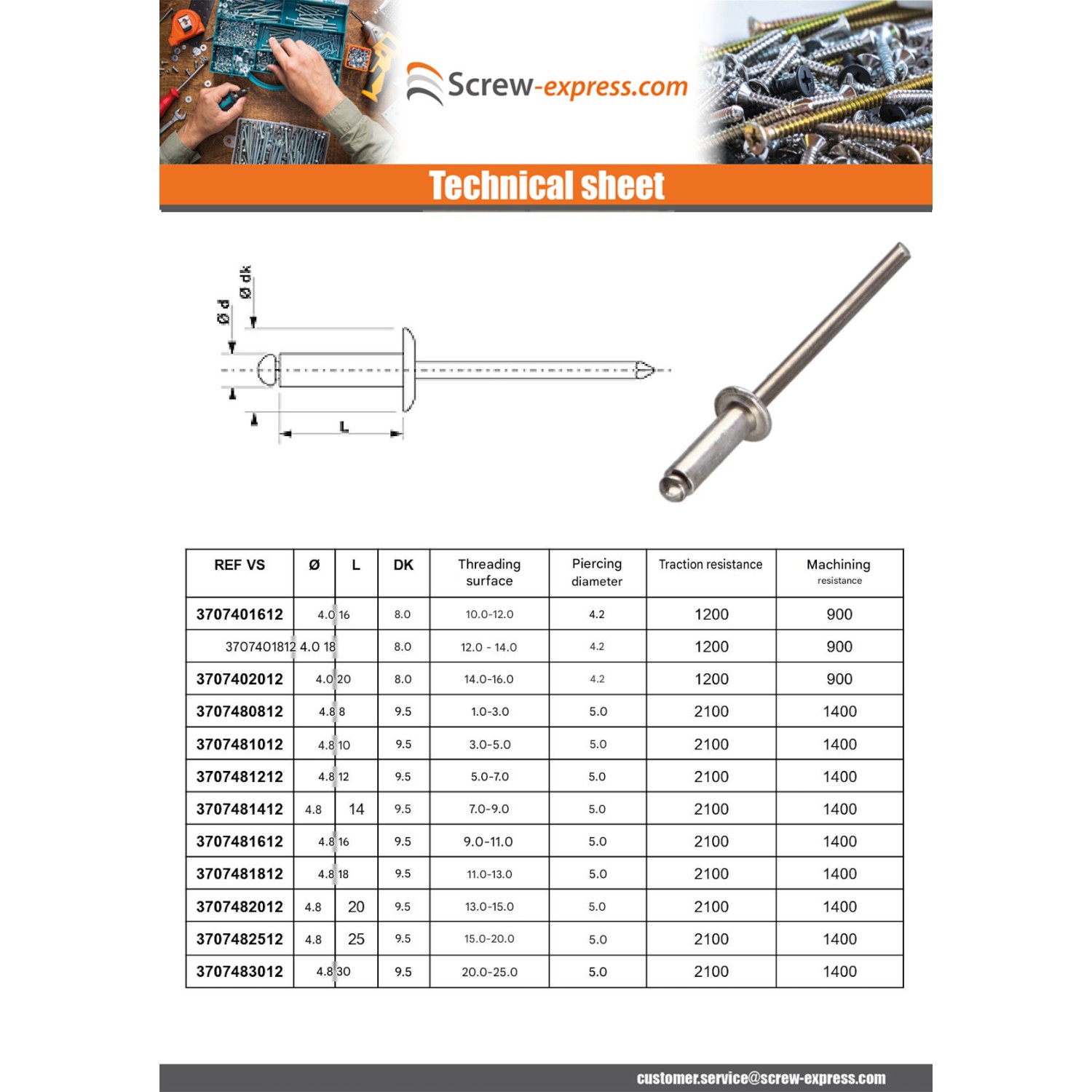

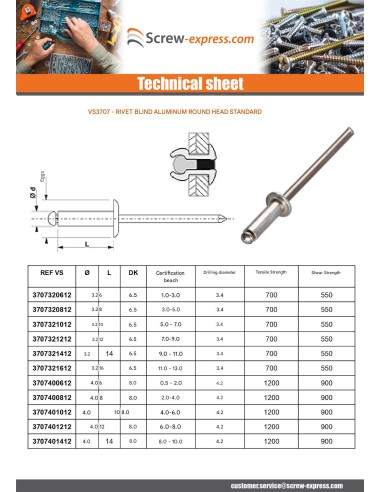

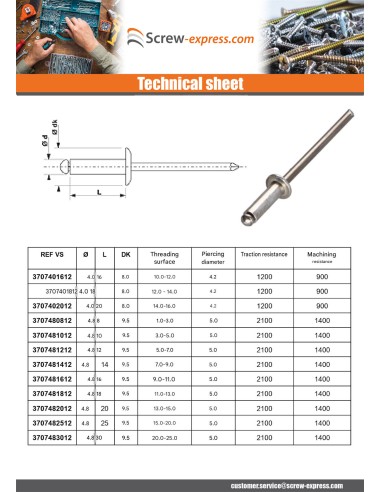

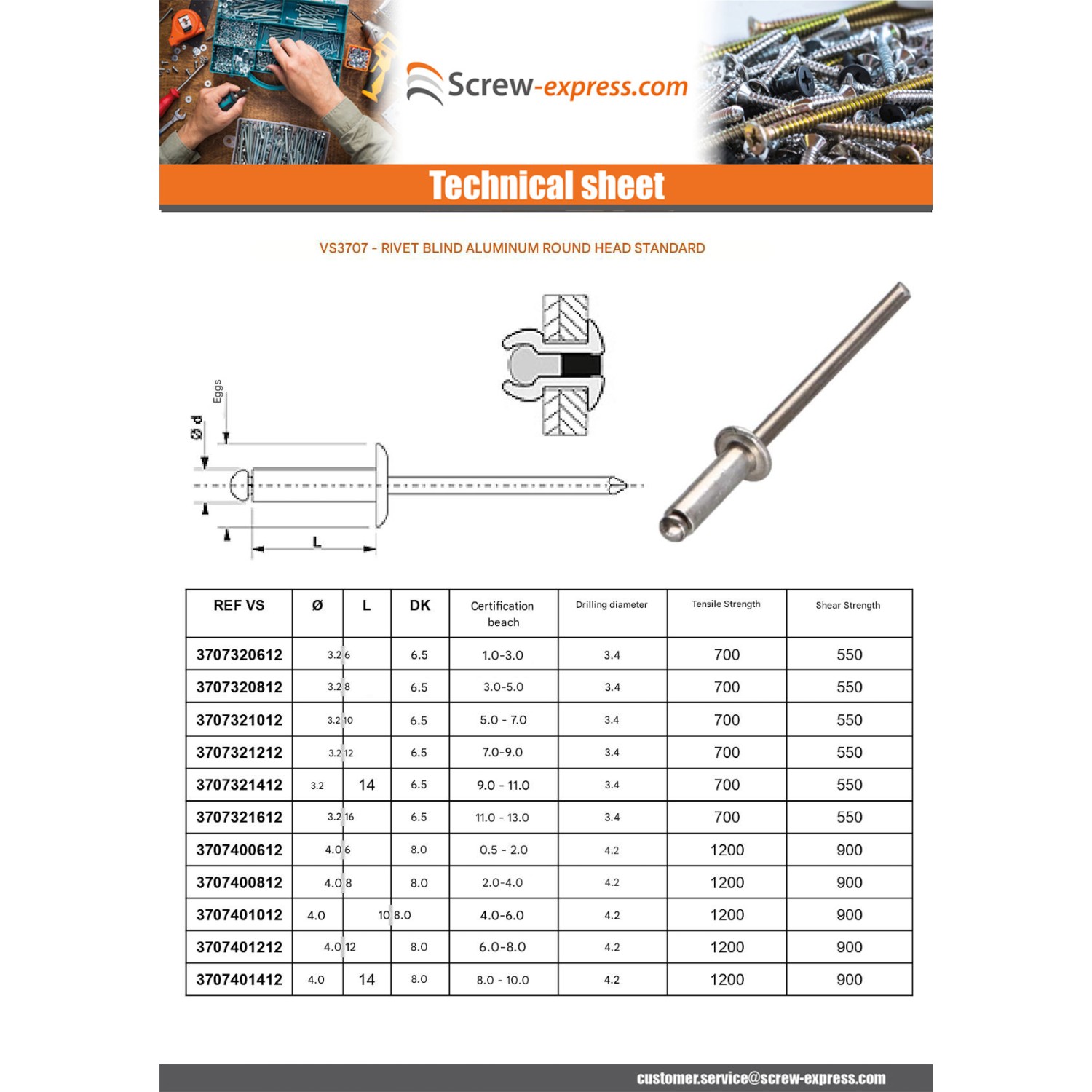

dimensional guide (mm)
Body diameter 3.2 4 4.8
Head diameter 6.5 4 4.8
Drilling diameter 3.4 4.2 5
longueur tige 25 27 27
resistance a la traction 1100 1500 2100
Shear strength 800 1000 1400
la longueur du corps est indique dans la designation

Other Reference : 3617501859227 3663072347854
