3707483012_1
In stock 1157 Pièces
£3.34 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 250
Lot price VAT included £3.34 £6.68 £8.07 £40.18

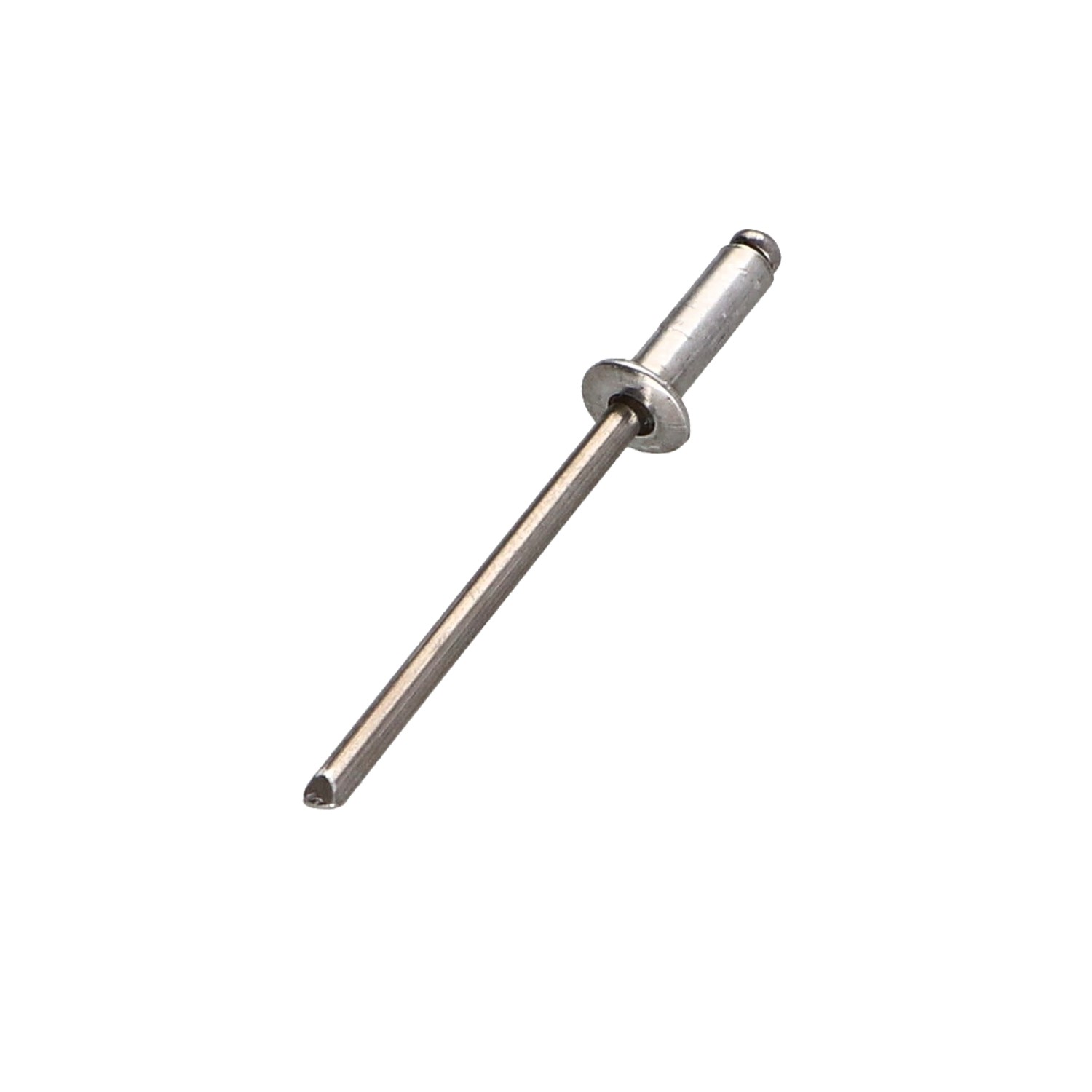

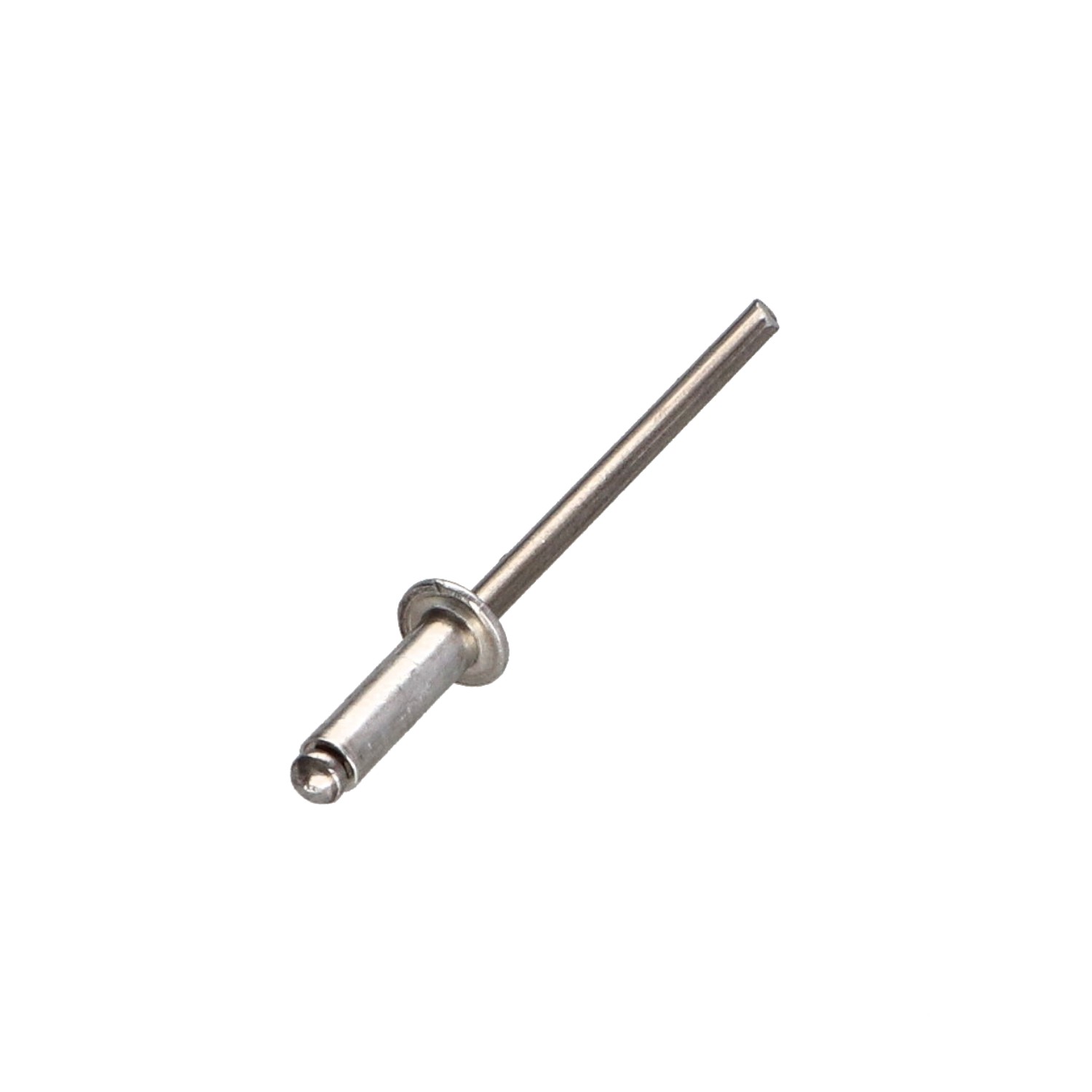

Rivet alu 4.8X30 Thickness Of Panel 20 to 25 Flat Head YOUR
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 250 Units

Dimensions shown in millimeters (mm)

Diameter
4.8
Diameter Head
9.5
Material
BODY Aluminium / rod Aluminium
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1300
Clamping thickness
20 a 25 mm
Rivet body length
30
Unit weight
2.4 GR
Head shape
Round Head standard
Hole diameter
5
Tensile strength
2000
1157 Items
3663072302754

Application

  • signage
  • ventilation / ducts
  • DIY & light assembly
  • outdoor equipment
Rivet alu 4.8X30 Thickness Of Panel 20 to 25 Flat Head YOUR
Diameter = Class 4.8, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL)

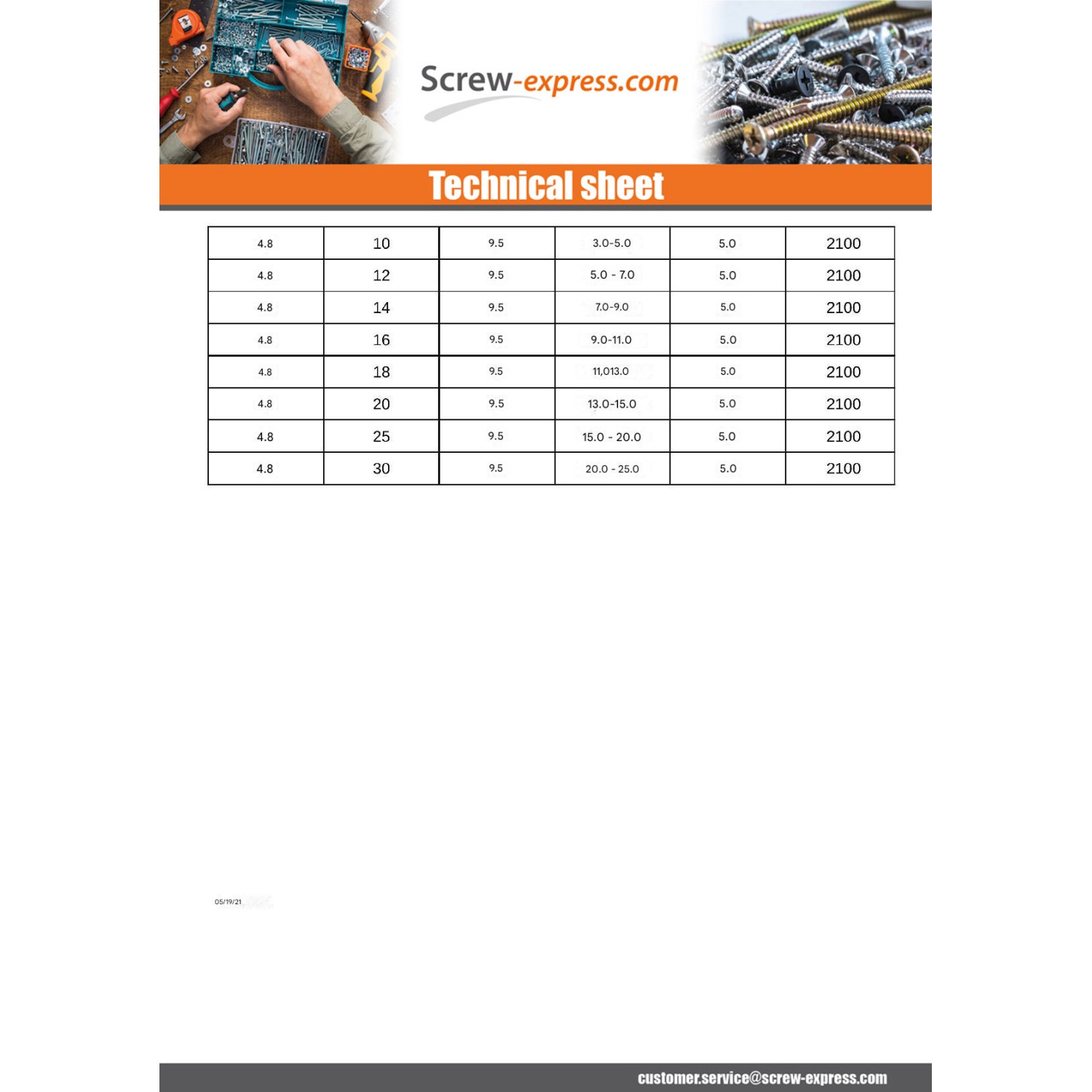

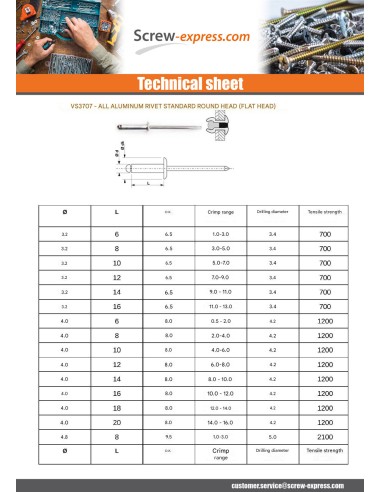

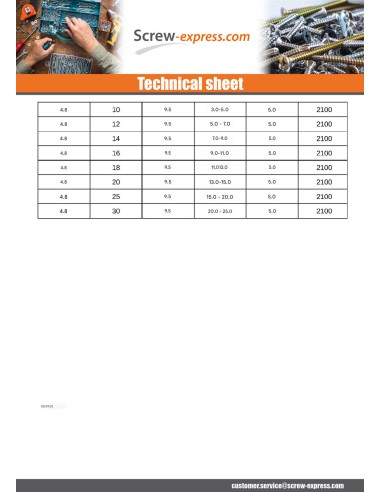

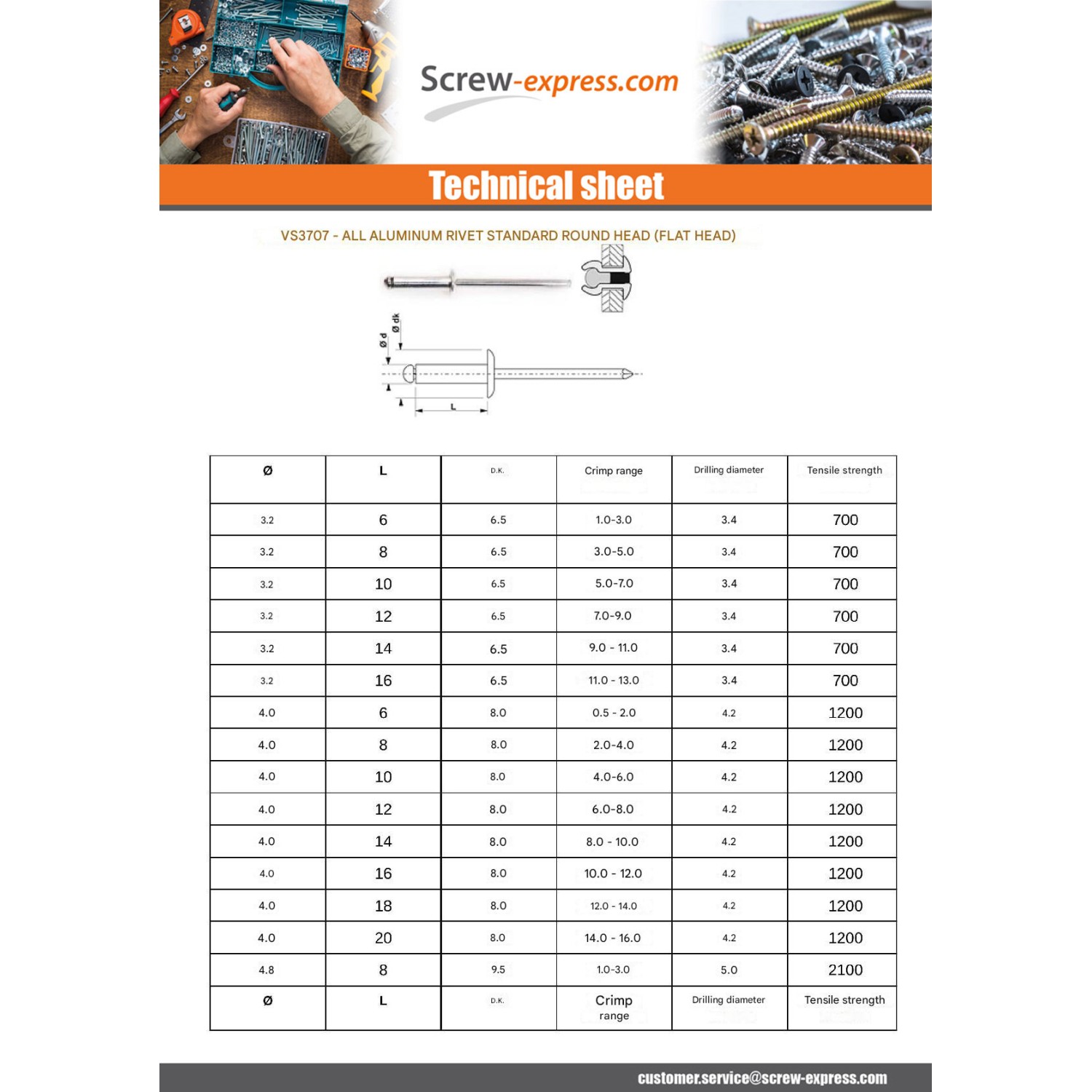

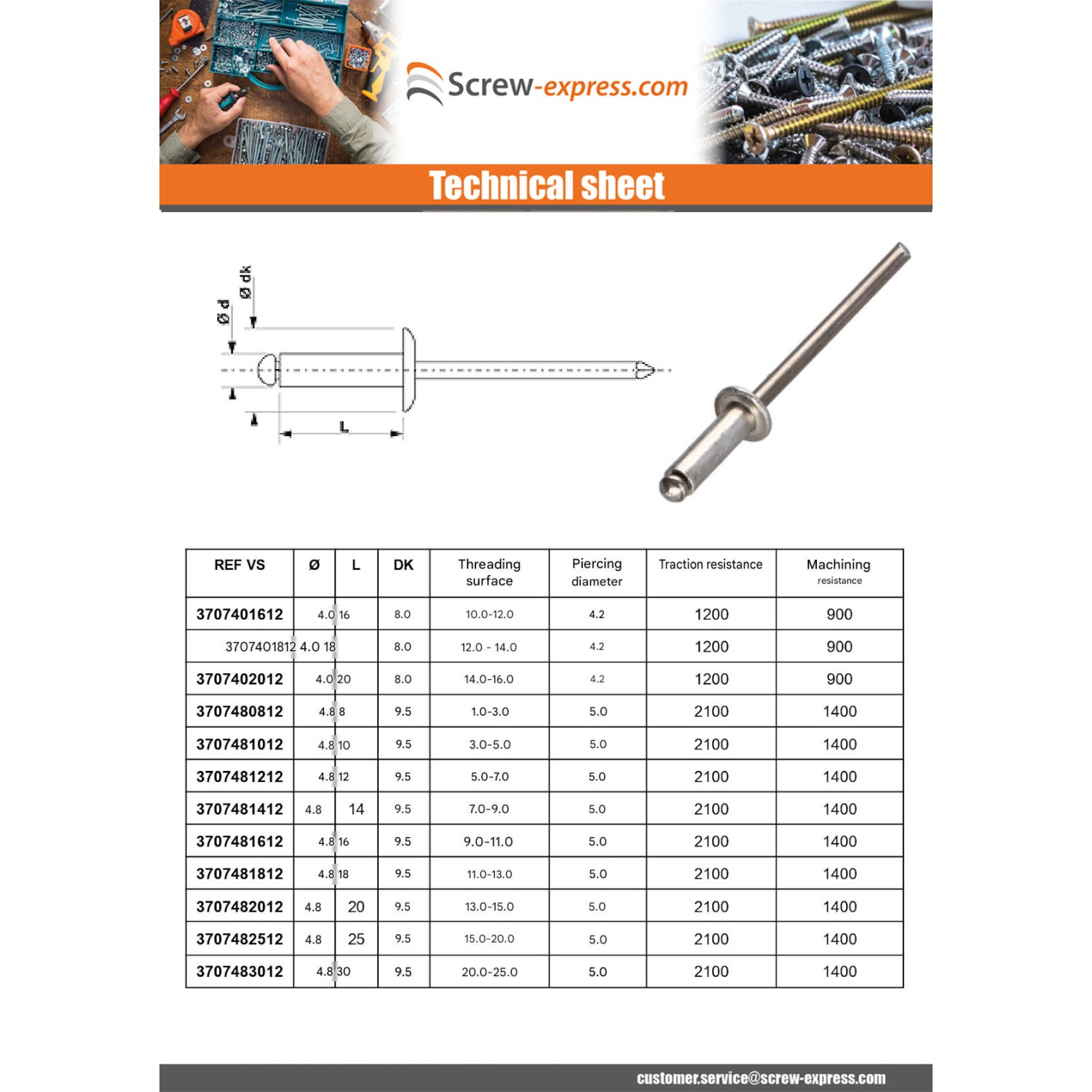

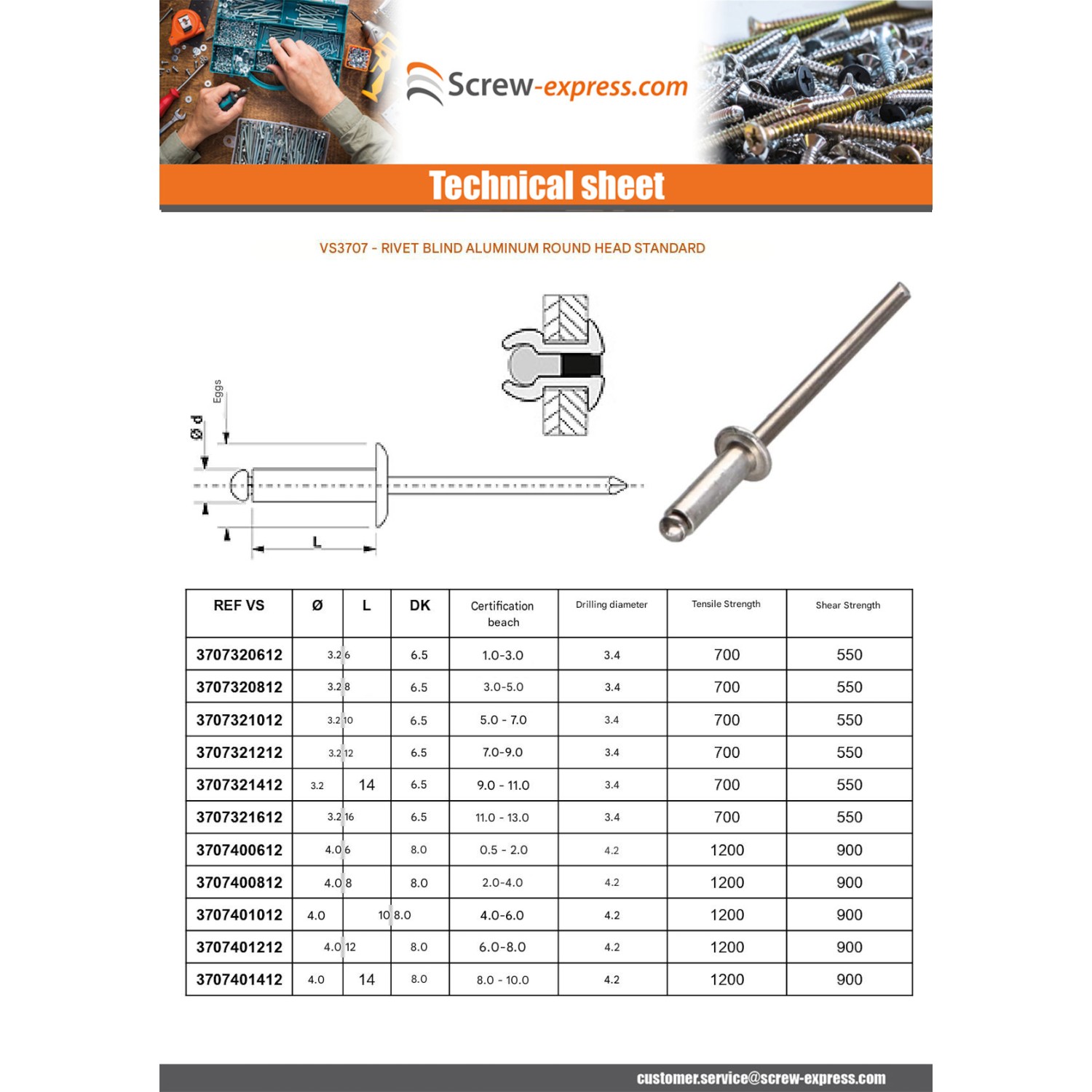

dimensional guide (mm)
Body diameter 3.2 4 4.8
Head diameter 6.5 4 4.8
Drilling diameter 3.4 4.2 5
longueur tige 25 27 27
resistance a la traction 1100 1500 2100
Shear strength 800 1000 1400
la longueur du corps est indique dans la designation

Other Reference : 102148301 /AN 3663072302754
