3707481012_1
In stock 26180 Pièces
€1.70 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500 2000
Lot price VAT included €1.70 €3.40 €5.30 €25.10 €100.40

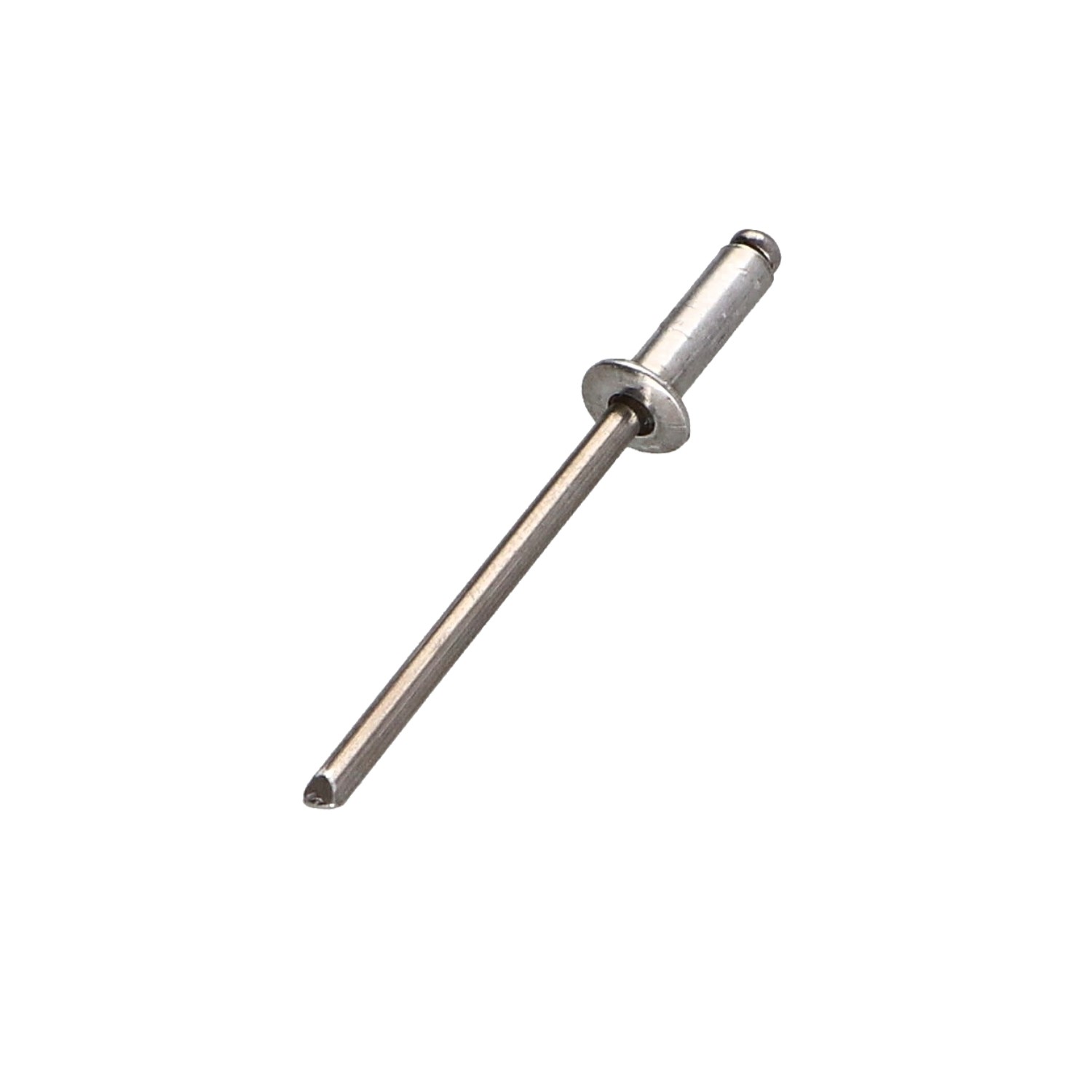

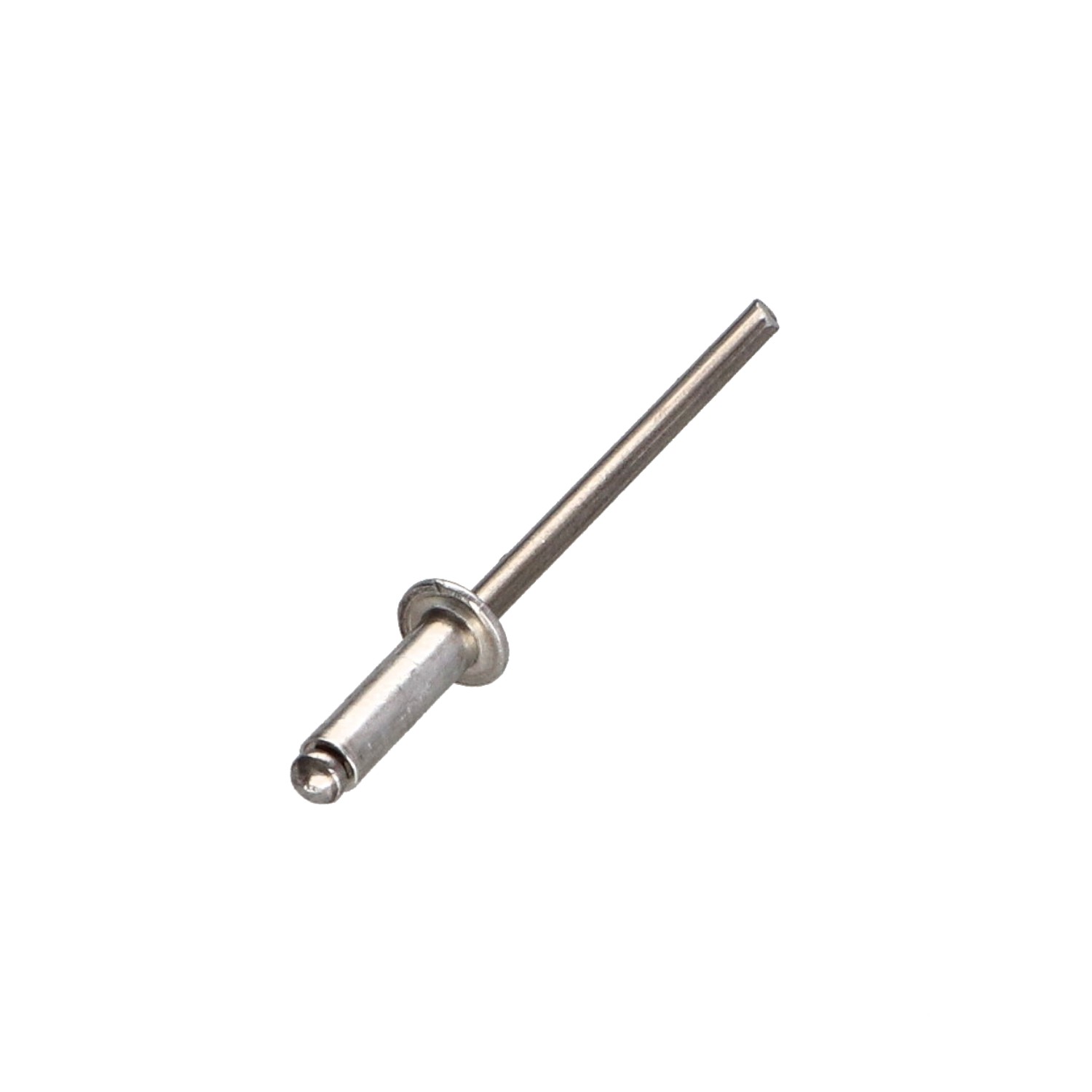

Rivet alu 4.8X10 Thickness Of Panel 3 to 5 Flat Head YOUR
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units
  • 2000 Units

Dimensions shown in millimeters (mm)

Diameter
4.8
Diameter Head
9.5
Material
BODY Aluminium / rod Aluminium
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1300
Clamping thickness
3 a 5 mm
Rivet body length
10
Unit weight
1.4 GR
Head shape
Round Head standard
Hole diameter
5
Tensile strength
2000
26180 Items
3663072064744

Application

  • signage
  • ventilation / ducts
  • DIY & light assembly
  • outdoor equipment
Rivet alu 4.8X10 Thickness Of Panel 3 to 5 Flat Head YOUR
Diameter = Class 4.8, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL)

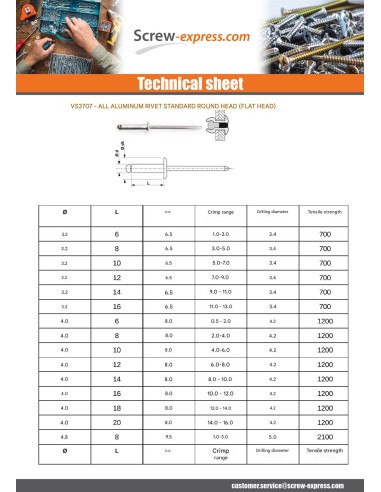

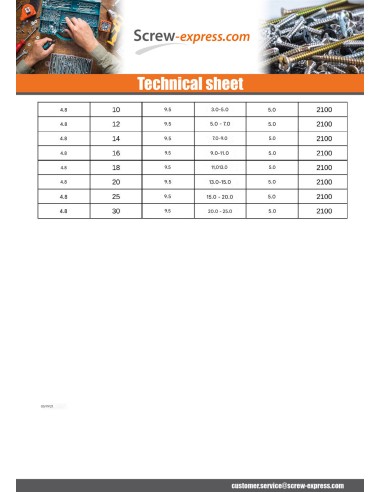

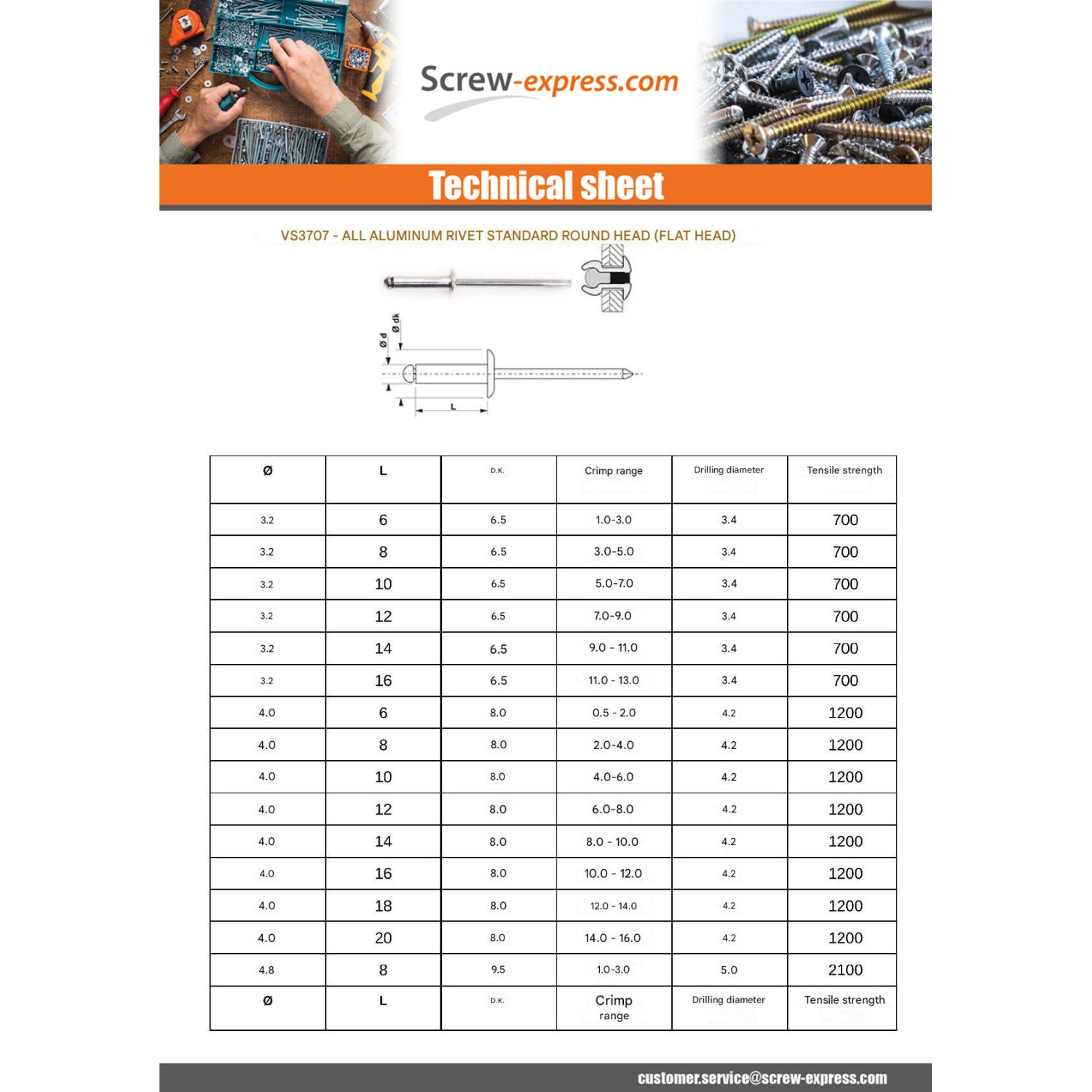

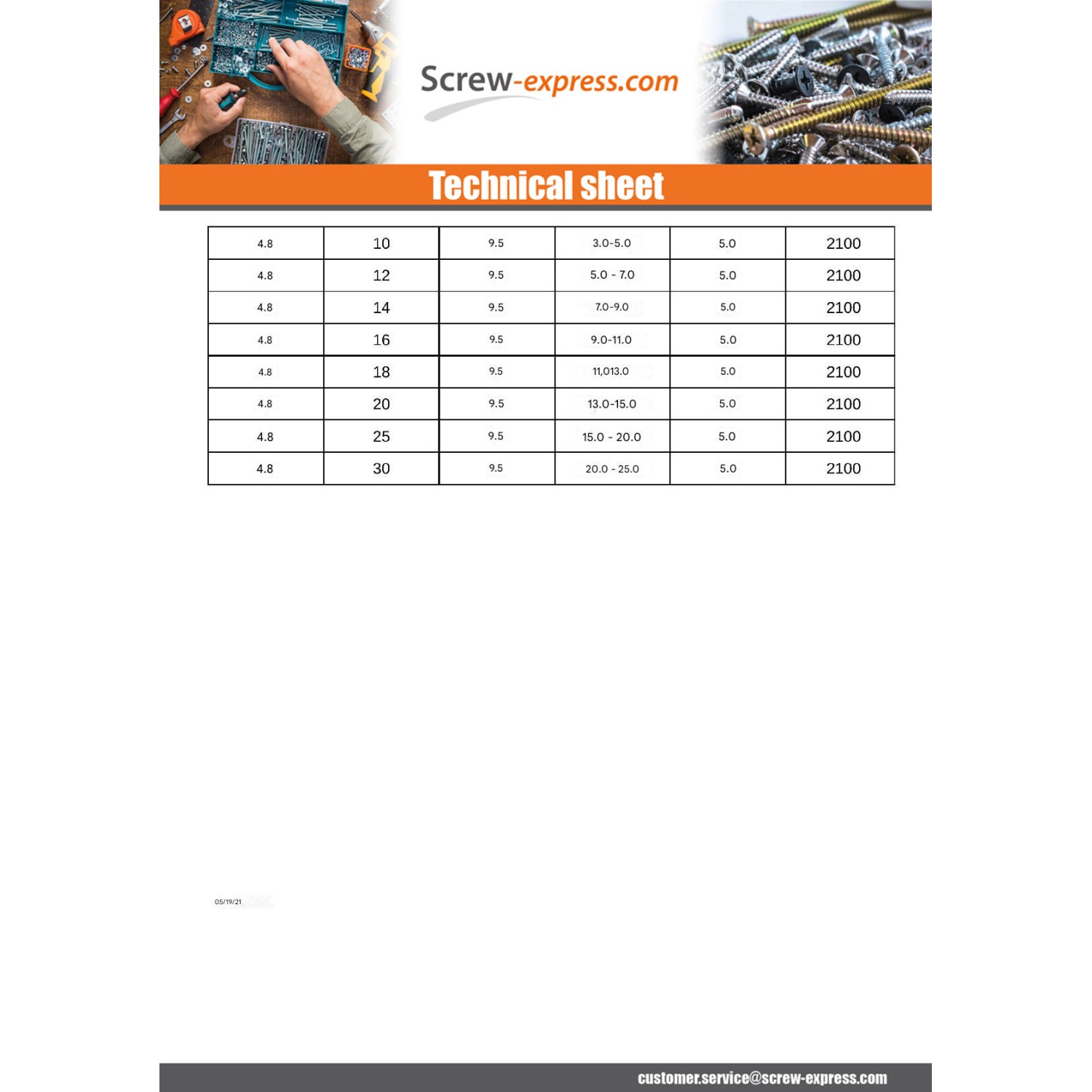

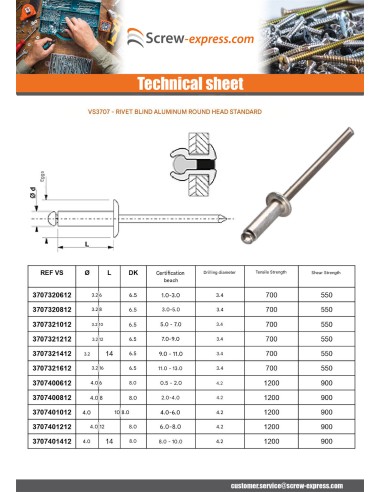

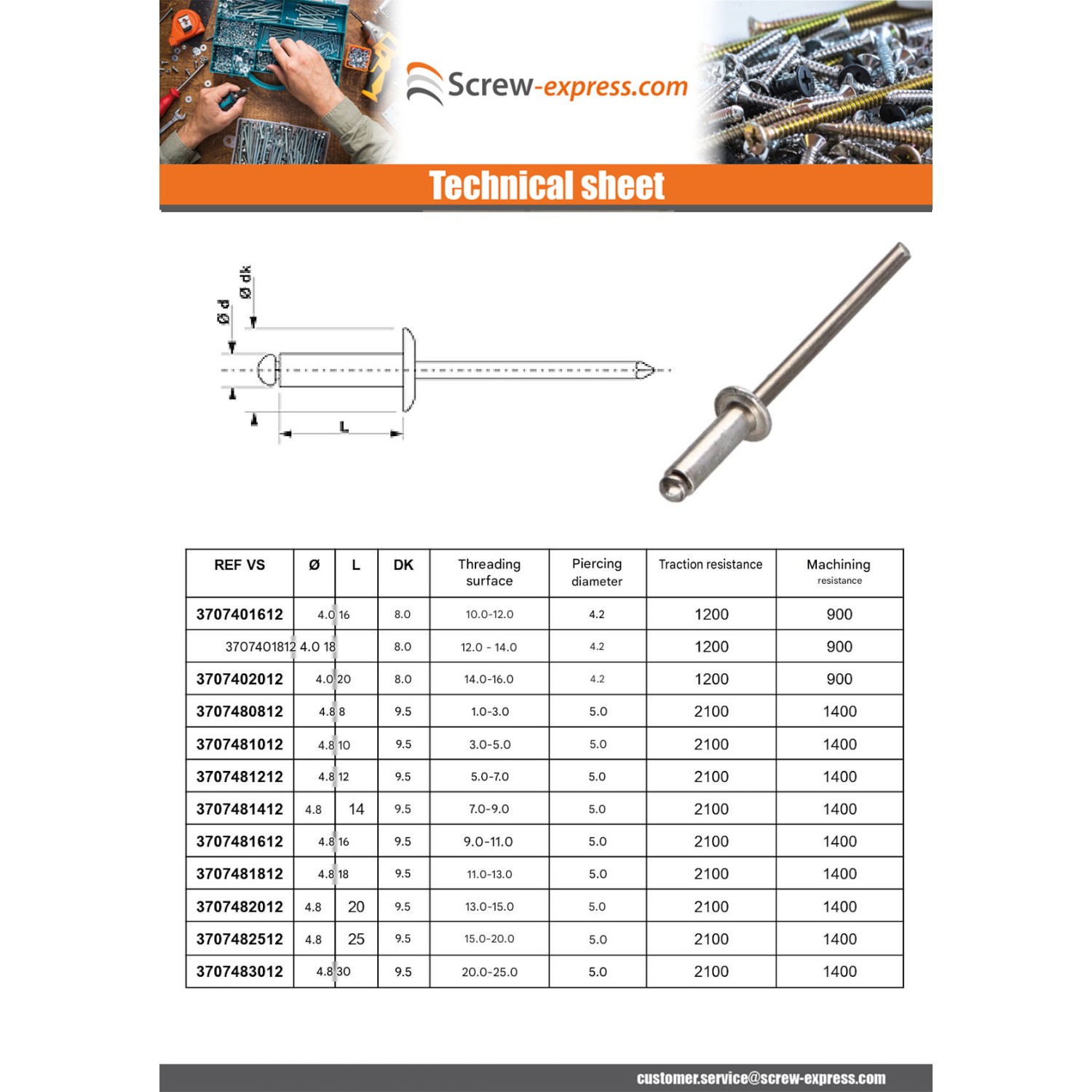

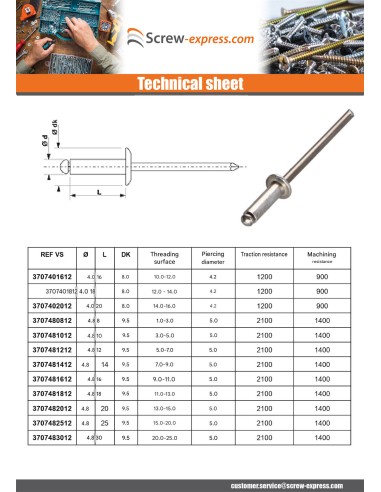

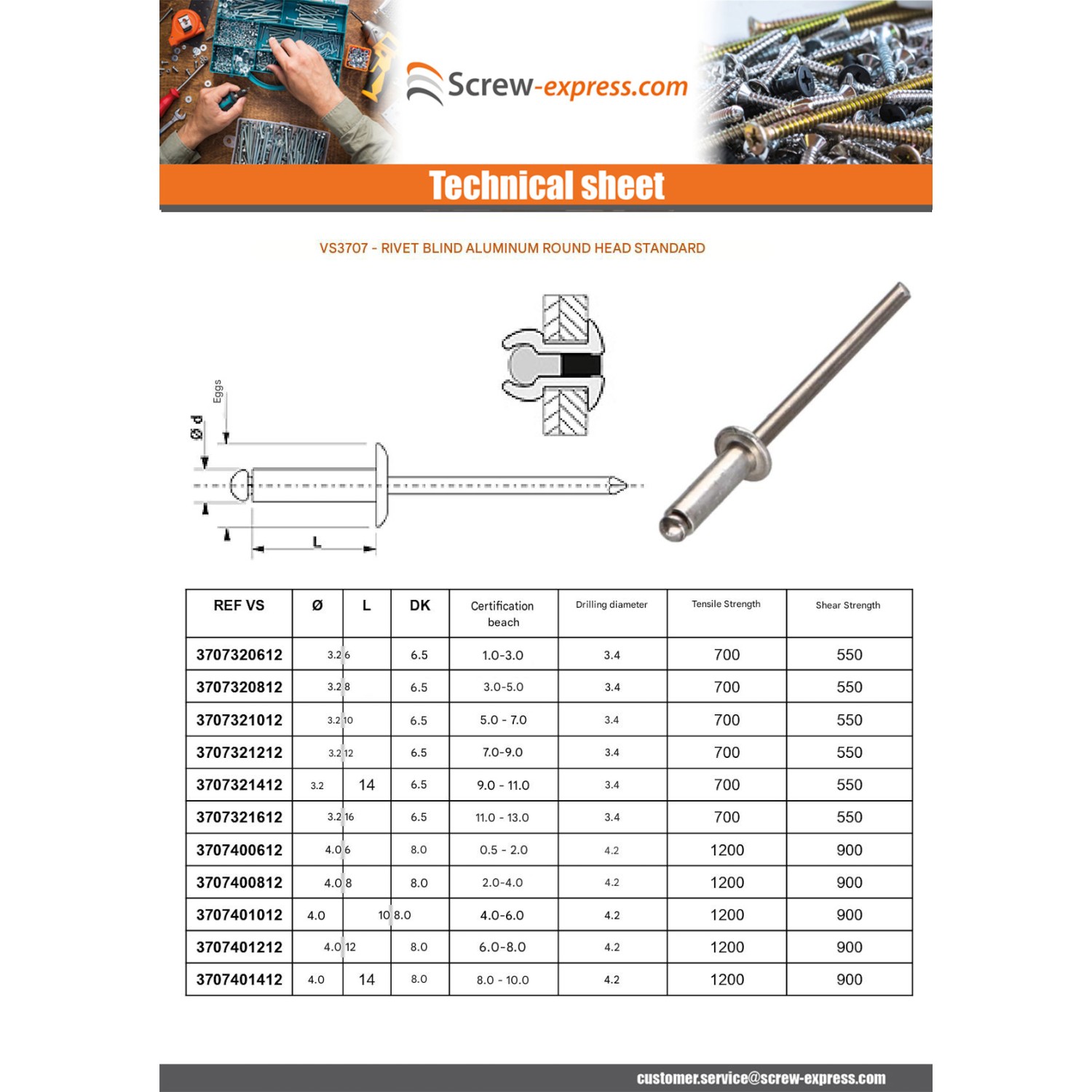

dimensional guide (mm)
Body diameter 3.2 4 4.8
Head diameter 6.5 4 4.8
Drilling diameter 3.4 4.2 5
longueur tige 25 27 27
resistance a la traction 1100 1500 2100
Shear strength 800 1000 1400
la longueur du corps est indique dans la designation

Other Reference : 102148101 YRIVALATPL48 RIV-ALU 4.8* /AN 00970032 QURIV002A q074379900 RIV4.8X10 RIBETALU4.8* AR03643 00621 B800004 / AN 3663072064744
FOURTET F. (vis-express.fr)
2026-02-01

This is for fixing two 2mm aluminum pieces together This is for fixing two 2mm aluminum pieces together, square aluminum and brackets to make an aluminum boat deck


Valentin A. (vis-express.fr)
2026-01-25

Square tube fixing 25x25 aluminum tube, 2mm thick


guillaume l. (vis-express.fr)
2026-01-25

Dibond fixing I'm going to make compost bins out of Dibond. I'm going to use rivets to fix my Dibond to aluminum corner brackets.


manuel a. (vis-express.fr)
2025-07-13

fixing rodent-proof grid Creation of wooden cladding
