1 x Rivet alu 3.2X10 Thickness Of Panel 5 to 7 Flat Head YOUR

3707321012_1
In stock 6708 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €4.25 €8.45 €10.30 €42.75

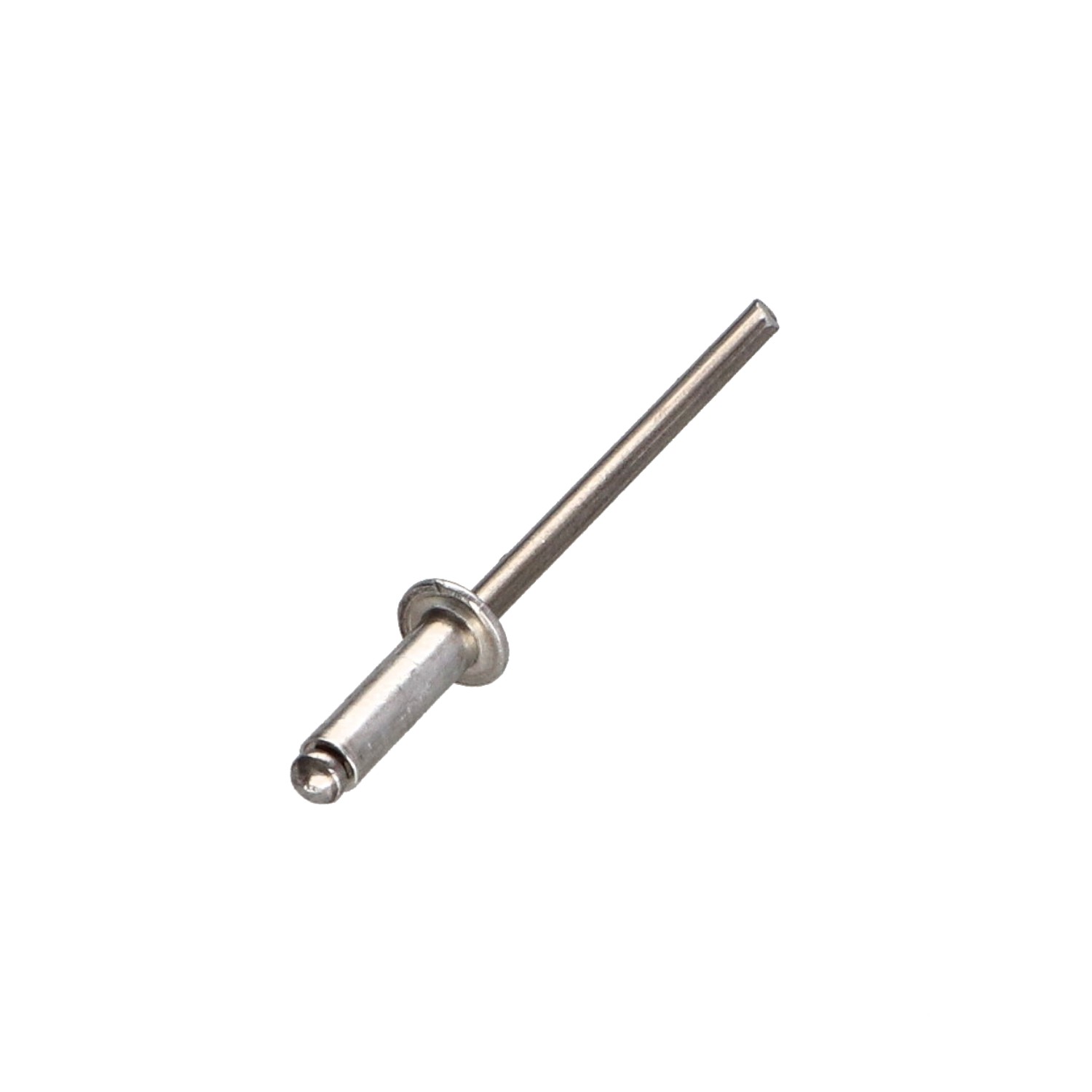

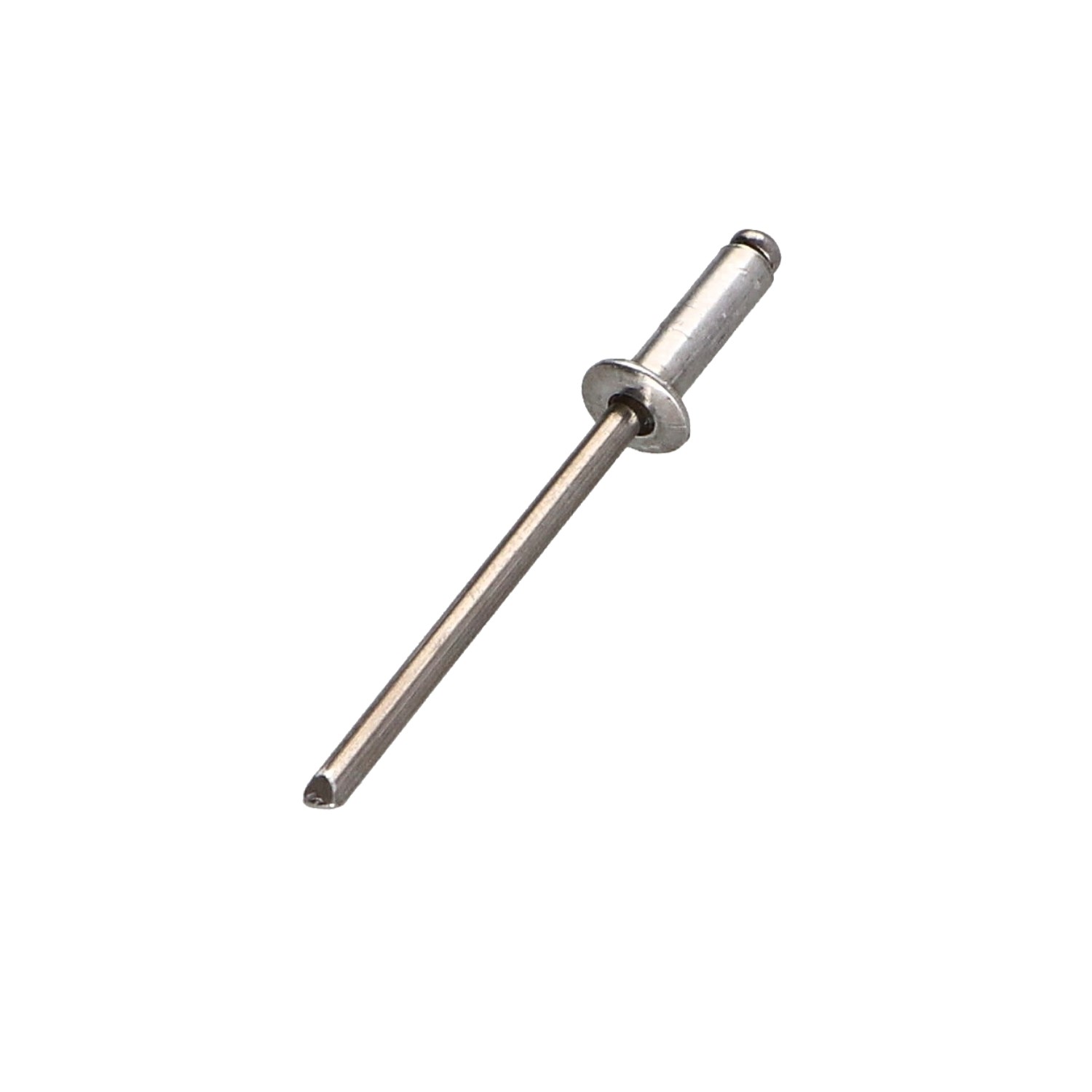

Rivet alu 3.2X10 Thickness Of Panel 5 to 7 Flat Head YOUR
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
3.2
Diameter Head
6
Material
BODY Aluminium / rod Aluminium
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
500
Clamping thickness
5 a 7 mm
Rivet body length
10
Unit weight
0.55 GR
Head shape
Round Head standard
Hole diameter
3.4
Tensile strength
700
6708 Items
3663072064690

Application

  • signage
  • ventilation / ducts
  • DIY & light assembly
  • outdoor equipment
Rivet alu 3.2X10 Thickness Of Panel 5 to 7 Flat Head YOUR
Diameter = 3.2, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL)

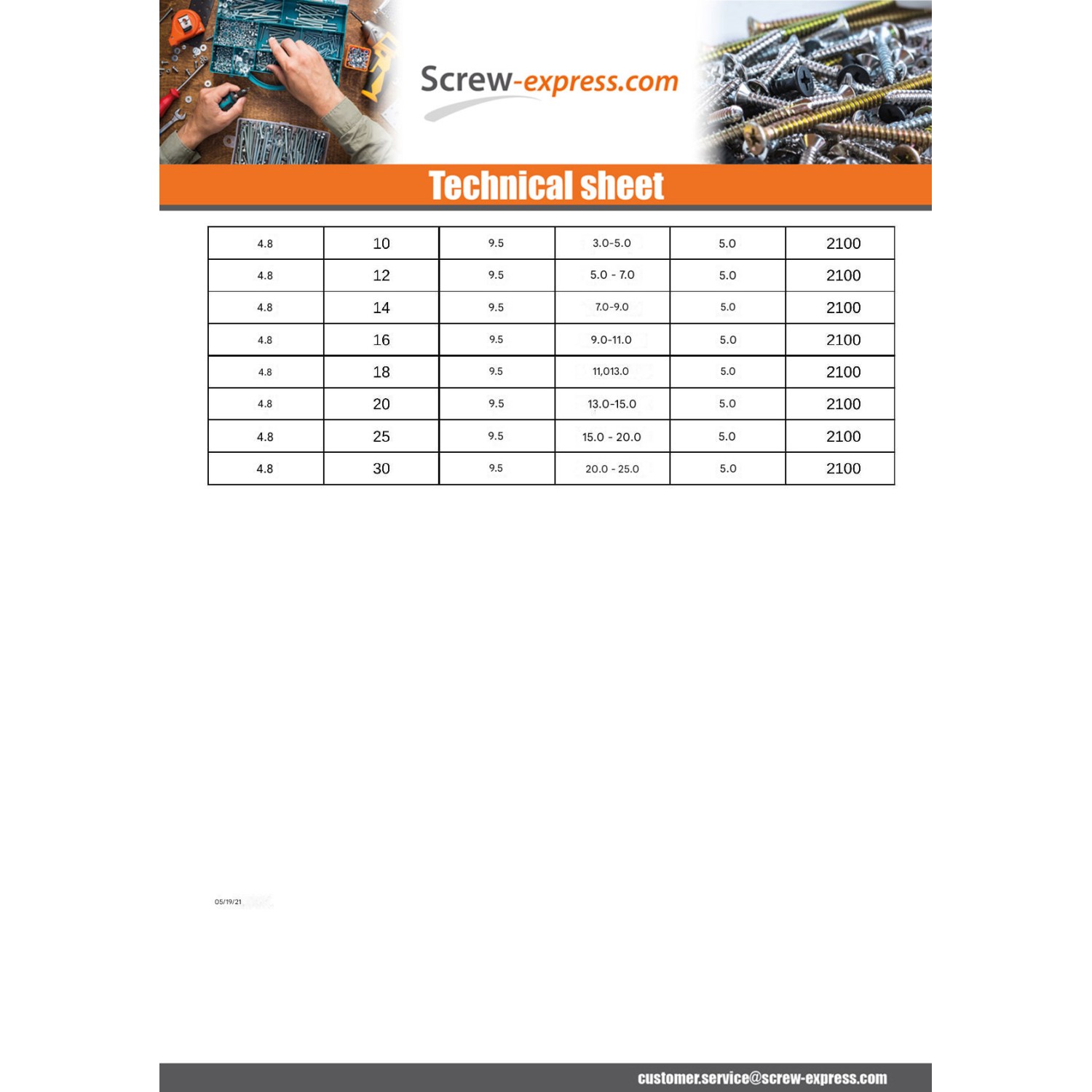

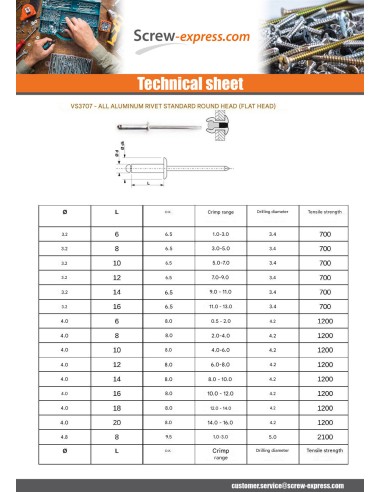

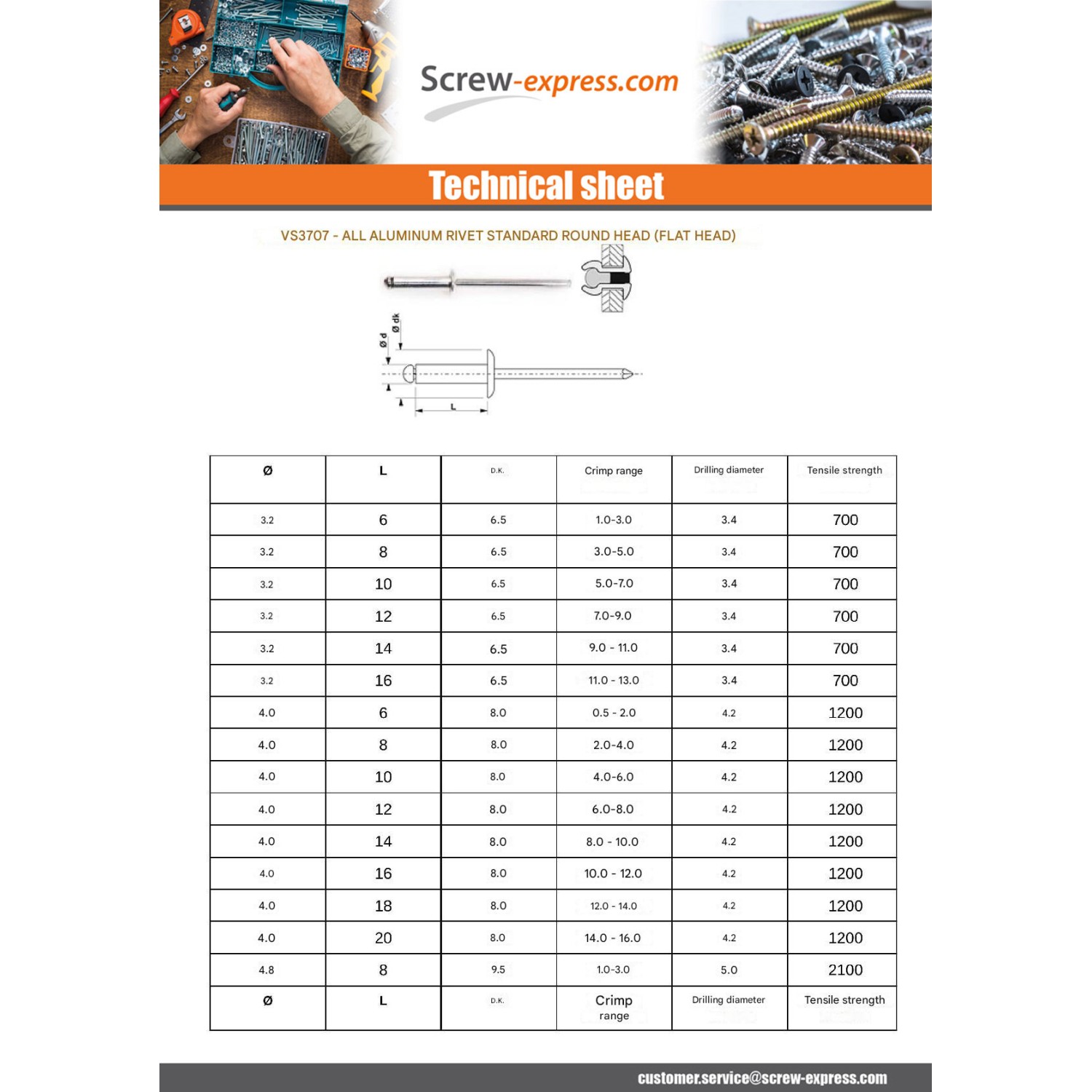

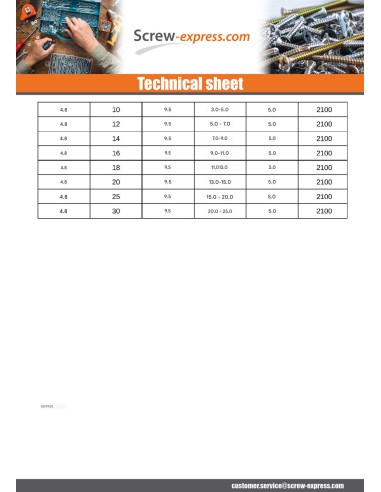

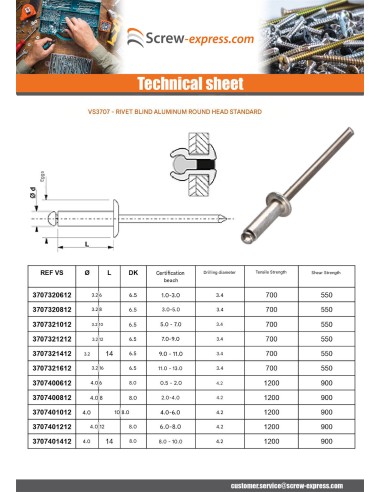

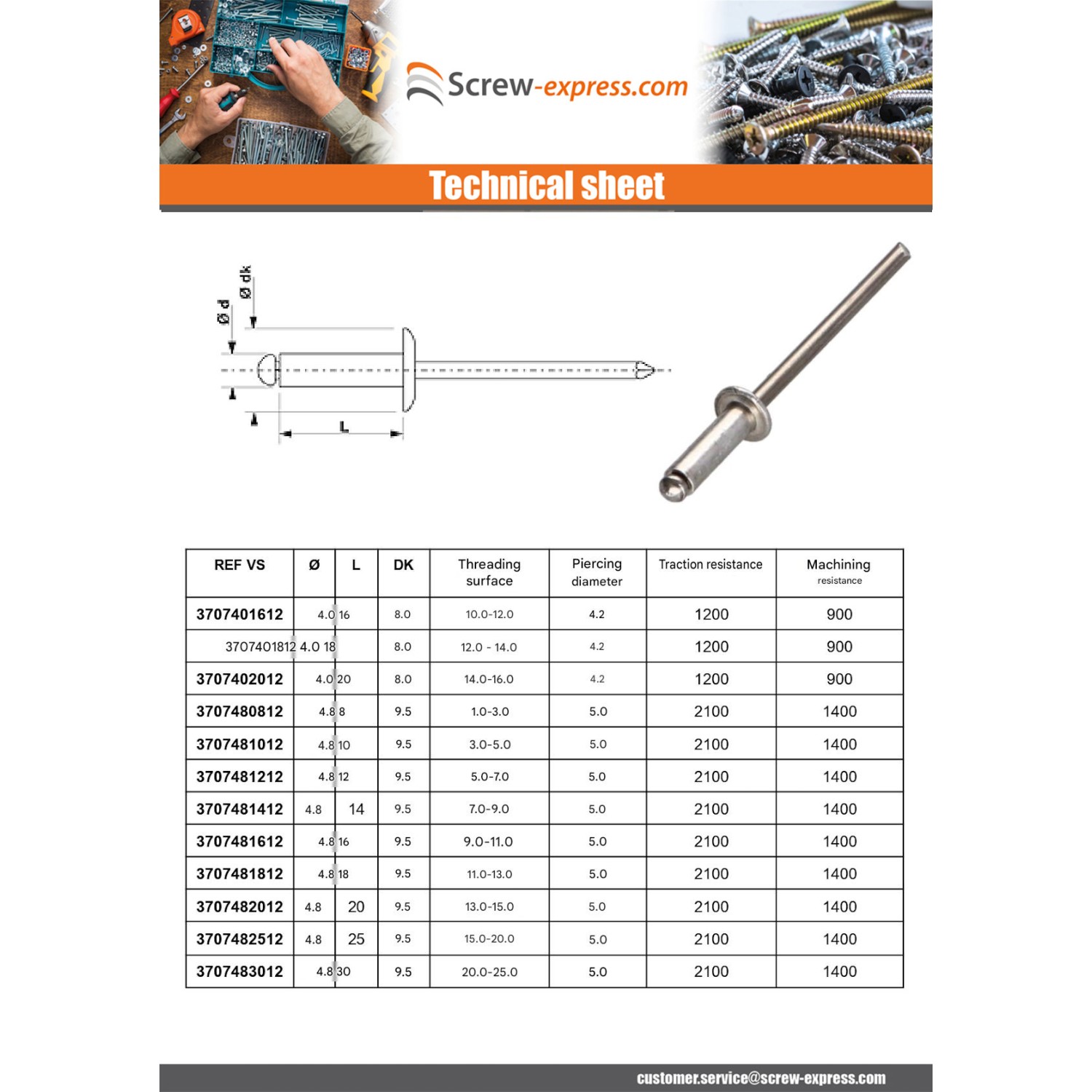

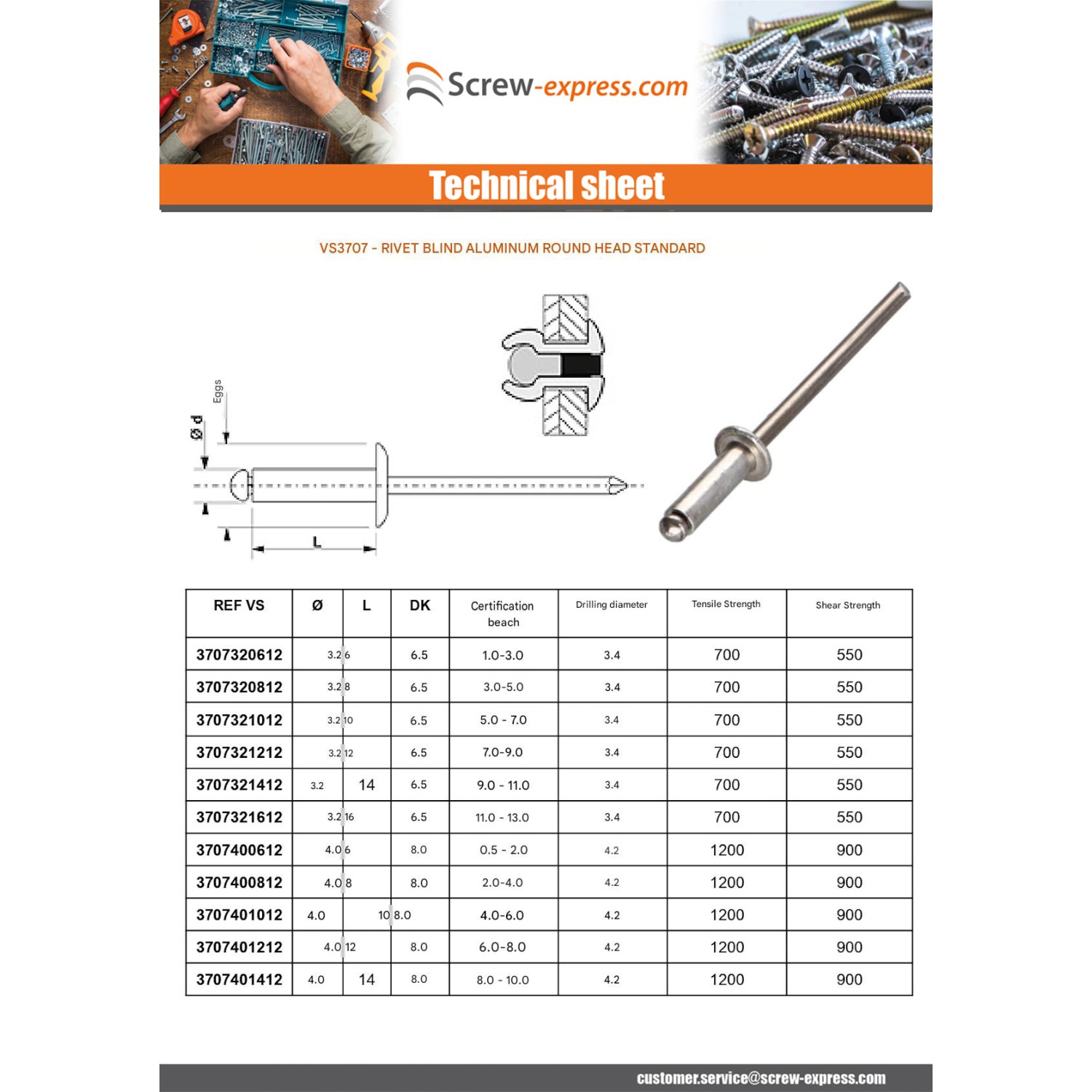

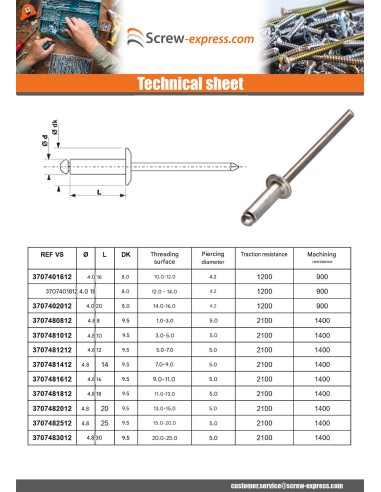

dimensional guide (mm)
Body diameter 3.2 4 4.8
Head diameter 6.5 4 4.8
Drilling diameter 3.4 4.2 5
longueur tige 25 27 27
resistance a la traction 1100 1500 2100
Shear strength 800 1000 1400
la longueur du corps est indique dans la designation

Other Reference : 102132101 1010165 3663072064690
