3707401212_1
In stock 15986 Pièces
€1.70 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500 2000
Lot price VAT included €1.70 €3.40 €4.05 €19.20 €76.80

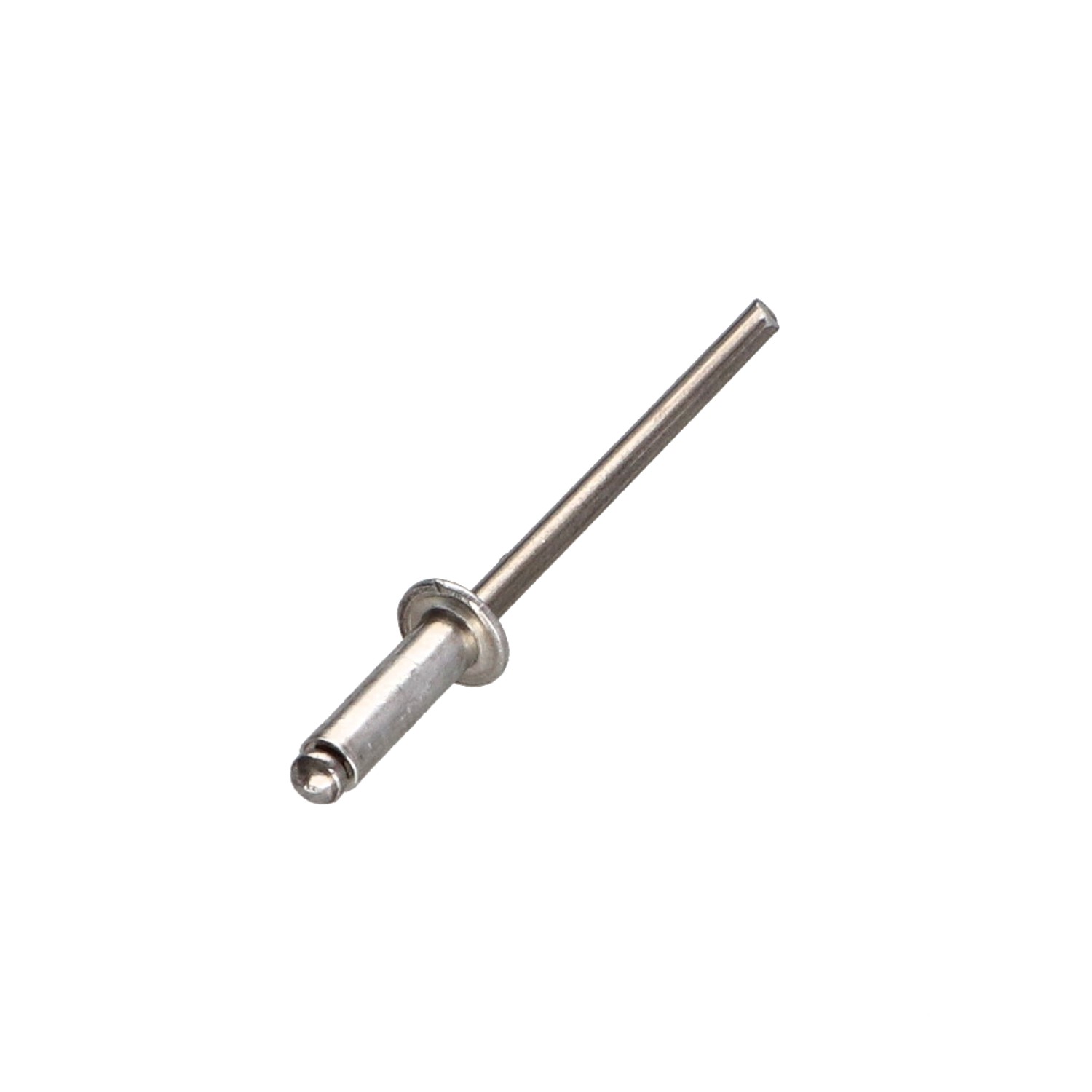

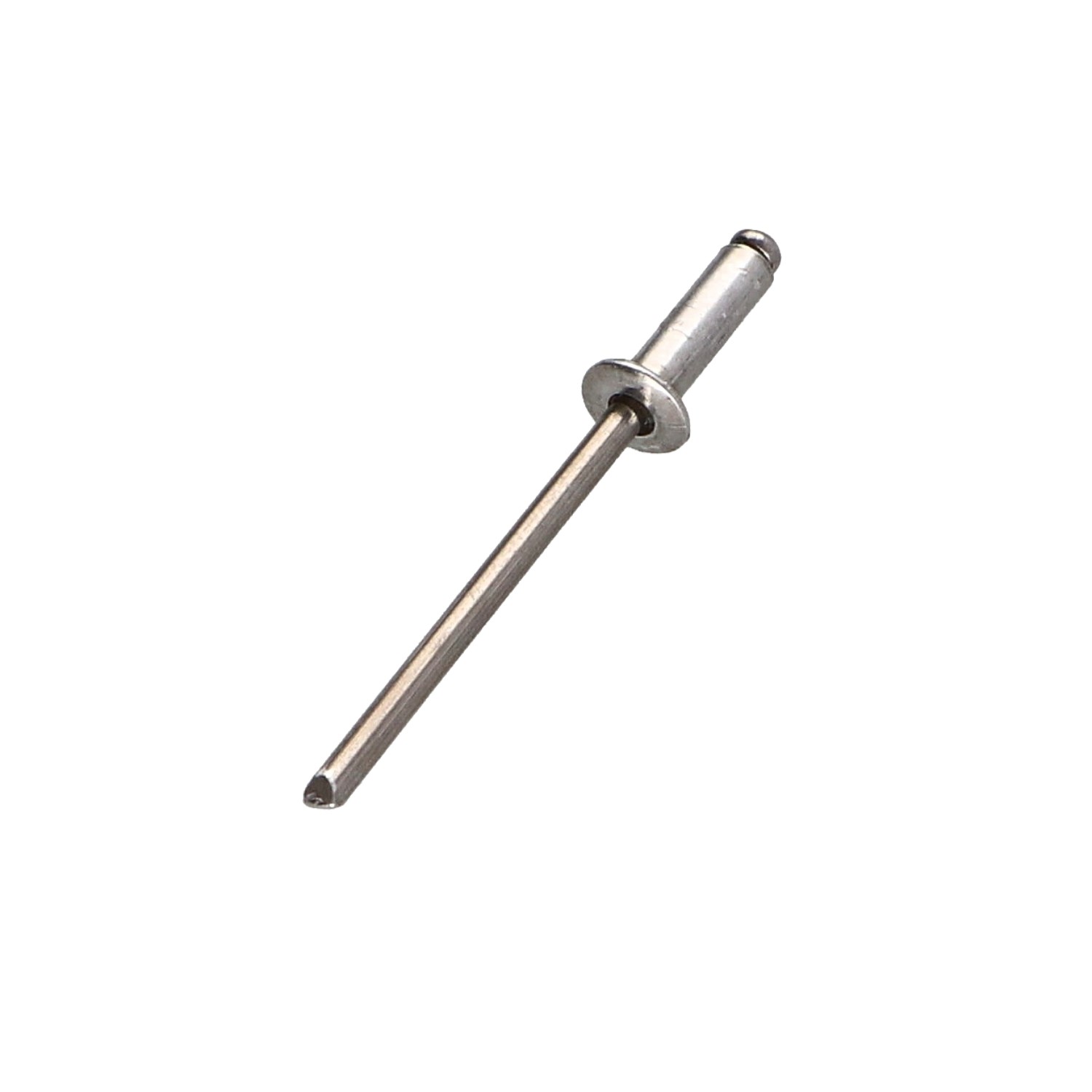

Rivet alu 4X12 Thickness Of Panel 6 to 8 Flat Head YOUR
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units
  • 2000 Units

Dimensions shown in millimeters (mm)

Diameter
4
Diameter Head
8
Material
BODY Aluminium / rod Aluminium
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
800
Clamping thickness
6 a 8 mm
Rivet body length
12
Unit weight
0.93 GR
Head shape
Round Head standard
Hole diameter
4.2
Tensile strength
1200
15986 Items
3663072064737

Application

  • signage
  • ventilation / ducts
  • DIY & light assembly
  • outdoor equipment
Rivet alu 4X12 Thickness Of Panel 6 to 8 Flat Head YOUR
Diameter = 4, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL)

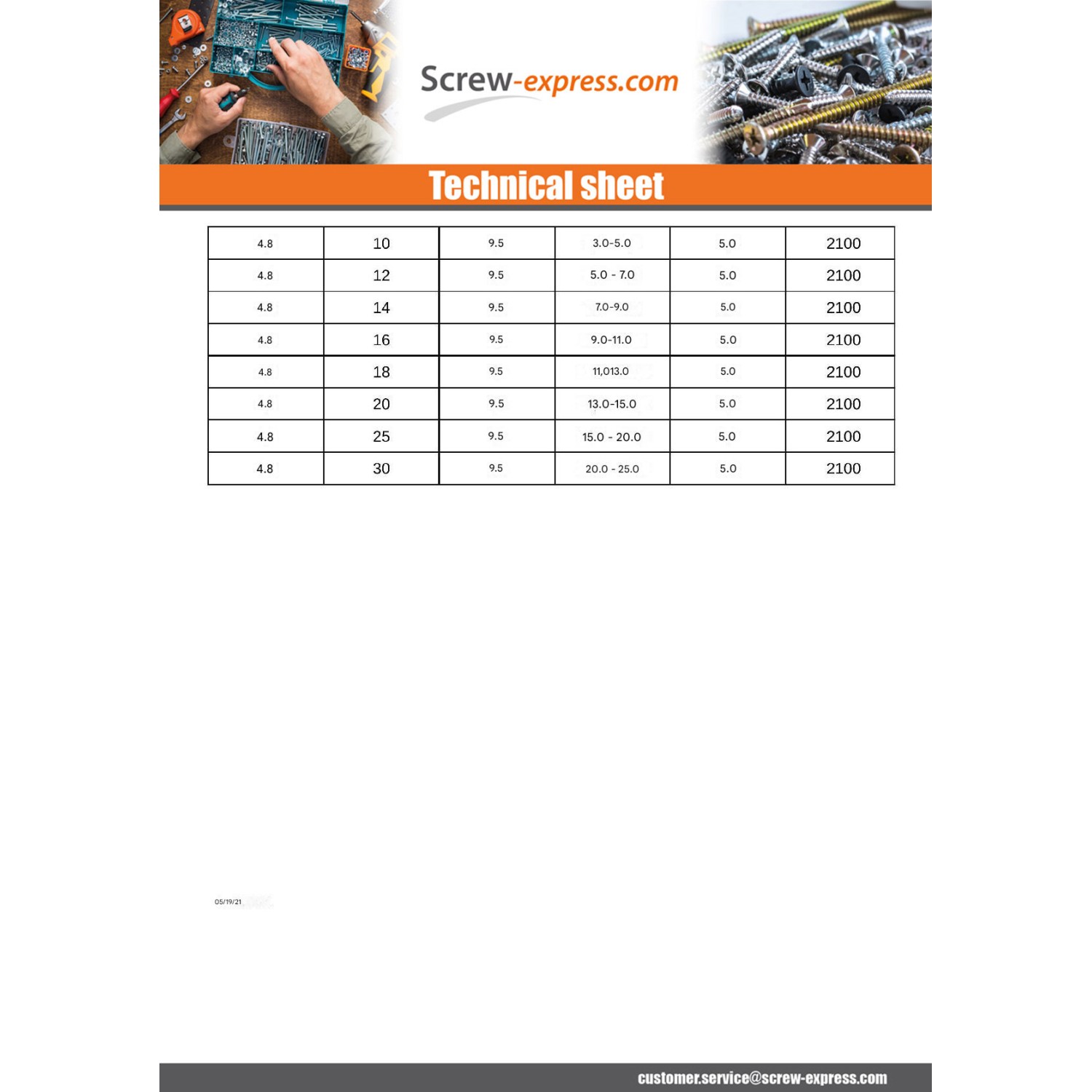

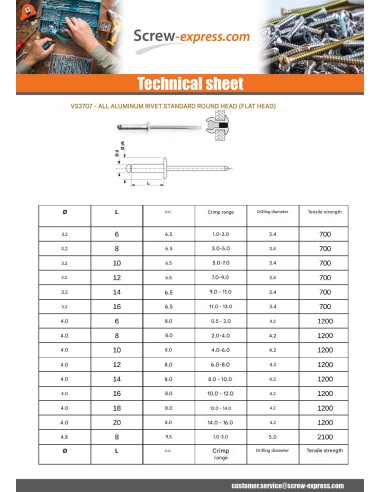

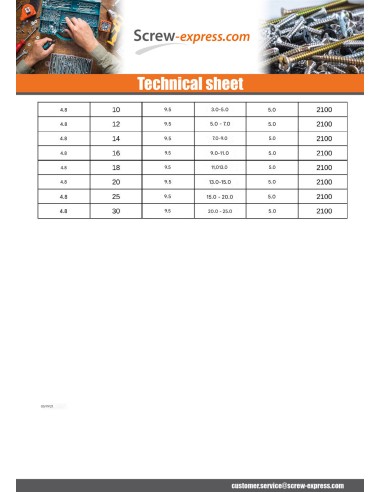

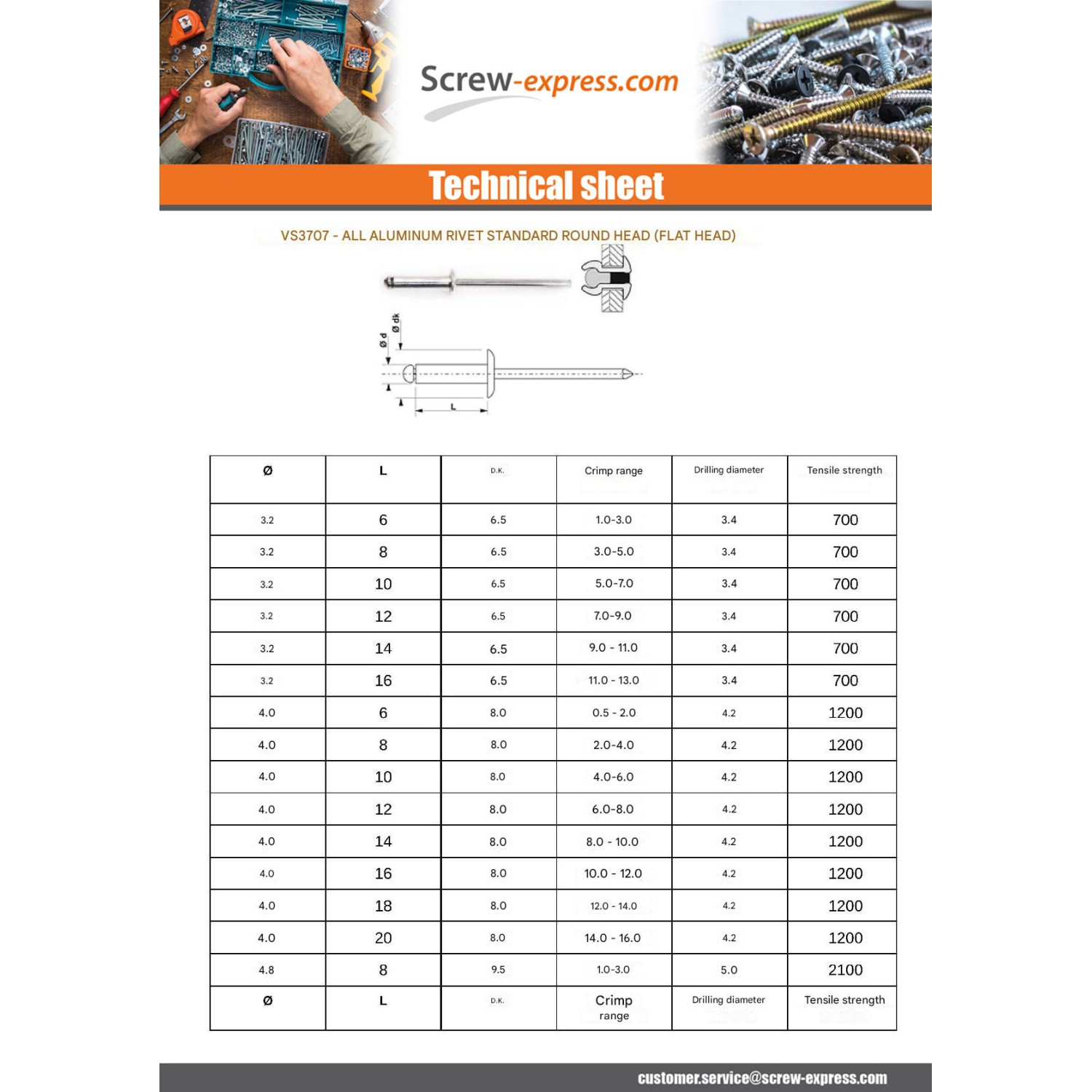

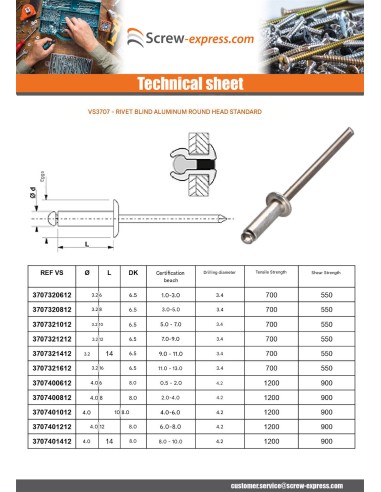

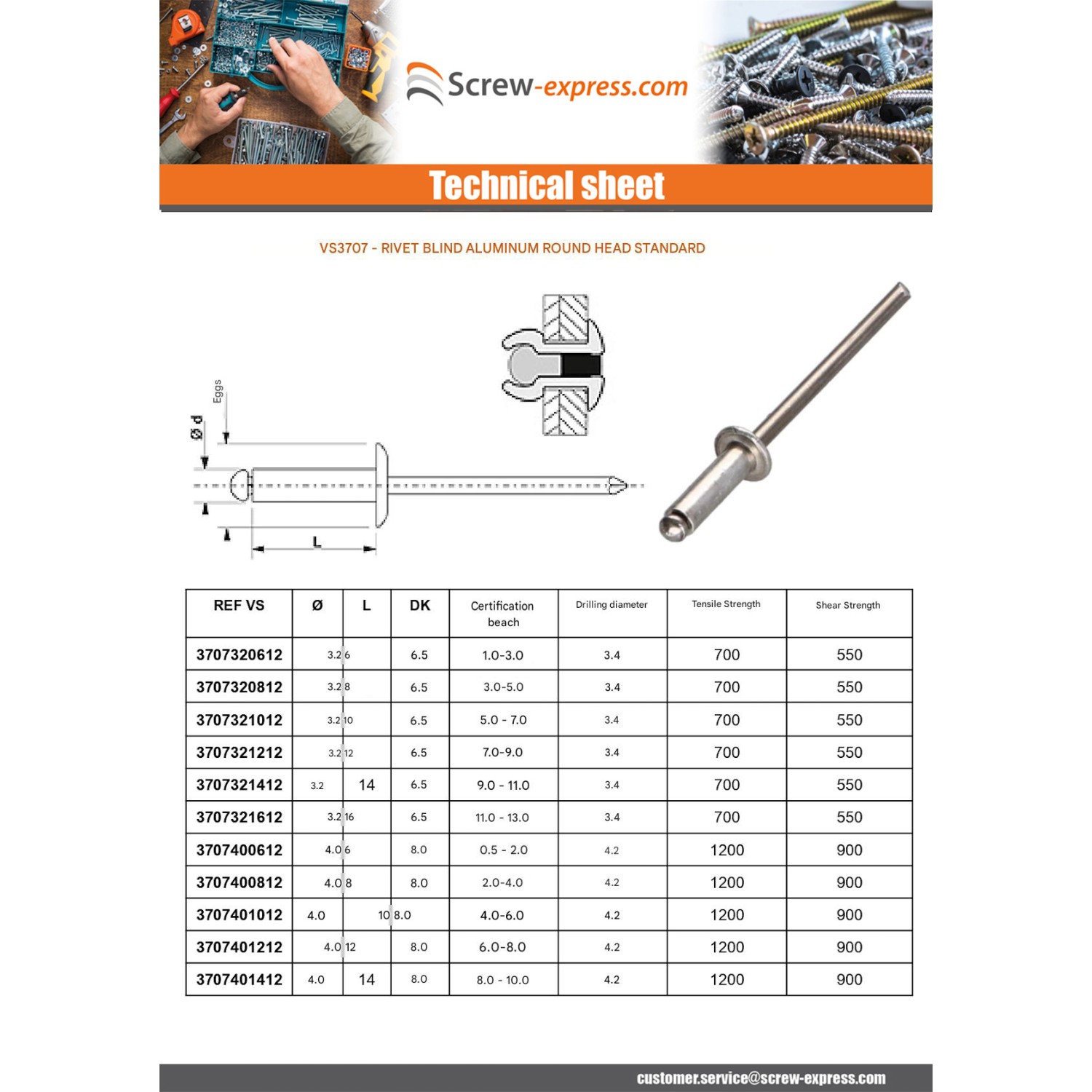

dimensional guide (mm)
Body diameter 3.2 4 4.8
Head diameter 6.5 4 4.8
Drilling diameter 3.4 4.2 5
longueur tige 25 27 27
resistance a la traction 1100 1500 2100
Shear strength 800 1000 1400
la longueur du corps est indique dans la designation

Other Reference : 102140121 ORIV0001 RIV-ALU-4X12 5170074 RIVETPOP4X8T 18855 COVS0091 600225125 3663072064737
