1 x Self Drilling Hexagonal Head 6.3X38 Sheet Metal Thread Zinc Plated
1 x Self Drilling Hexagonal Head 6.3X38 Sheet Metal Thread Zinc Plated
1 x Self Drilling Hexagonal Head 6.3X38 Sheet...
1 x Self Drilling Hexagonal Head 6.3X38 Sheet...

1 x Self Drilling Hexagonal Head 6.3X38 Sheet Metal Thread Zinc Plated

3127143802_1
In stock 153338 Pièces
£1.39 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 500 2000
Lot price VAT included £1.39 £4.77 £9.55 £20.74 £82.96
DIN 7504K+ EMBASE CRANTEE, VS3124 - Self Drilling Hexagonal Head 6.3X38 Sheet Metal Thread Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 500 units
  • 2000 units

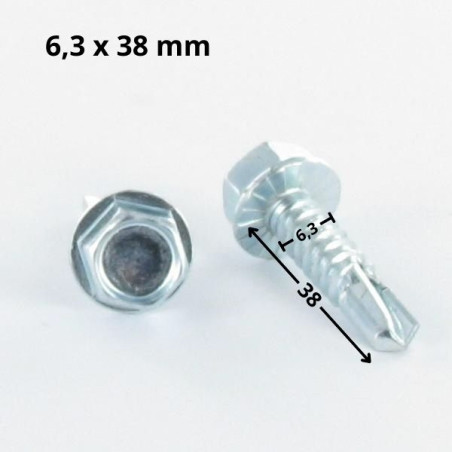

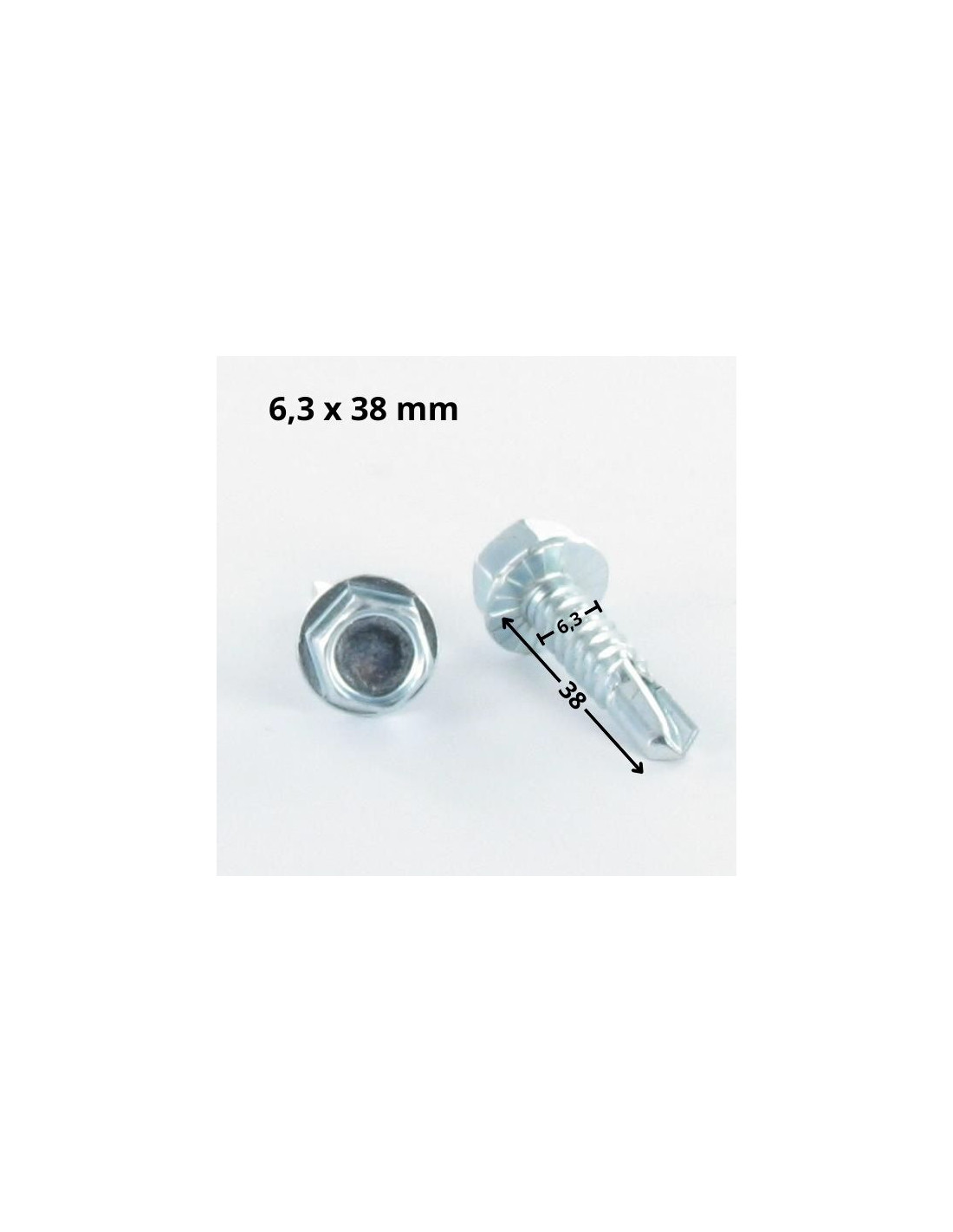

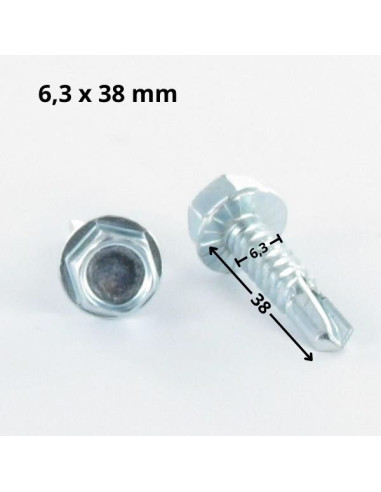

Dimensions shown in millimeters (mm)

Diameter
6.3
Length
38
Size Drive Type
KEY Of 10
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN 7504K+ Flange NOTCHED VS3124
Sub product family
Hex Head
Mounting pressure (N)
350
Rotation speed (rpm)
1000-1800
Minimum breaking torque (N.m)
14
Maximum thickness to be fixed
26
Head thickness
5.3-5.9
Base diameter
12.2-13.5
153338 Items
3663072039490
Self Drilling Hexagonal Head 6.3X38 Sheet Metal Thread Zinc Plated Other Reference : THT10.63038 VISAUTOP6.3X YVISAUTTHZN6 V021363800 V021363800 V021363800 AR04557 VAUTH6.3x40 5040263380 840986 6338 VIS0004 QUI0585 7504K6345ZI 9VATH163038 VIS0003 943121 943121 V021363800 4050118 VATH/63-38 3063532 901001103 140300757671 2204-693 FVIAZIH VAFECH6.338Z 110129 VTAPTH63X38 020928 02146338 1832 264147 2817063038 F05192 VAFH63.38 V021363800 1832 AN 607221 V021363800 1001a0131 VIS0071 210088 31454 1-001-08-10 020928 03295000 AN AN V021363800 3663072039490
YVES T. (vis-express.fr)
2025-11-23

These self-drilling screws will be used to attach corrugated T-shaped sheets to an agricultural tunnel. It's a tunnel with a tarp, but it's ten years old and the tarp has become porous and is no longer under warranty. So I'm going to put corrugated T-shaped sheets over the tarp to make the tunnel watertight.


YVES T. (vis-express.fr)
2025-11-23

These self-drilling screws will be used to attach corrugated T-shaped sheets to an agricultural tunnel. It's a tunnel with a tarp, but it's ten years old and the tarp has become porous and is no longer under warranty. So I'm going to put corrugated T-shaped sheets over the tarp to make the tunnel watertight.


André B. (vis-express.fr)
2025-08-17

fixing wooden frame to metal frame personal design


MAXIME S. (vis-express.fr)
2025-01-12

Cable tray fixing Cable tray fixing brackets
