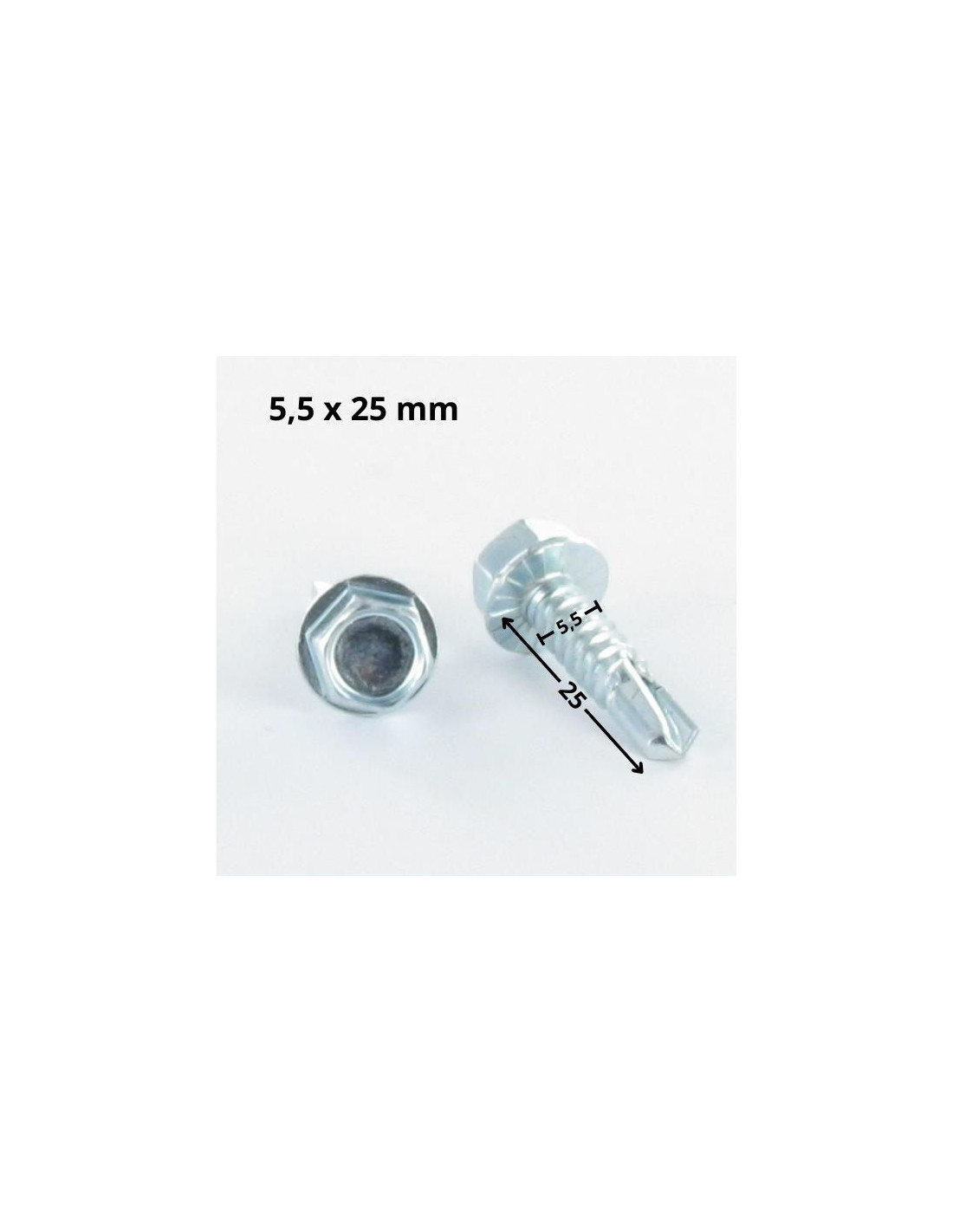

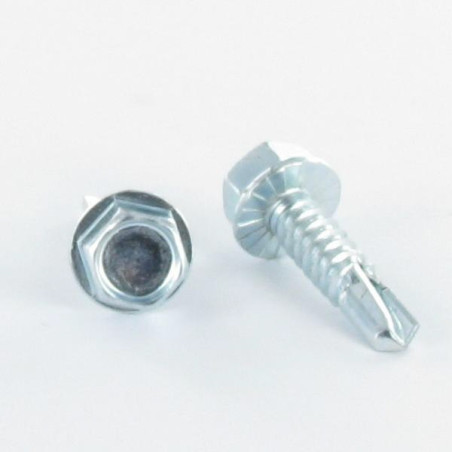

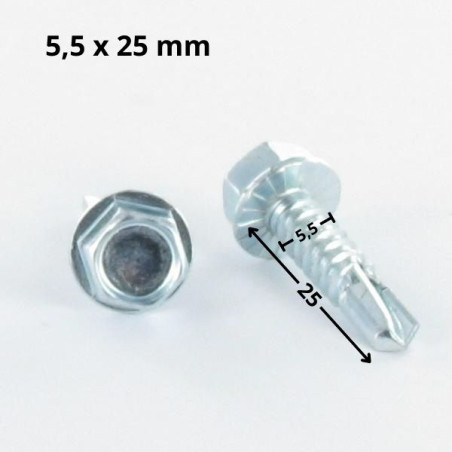

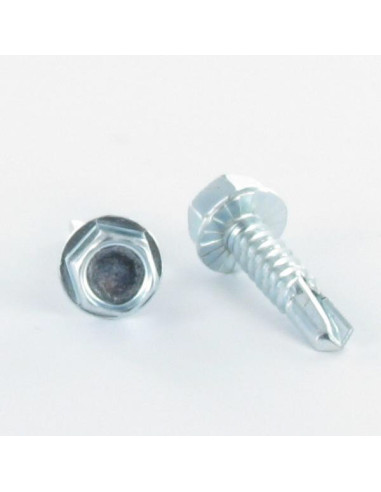

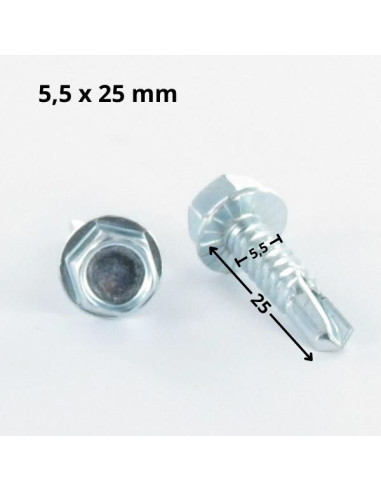

1 x Self Drilling Hexagonal Head 5.5X25 Sheet Metal Thread Zinc Plated
1 x Self Drilling Hexagonal Head 5.5X25 Sheet Metal Thread Zinc Plated
1 x Self Drilling Hexagonal Head 5.5X25 Sheet...
1 x Self Drilling Hexagonal Head 5.5X25 Sheet...

1 x Self Drilling Hexagonal Head 5.5X25 Sheet Metal Thread Zinc Plated

3127122502_1
In stock 70442 Pièces
£1.39 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 500
Lot price VAT included £1.39 £3.34 £5.21 £12.28
DIN 7504K+ EMBASE CRANTEE, VS3124 - Self Drilling Hexagonal Head 5.5X25 Sheet Metal Thread Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 500 units

Dimensions shown in millimeters (mm)

Diameter
5.5
Length
25
Size Drive Type
KEY Of 8
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN 7504K+ Flange NOTCHED VS3124
Sub product family
Hex Head
Mounting pressure (N)
350
Rotation speed (rpm)
1000-1800
Minimum breaking torque (N.m)
10
Maximum thickness to be fixed
14.7
Head thickness
4.8-5.4
Base diameter
10-11
70442 Items
3663072039346
Self Drilling Hexagonal Head 5.5X25 Sheet Metal Thread Zinc Plated Other Reference : THT8.55025 MCOM-00391 YVISAUTTHZN5 V021352500 V02132500 V02132500 VIS A5.5-25 3VNVIZATTH05 090438 4QE152584 AD3127122502 55025.051 510005022 VATH155025 4QE152584 0605 V021352500 110125 02145525 20014910000 101950 aqu1354 S154DF V021352500 AMVA0009 V021352500 1001A0113 51752 VZH05025Z01 11506125 10000389 02145525 V021352500 3663072039346
Yasin G. (vis-express.fr)
2024-10-13

to fix 2mm sheet metal on 50x5mm angle iron for the manufacture of an insulated oven
