1 x Self Drilling Hexagonal Head 4.2X32 Sheet...

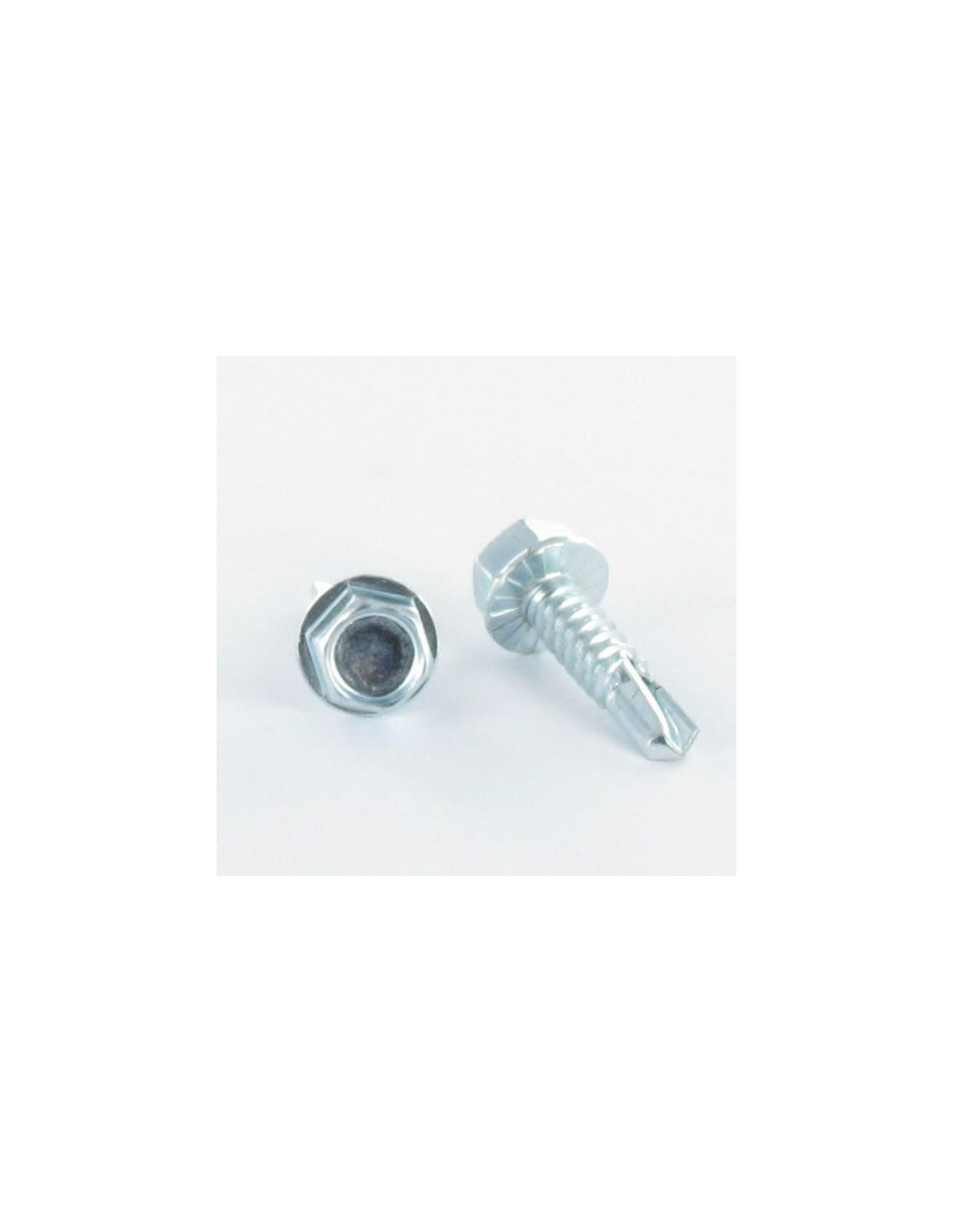

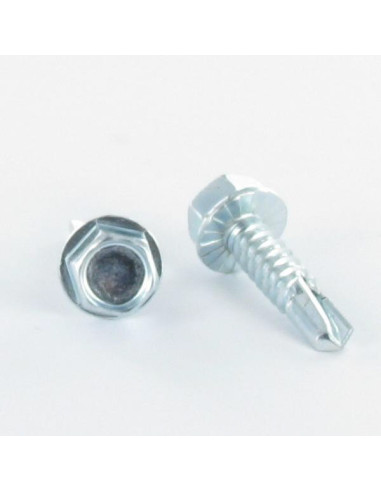

1 x Self Drilling Hexagonal Head 4.2X32 Sheet Metal Thread Zinc Plated

3127803202_1
In stock 9779 Pièces
£1.39 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 1000
Lot price VAT included £1.39 £3.34 £3.64 £16.57
DIN 7504K+ EMBASE CRANTEE, VS3124 - Self Drilling Hexagonal Head 4.2X32 Sheet Metal Thread Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 1000 units

Dimensions shown in millimeters (mm)

Diameter
4.2
Length
32
Size Drive Type
KEY Of 7
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN 7504K+ Flange NOTCHED VS3124
Sub product family
Hex Head
Mounting pressure (N)
250
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
4.5
Maximum thickness to be fixed
23
Head thickness
3.6-4.1
Base diameter
8.1-8.8
9779 Items
3663072039728
Self Drilling Hexagonal Head 4.2X32 Sheet Metal Thread Zinc Plated Other Reference : THT7.42032 VAT016 AR00794 VIAFBZ0403 841014 MP015227 000783 AMVA00010 1394711 AN 03239500 3663072039728
Jean-Claude M. (vis-express.fr)
2023-12-24

fixing polycarbonate sheets on angles p 1mm
