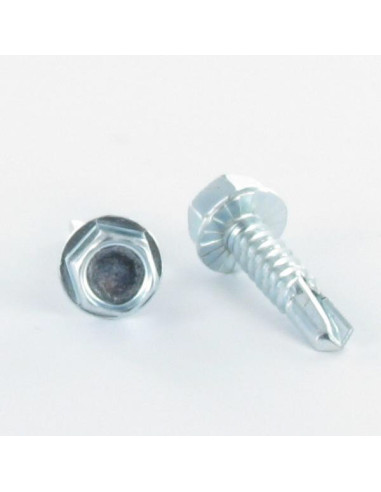

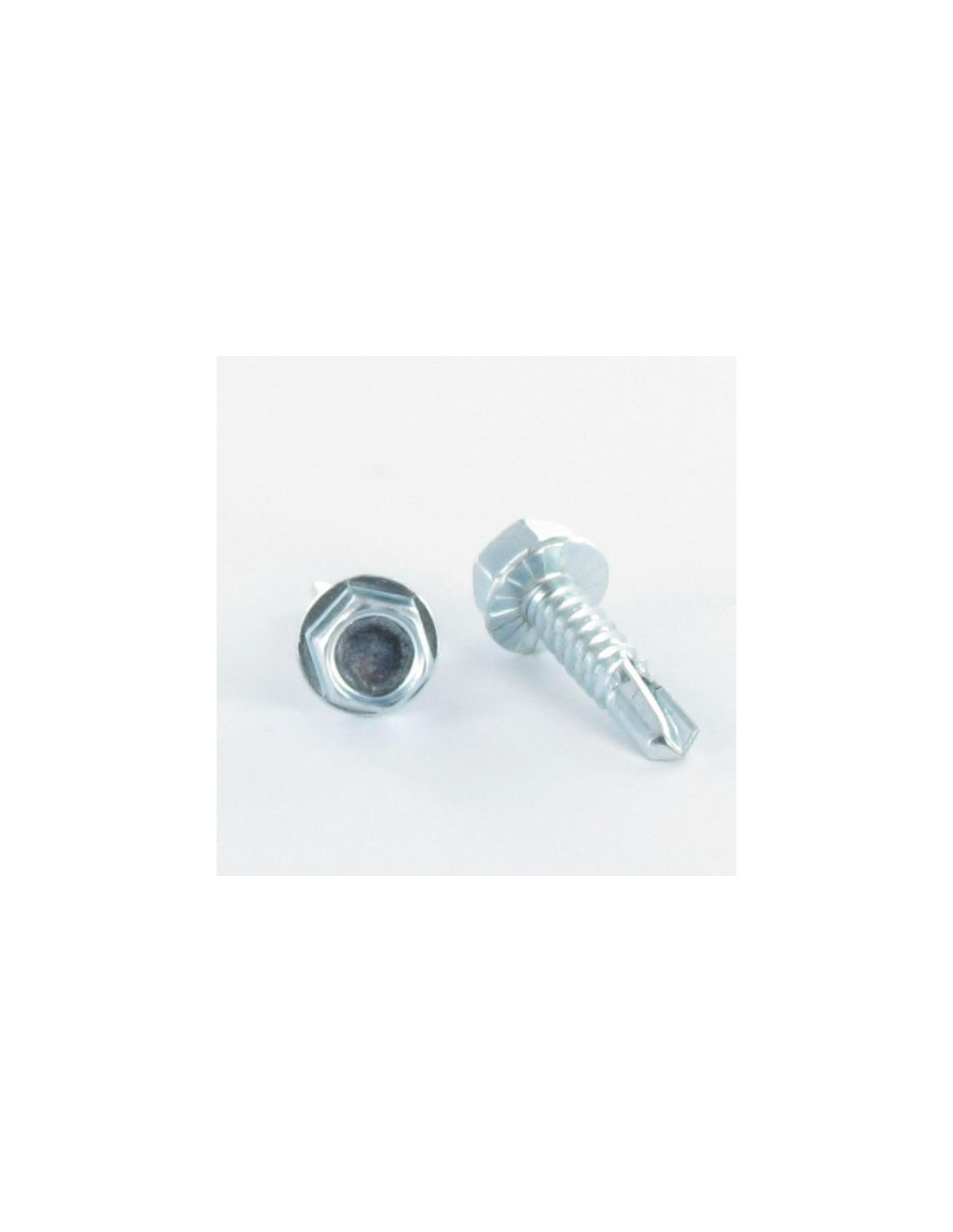

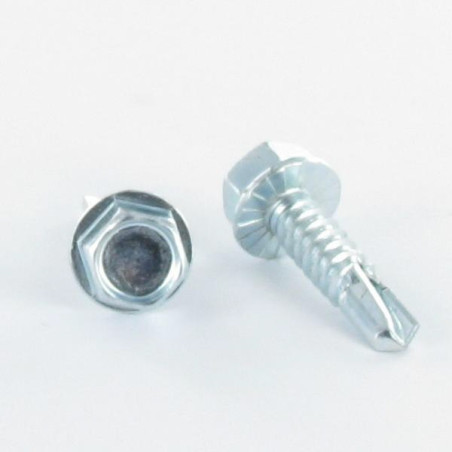

1 x Self Drilling Hexagonal Head 6.3X32 Sheet Metal Thread Zinc Plated
1 x Self Drilling Hexagonal Head 6.3X32 Sheet Metal Thread Zinc Plated
1 x Self Drilling Hexagonal Head 6.3X32 Sheet...
1 x Self Drilling Hexagonal Head 6.3X32 Sheet...

1 x Self Drilling Hexagonal Head 6.3X32 Sheet Metal Thread Zinc Plated

3127143202_1
In stock 75505 Pièces
€0.45 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 100 400
Lot price VAT included €0.45 €0.90 €1.35 €4.55 €15.00
DIN 7504K+ EMBASE CRANTEE, VS3124 - Self Drilling Hexagonal Head 6.3X32 Sheet Metal Thread Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 100 units
  • 400 Units

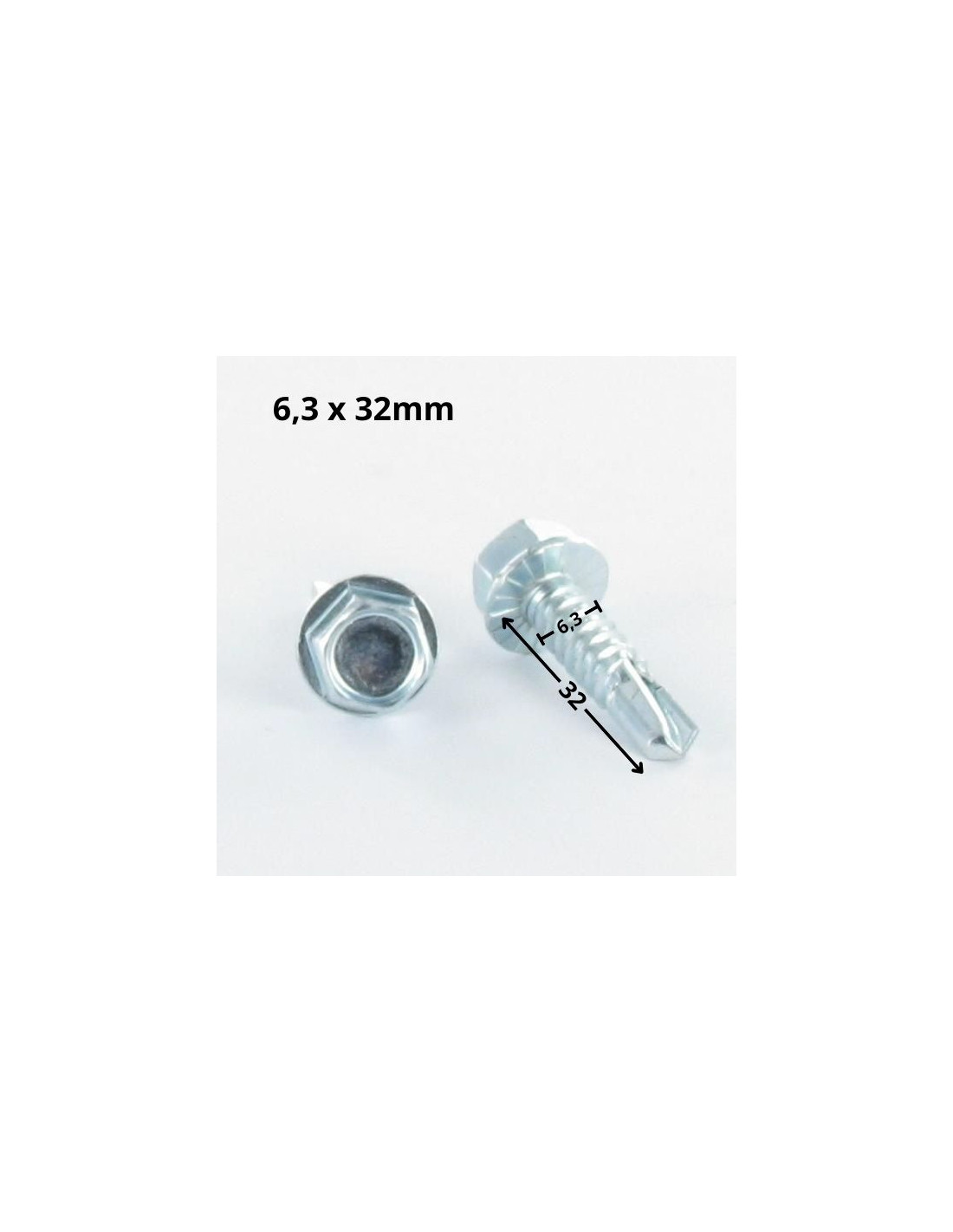

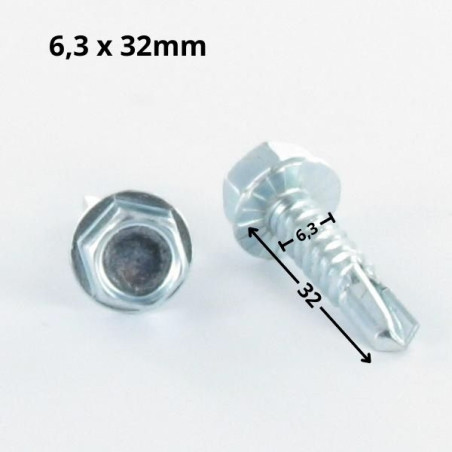

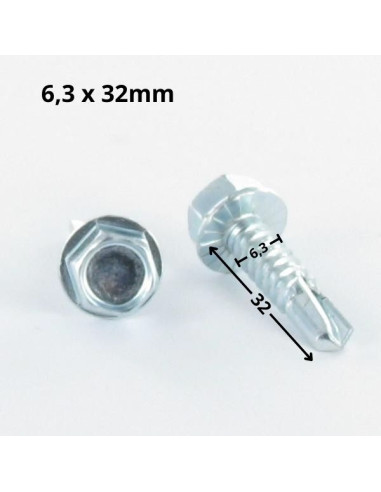

Dimensions shown in millimeters (mm)

Diameter
6.3
Length
32
Size Drive Type
KEY Of 10
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN 7504K+ Flange NOTCHED VS3124
Sub product family
Hex Head
Mounting pressure (N)
350
Rotation speed (rpm)
1000-1800
Minimum breaking torque (N.m)
14
Maximum thickness to be fixed
20
Head thickness
5.3-5.9
Base diameter
12.2-13.5
75505 Items
3663072039476
Self Drilling Hexagonal Head 6.3X32 Sheet Metal Thread Zinc Plated Other Reference : THT10.63032 YVISAUTTHZN6 VISAAPTH0623 14319 165379 1063 VAUTH6.3X32Z 9705450 612356332Z 0C6BA30 Z0105 BR2400901 VP210A-MAT02 006346 08201 04507 08201 2BOAF0631G 2400901 2400901 DVI0001 0IG05013 1212105 VCKH6332 7504KAZ6.332 VIS052 VIS052 950406652 03358 FIXVISTH6.3X 9705450 9VATH163032 VIS0057 400401 943122 1006507 1063 VIS052 1006507 10595030 VAUTH6.3X32Z NFL13278 NFL13278 ALBVIHEAN123 591599 LN01 310 591599 SC615601 SC615601 FVIAZIH VTH6*30A 591599-250 SC615601 2400901 AN 110128 QV166331ZING VTAPTH63X32 432500021 0209281 02146332 001831 40144 AQU0001 AC00362 001831 VISAAPTH0623 VZ107 1046 03239500 A01198 9705450 / CDE 9705450 AN VIS0057 AN AN 3663072039476
Jean-François L. (vis-express.fr)
2026-01-18

Sliding gate rack fixing Brand: motorization+ gate, length 6.40 m


SAS PORCLO S. (vis-express.fr)
2025-12-14

Gate manufacturing PORCLO manufacturing


Gregory C. (vis-express.fr)
2025-06-22

Mesh cr fixing


Horticulture Debauges E. (vis-express.fr)
2023-12-24

The self-drilling screws will be used to fix my solar panels with a specific sorting in a 30x30x2 steel tube Self-drilling screw on aluminum sorting 60mm long, 40mm wide with a waterproof washer
