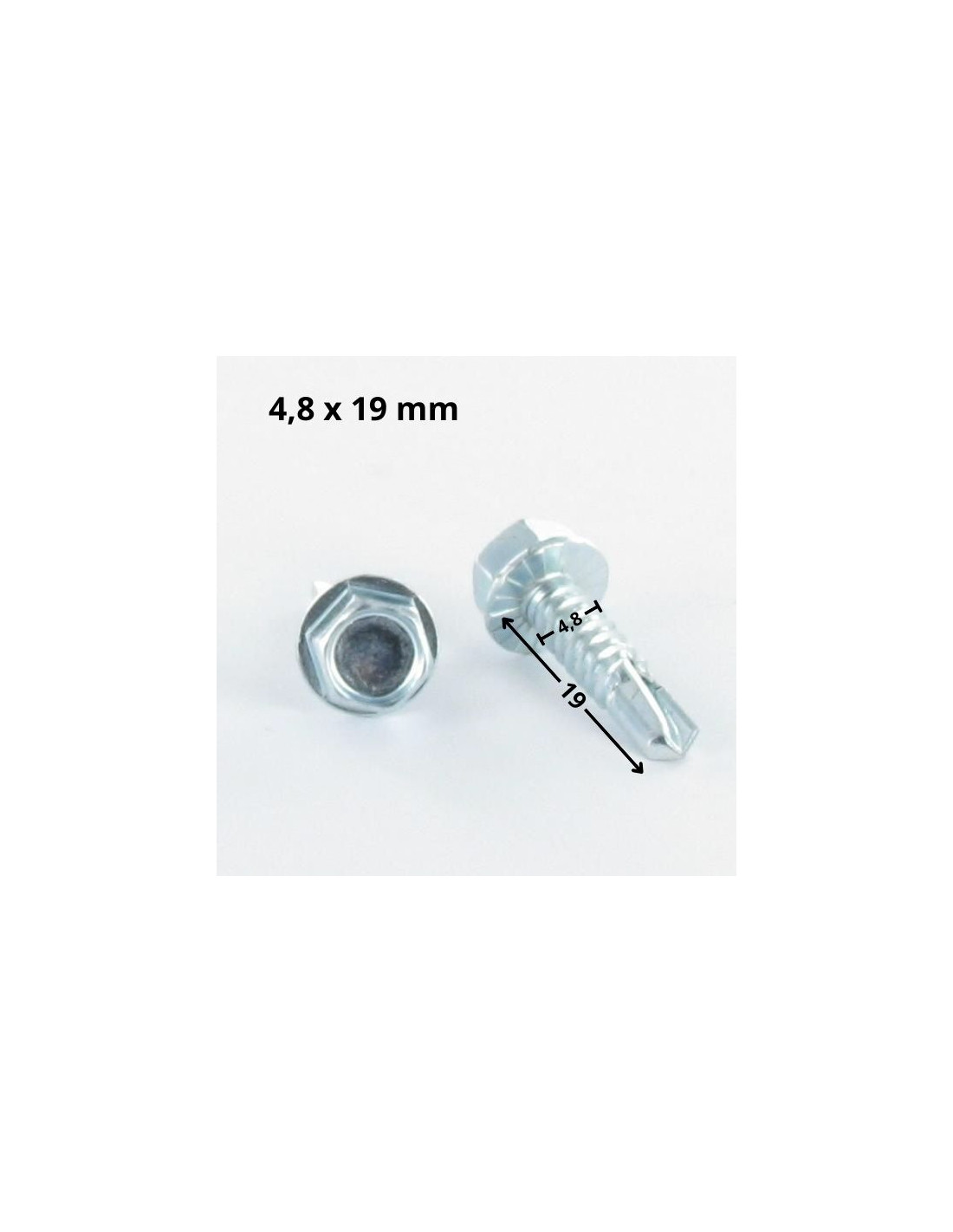

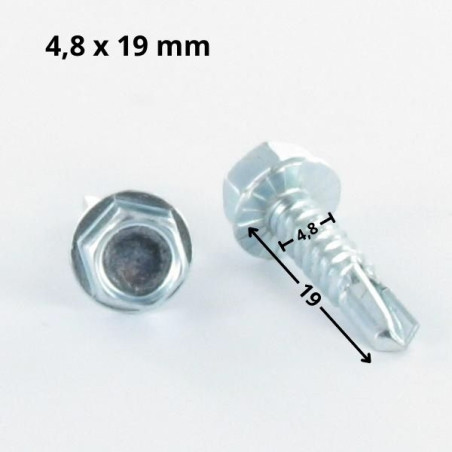

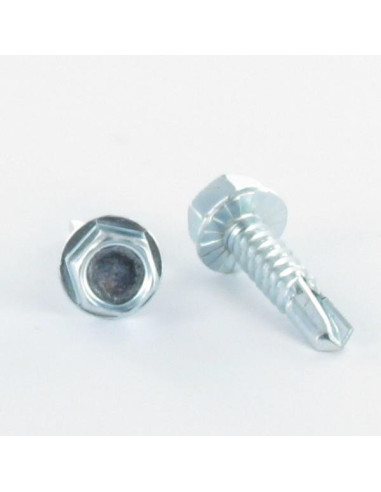

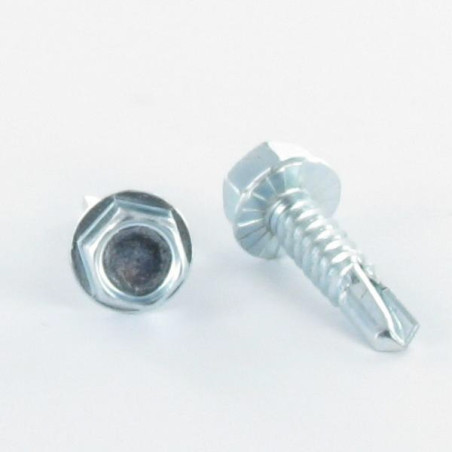

1 x Self Drilling Hexagonal Head 4.8X19 Sheet Metal Thread Zinc Plated
1 x Self Drilling Hexagonal Head 4.8X19 Sheet Metal Thread Zinc Plated
1 x Self Drilling Hexagonal Head 4.8X19 Sheet...
1 x Self Drilling Hexagonal Head 4.8X19 Sheet...

1 x Self Drilling Hexagonal Head 4.8X19 Sheet Metal Thread Zinc Plated

3127101902_1
In stock 457732 Pièces
£0.39 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 1000 4000
Lot price VAT included £0.39 £1.43 £2.86 £11.63 £46.51
DIN 7504K+ EMBASE CRANTEE, VS3124 - Self Drilling Hexagonal Head 4.8X19 Sheet Metal Thread Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 1000 Units
  • 4000 units

Dimensions shown in millimeters (mm)

Diameter
Class 4.8
Length
19
Size Drive Type
KEY Of 8
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN 7504K+ Flange NOTCHED VS3124
Sub product family
Hex Head
Mounting pressure (N)
250
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
6.5
Maximum thickness to be fixed
8.7
Head thickness
3.8-4.3
Base diameter
9.8-10.5
457732 Items
3663072039209
Self Drilling Hexagonal Head 4.8X19 Sheet Metal Thread Zinc Plated Other Reference : THT8.48019 3005VISAUTOF YVISAUTTHZN4 VISAAPTH0481 VISAUTOTH4.8 6410079 VAT021 VAUTH4.8X19Z OE24530000 529041 2364003 1140371 VIS4819 VI-ZPETHD04. 313304819 VAUTO4.8X19 300226 5170155 VIS13 5170155 300226 5170155 A02241 3127101902 VAUTOP/4.8 VIAFH05019A VISTH4.8X19Z 1006003 qvaz4819 A3011498 VIS433 5040248190 841011 4819 QVIC08 VIS0110 A0010164 7504KAZ4.819 ZQV8C4.819AZ 627219 VIS.4.8X19 0200762 80010015 31804819 0009018-0019 300226 9VATH148019 300226 300226 300226 300226 300226 PVVS76 VIS4819 05189 02144819 F00186 05189 MP015137 2069710000 AN VISZ0109 0405144 VAUTH4.8X19Z NFF10438 300226 300226 1006003 LN0152 10190 1006003 AR02497 140948 0140948 0140948 110120 VTAPTH48X19 02144819 VIS.TOLE.006 001829 Q0065 AQU1147 A3011498 600135110 VI1041A AMVA00003 214.48.19 901VZATH4819 689551 a002062 VIO92727 TS L 2 MOIS S002029710 40693100 10000302 0529041 AN BOUTHPF4.8X1 AN 3663072039209
david w. (vis-express.fr)
2025-10-05

Fixing hinges on sectional door panel Changing the orientation of the sectional door panel fixing to vertical
