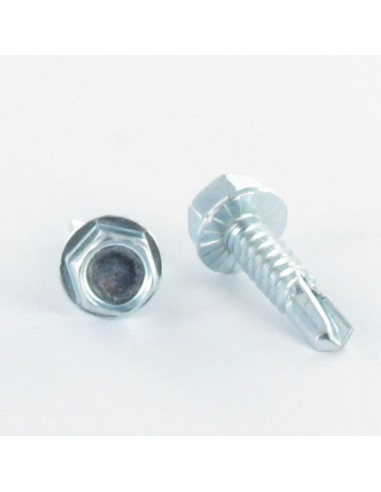

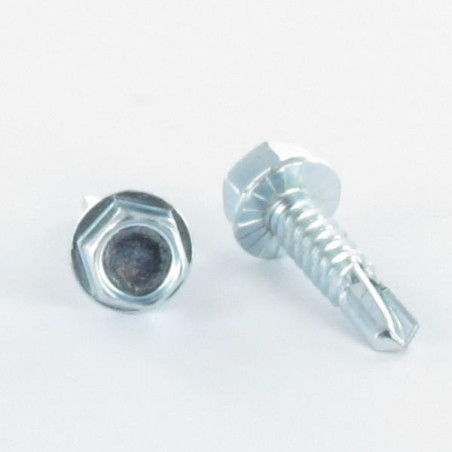

1 x Self Drilling Hexagonal Head 4.2X13 Sheet Metal Thread Zinc Plated
1 x Self Drilling Hexagonal Head 4.2X13 Sheet Metal Thread Zinc Plated
1 x Self Drilling Hexagonal Head 4.2X13 Sheet...
1 x Self Drilling Hexagonal Head 4.2X13 Sheet...

1 x Self Drilling Hexagonal Head 4.2X13 Sheet Metal Thread Zinc Plated

3127801302_1
In stock 566530 Pièces
€1.60 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 1000 4000
Lot price VAT included €1.60 €3.85 €4.20 €11.40 €42.00
DIN 7504K+ EMBASE CRANTEE, VS3124 - Self Drilling Hexagonal Head 4.2X13 Sheet Metal Thread Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 1000 units
  • 4000 units

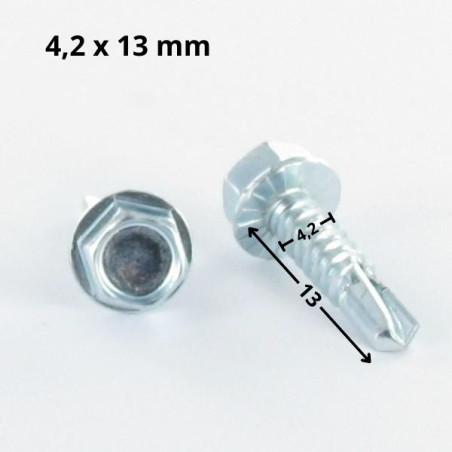

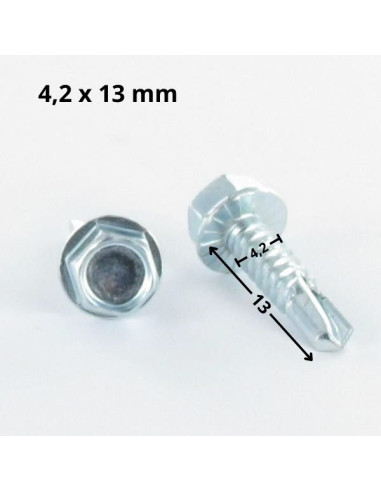

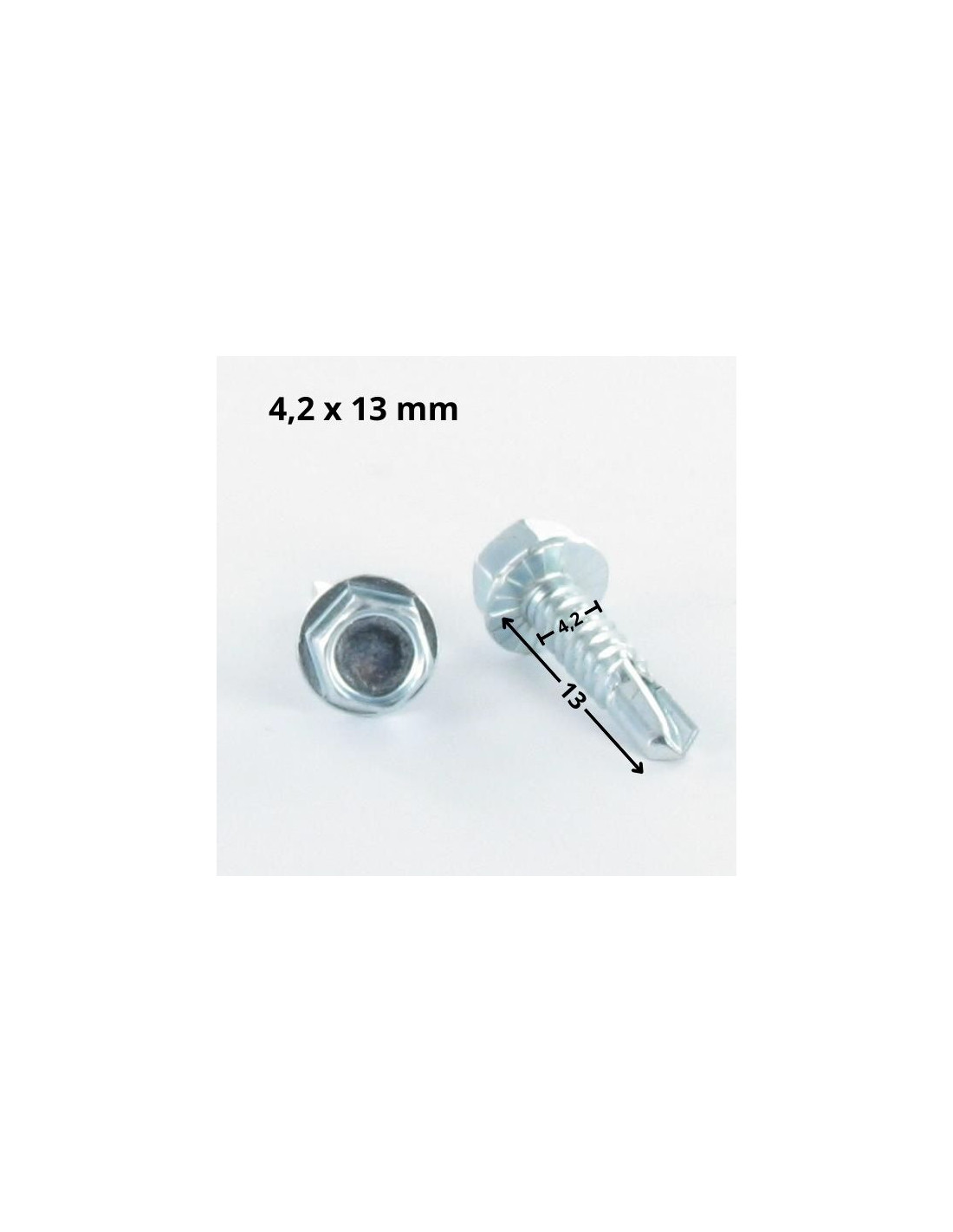

Dimensions shown in millimeters (mm)

Diameter
4.2
Length
13
Size Drive Type
KEY Of 7
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN 7504K+ Flange NOTCHED VS3124
Sub product family
Hex Head
Mounting pressure (N)
250
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
4.5
Maximum thickness to be fixed
4.3
Head thickness
3.6-4.1
Base diameter
8.1-8.8
566530 Items
3663072039681
Self Drilling Hexagonal Head 4.2X13 Sheet Metal Thread Zinc Plated Other Reference : THT7.42013 M8305 14334 LDU25139000 00968577 V02141300 K0726 VAT005 VAUTH4.2X13Z B0419688 ANNUEL 6300820 47354214 0390Z04213 VCKH4213 EUVP2Z13 S01202 009685770 VI1064---- VIS4.2X13AUT 943116 943116 VIS4213 LDU25139000 V021341300 VATH/42-13 VAUTH4.2X13Z VTAPTH42X13 VAUTH4.2X1 AQU1085 V021341300 V021341300 002805 1001A0087 MVVTN413H VIS0129 AN AN 26991048 021242 13 076100 6300820 7647401 3663072039681
