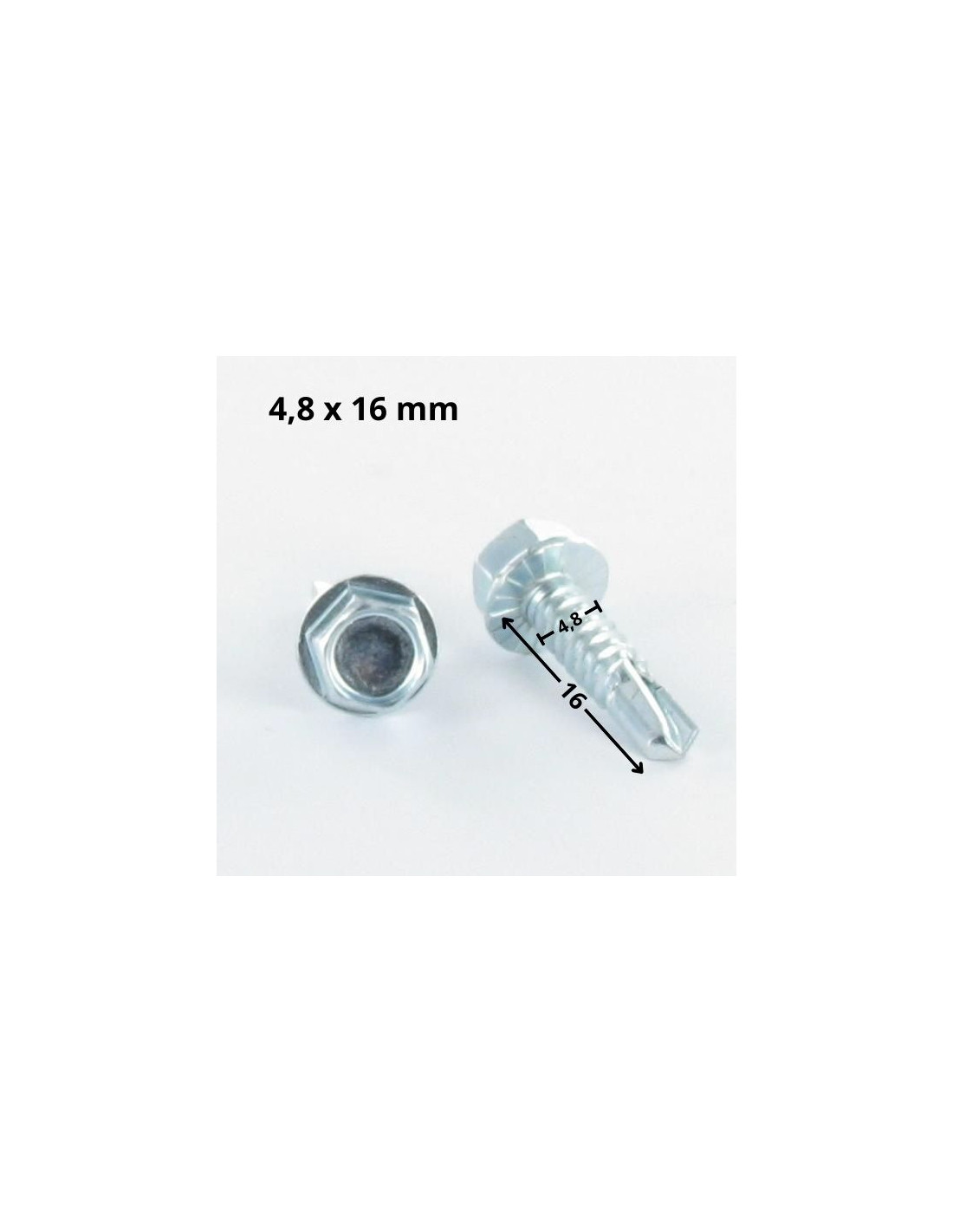

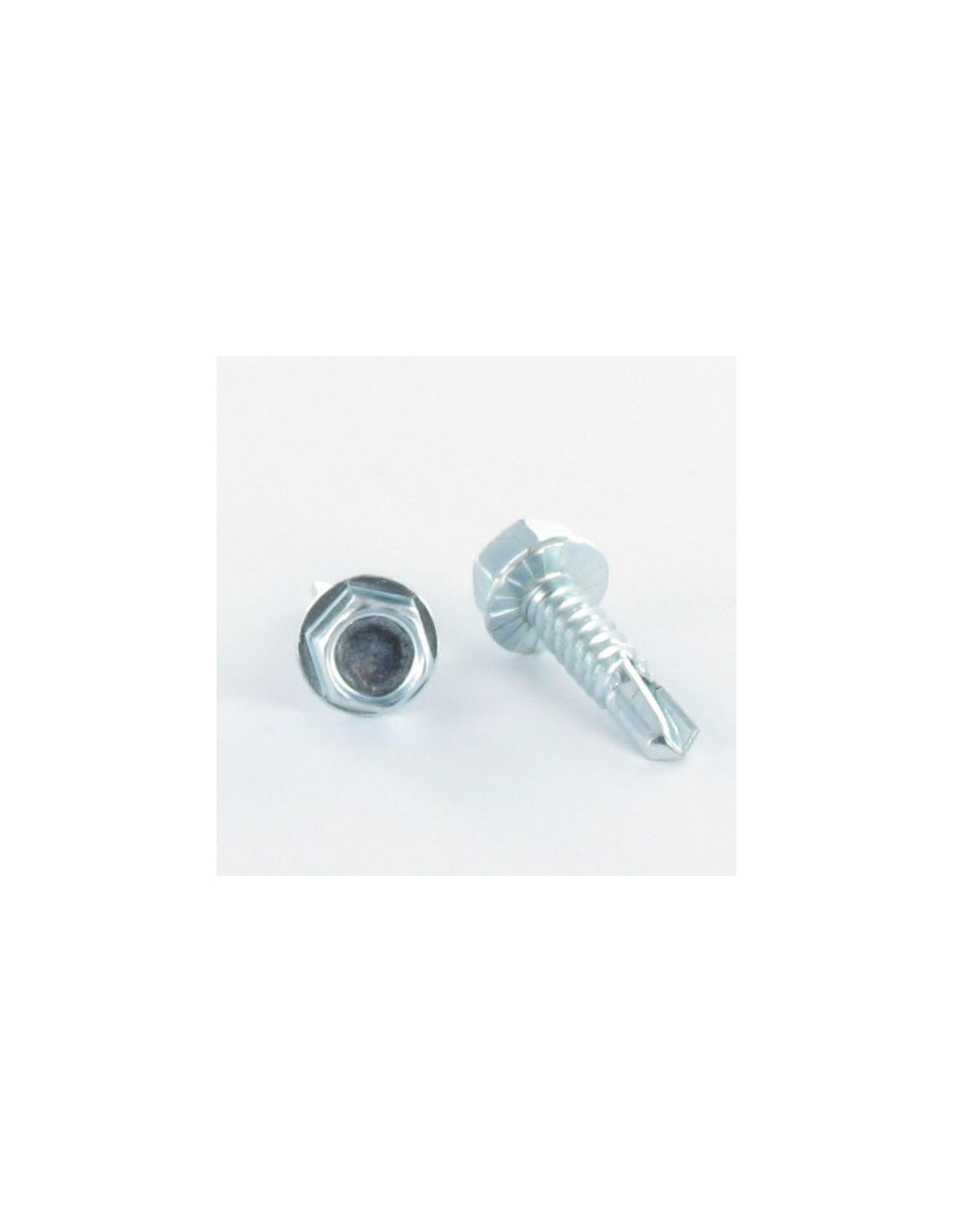

1 x Self Drilling Hexagonal Head 4.8X16 Sheet Metal Thread Zinc Plated
1 x Self Drilling Hexagonal Head 4.8X16 Sheet Metal Thread Zinc Plated

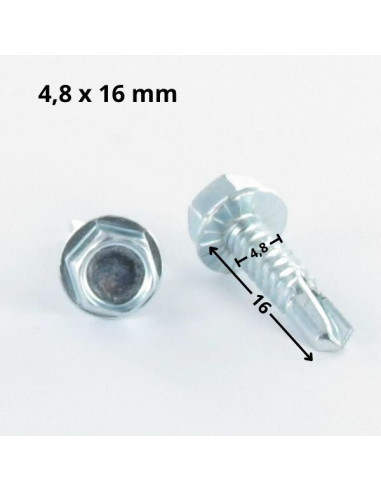

1 x Self Drilling Hexagonal Head 4.8X16 Sheet...

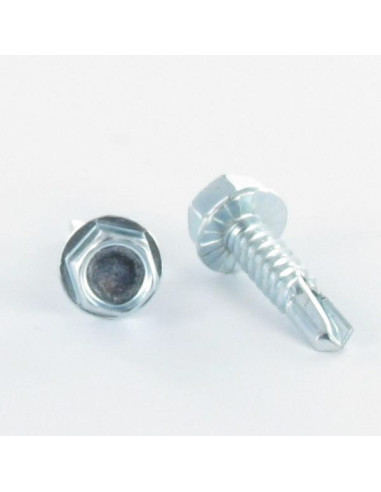

1 x Self Drilling Hexagonal Head 4.8X16 Sheet...

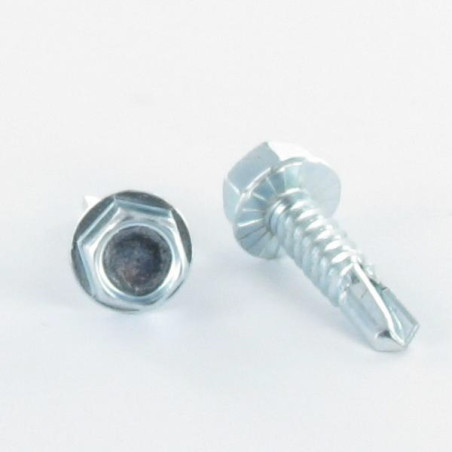

1 x Self Drilling Hexagonal Head 4.8X16 Sheet Metal Thread Zinc Plated

3127101602_1
In stock 307375 Pièces
€1.60 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 1000
Lot price VAT included €1.60 €3.85 €4.20 €16.60
DIN 7504K+ EMBASE CRANTEE, VS3124 - Self Drilling Hexagonal Head 4.8X16 Sheet Metal Thread Zinc Plated
"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 1000 units

Dimensions shown in millimeters (mm)

Diameter
Class 4.8
Length
16
Size Drive Type
KEY Of 8
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN 7504K+ Flange NOTCHED VS3124
Sub product family
Hex Head
Mounting pressure (N)
250
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
6.5
Maximum thickness to be fixed
5.5
Head thickness
3.8-4.3
Base diameter
9.8-10.5
307375 Items
3663072039193
Self Drilling Hexagonal Head 4.8X16 Sheet Metal Thread Zinc Plated
Diameter = Class 4.8, Length = 16, Coating = ZINGUE White, Sub Product Family = Hex Head, Material = Steel, Norm = DIN 7504K+ Flange NOTCHED VS3124, Size Drive Type = KEY Of 8


dimensional guide (mm)
numero 8 10 12
Diameter 4.2 4.8 5.5
Head Tickness 4.25 4.45 5.45
Across flats 7 8 8

Other Reference : THT8.48016 VISATFHM04.8 506785 14295 1828A33 AVV01794 VV04816PXZ 204483 VAUTH4.8X16Z 1828A33 1828A33 0059205 VAH48159Z VV04816PXZ VI-ZPETHD04. VISA416 1= 318048161 5179999 PRDIV001 002182 V.AUTOP/4.8X 08300043 4816 104400 ZVIS 7504KAZ4.816 A-14040 VAP4.8-16 104400 6000-1555 PST4.8x16H-Z 7504H4.816ZI VIS.TH4.8.01 41055 2g005885 318048161 A00037882 100264 9VATH148016 VIS104813 VISAUT VIS4816 300100510070 2069710000 VATH/48-16 VAH48159Z VAUTH4.8X16Z VPTH4.8X16Z VIS079BIS 42500029 VTAPTH48X16 VAUTH4.8X1 02144816 1612137-0 1343000710 018027 VAFH48.16 CD20074.0421 51221 642-0472-6 210080 BBB000650 9505460 251070 2051323 VTH4.8X16AFT 611051 03239500 14595 1135 11506107 10000134 VP001132 3663072039193
