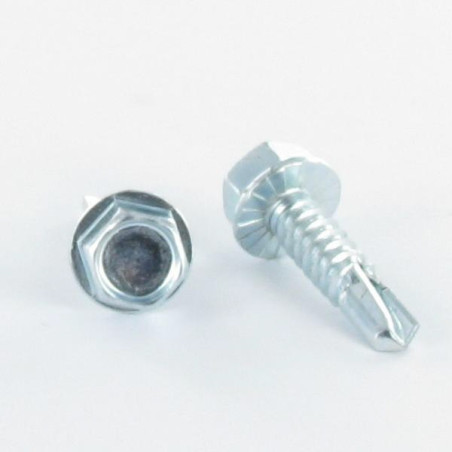

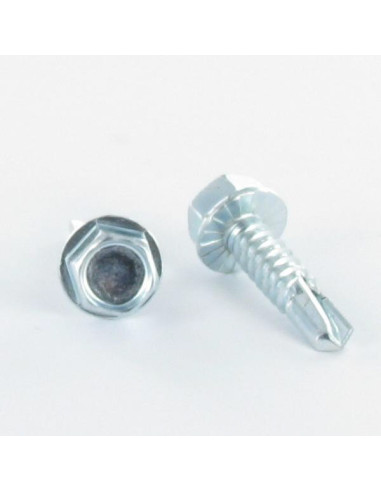

1 x Self Drilling Hexagonal Head 4.8X13 Sheet Metal Thread Zinc Plated
1 x Self Drilling Hexagonal Head 4.8X13 Sheet Metal Thread Zinc Plated
1 x Self Drilling Hexagonal Head 4.8X13 Sheet...
1 x Self Drilling Hexagonal Head 4.8X13 Sheet...

1 x Self Drilling Hexagonal Head 4.8X13 Sheet Metal Thread Zinc Plated

3127101302_1
In stock 274171 Pièces
€1.60 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 1000
Lot price VAT included €1.60 €3.85 €4.20 €15.90
DIN 7504K+ EMBASE CRANTEE, VS3124 - Self Drilling Hexagonal Head 4.8X13 Sheet Metal Thread Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 1000 units

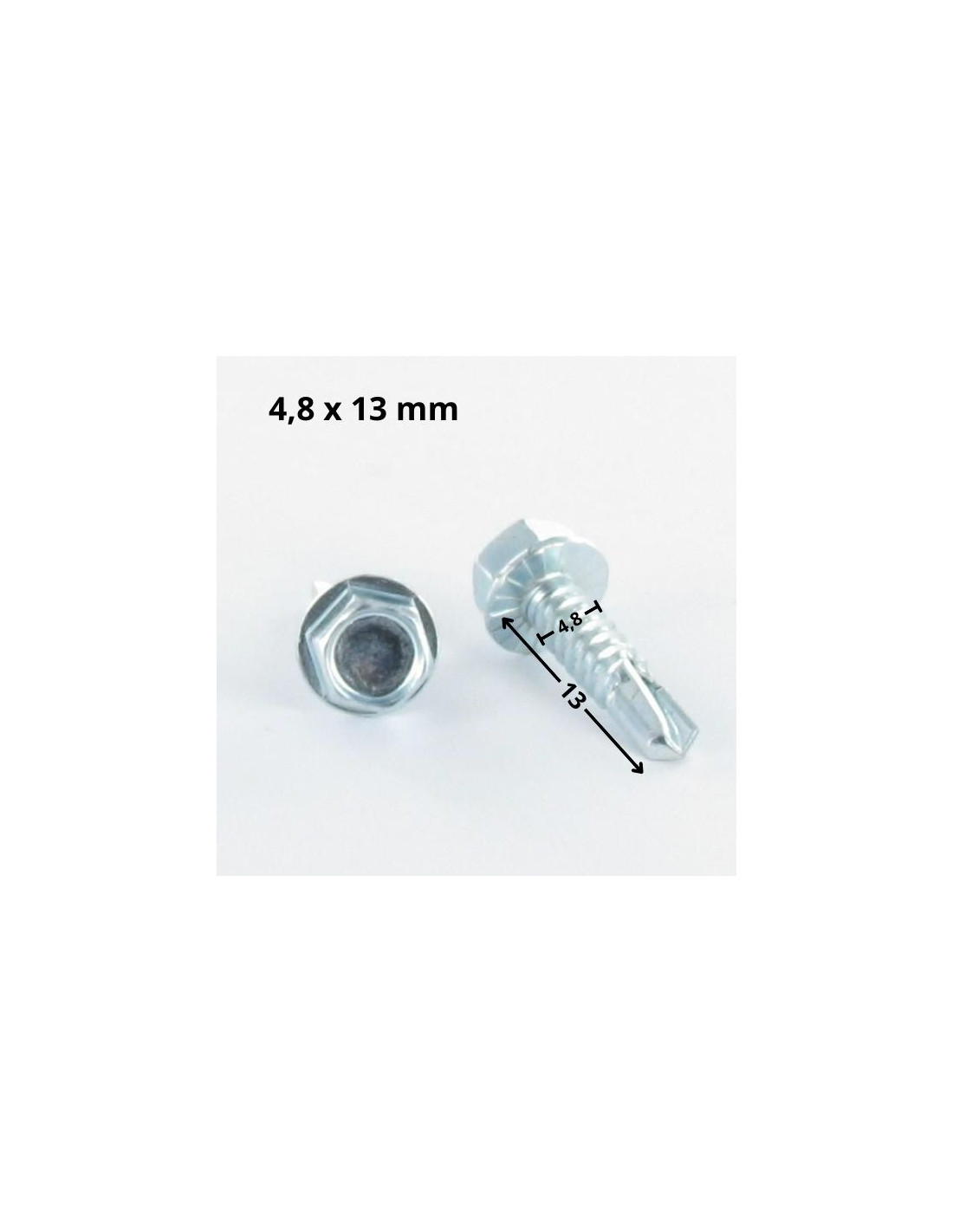

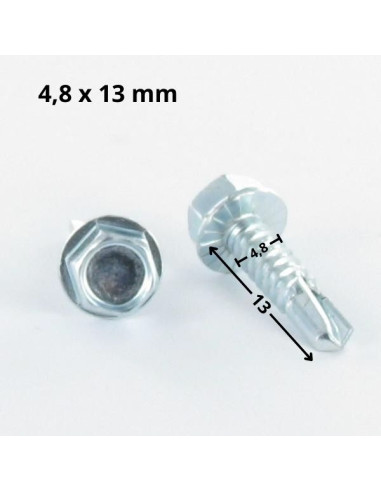

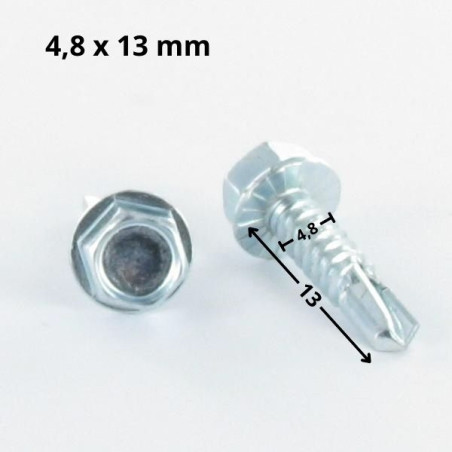

Dimensions shown in millimeters (mm)

Diameter
Class 4.8
Length
13
Size Drive Type
KEY Of 8
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN 7504K+ Flange NOTCHED VS3124
Sub product family
Hex Head
Mounting pressure (N)
250
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
6.5
Maximum thickness to be fixed
3.7
Head thickness
3.8-4.3
Base diameter
9.8-10.5
274171 Items
3663072039186
Self Drilling Hexagonal Head 4.8X13 Sheet Metal Thread Zinc Plated Other Reference : THT8.48013 506787 YVISAUTTHZN4 4163779 2VIDIV020 VAT019 0974355000 2VIDIV020 1140373 318048134 05170268 QVAZ813 A3011497 VI1136 79161.48.13 VI4.8*13APTH 6001-0440 901766 9904813 ACC22302 187899900 318048134 0187899900 10662 21988 LM40001 21988 21988 21988 523100060 02144813 Q0024 A3011497 B170007 1-001-08-04 14595 14595 0901766 59204 AN 3663072039186
Camille F. (vis-express.fr)
2025-04-20

Assemble galvanized pipes To create a ventilation network


Camille F. (vis-express.fr)
2025-04-20

Fixing galvanized tubes Fixing galvanized tubes for a ventilation network


Camille F. (vis-express.fr)
2025-04-20

For fixing galvanized ventilation tubes Spiral tube D.180mm Econox brand


Cedric a. (vis-express.fr)
2025-04-13

Decorative sheet metal fixing Galva decorative sheet metal
