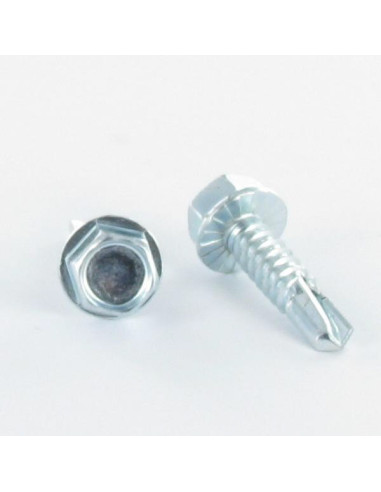

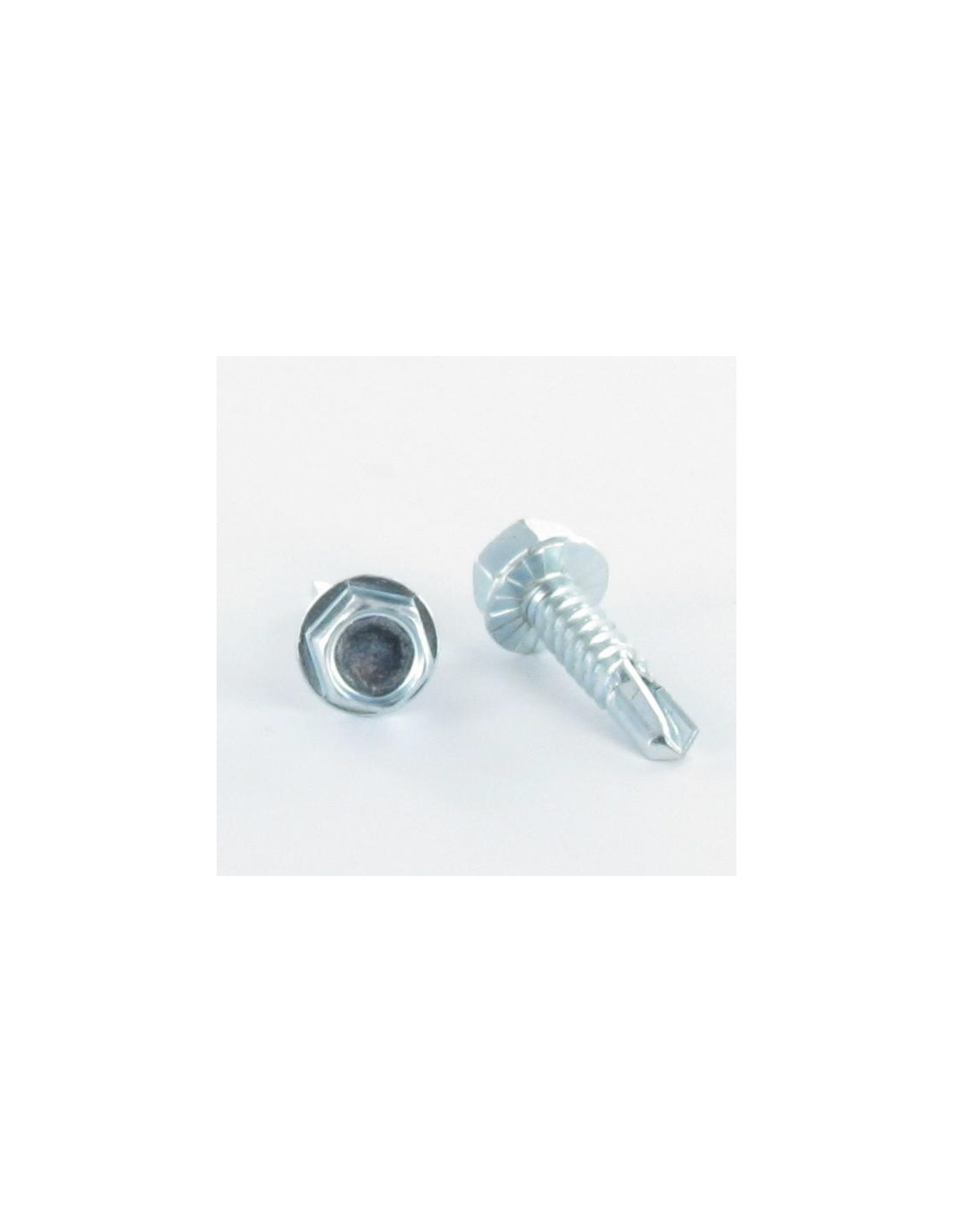

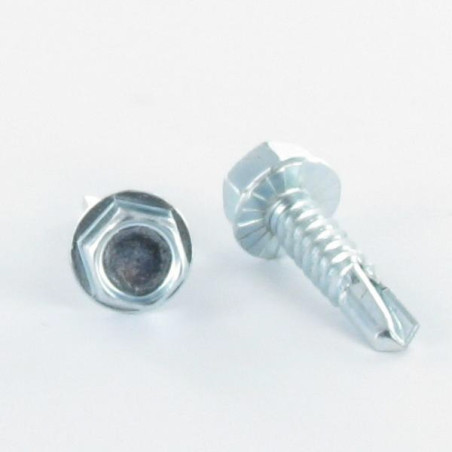

1 x Self Drilling Hexagonal Head 4.8X45 Sheet Metal Thread Zinc Plated
1 x Self Drilling Hexagonal Head 4.8X45 Sheet Metal Thread Zinc Plated
1 x Self Drilling Hexagonal Head 4.8X45 Sheet...
1 x Self Drilling Hexagonal Head 4.8X45 Sheet...

1 x Self Drilling Hexagonal Head 4.8X45 Sheet Metal Thread Zinc Plated

3127104502_1
In stock 85390 Pièces
€1.60 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 500
Lot price VAT included €1.60 €3.85 €6.90 €16.35
DIN 7504K+ EMBASE CRANTEE, VS3124 - Self Drilling Hexagonal Head 4.8X45 Sheet Metal Thread Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 500 units

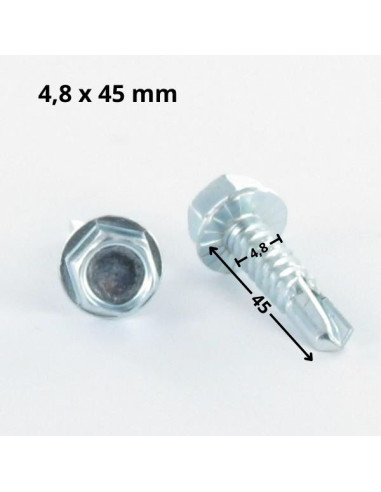

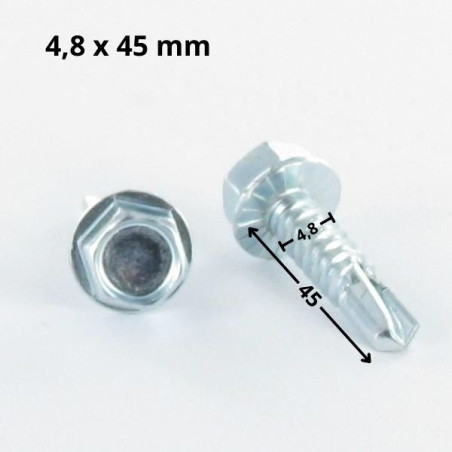

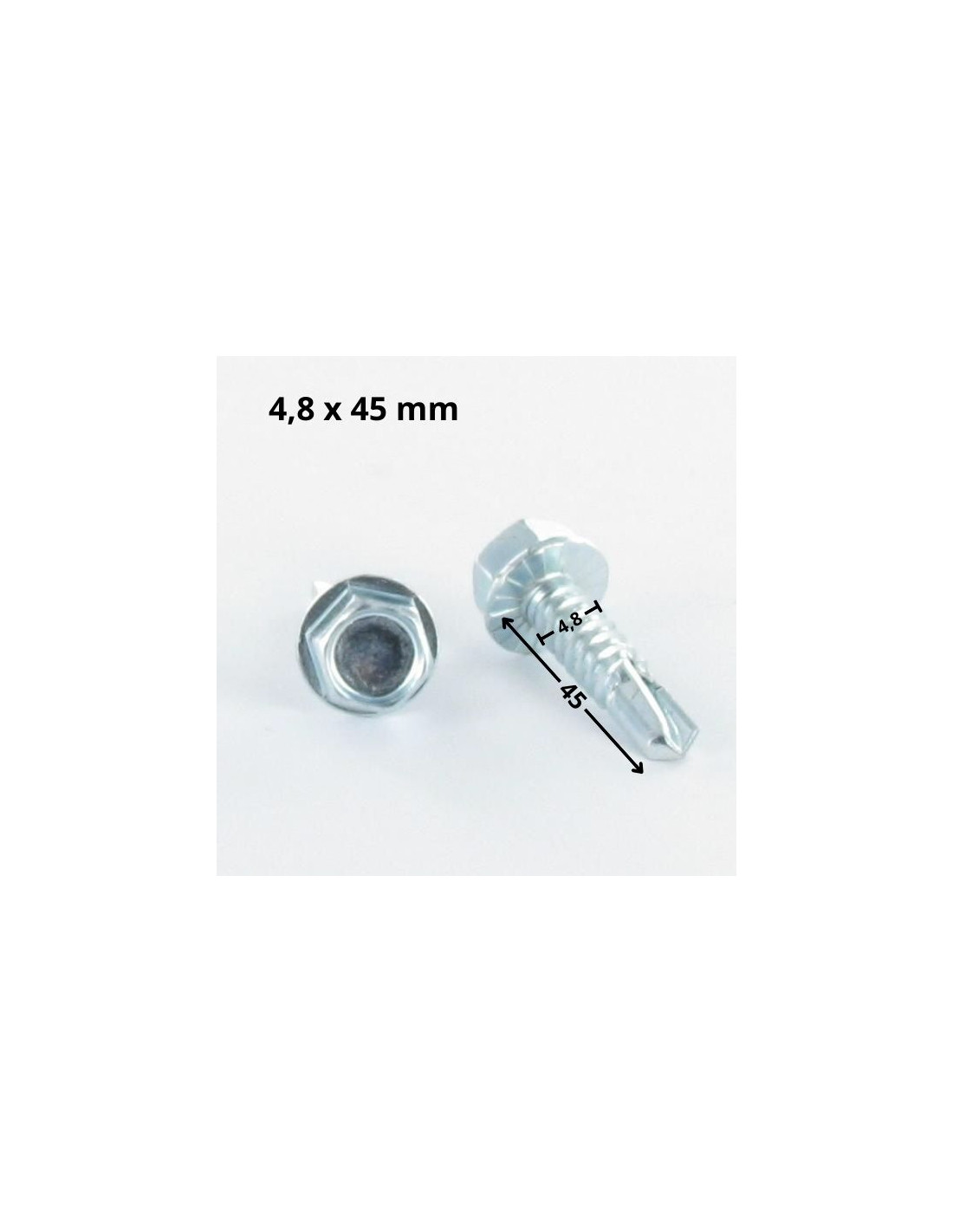

Dimensions shown in millimeters (mm)

Diameter
Class 4.8
Length
45
Size Drive Type
KEY Of 8
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN 7504K+ Flange NOTCHED VS3124
Sub product family
Hex Head
Mounting pressure (N)
250
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
6.5
Maximum thickness to be fixed
34.5
Head thickness
3.8-4.3
Base diameter
9.8-10.5
85390 Items
3663072039285
Self Drilling Hexagonal Head 4.8X45 Sheet Metal Thread Zinc Plated Other Reference : THT8.48045 VAT035 VAECA4845 260053 VIXX172 VIXX172 752751 02144845 PH5-45 3663072039285
thomas l. (vis-express.fr)
2025-11-09

Conduit fixing Conduit 315


Christophe B. (vis-express.fr)
2025-08-10

fastening of steelwork arcelor mital


Florian G. (vis-express.fr)
2025-05-11

Screws for fixing cladding on galvanized cladding 0.63mm galvanized steel cladding and 1mm galvanized steel cladding
