1 x Self Drilling Hexagonal Head 5.5X22 Sheet...

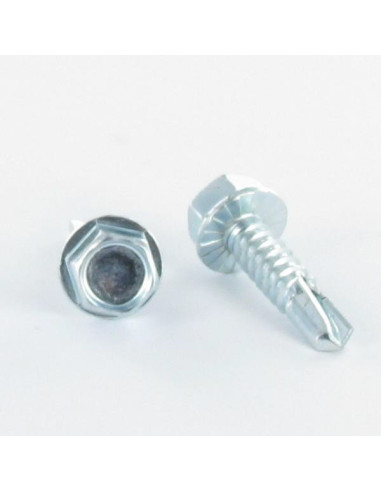

1 x Self Drilling Hexagonal Head 5.5X22 Sheet Metal Thread Zinc Plated

3127122202_1
In stock 89481 Pièces
£1.39 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 1000
Lot price VAT included £1.39 £3.34 £4.34 £18.83
DIN 7504K+ EMBASE CRANTEE, VS3124 - Self Drilling Hexagonal Head 5.5X22 Sheet Metal Thread Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 1000 units

Dimensions shown in millimeters (mm)

Diameter
5.5
Length
22
Size Drive Type
KEY Of 8
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN 7504K+ Flange NOTCHED VS3124
Sub product family
Hex Head
Mounting pressure (N)
350
Rotation speed (rpm)
1000-1800
Minimum breaking torque (N.m)
10
Maximum thickness to be fixed
11.7
Head thickness
4.8-5.4
Base diameter
10-11
89481 Items
3663072039322
Self Drilling Hexagonal Head 5.5X22 Sheet Metal Thread Zinc Plated Other Reference : THT8.55022 VI417055221 MA200102 11422002 9VATH55022 126A28326 126A28326 126A28326 126A28326 901001102 40285A0000 02145522 3663072039322
Thierry T. (vis-express.fr)
2024-01-07

screwing into aluminum tube 50x50 th screw 5.5x22
