1 x Self Drilling Hexagonal Head 6.3X50 Sheet Metal Thread Zinc Plated
1 x Self Drilling Hexagonal Head 6.3X50 Sheet Metal Thread Zinc Plated
1 x Self Drilling Hexagonal Head 6.3X50 Sheet...
1 x Self Drilling Hexagonal Head 6.3X50 Sheet...

1 x Self Drilling Hexagonal Head 6.3X50 Sheet Metal Thread Zinc Plated

3127145002_1
In stock 99315 Pièces
€1.60 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 500
Lot price VAT included €1.60 €6.15 €12.30 €29.15
DIN 7504K+ EMBASE CRANTEE, VS3124 - Self Drilling Hexagonal Head 6.3X50 Sheet Metal Thread Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 500 units

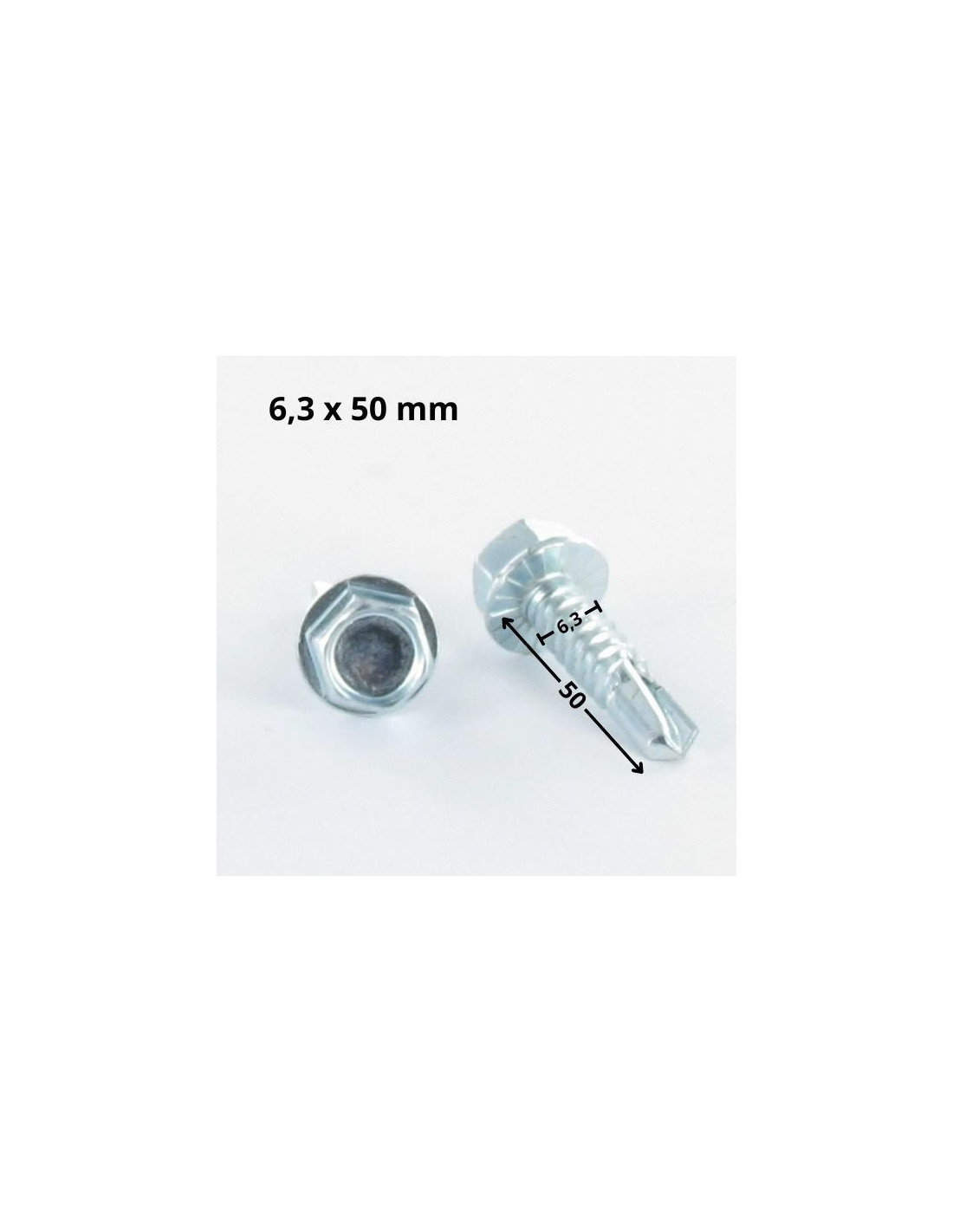

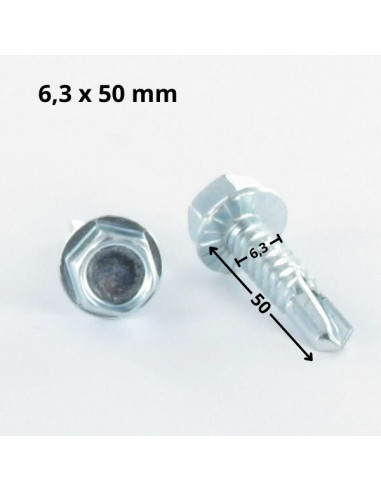

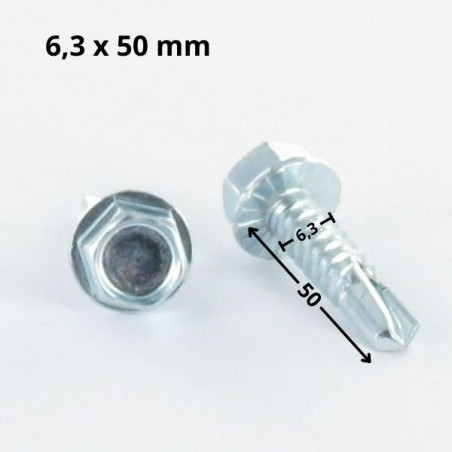

Dimensions shown in millimeters (mm)

Diameter
6.3
Length
50
Size Drive Type
KEY Of 10
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN 7504K+ Flange NOTCHED VS3124
Sub product family
Hex Head
Mounting pressure (N)
350
Rotation speed (rpm)
1000-1800
Minimum breaking torque (N.m)
14
Maximum thickness to be fixed
38
Head thickness
5.3-5.9
Base diameter
12.2-13.5
99315 Items
3663072039513
Self Drilling Hexagonal Head 6.3X50 Sheet Metal Thread Zinc Plated Other Reference : THT10.63050 VISAUTOP6.3X AUTO6.3X50 14523 6.3x50 ZZ5113 612356350Z 0190156 VI-ZPETHD06. VISE6 04508 VISAUTOF6.3X 2VAF0650 2VAF0650 0IG05025 6350 QUI0646 VATH/63-50 1004904 901000512 2074 1006006 523100293 6639067 110130 001833 40146 100517 264150 2817063050 AQU0001 VZAPTH63L50 VIS0156 1304698LV 5119 10000073 AN 3663072039513
FREDERIC D. (vis-express.fr)
2024-07-28

drilling and fixing of collaborative flooring For collaborative flooring bacacier PCB80


Cyrille P. (vis-express.fr)
2024-05-19

it is screwed to me it is very useful for fixing automatic doors on an aluminum facade Self-drilling screw hexagonal head TH 6.3X50 T thread Zinc-plated steel useful every day in my work on automatic doors record, faac, for metal curtains
