1 x Blind rivets Aluminium Stahlgewinde 2.4X8 Thickness Of Panel 4 to 6 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 2.4X8 Thickness Of Panel 4 to 6 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 2.4X8 Thickness Of Panel 4 to 6 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 2.4X8...
1 x Blind rivets Aluminium Stahlgewinde 2.4X8...
1 x Blind rivets Aluminium Stahlgewinde 2.4X8...

1 x Blind rivets Aluminium Stahlgewinde 2.4X8 Thickness Of Panel 4 to 6 Flat Head ALX

3702240812_1
In stock 10600 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 1000
Lot price VAT included €3.85 €7.70 €9.25 €17.10

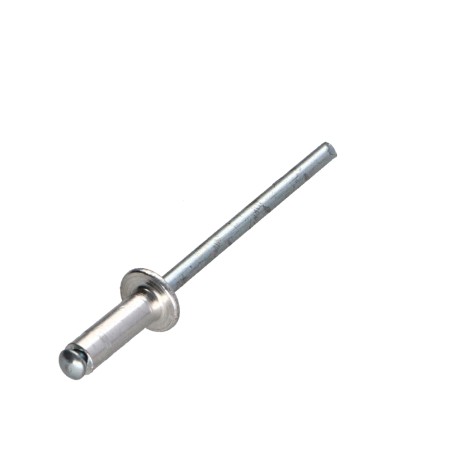

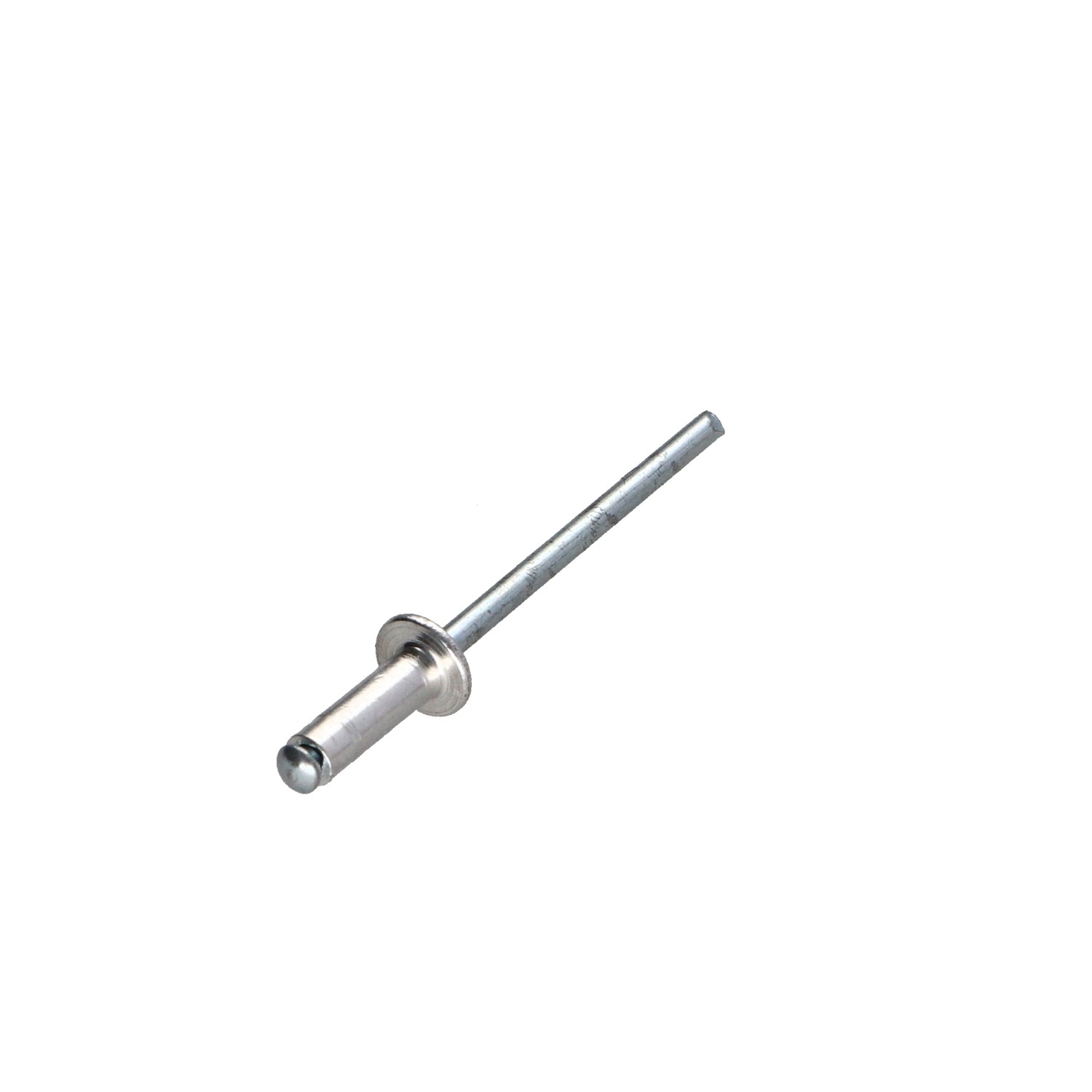

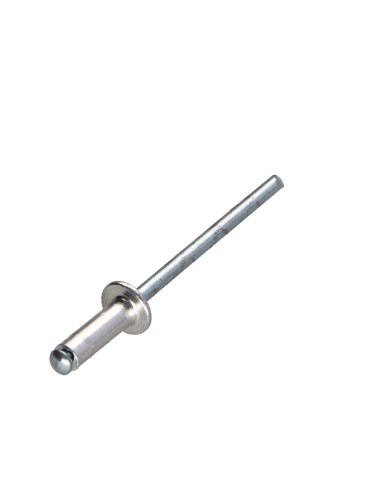

Blind rivets Aluminium Stahlgewinde 2.4X8 Thickness Of Panel 4 to 6 Flat Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 1000 Units

Dimensions shown in millimeters (mm)

Diameter
2.4
Sub product family
Flat Head
WEIGHT For THERE unit
0.63 GR
Clamping thickness
4 to 6 MM
Rivet body length
8
10600 Items
3663072301955

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 2.4X8 Thickness Of Panel 4 to 6 Flat Head ALX
Diameter = 2.4

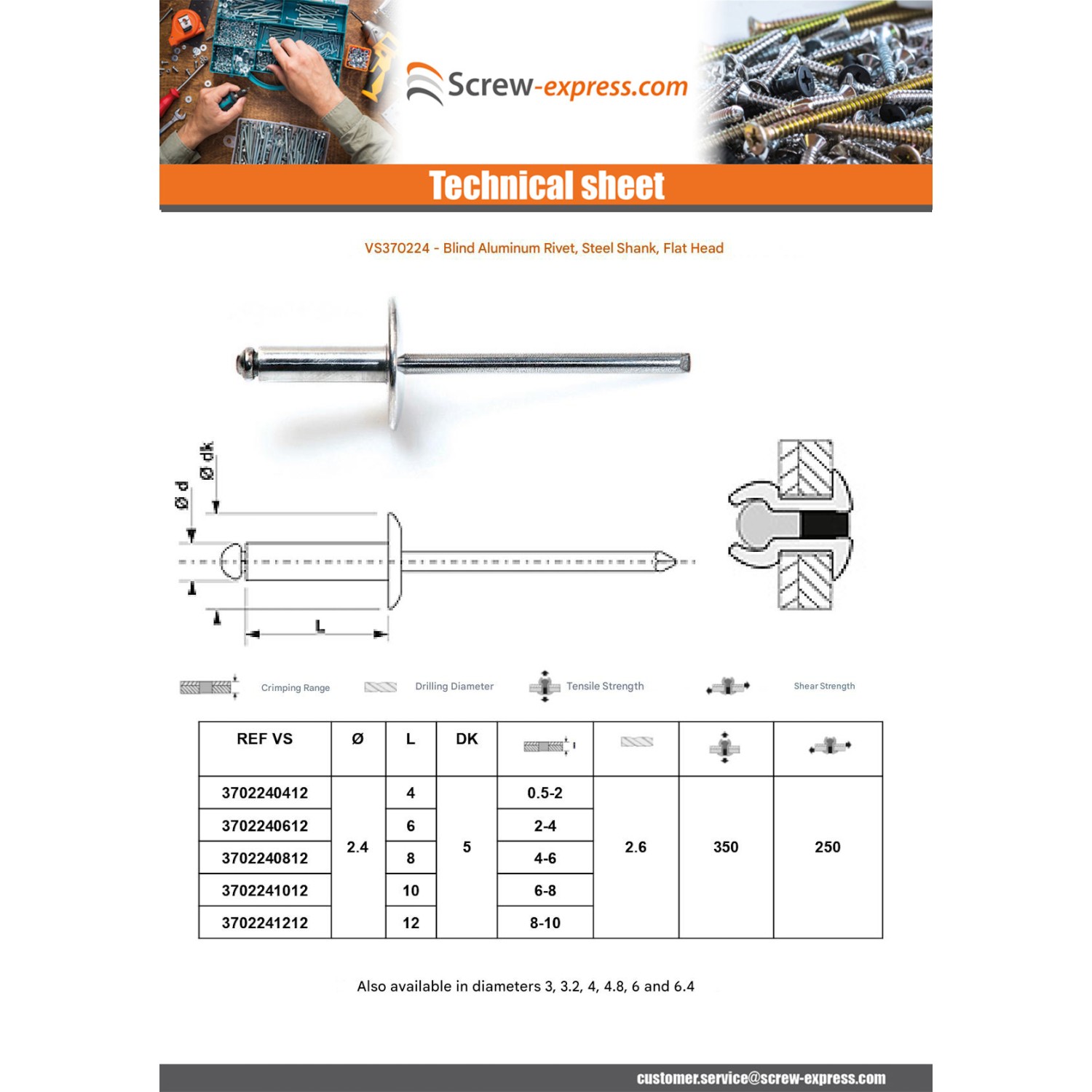

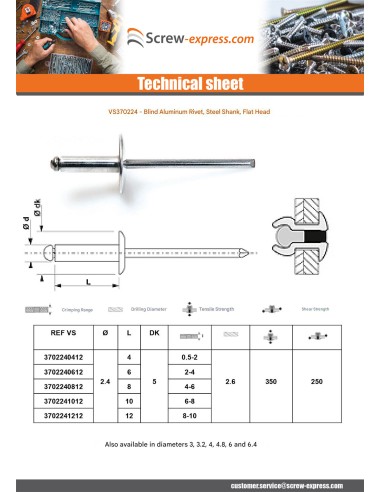

dimensional guide (mm)
Body diameter2.433.244.866.4
Head diameter566.589.511.512
Drilling diameter2.63.23.44.256.26.6
resistance a la traction50080010001600260038004600
Shear strength4006508501300210030003500
longueur tige2525252727272727

Other Reference : 103124081 AN 348-0001 RA/AL/AC/P/2 1187011 400556 3663072301955
