3702641012_1
In stock 460 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 250
Lot price VAT included €3.85 €7.70 €9.30 €23.60
Blind rivets Aluminium Stahlgewinde 6.4X10 Thickness Of Panel 2 to 4 Flat Head ALX
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 250 Units

Dimensions shown in millimeters (mm)

Diameter
6.4
Sub product family
Flat Head
WEIGHT For THERE unit
5.2 GR
Clamping thickness
2 to 4 MM
Rivet body length
10
460 Items
3663072302228

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 6.4X10 Thickness Of Panel 2 to 4 Flat Head ALX
Diameter = 6.4

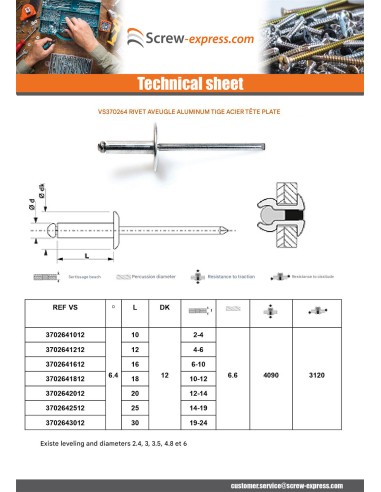

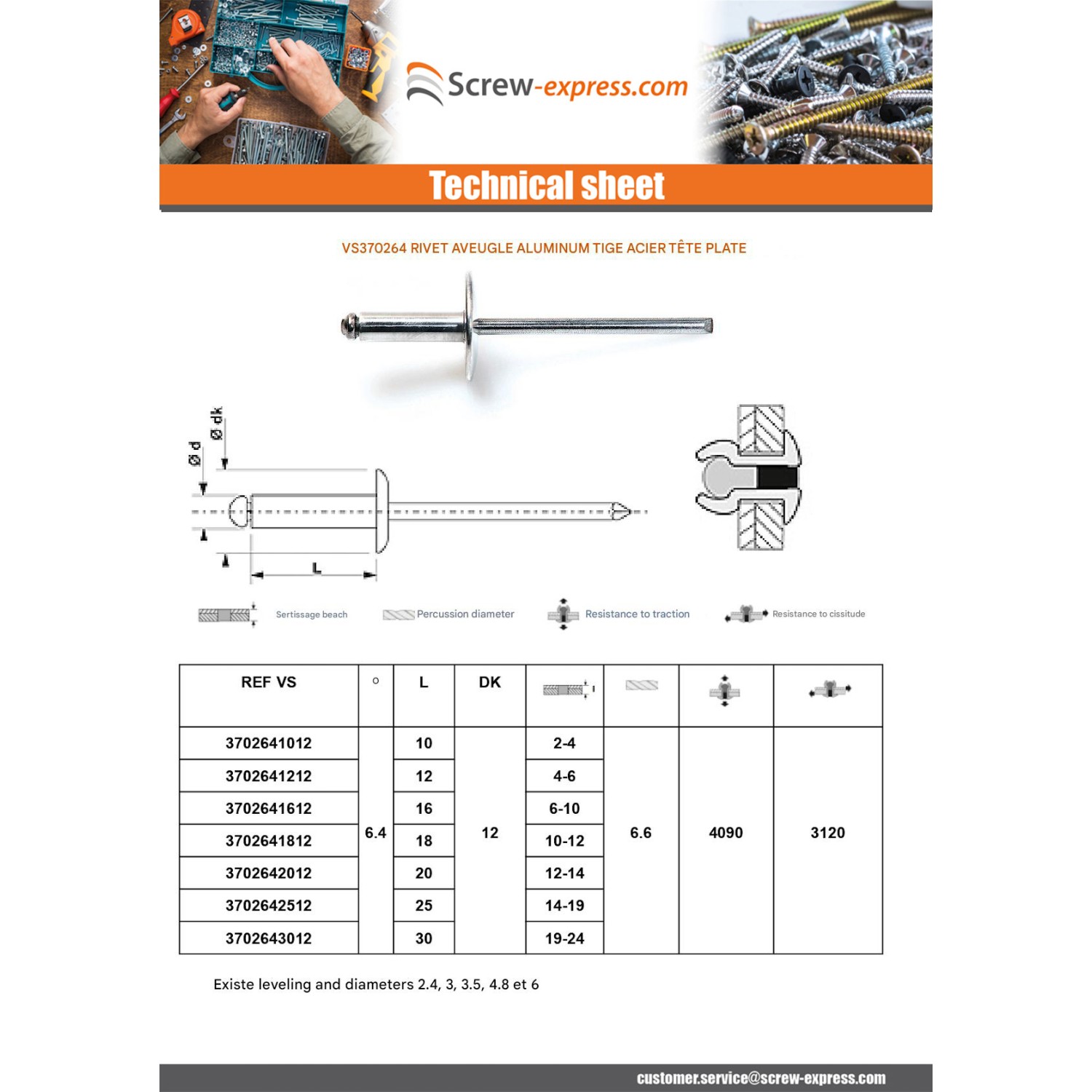

dimensional guide (mm)
Body diameter2.433.244.866.4
Head diameter566.589.511.512
Drilling diameter2.63.23.44.256.26.6
resistance a la traction50080010001600260038004600
Shear strength4006508501300210030003500
longueur tige2525252727272727

Other Reference : 103164101 59967 3663072302228
