1 x Blind rivets Aluminium Stahlgewinde 4X35 Thickness Of Panel 26 to 31 Flat Head ALX

3702403512_1
In stock 3146 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €3.85 €7.70 €11.85 €56.20

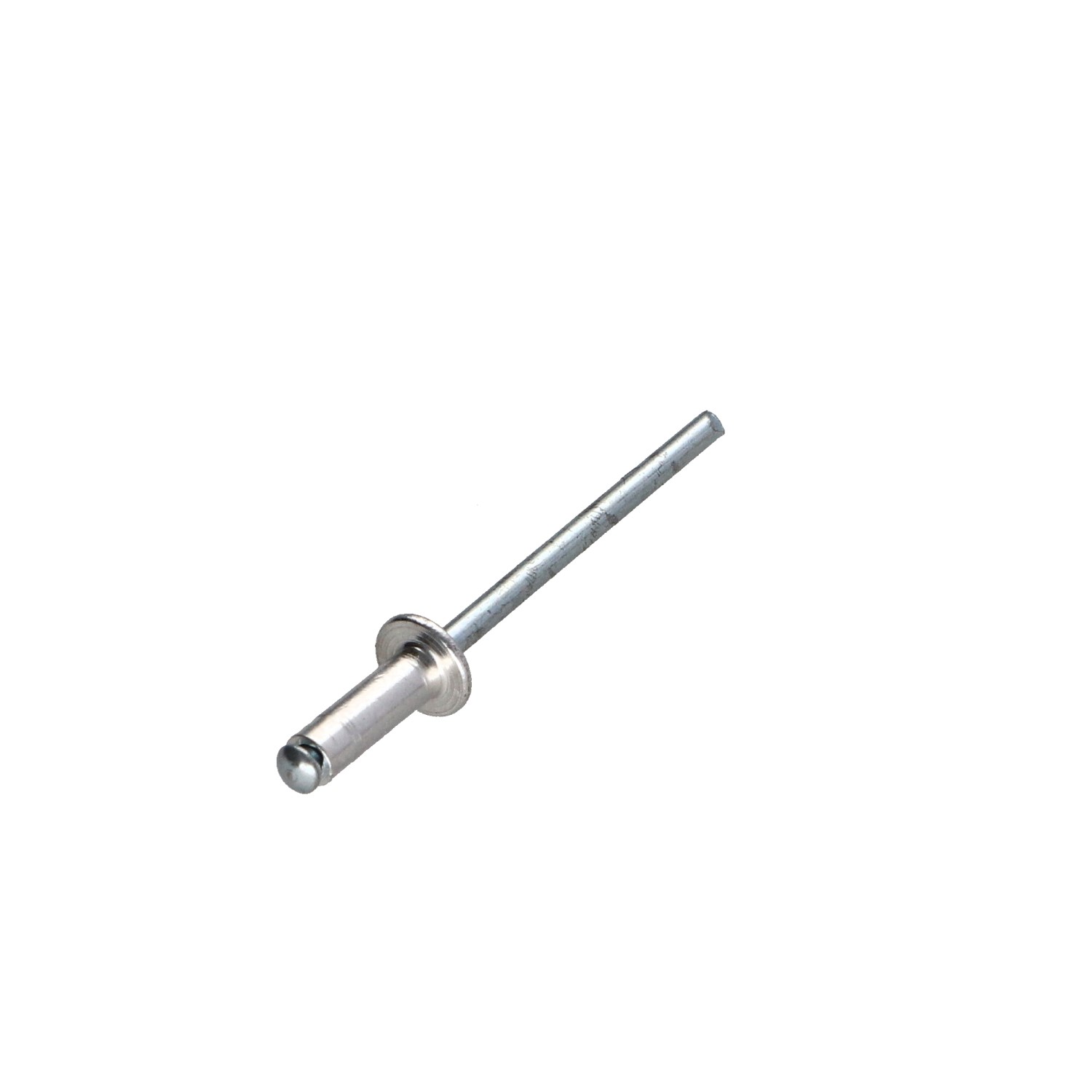

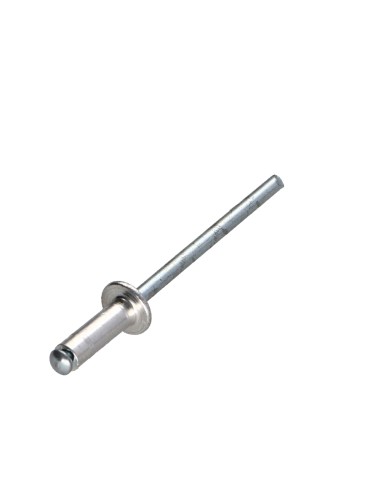

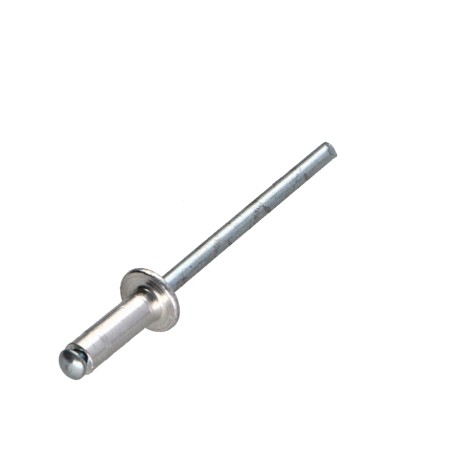

Blind rivets Aluminium Stahlgewinde 4X35 Thickness Of Panel 26 to 31 Flat Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
4
Sub product family
Flat Head
WEIGHT For THERE unit
2.9 GR
Clamping thickness
26 to 31 MM
Rivet body length
35
3146 Items
3663072064119

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 4X35 Thickness Of Panel 26 to 31 Flat Head ALX
Diameter = 4


dimensional guide (mm)
Body diameter2.433.244.866.4
Head diameter566.589.511.512
Drilling diameter2.63.23.44.256.26.6
resistance a la traction50080010001600260038004600
Shear strength4006508501300210030003500
longueur tige2525252727272727

Other Reference : 103140351 1664 ART1664 Q03287B 3663072064119
