3702300612_1
In stock 93321 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €3.85 €7.70 €9.25 €11.10

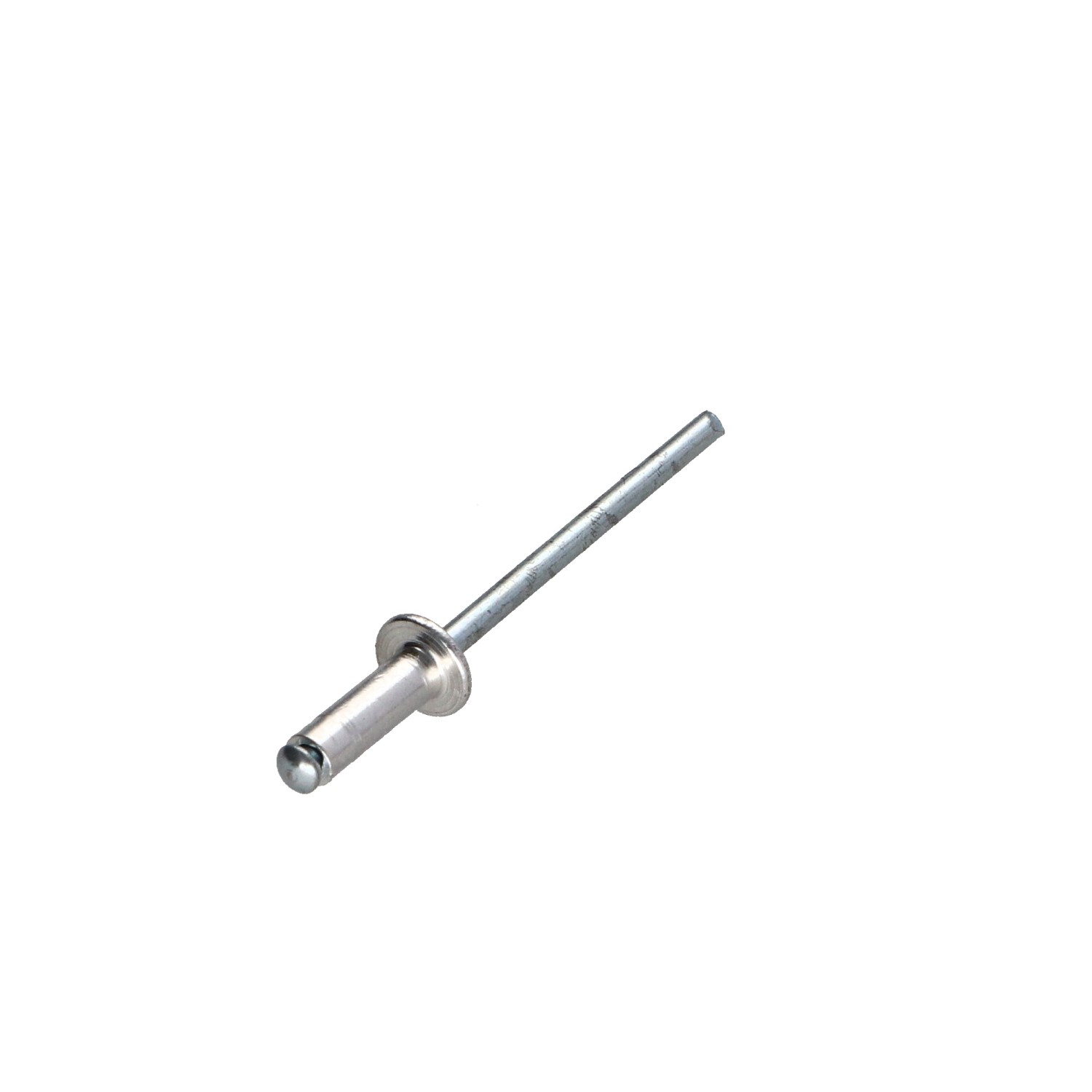

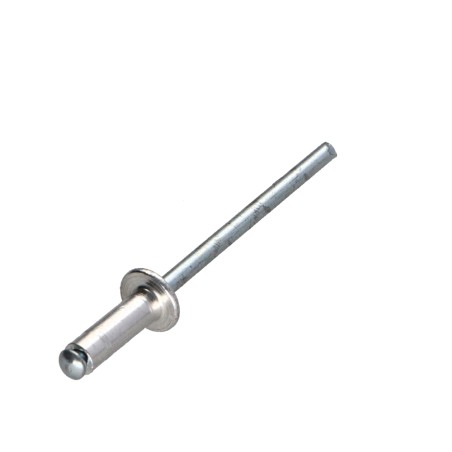

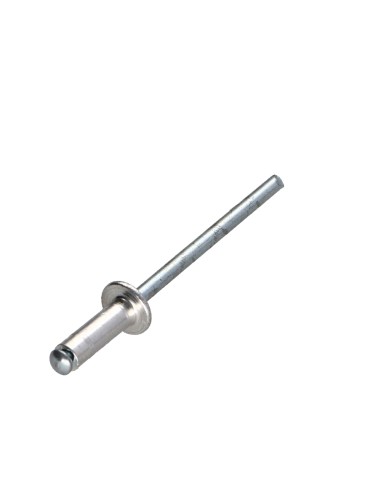

Blind rivets Aluminium Stahlgewinde 3X6 Thickness Of Panel 1 to 3 Flat Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
3
Sub product family
Flat Head
WEIGHT For THERE unit
0.98 GR
Clamping thickness
1 to 3 MM
Rivet body length
6
93321 Items
3663072063709

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 3X6 Thickness Of Panel 1 to 3 Flat Head ALX
Diameter = 3


dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 103130061 103130061 RIVETALU3X6 RIV-ALU-3X6 6011002577 VI-ALTPRIV03 VB11 DI0130 6011002577 CMP000430 8000088XAL RA/AL/ACI/P/ 906475 VRIVET3X6 42100 01127513 WRT030006 VIS0009 PD0203 923205600 991.0683.745 RV3X6N01 0847/0306 2410003 RIV0125 366570 101746 3663072063709
Fabrice B. (vis-express.fr)
2026-02-01

Fix placo rails. avoid screw heads


Fabrice B. (vis-express.fr)
2026-02-01

assemble placo rails, avoid screw heads.
