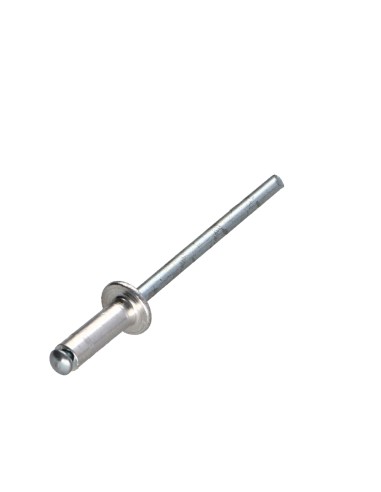

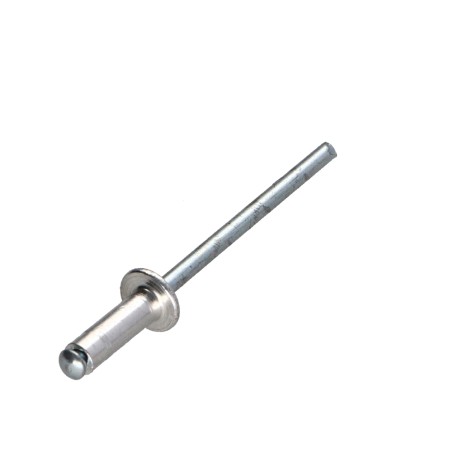

1 x Blind rivets Aluminium Stahlgewinde 4X30 Thickness Of Panel 21 to 26 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 4X30 Thickness Of Panel 21 to 26 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 4X30 Thickness Of Panel 21 to 26 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 4X30 Thickness Of Panel 21 to 26 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 4X30...
1 x Blind rivets Aluminium Stahlgewinde 4X30...
1 x Blind rivets Aluminium Stahlgewinde 4X30...
1 x Blind rivets Aluminium Stahlgewinde 4X30...

1 x Blind rivets Aluminium Stahlgewinde 4X30 Thickness Of Panel 21 to 26 Flat Head ALX

3702403012_1
In stock 16968 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €3.85 €7.70 €9.25 €31.25
Blind rivets Aluminium Stahlgewinde 4X30 Thickness Of Panel 21 to 26 Flat Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
4
Sub product family
Flat Head
WEIGHT For THERE unit
2.65 GR
Clamping thickness
21 to 26 MM
Rivet body length
30
16968 Items
3663072064102

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 4X30 Thickness Of Panel 21 to 26 Flat Head ALX
Diameter = 4

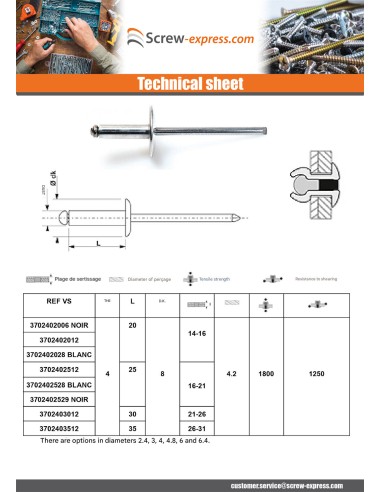

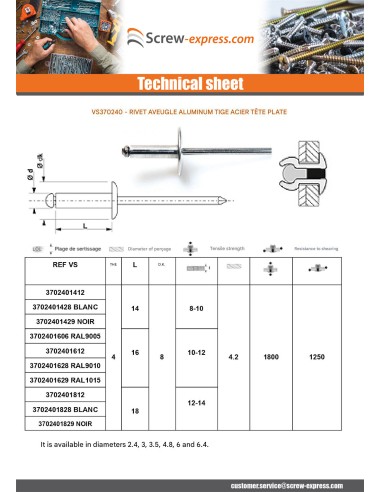

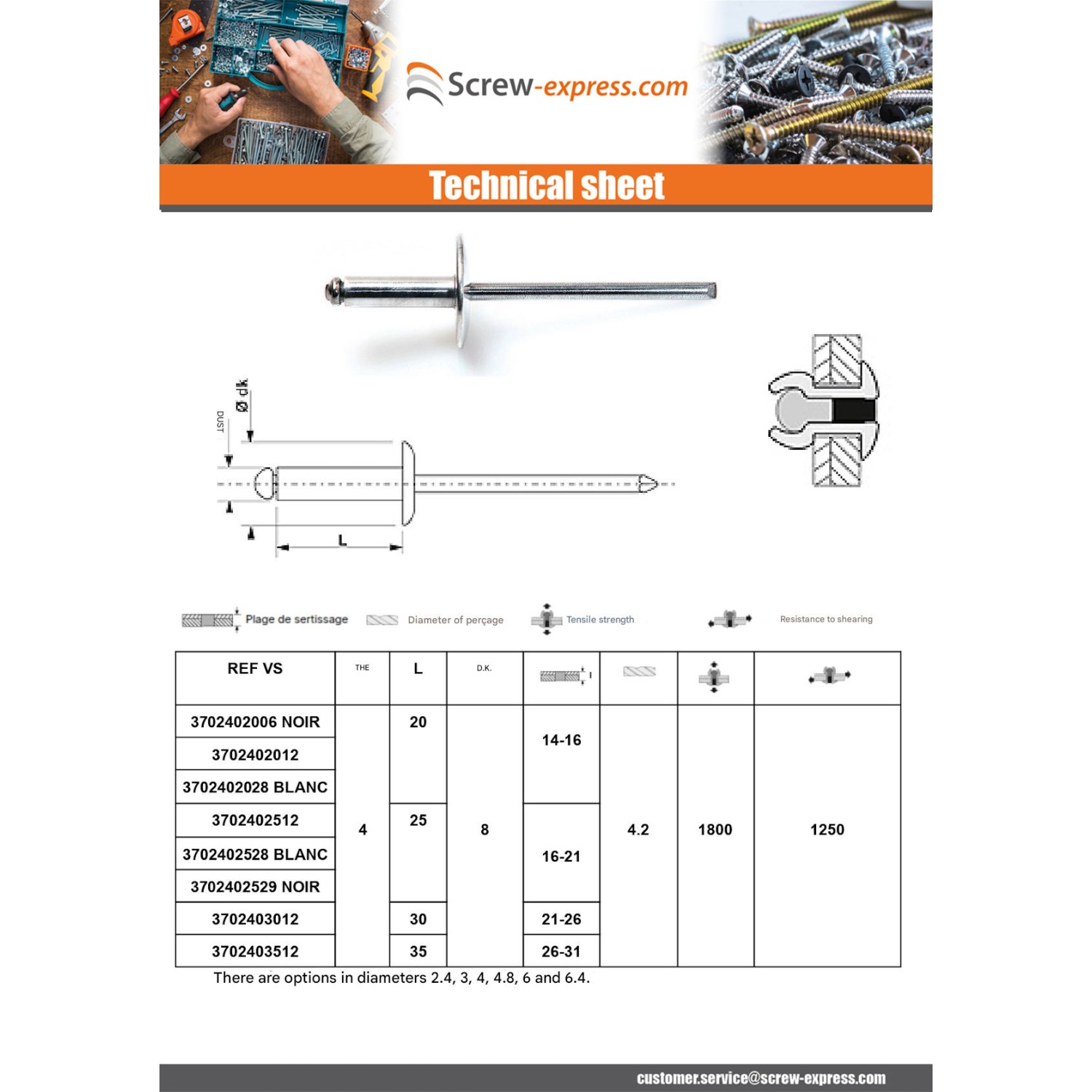

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 103140301 YRIVALACTP43 103140301 VU042 V14R-0430 AN 78725269 48344 3663072064102
