3702402512_1
In stock 18980 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €3.85 €7.70 €9.25 €19.75

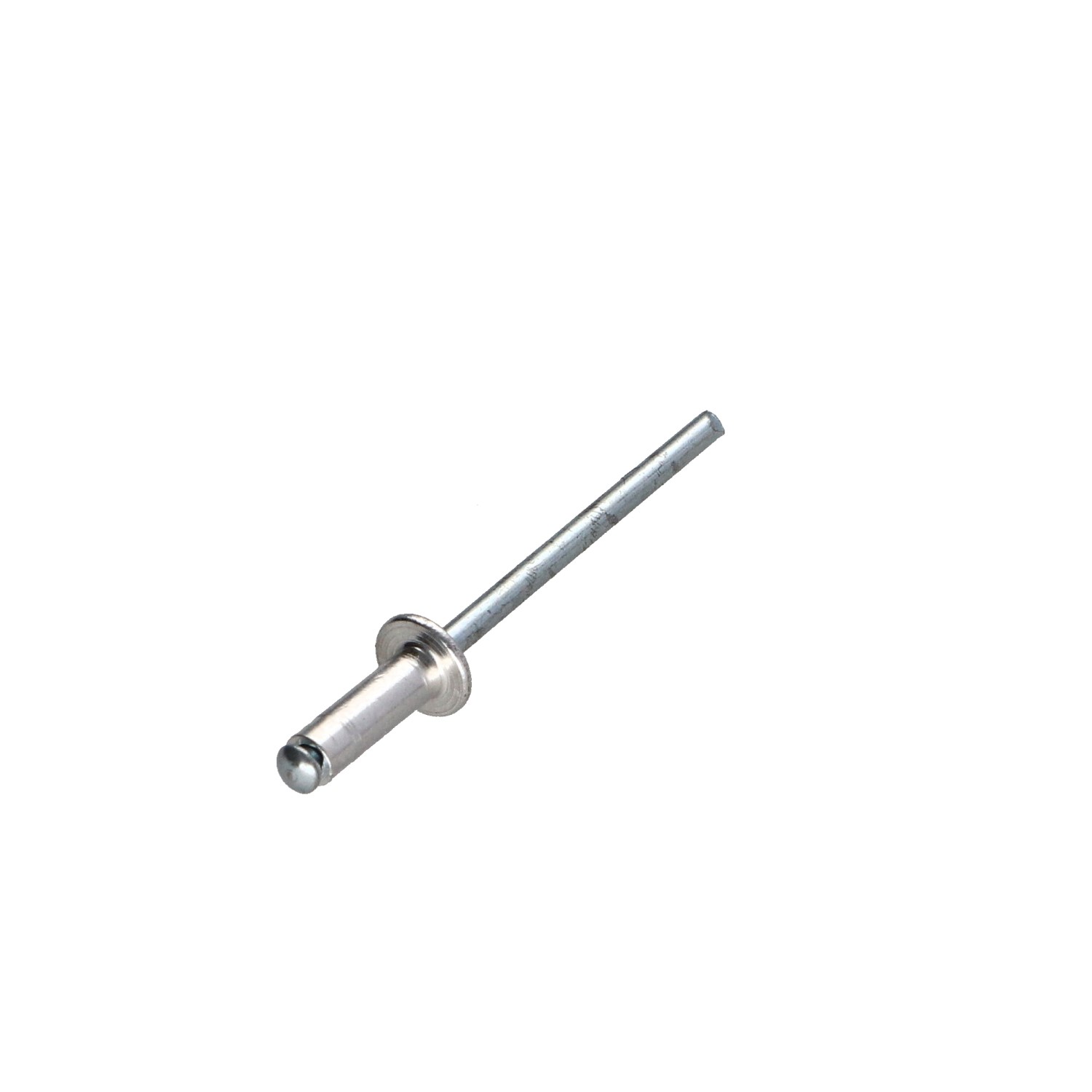

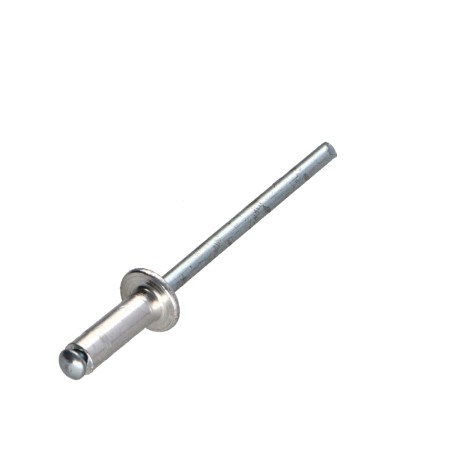

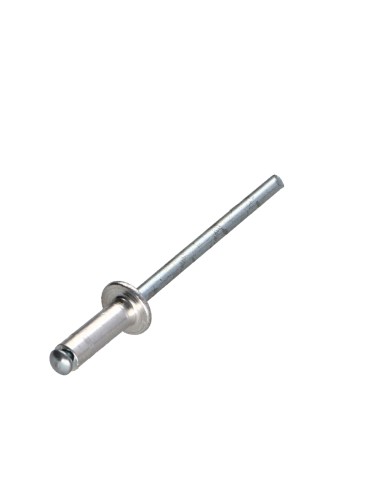

Blind rivets Aluminium Stahlgewinde 4X25 Thickness Of Panel 16 to 21 Flat Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
4
Sub product family
Flat Head
WEIGHT For THERE unit
2.6 GR
Clamping thickness
16 to 21 MM
Rivet body length
25
18980 Items
3663072064096

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 4X25 Thickness Of Panel 16 to 21 Flat Head ALX
Diameter = 4

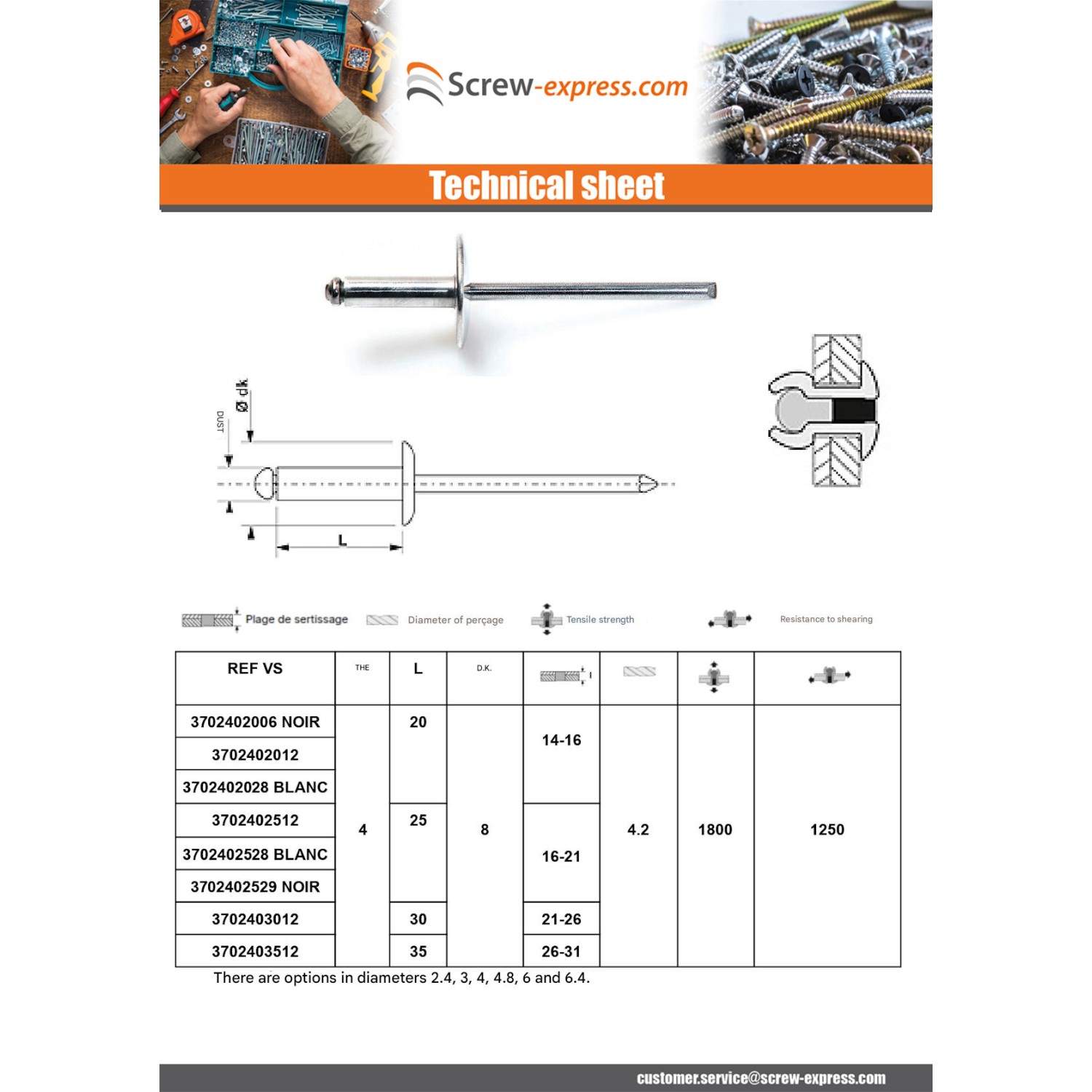

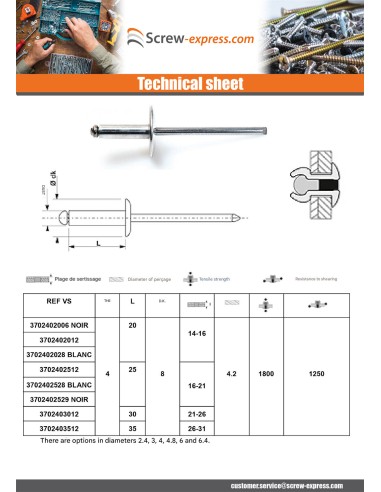

dimensional guide (mm)
Body diameter2.433.244.866.4
Head diameter566.589.511.512
Drilling diameter2.63.23.44.256.26.6
resistance a la traction50080010001600260038004600
Shear strength4006508501300210030003500
longueur tige2525252727272727

Other Reference : 103140251 62121 121343 10351404 7001-0077-A RIV425 23804025 MV3015 M392 RIV/4.25 123001030 10351404 0977AC/4*25 3663072064096
paul s. (vis-express.fr)
2025-02-09

Installation of flight case parts Installation of flight case parts (Adam Hall brand latches and handles) on 16mm OSB3 panels to build custom flight cases.
