3702322512_1
Available within 15 business days
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €3.85 €7.70 €9.25 €39.60

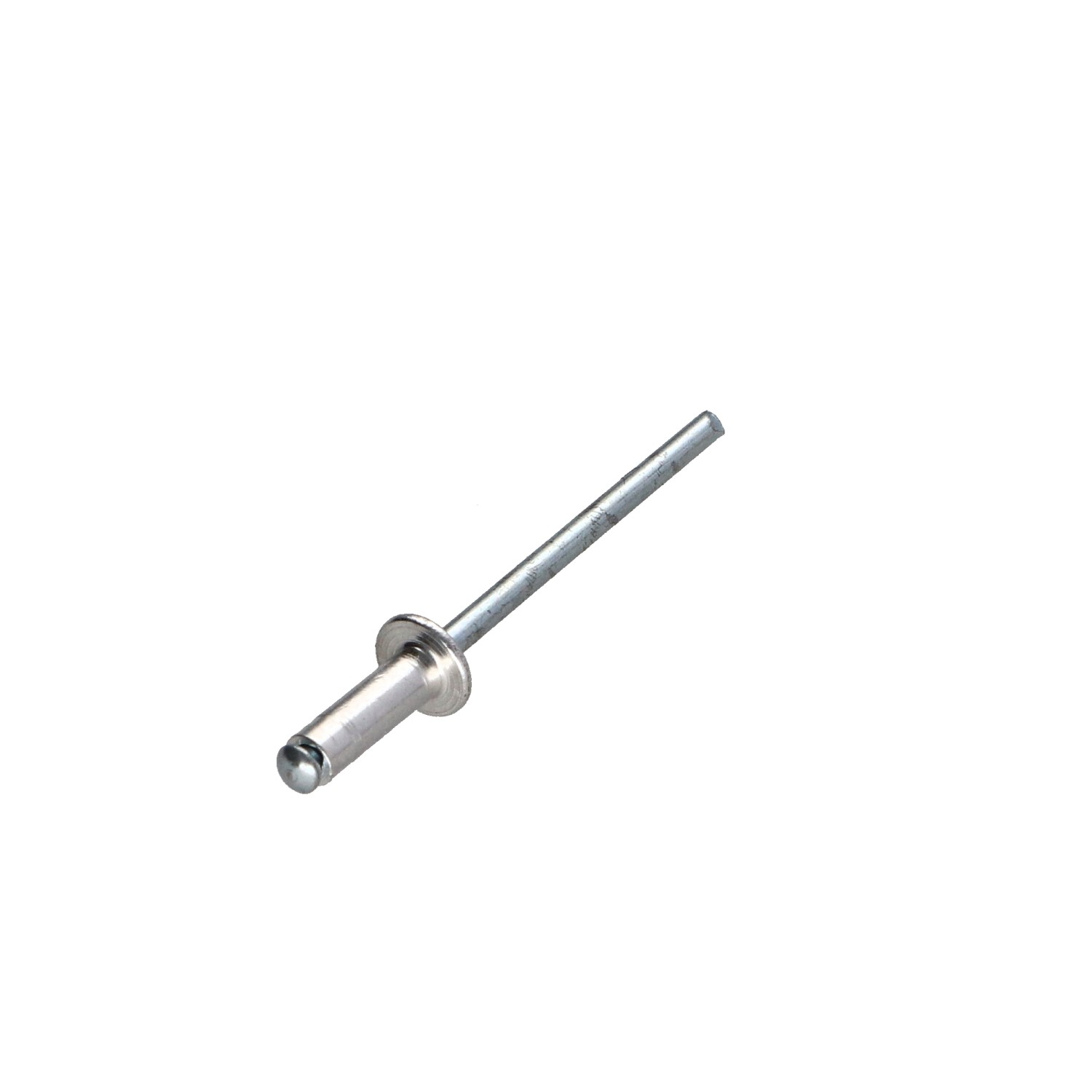

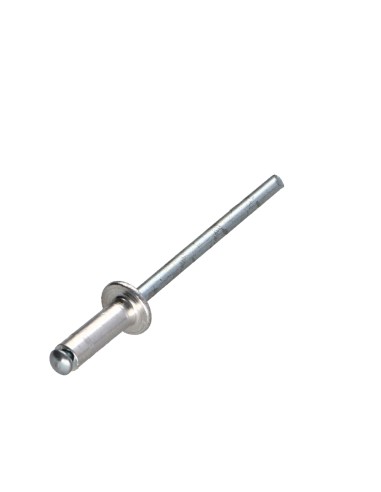

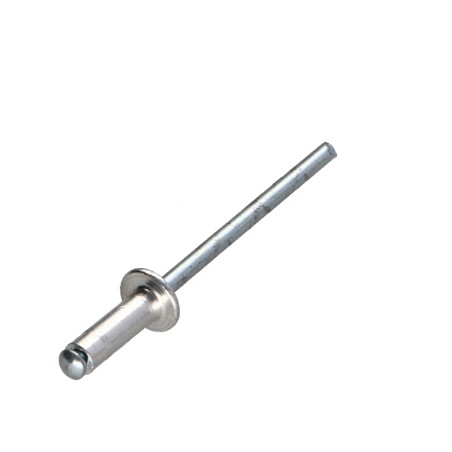

Blind rivets Aluminium Stahlgewinde 3.2X25 Thickness Of Panel 17 to 22 Flat Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
3.2
Sub product family
Flat Head
WEIGHT For THERE unit
1.5 GR
Clamping thickness
17 to 22 MM
Rivet body length
25
3663072302068

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 3.2X25 Thickness Of Panel 17 to 22 Flat Head ALX
Diameter = 3.2


dimensional guide (mm)
Body diameter2.433.244.866.4
Head diameter566.589.511.512
Drilling diameter2.63.23.44.256.26.6
resistance a la traction50080010001600260038004600
Shear strength4006508501300210030003500
longueur tige2525252727272727

Other Reference : 103132251 9A-1508039 34701.032.02 3663072302068
