3702401227_1
In stock 42623 Pièces
€1.70 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500 2000
Lot price VAT included €1.70 €3.40 €4.05 €13.85 €50.60

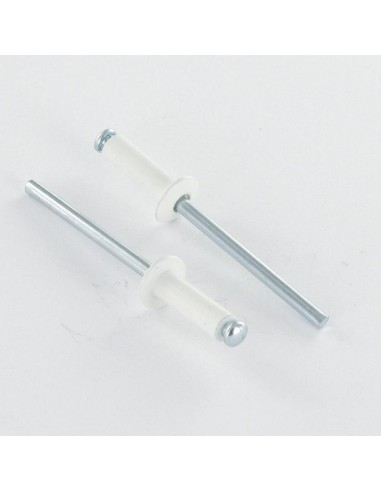

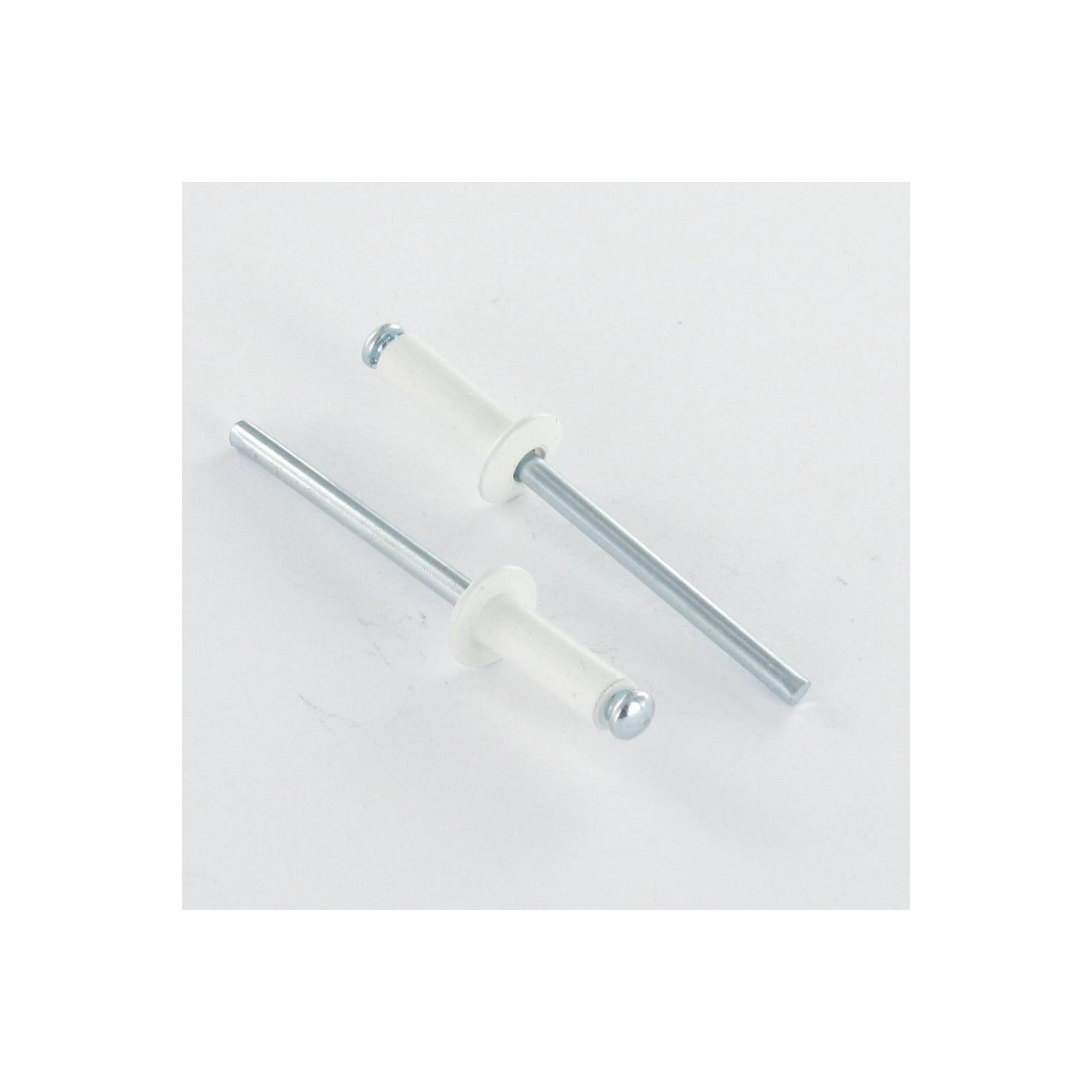

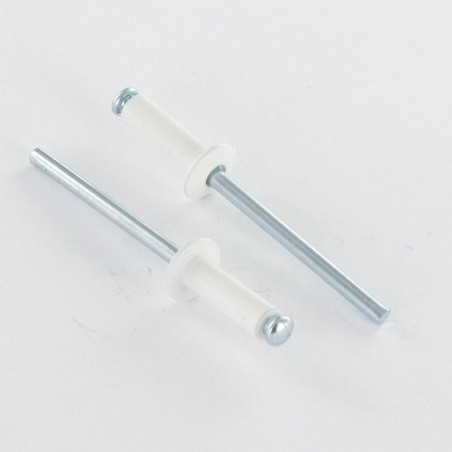

Blind rivets Aluminium Stahlgewinde 4X12 Thickness Of Panel 6 to 8 Flat Head Ral9016/Traffic Signalisation
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units
  • 2000 Units

Dimensions shown in millimeters (mm)

Diameter
4
COLOR
Ral9016/Traffic Signalisation
Sub product family
Flat Head
WEIGHT For THERE unit
1.85 GR
Clamping thickness
6 to 8 MM
Rivet body length
12
42623 Items
3663072064034

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 4X12 Thickness Of Panel 6 to 8 Flat Head Ral9016/Traffic Signalisation
Diameter = 4

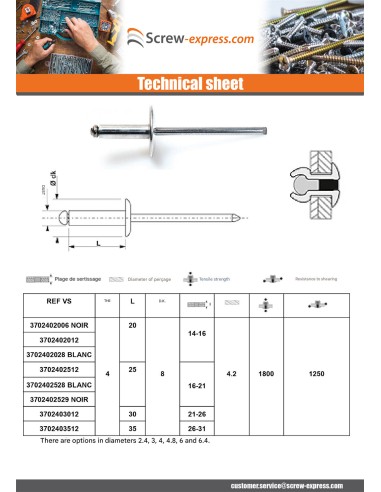

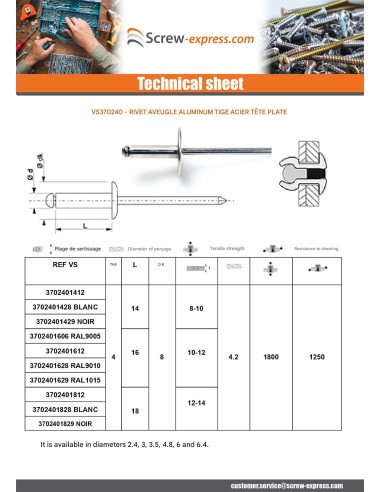

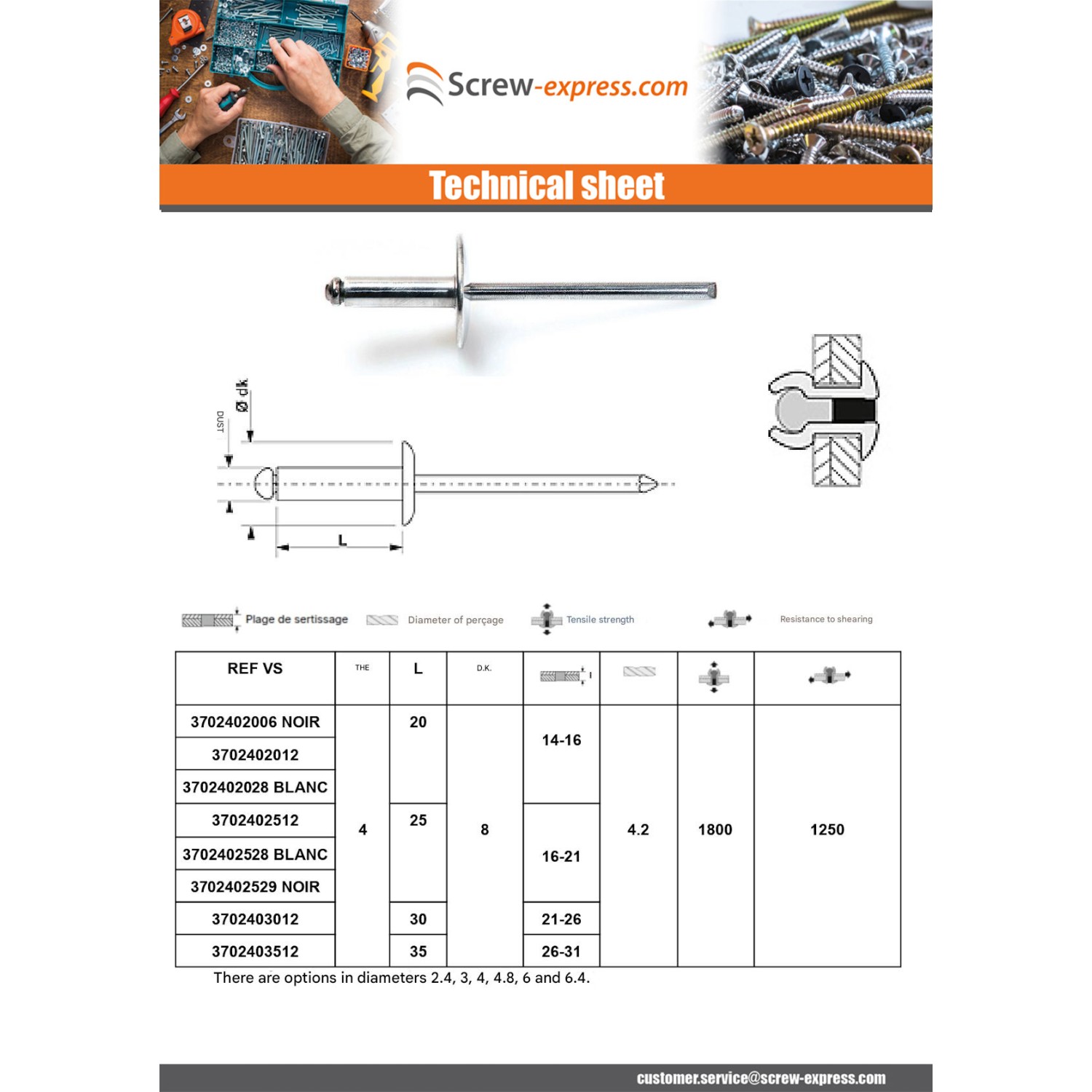

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 3617501887237 FRIACALTPB04 COVS0088 VP030005 8 RIV.AVEUGL4/ 3663072064034
