3702603012_1
In stock 2392 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 250
Lot price VAT included €3.85 €7.70 €9.30 €43.85

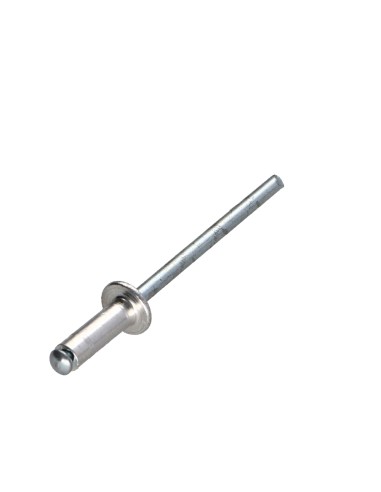

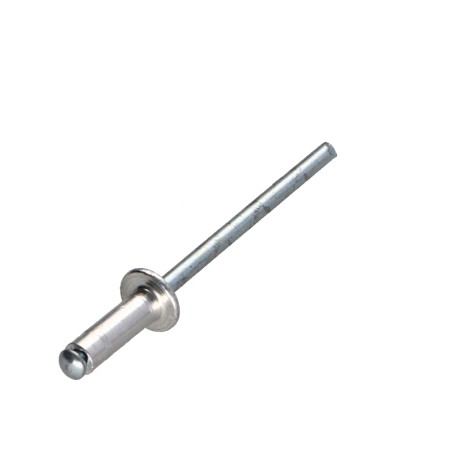

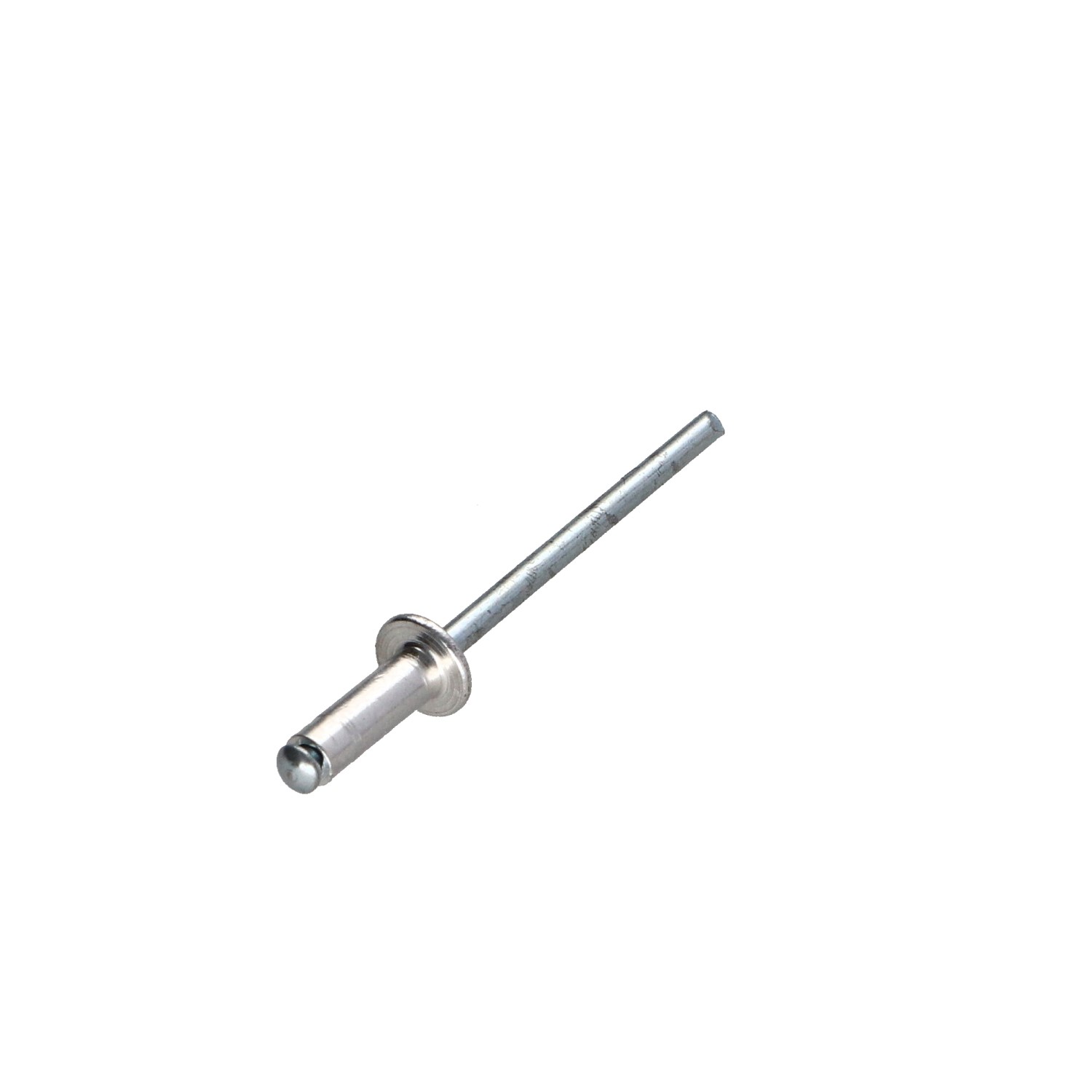

Blind rivets Aluminium Stahlgewinde 6X30 Thickness Of Panel 19 to 24 Flat Head ALX
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 250 Units

Dimensions shown in millimeters (mm)

Diameter
6
Sub product family
Flat Head
WEIGHT For THERE unit
6.2 GR
Clamping thickness
19 to 24 MM
Rivet body length
30
2392 Items
3663072064348

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 6X30 Thickness Of Panel 19 to 24 Flat Head ALX
Diameter = 6

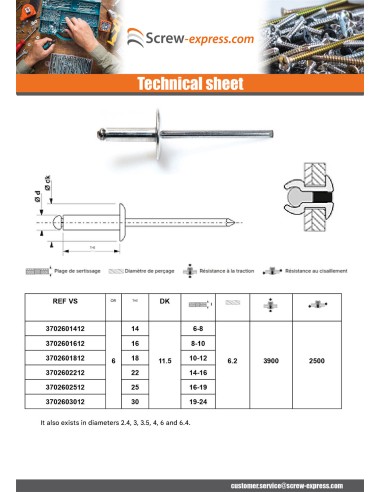

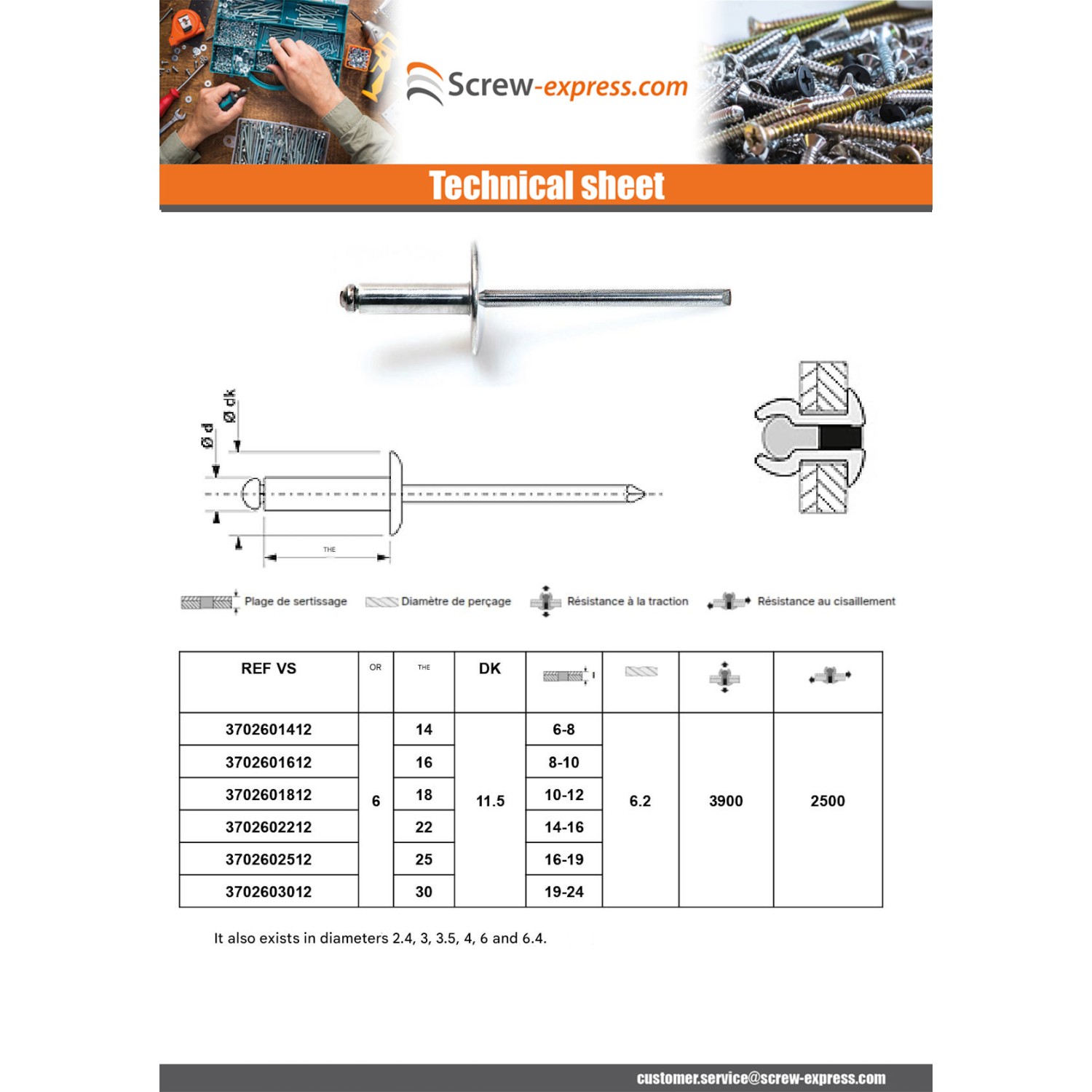

dimensional guide (mm)
Body diameter2.433.244.866.4
Head diameter566.589.511.512
Drilling diameter2.63.23.44.256.26.6
resistance a la traction50080010001600260038004600
Shear strength4006508501300210030003500
longueur tige2525252727272727

Other Reference : 103160301 005198 19R06030 005198 3663072064348
