8533002218_1
In stock 6053 Pièces
£1.61 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 10 25 100
Lot price VAT included £1.61 £3.21 £3.21 £5.34 £21.26
NFE 25513,VS-NFE25513 GRADE C - Washer Flat M22X45X3 M Stainless Steel A2
Packaging
  • 1 unit
  • 5 units
  • 10 units
  • 25 units
  • 100 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter Internal
M22 (23 23.33 MM)
Diameter External
45 MM
Thickness
3 MM
Series (Washer)
Normal Serie
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
NFE 25513,VS-NFE25513 GRADE C
Unit weight
29.2 GR
6053 Items
3663072168312

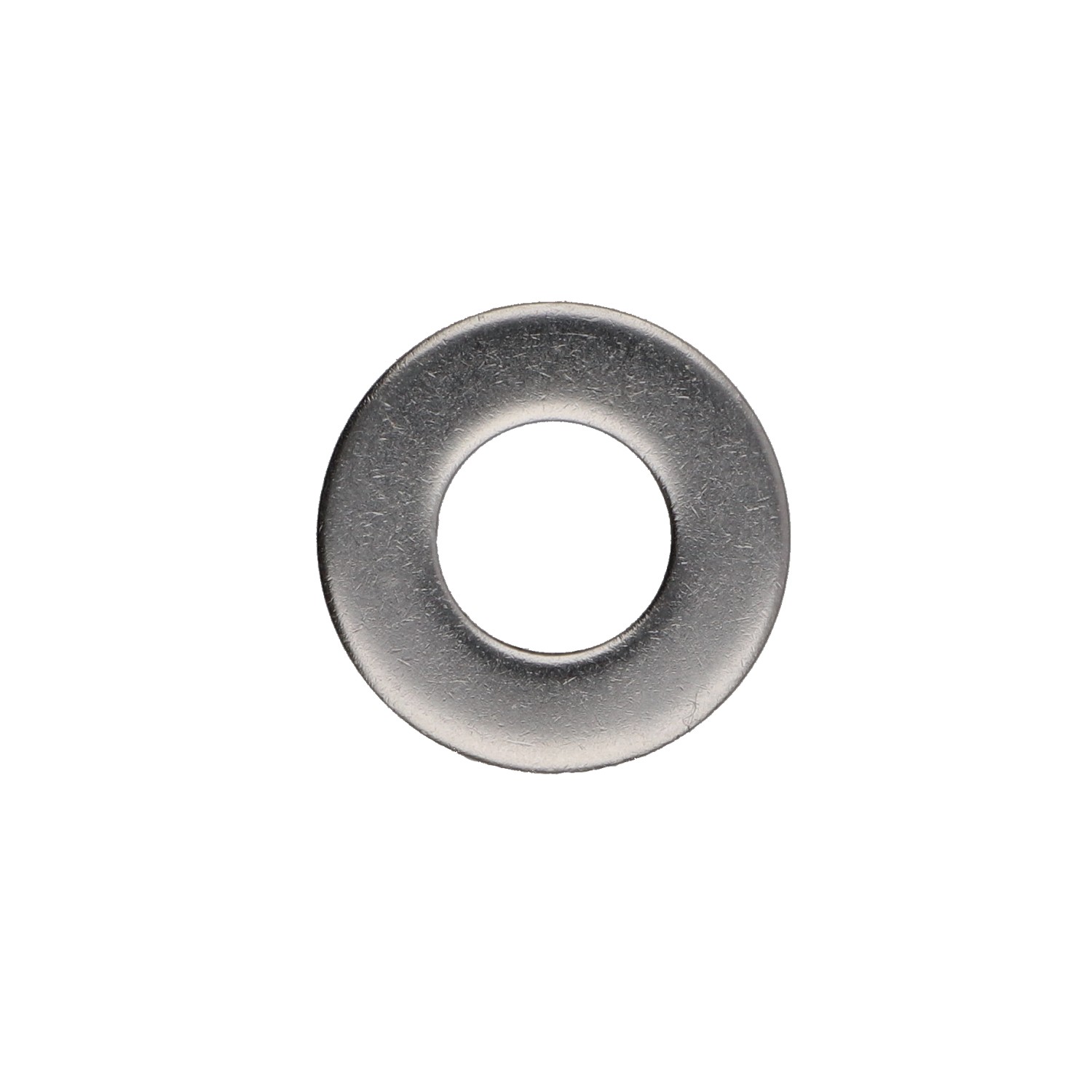

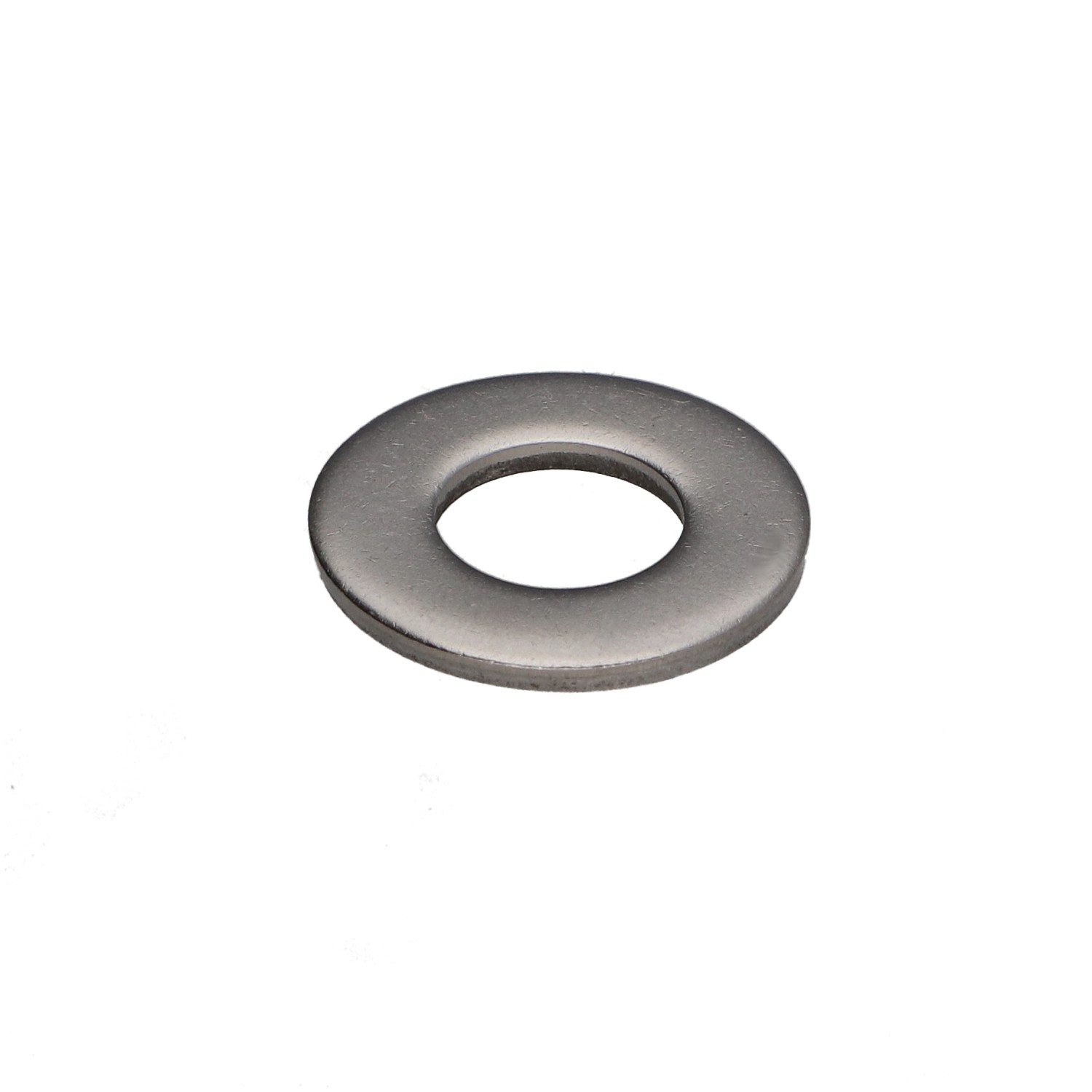

Washer Flat M22X45X3 M Stainless Steel A2
Thickness = 3 MM, Material = Stainless Steel A2, Norm = NFE 25513,VS-NFE25513 GRADE C

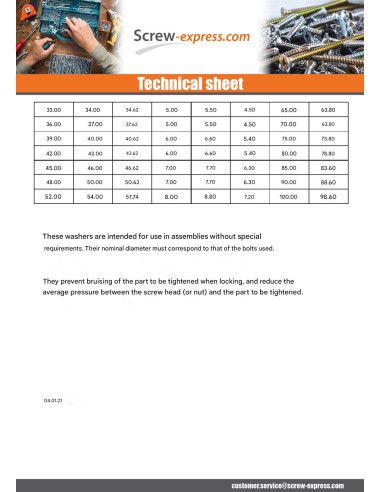

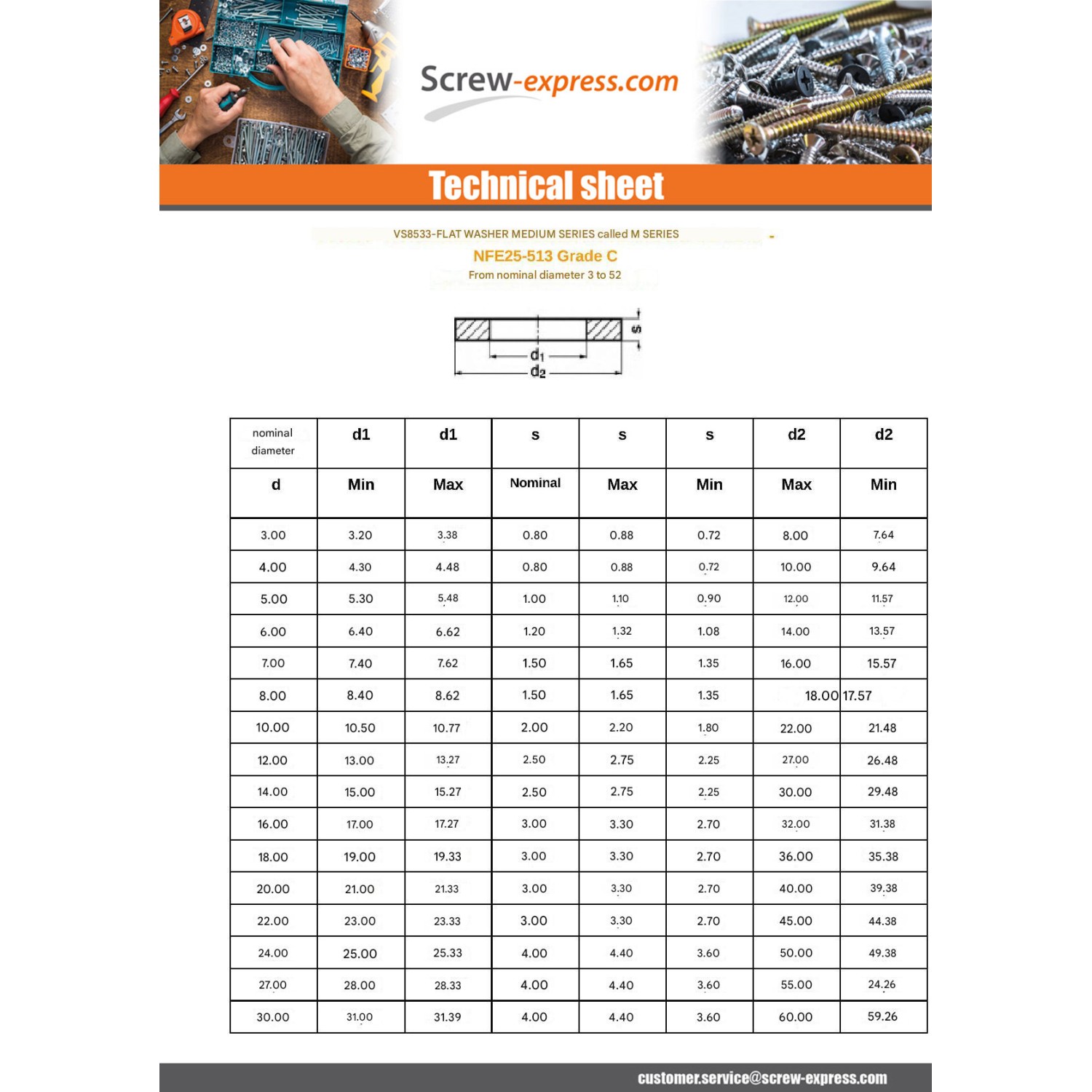

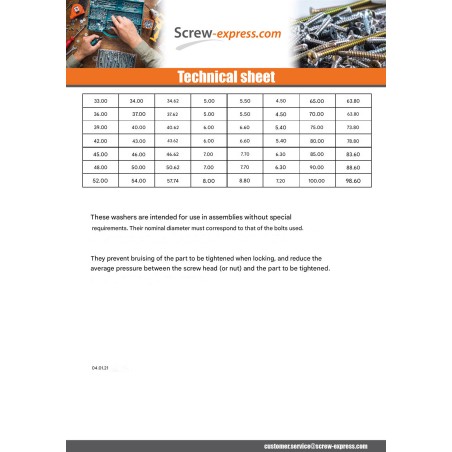

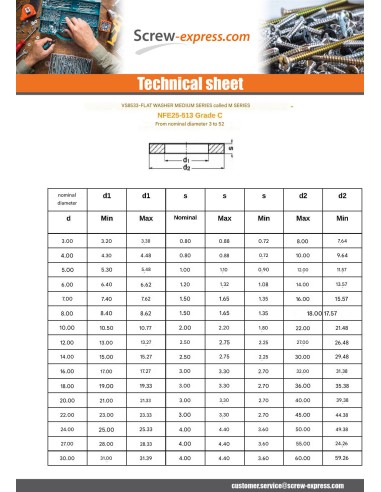

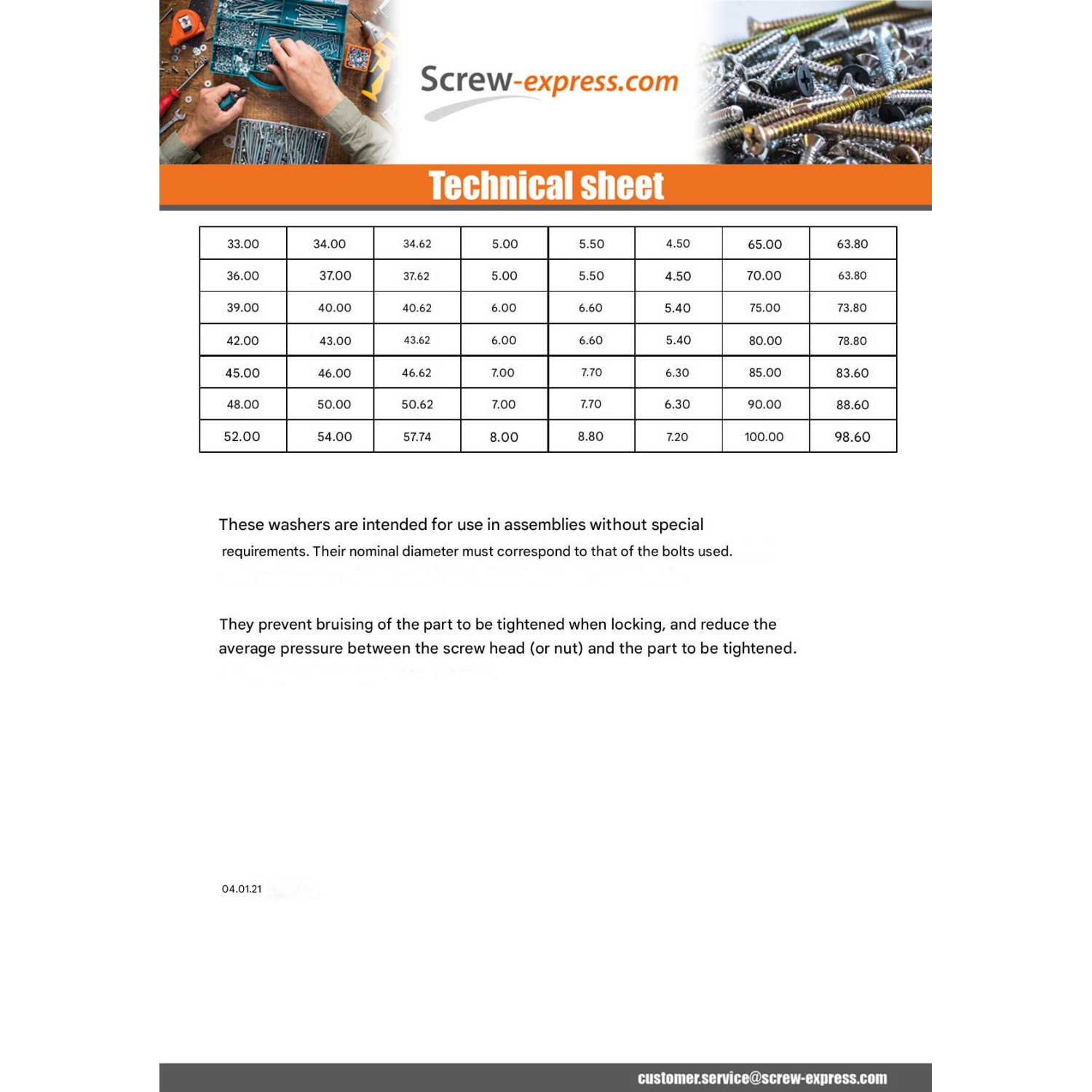

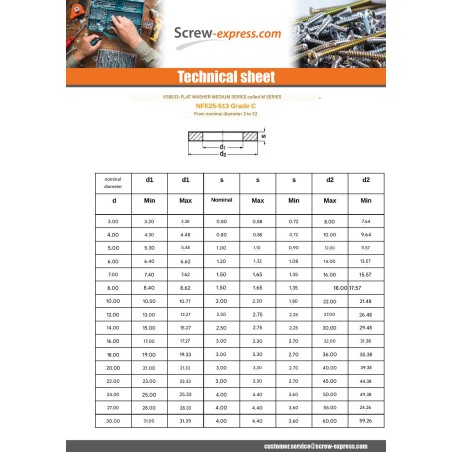

dimensional guide (mm)
Diameter M3 M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39 M42 M45 M48 M52
Interior diameter 3.2 4.3 5.3 6.4 7.4 8.4 10.5 13 15 17 19 21 23 25 28 31 34 37 40 43 46 50 54
Exterior diameter 8 10 12 14 16 18 22 27 30 32 36 40 45 50 55 60 65 70 75 80 85 90 100
Tickness 0.8 0.8 1 1.2 1.5 1.5 2 2.5 2.5 3 3 3 3 4 4 4 5 5 6 6 7 7 8

Other Reference : 6250122 130538 vis012 RPI2245 FAC0721105 050443 04612 CO9624110 A004327 DS1504022 RIPMA222 3605 3663072168312
MATHIEU V. (vis-express.fr)
2026-07-12

Washers used to secure the fixings of a D21 tube on both sides of an insulated sandwich panel M22 stainless steel flat washer
