1 x Washer Flat M14X30X2.5 M Stainless Steel A2
1 x Washer Flat M14X30X2.5 M Stainless Steel A2
1 x Washer Flat M14X30X2.5 M Stainless Steel A2
1 x Washer Flat M14X30X2.5 M Stainless Steel A2
1 x Washer Flat M14X30X2.5 M Stainless Steel A2
1 x Washer Flat M14X30X2.5 M Stainless Steel A2
1 x Washer Flat M14X30X2.5 M Stainless Steel A2
1 x Washer Flat M14X30X2.5 M Stainless Steel A2

1 x Washer Flat M14X30X2.5 M Stainless Steel A2

8533001418_1
In stock 60291 Pièces
£0.43 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 100 400
Lot price VAT included £0.43 £0.87 £1.82 £6.25 £21.52
NFE 25513,VS-NFE25513 GRADE C - Washer Flat M14X30X2.5 M Stainless Steel A2
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 100 units
  • 400 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter Internal
M14 (15 15.27 MM)
Diameter External
30 MM
Thickness
2.5 MM
Series (Washer)
Normal Serie
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
NFE 25513,VS-NFE25513 GRADE C
Unit weight
9.9 GR
60291 Items
3663072168275

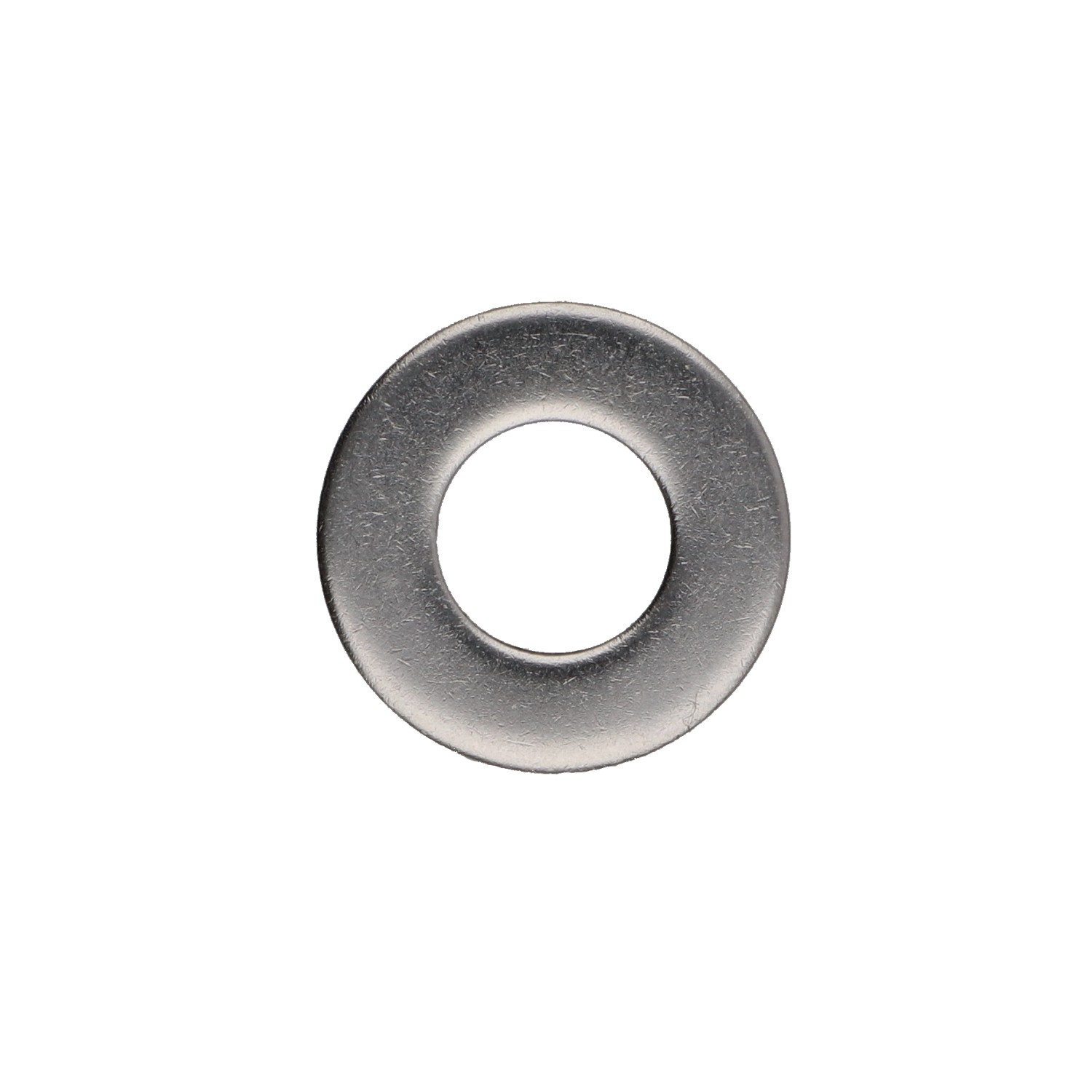

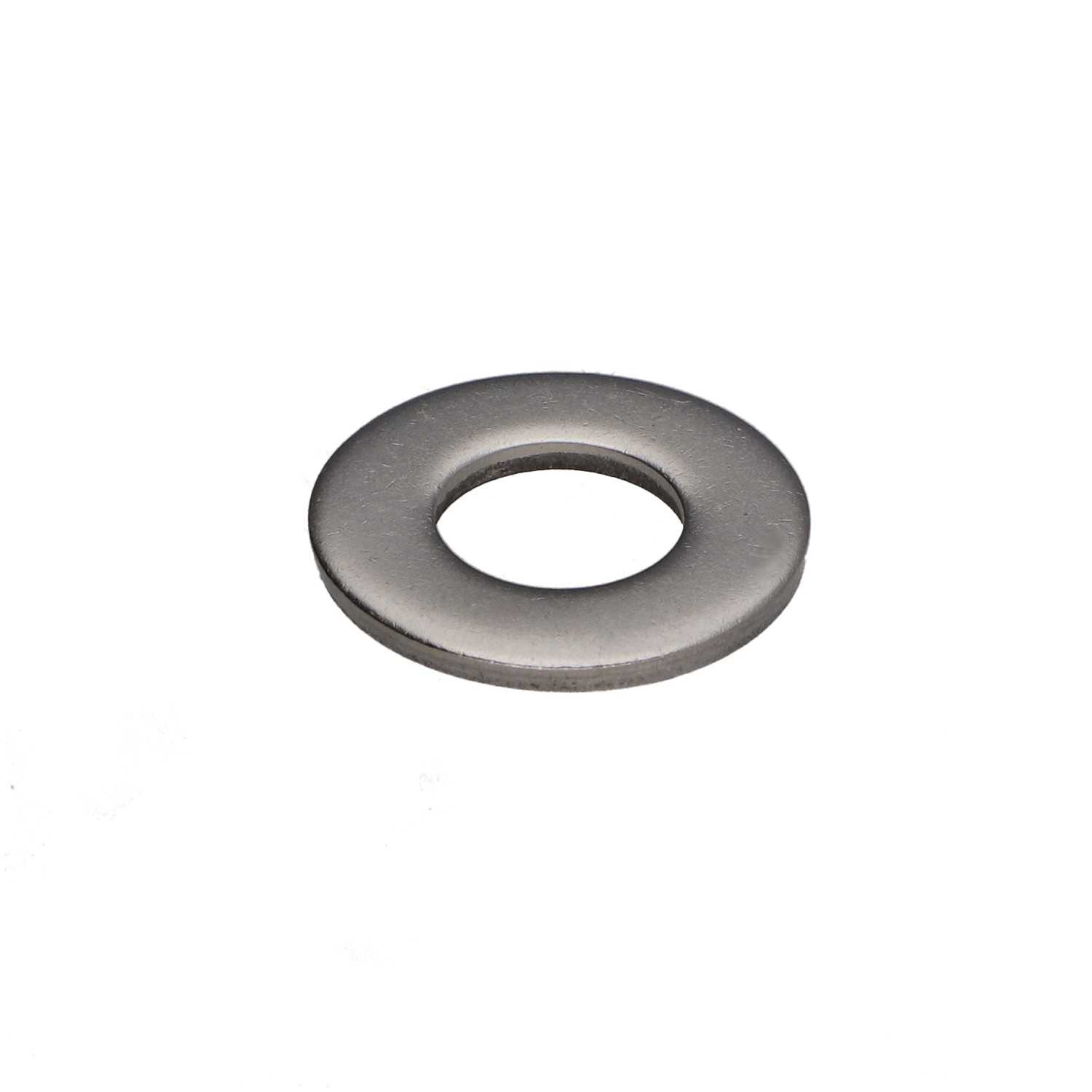

Washer Flat M14X30X2.5 M Stainless Steel A2
Thickness = 2.5 MM, Material = Stainless Steel A2, Norm = NFE 25513,VS-NFE25513 GRADE C

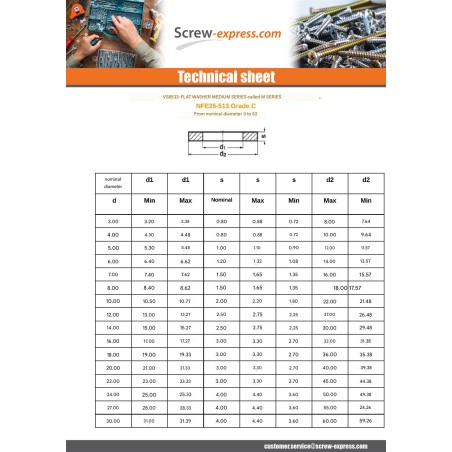

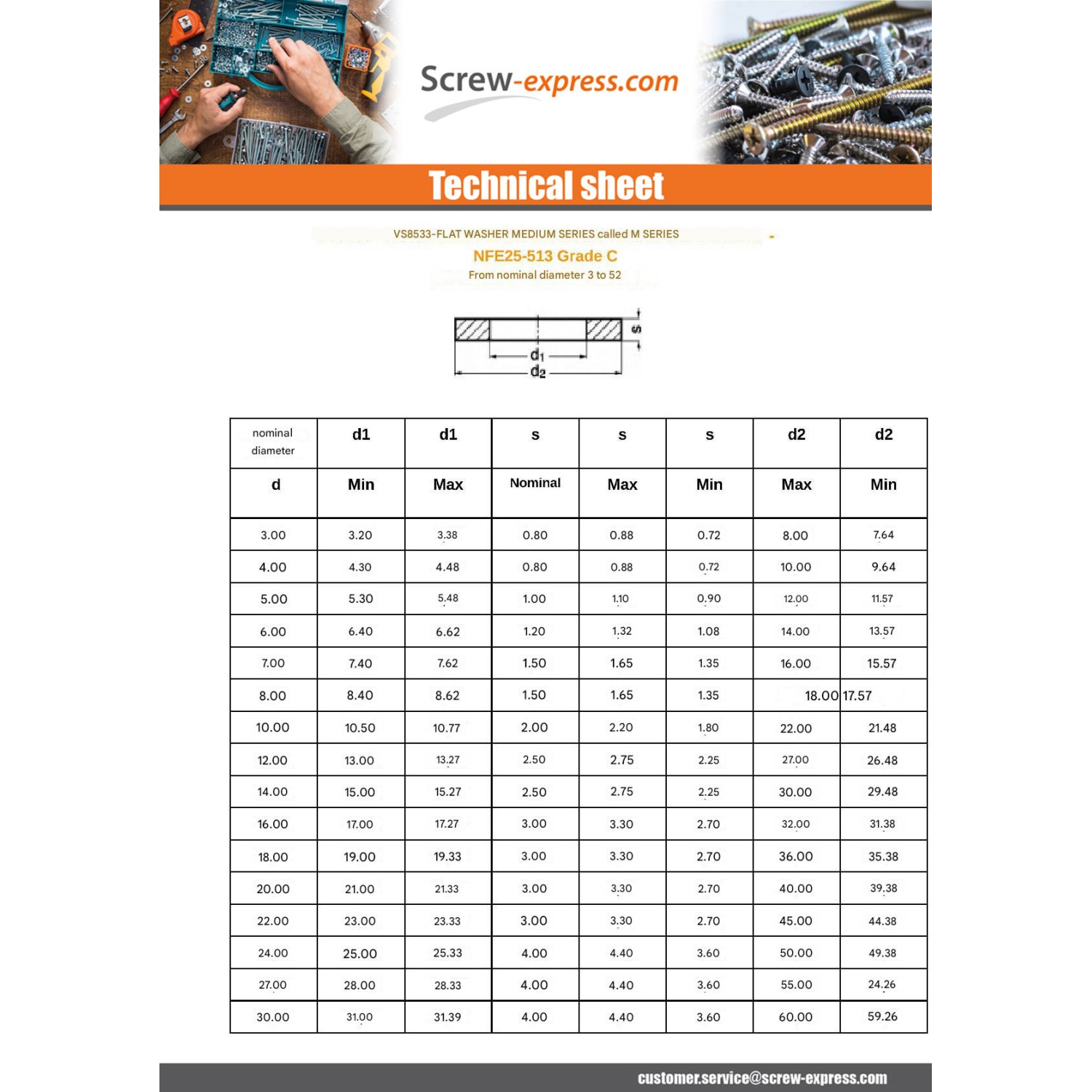

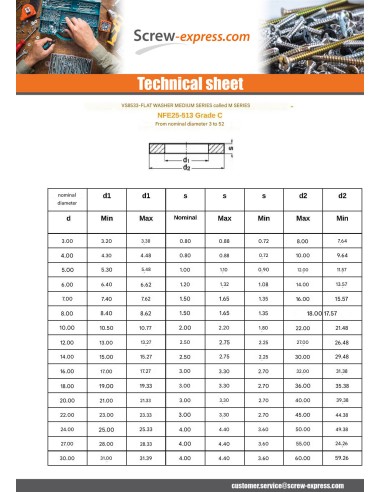

dimensional guide (mm)
Diameter M3 M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39 M42 M45 M48 M52
Interior diameter 3.2 4.3 5.3 6.4 7.4 8.4 10.5 13 15 17 19 21 23 25 28 31 34 37 40 43 46 50 54
Exterior diameter 8 10 12 14 16 18 22 27 30 32 36 40 45 50 55 60 65 70 75 80 85 90 100
Tickness 0.8 0.8 1 1.2 1.5 1.5 2 2.5 2.5 3 3 3 3 4 4 4 5 5 6 6 7 7 8

Other Reference : 6250114 155133 V010001400 RONPLM14A4I A04713 130530 RONDELLE14 05610 0724955 40064 1203 22.11.060 23687148 QURON029A 2BORP14A2 VIS0067 7063 RD.14X30.IA2 RPI18 V010001400 RONDINOXA2PL 252085000 04608 CO9624105 A004283 2002036 2204-046 EQT904 DS1504014 RPSM14 CV-06-0016 LM-M14/30-A2 A3013216 RIPMA214 1 V010001400 A01663 19951214 06031114 ROND_I_14X30 NI40064 3663072168275
Philippe C. (vis-express.fr)
2025-08-17

Replacing rusty bolts Replacing rusty bolts on a small excavator
