1 x Washer Flat M16X32X3 M Stainless Steel A2
1 x Washer Flat M16X32X3 M Stainless Steel A2
1 x Washer Flat M16X32X3 M Stainless Steel A2
1 x Washer Flat M16X32X3 M Stainless Steel A2
1 x Washer Flat M16X32X3 M Stainless Steel A2
1 x Washer Flat M16X32X3 M Stainless Steel A2

1 x Washer Flat M16X32X3 M Stainless Steel A2

8533001618_1
In stock 83860 Pièces
€0.45 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 20 50 200
Lot price VAT included €0.45 €0.90 €1.60 €4.05 €16.20
NFE 25513,VS-NFE25513 GRADE C - Washer Flat M16X32X3 M Stainless Steel A2
Packaging
  • 1 unit
  • 5 units
  • 20 units
  • 50 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter Internal
M16 (17 17.27 MM)
Diameter External
32 MM
Thickness
3 MM
Series (Washer)
Normal Serie
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
NFE 25513,VS-NFE25513 GRADE C
Unit weight
13 GR
83860 Items
3663072168282

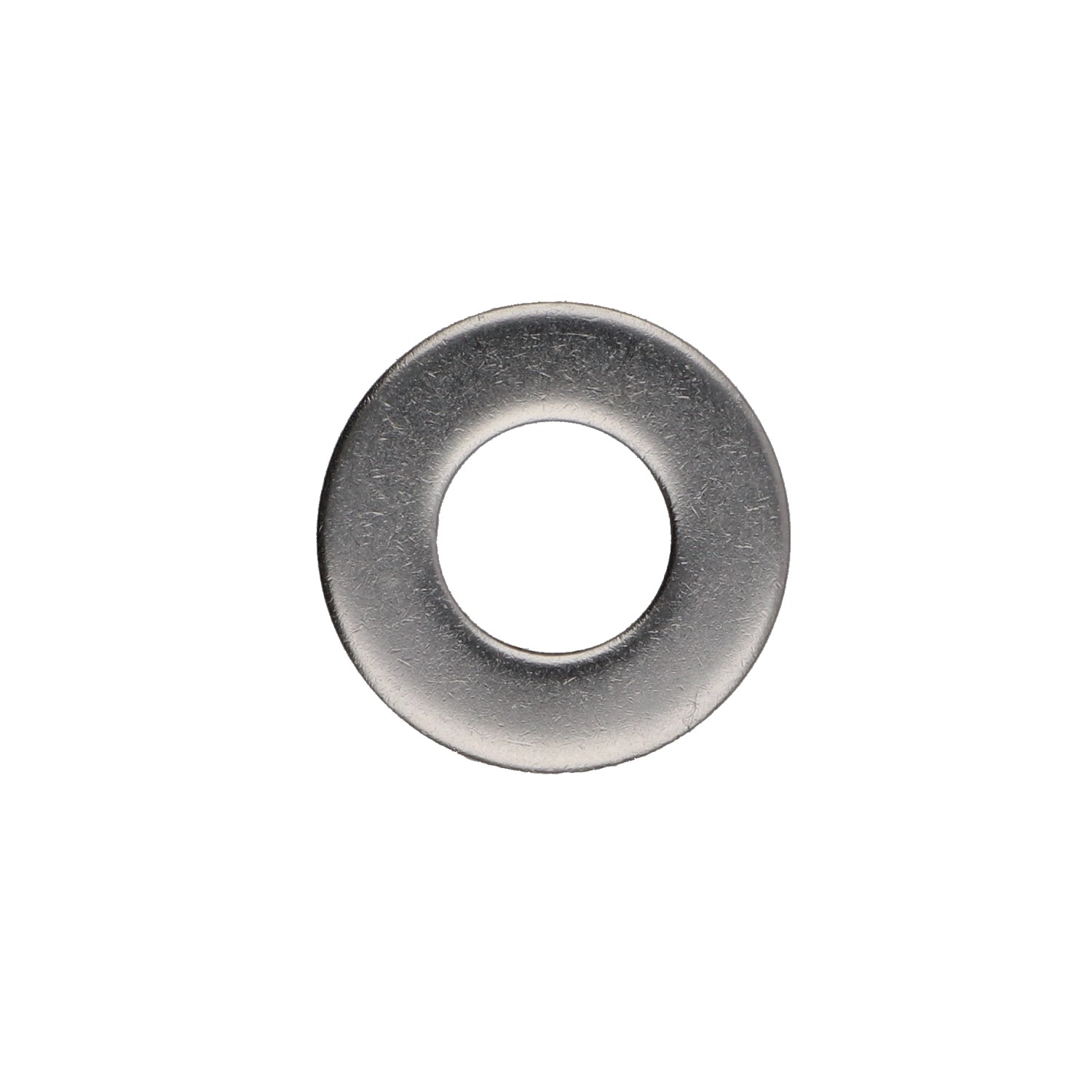

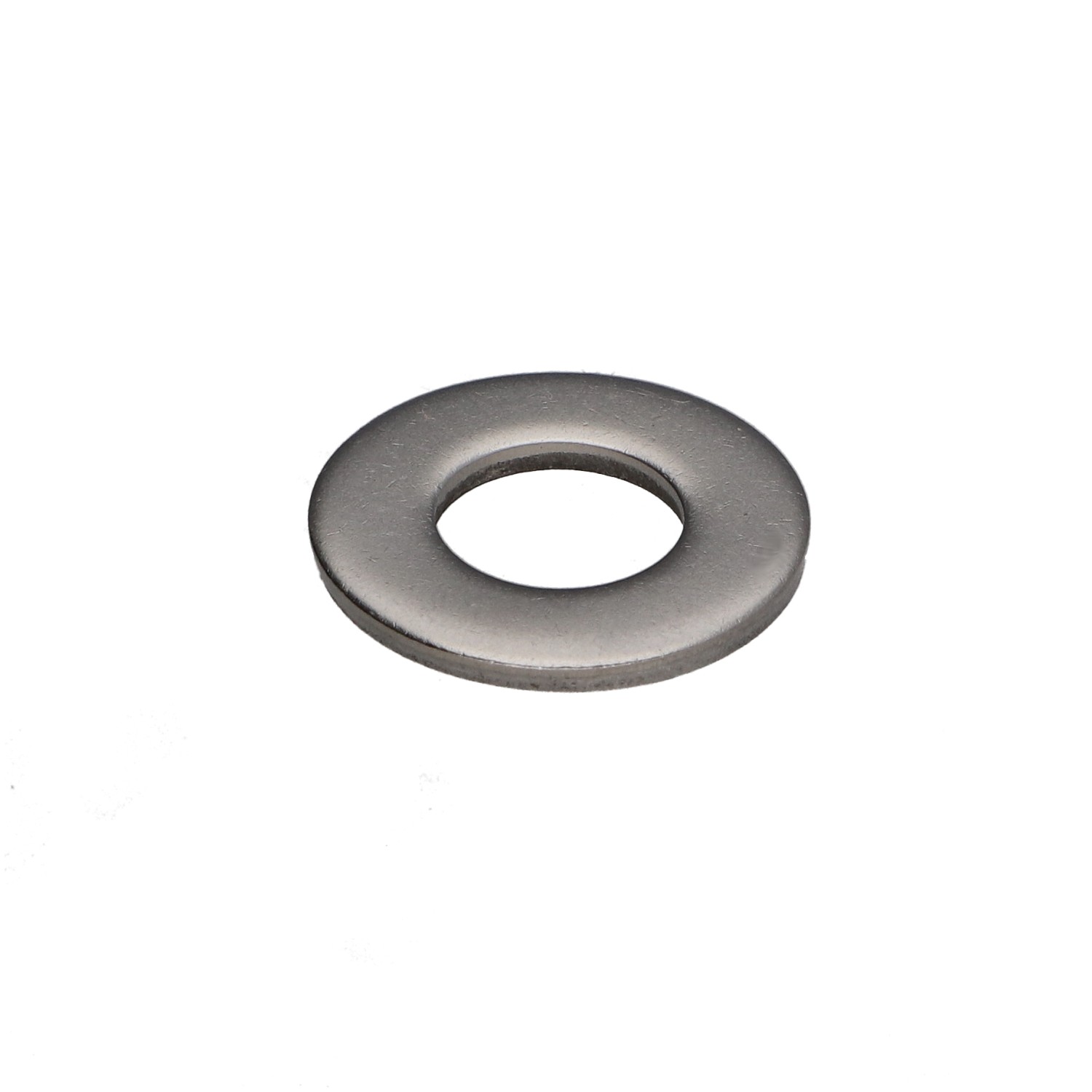

Washer Flat M16X32X3 M Stainless Steel A2
Thickness = 3 MM, Material = Stainless Steel A2, Norm = NFE 25513,VS-NFE25513 GRADE C

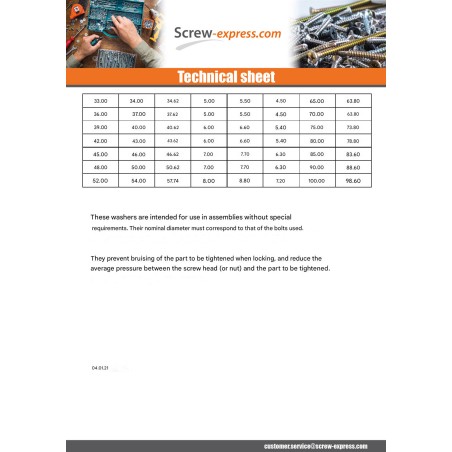

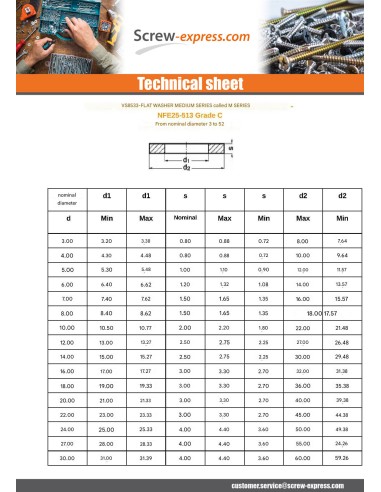

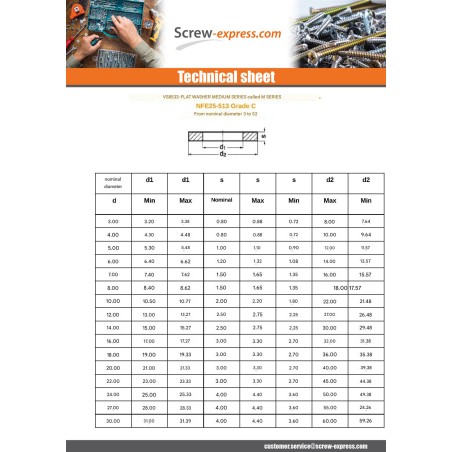

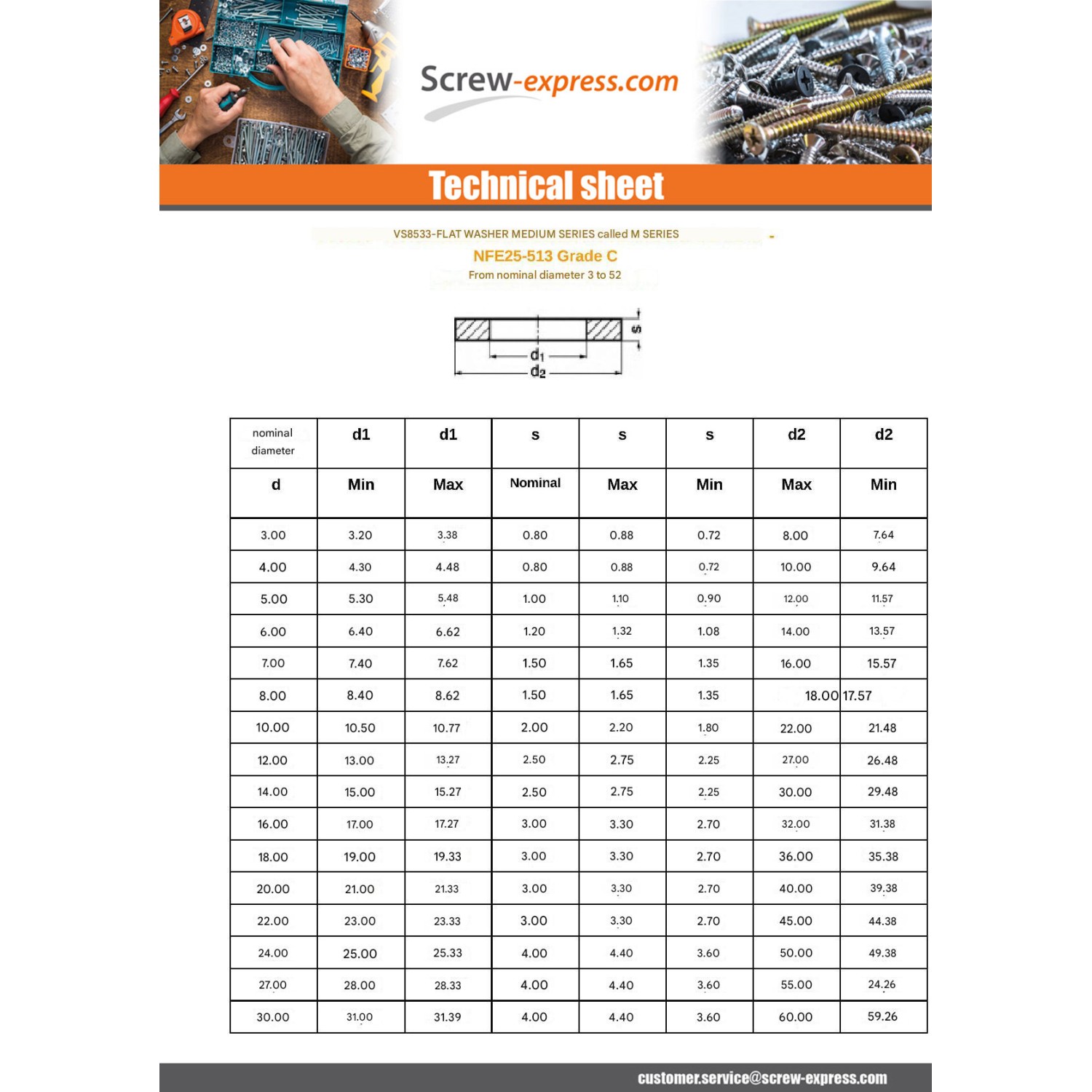

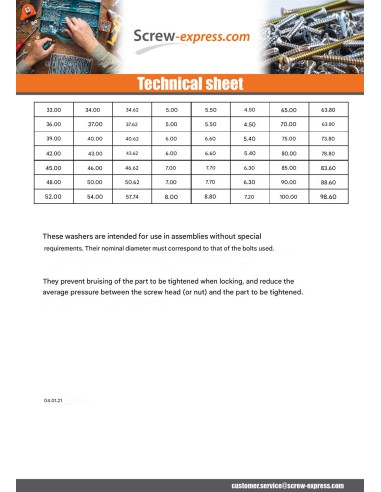

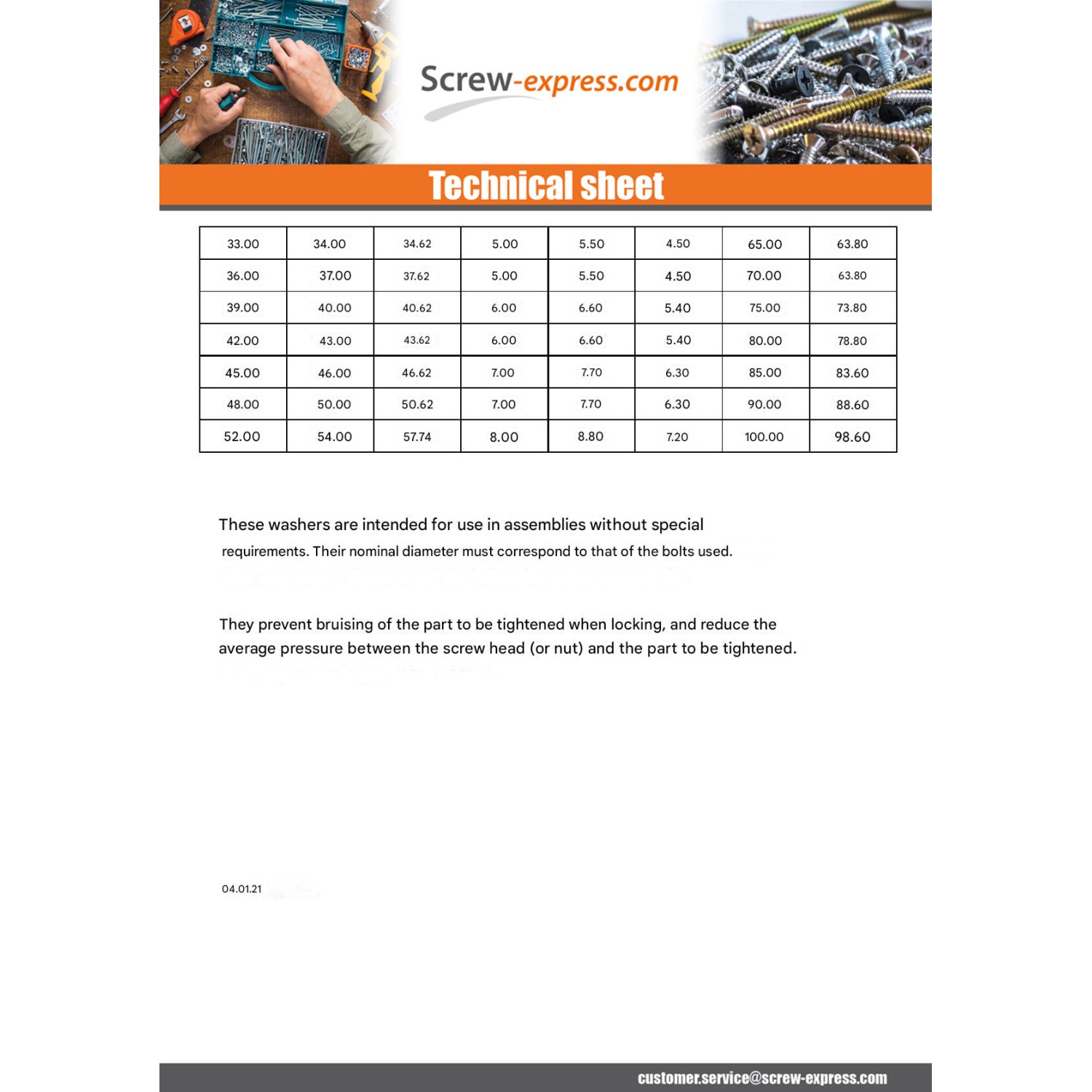

dimensional guide (mm)
Diameter M3 M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39 M42 M45 M48 M52
Interior diameter 3.2 4.3 5.3 6.4 7.4 8.4 10.5 13 15 17 19 21 23 25 28 31 34 37 40 43 46 50 54
Exterior diameter 8 10 12 14 16 18 22 27 30 32 36 40 45 50 55 60 65 70 75 80 85 90 100
Tickness 0.8 0.8 1 1.2 1.5 1.5 2 2.5 2.5 3 3 3 3 4 4 4 5 5 6 6 7 7 8

Other Reference : 6250116 155134 10638 [RDLINOX16] V010001600 RI0016 RONM16INOX 12210224 A03811 130532 RONDELLEM16 604123 0728112 22590 1204 22.11.070 23686.01.7 3005073 QURON020A 2BORP16A2 RDL-A2016 Y5K06436 cv-06-009 5s0401090 NVQR010 100603 Q170600041 FAVI37 05996 M16I VIXX122 A559999 0006288 V010001600 y5l06436 RONDINOXA2PL 195002 1009960 FROI017 04609 16095 2204-260 AVRPI0004VIO AR05774 RDX2216 218008 AIRO16 022039 005181 151494-TO RON16PB* QRON*I304*PL CV-06-0041 NC9S0888869 A3013215 RIPMA216 XA0-512 04RPI1632 RONDM16UA2 V010001600 10030408 ROND_I_16X30 565711 2438 0601270 RP16MA2 QUINCAI02225 50 3663072168282
Philippe C. (vis-express.fr)
2025-08-17

Replacing rusty bolts Replacing rusty bolts on a small excavator


Stephane C. (vis-express.fr)
2024-06-16

Post foot attachment. For m16 bolt on post base in me.


Manuel C. (vis-express.fr)
2024-04-21

Wooden terrace Finalization of wooden terrace
