8533000418_1
In stock 134490 Pièces
£0.43 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200 800
Lot price VAT included £0.43 £0.87 £1.04 £1.13 £3.82
NFE 25513,VS-NFE25513 GRADE C - Washer Flat M4X10X0.8 M Stainless Steel A2
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units
  • 800 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter Internal
M4 (4.3 4.48 MM)
Diameter External
10 MM
Thickness
0.8 MM
Series (Washer)
Normal Serie
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
NFE 25513,VS-NFE25513 GRADE C
Unit weight
0.38 GR
134490 Items
3663072168206

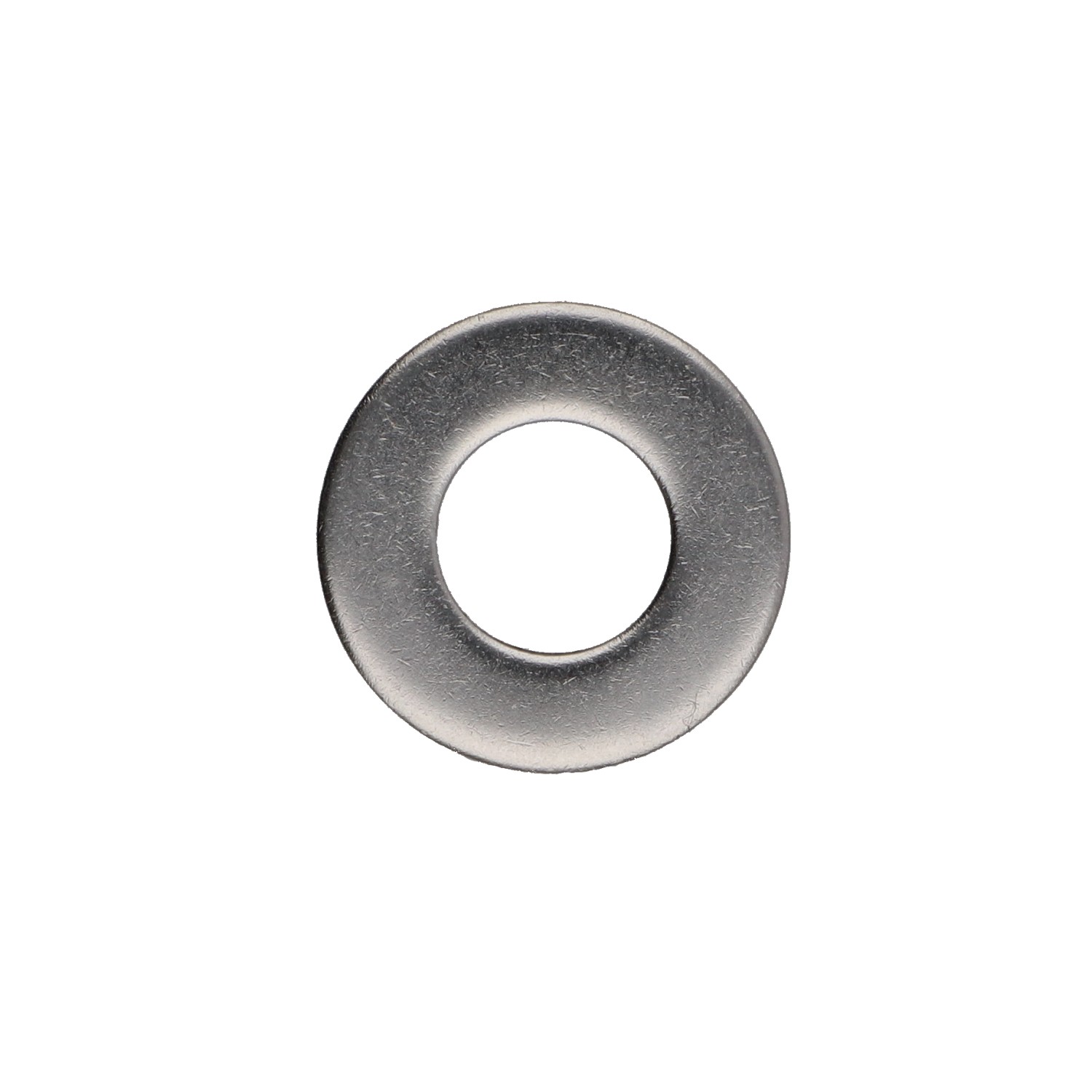

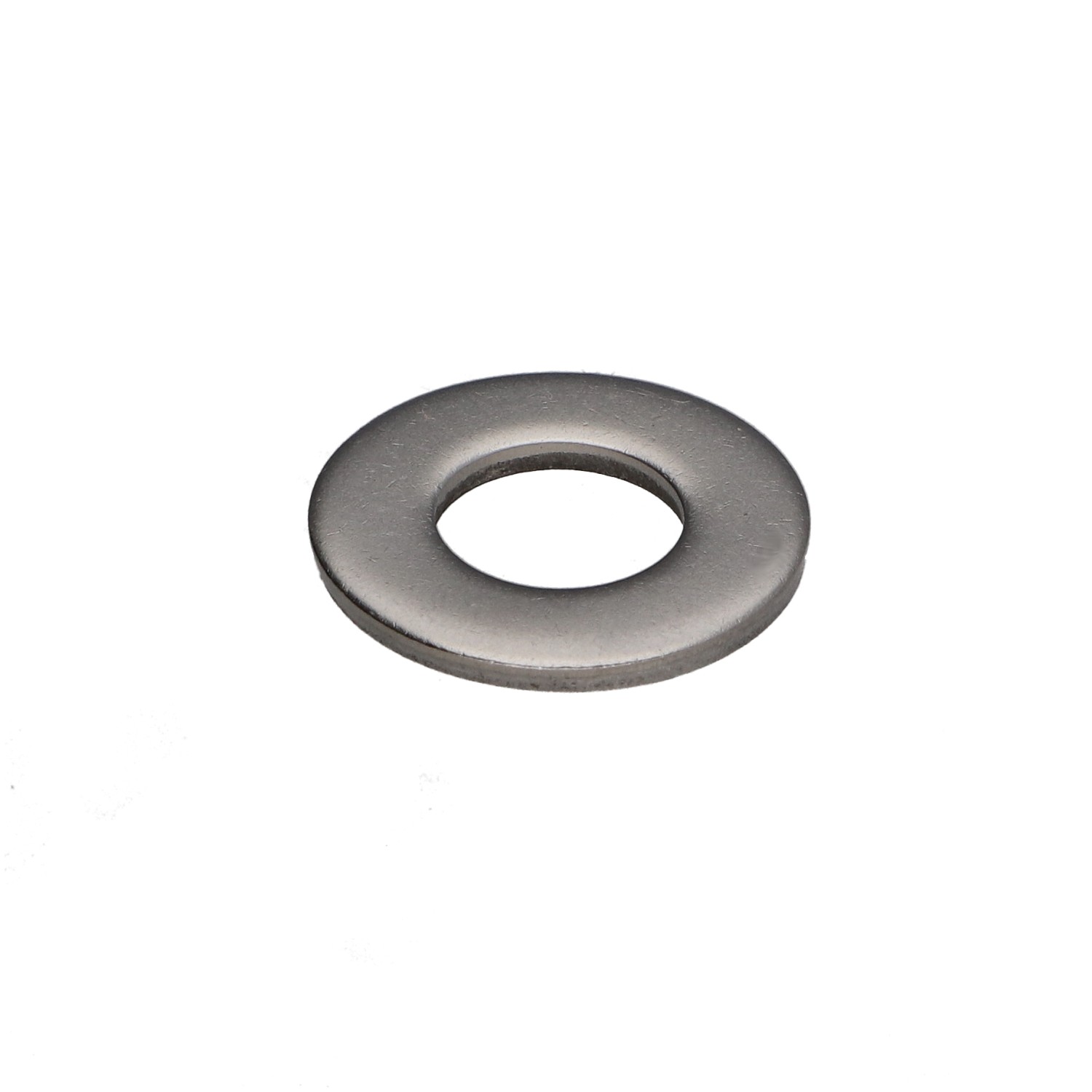

Washer Flat M4X10X0.8 M Stainless Steel A2
Thickness = 0.8 MM, Material = Stainless Steel A2, Norm = NFE 25513,VS-NFE25513 GRADE C

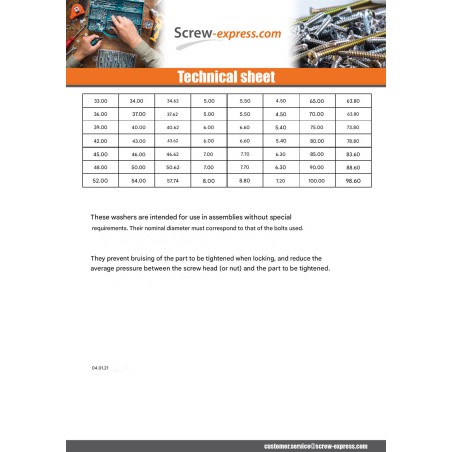

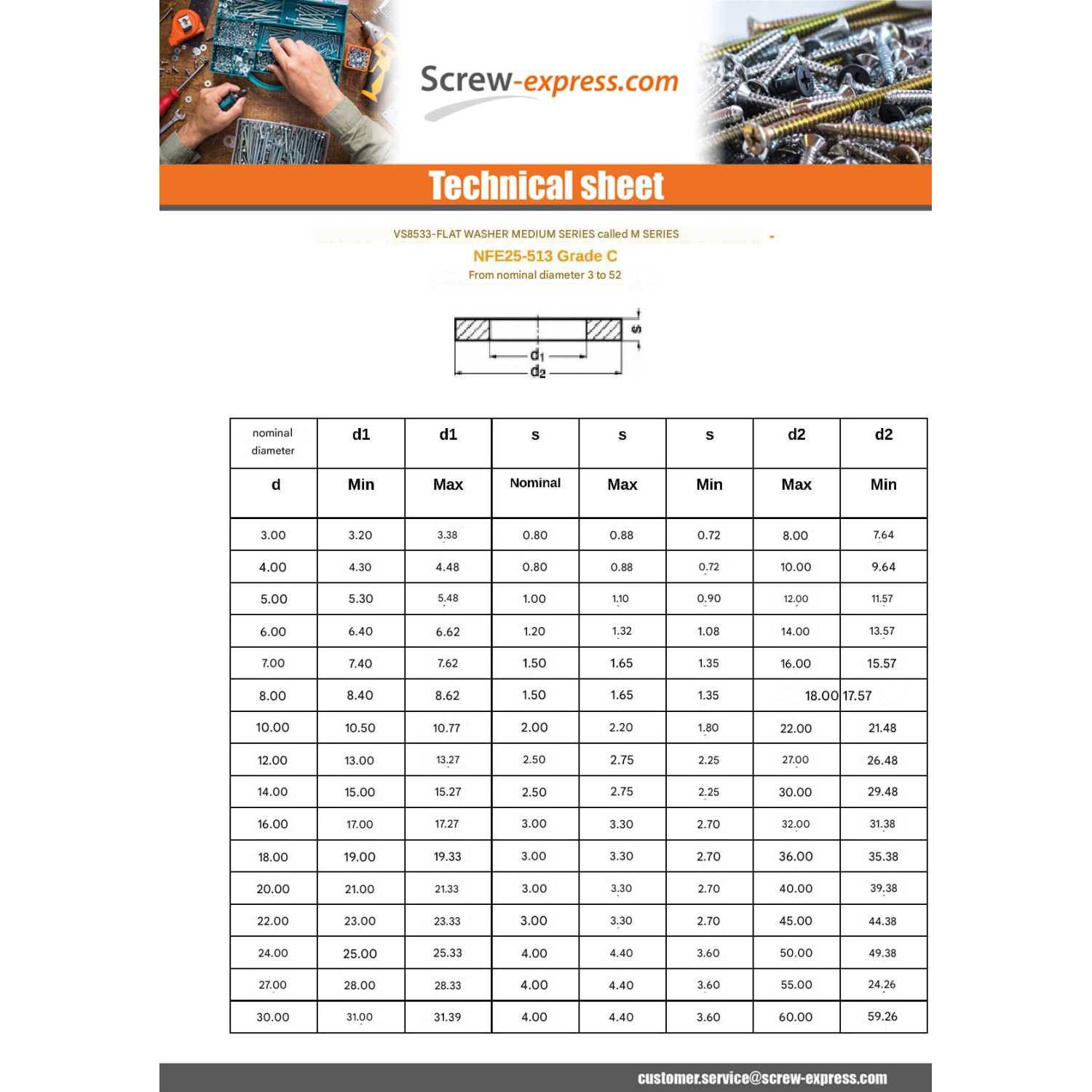

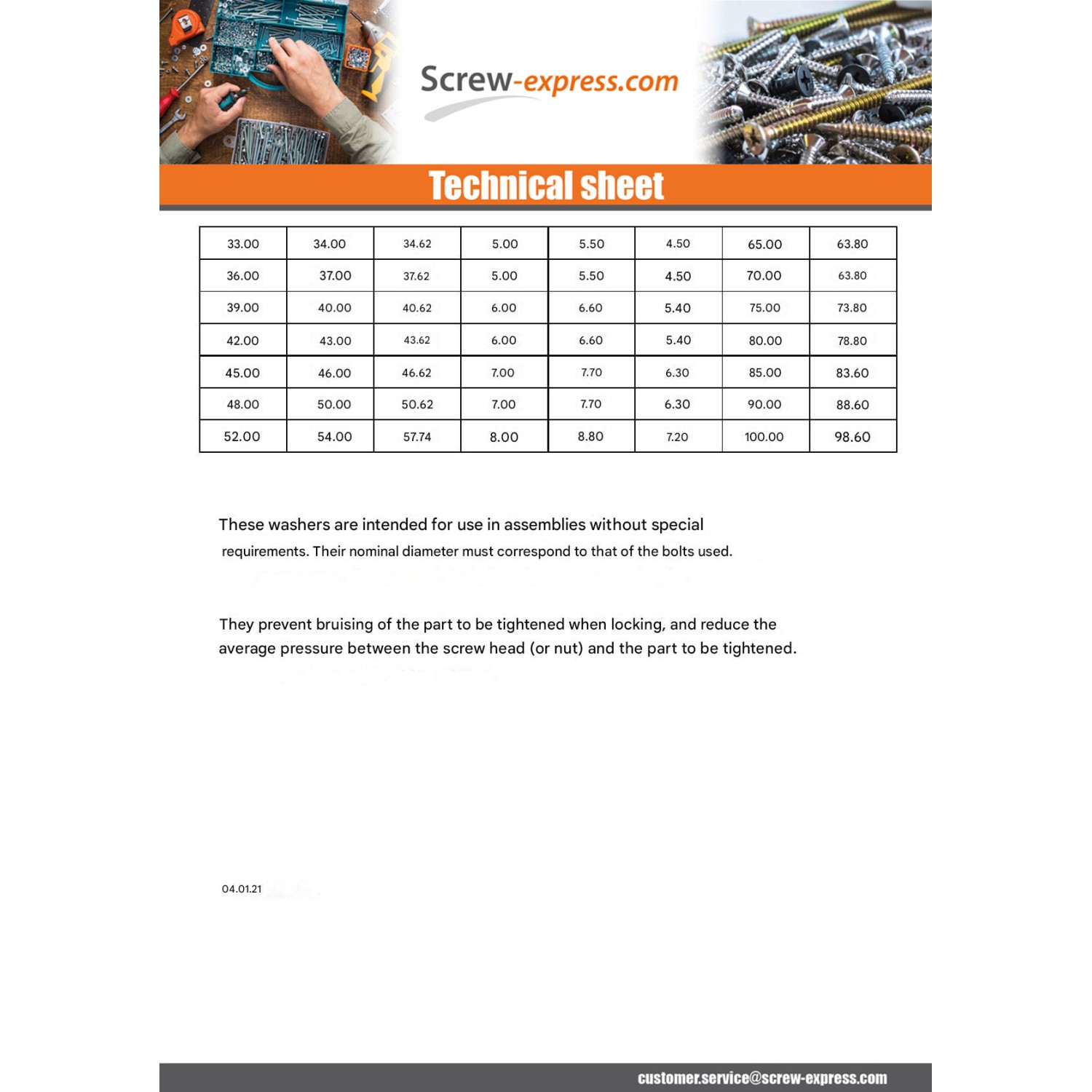

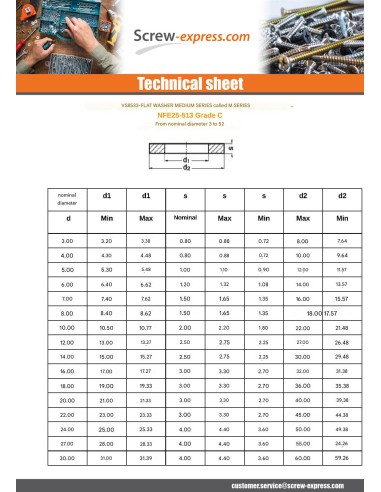

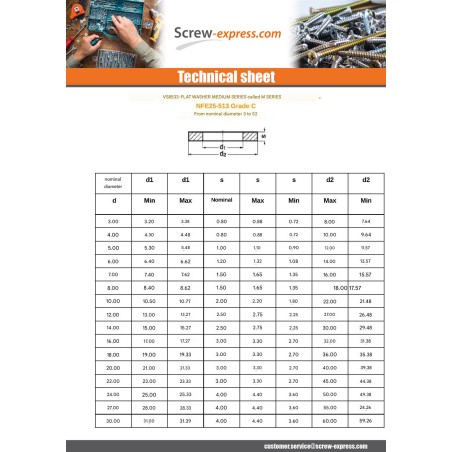

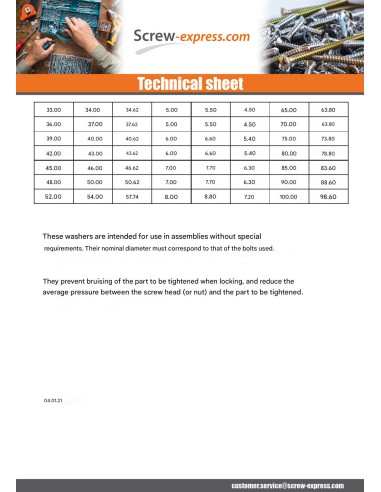

dimensional guide (mm)
Diameter M3 M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39 M42 M45 M48 M52
Interior diameter 3.2 4.3 5.3 6.4 7.4 8.4 10.5 13 15 17 19 21 23 25 28 31 34 37 40 43 46 50 54
Exterior diameter 8 10 12 14 16 18 22 27 30 32 36 40 45 50 55 60 65 70 75 80 85 90 100
Tickness 0.8 0.8 1 1.2 1.5 1.5 2 2.5 2.5 3 3 3 3 4 4 4 5 5 6 6 7 7 8

Other Reference : 625014 A-00138 155126 13450002500 RI004 000196 b0419092 8533041018 MP1227 1 130547 A005577 3020530 RM04100001 719652 22.11.001 RONIM4 2VIS1RO008 313-0005 RPA2M4 77004.4.10 A444 CV-06-002 QUI0383 AR001895 CQVR040 1253204 1835030 RONDINOX1045 COPM0024 M04I G0003866 103757 A559996 2001184 3370 FROI410 04602 7010760410 A450299 1ce30512 245003 703225V 007407 A004502 LC35311 1FA703225V 27766 11542 2002030 2204-327 VRM04NA2 FROIA20 viin0008 800 DS1504004 RDX2104 400055 VIRPLIN4X10X RAMRONDI04M 022020 000832 151488 CV-06-0010 AQU3065 . AFID00269 32100X00515 573447 10811698 V001057 A002818 AB059 NEX101492 10030401 A01323 1363 QVI.221 A11020910510 1FA703225V ROND8006F 4359 FE010025PAF 1250212007 220123 3663072168206
