8533002018_1
In stock 15412 Pièces
€0.45 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 20 50 200
Lot price VAT included €0.45 €0.90 €2.60 €6.55 €23.80
NFE 25513,VS-NFE25513 GRADE C - Washer Flat M20X40X3 M Stainless Steel A2
Packaging
  • 1 unit
  • 5 units
  • 20 units
  • 50 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter Internal
M20 (21 21.33 MM)
Diameter External
40 MM
Thickness
3 MM
Series (Washer)
Normal Serie
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
NFE 25513,VS-NFE25513 GRADE C
Unit weight
18 GR
15412 Items
3663072168305

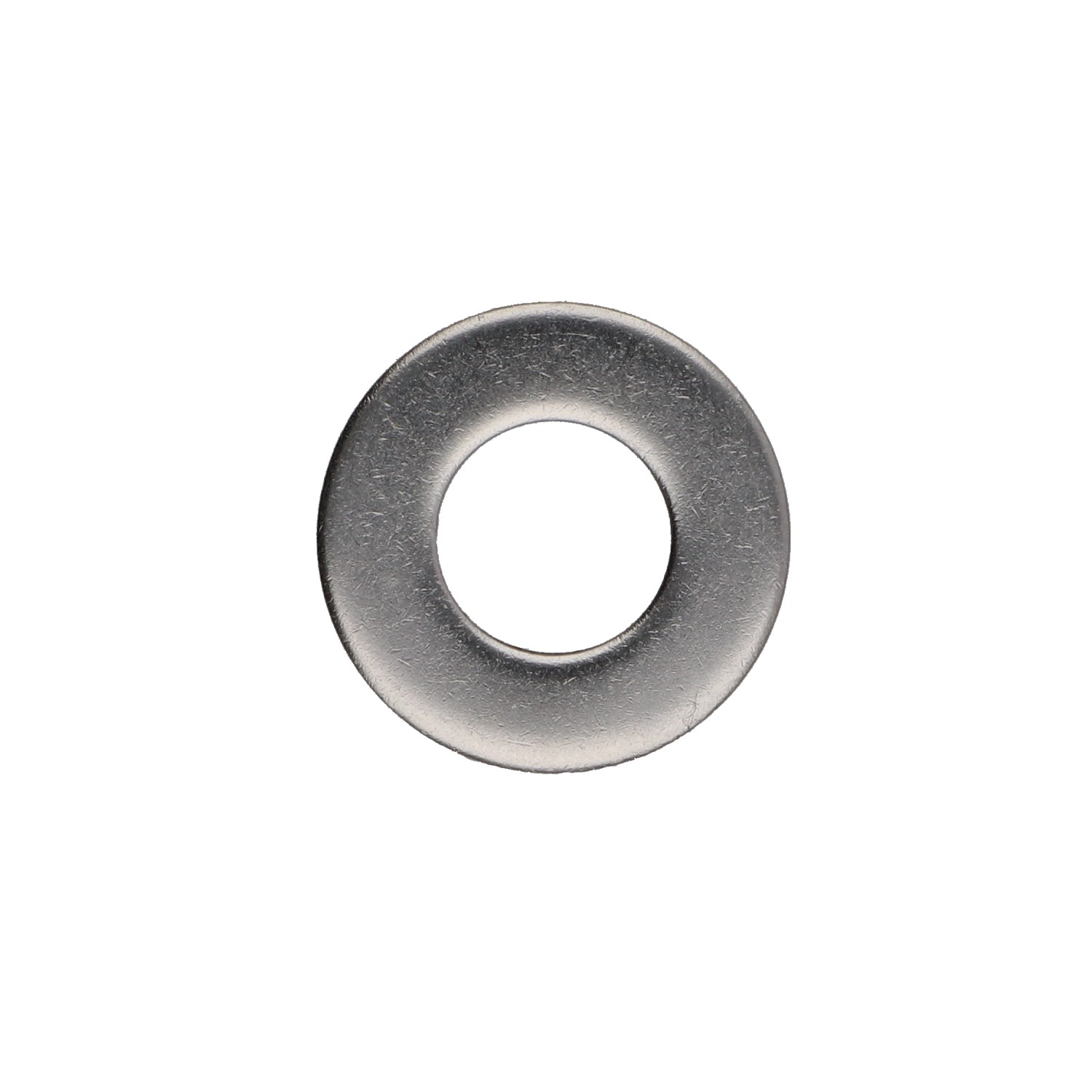

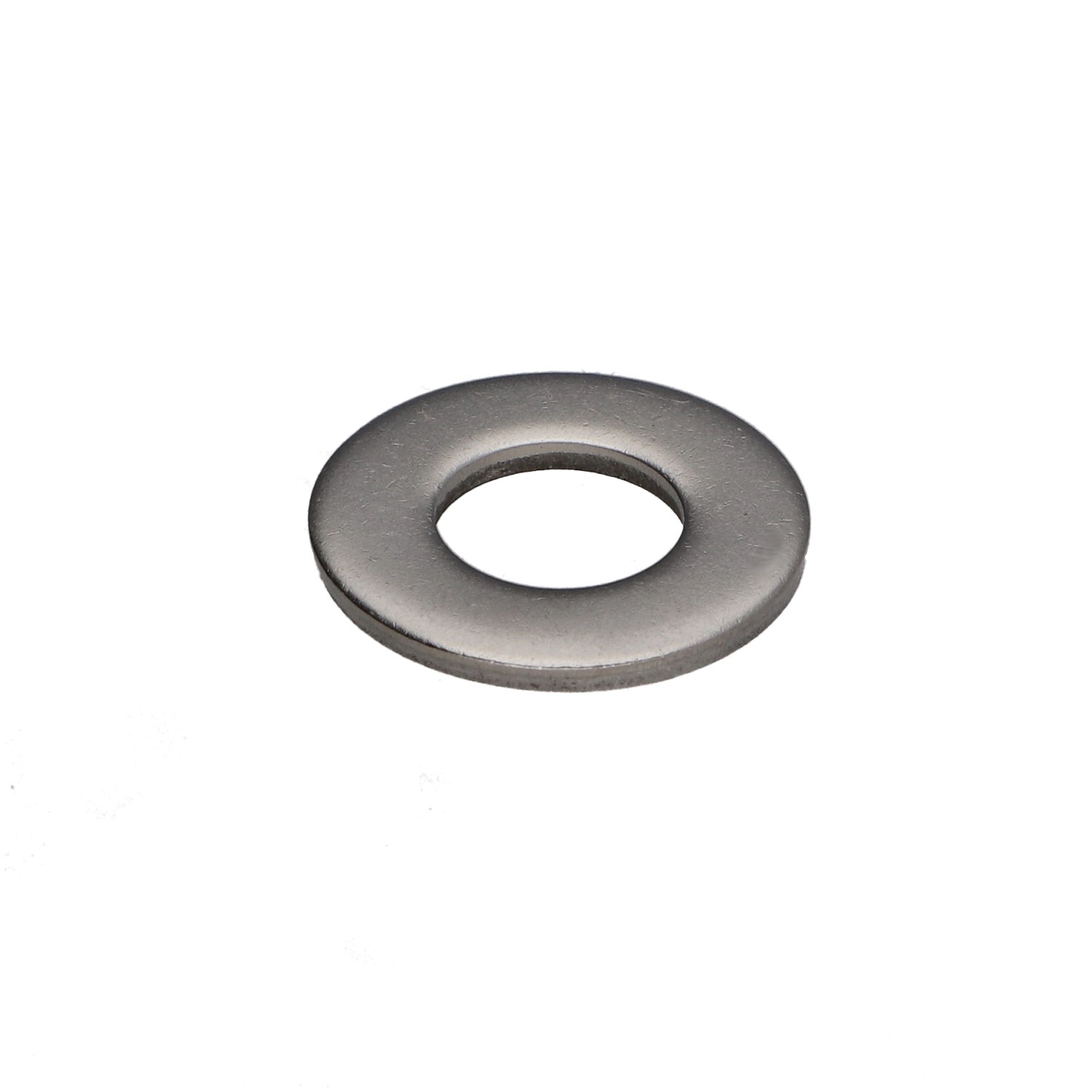

Washer Flat M20X40X3 M Stainless Steel A2
Thickness = 3 MM, Material = Stainless Steel A2, Norm = NFE 25513,VS-NFE25513 GRADE C

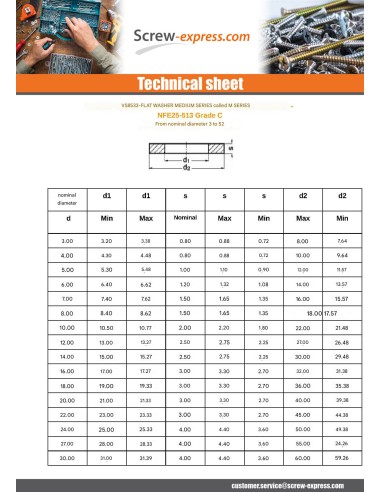

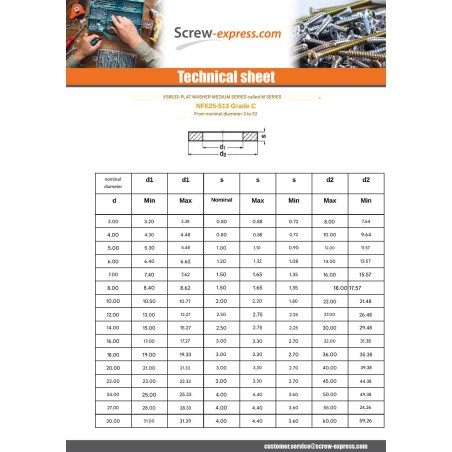

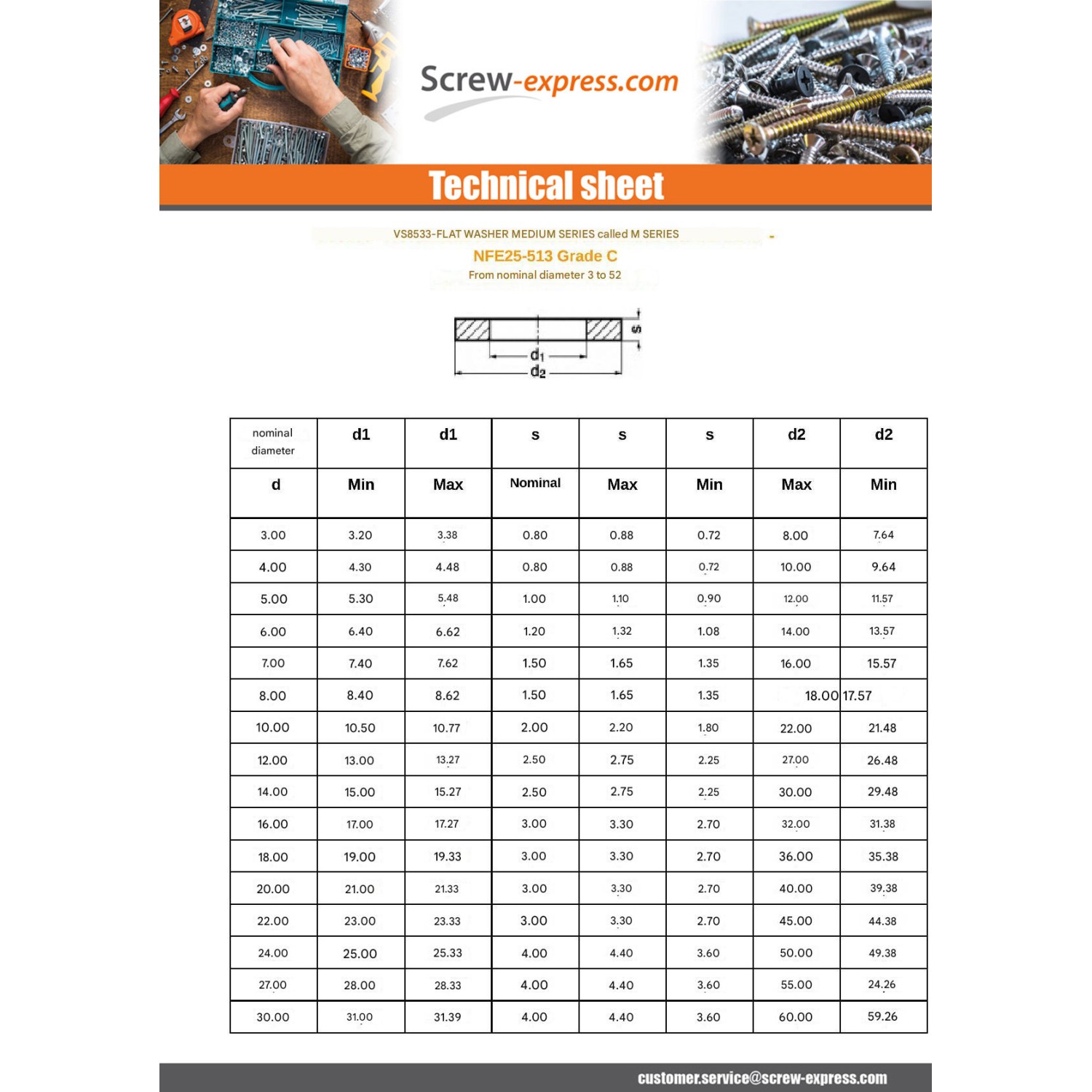

dimensional guide (mm)
Diameter M3 M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39 M42 M45 M48 M52
Interior diameter 3.2 4.3 5.3 6.4 7.4 8.4 10.5 13 15 17 19 21 23 25 28 31 34 37 40 43 46 50 54
Exterior diameter 8 10 12 14 16 18 22 27 30 32 36 40 45 50 55 60 65 70 75 80 85 90 100
Tickness 0.8 0.8 1 1.2 1.5 1.5 2 2.5 2.5 3 3 3 3 4 4 4 5 5 6 6 7 7 8

Other Reference : 6250120 155136 RONPLM20A4I A03620 130536 0728114 23892 002343 2BORP20I RDL-A2020 CV-06-010 NQVR025 060159 M20I 04611 CO9624107 A002754 LN0362 2204-328 AR05830 PRRONDM20A2 DS1504020 CV-06-0018 RIPMA220 VRON-MOYE08 10030410 MVRP20I CO600037 564812 2474 3663072168305
