8533002718_1
In stock 536 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 3 5 10
Lot price VAT included €4.25 €8.40 €8.45 €8.45

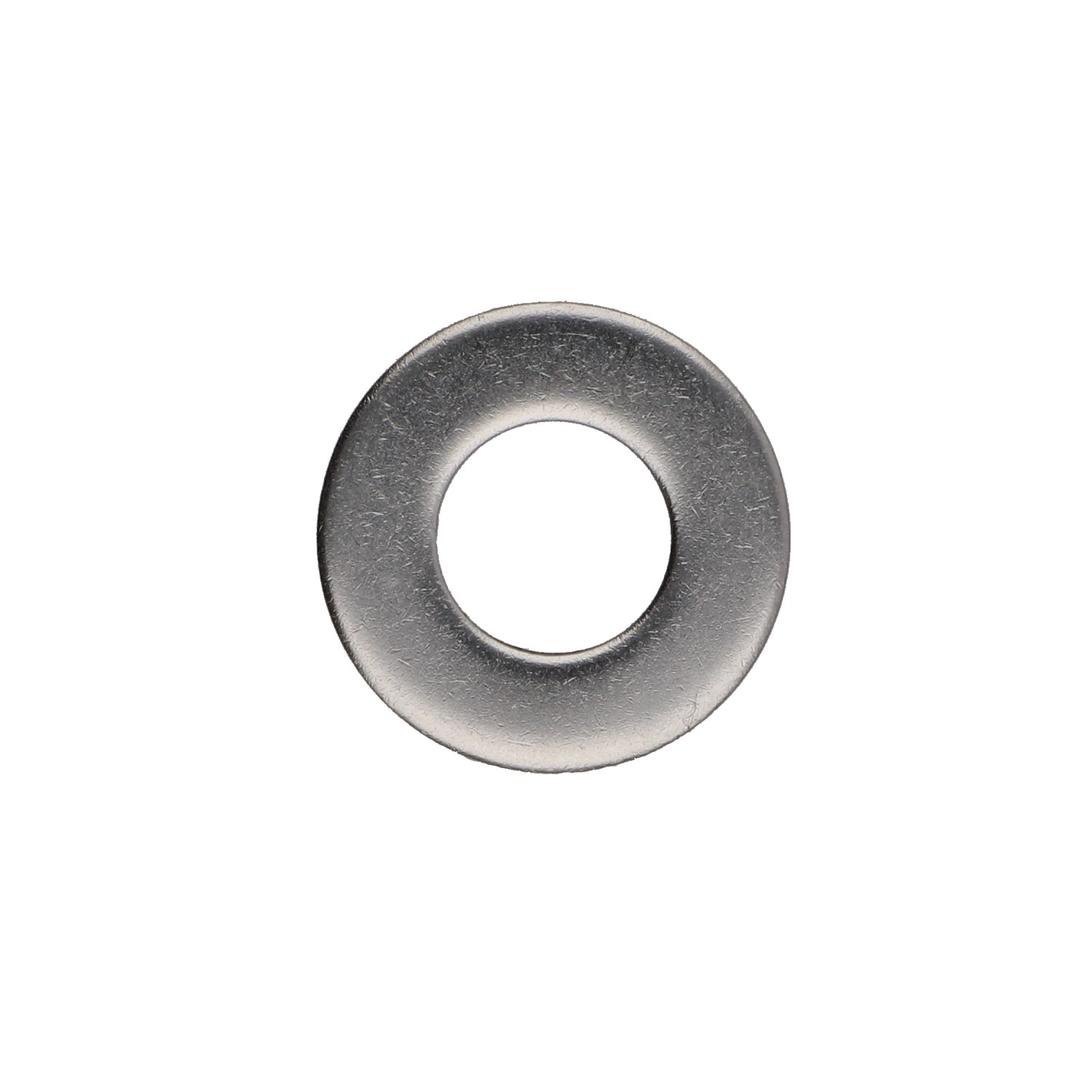

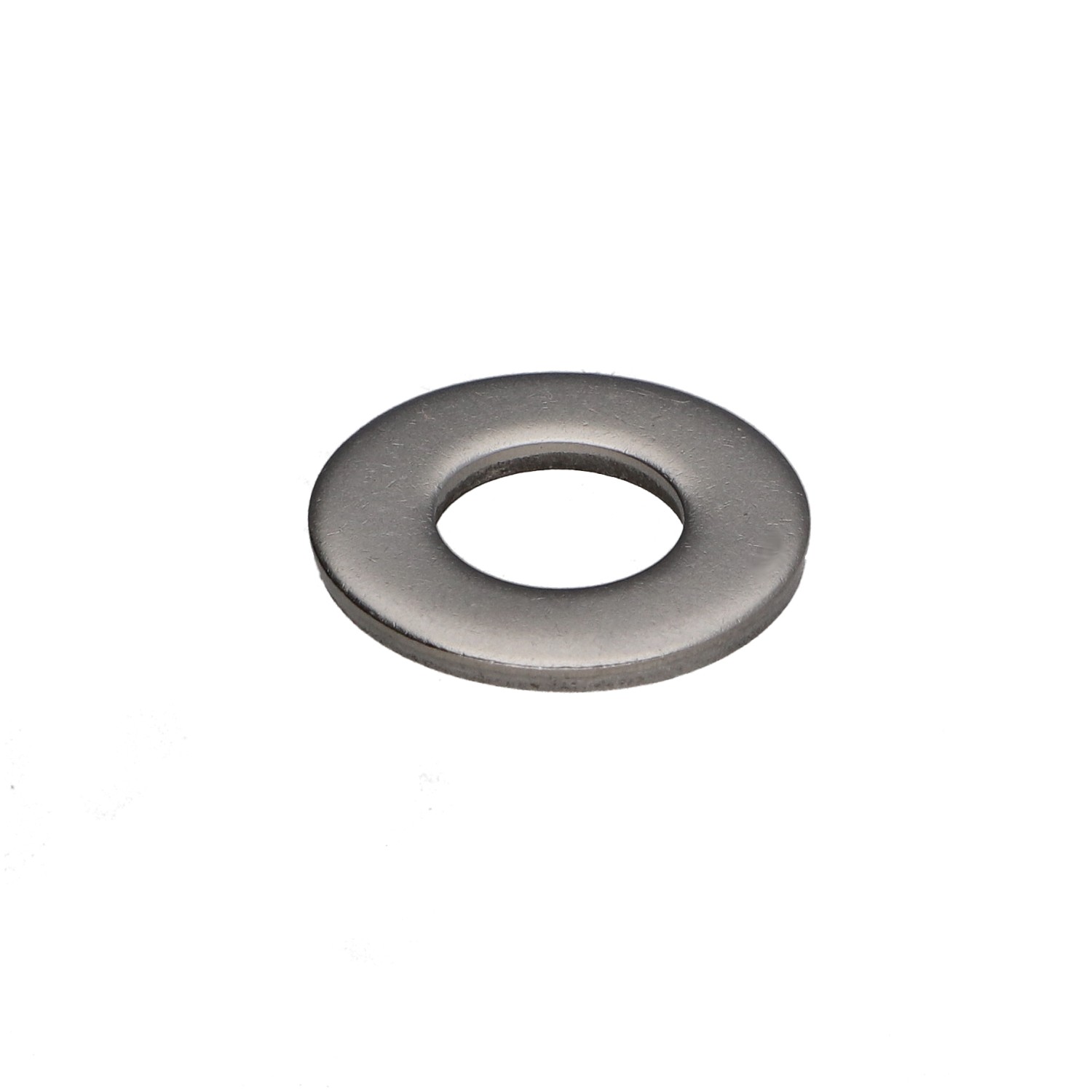

NFE 25513,VS-NFE25513 GRADE C - Washer Flat M27X55X4 M Stainless Steel A2
Packaging
  • 1 unit
  • 3 units
  • 5 units
  • 10 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter Internal
M27 (28 28.33 MM)
Diameter External
55 MM
Thickness
4 MM
Series (Washer)
Normal Serie
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
NFE 25513,VS-NFE25513 GRADE C
Unit weight
50.8 GR
536 Items
3663072168336
Washer Flat M27X55X4 M Stainless Steel A2
Thickness = 4 MM, Material = Stainless Steel A2, Norm = NFE 25513,VS-NFE25513 GRADE C

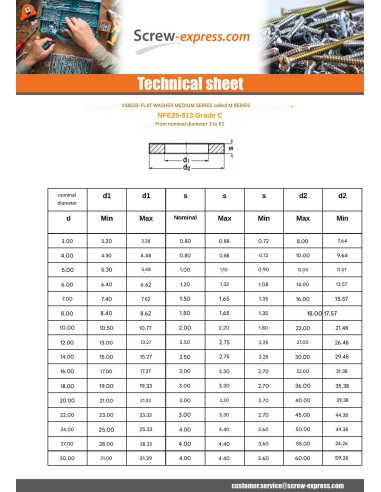

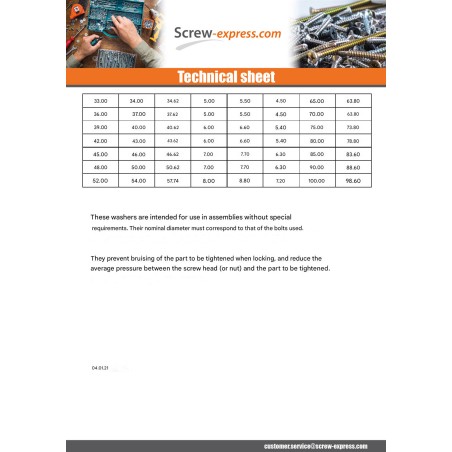

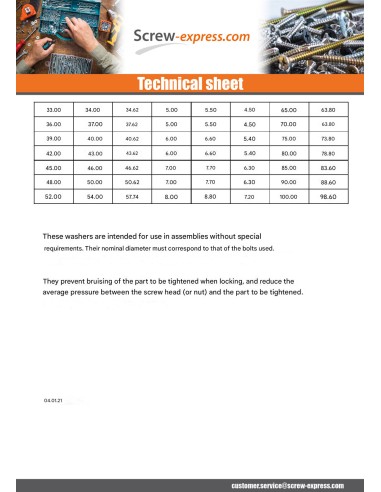

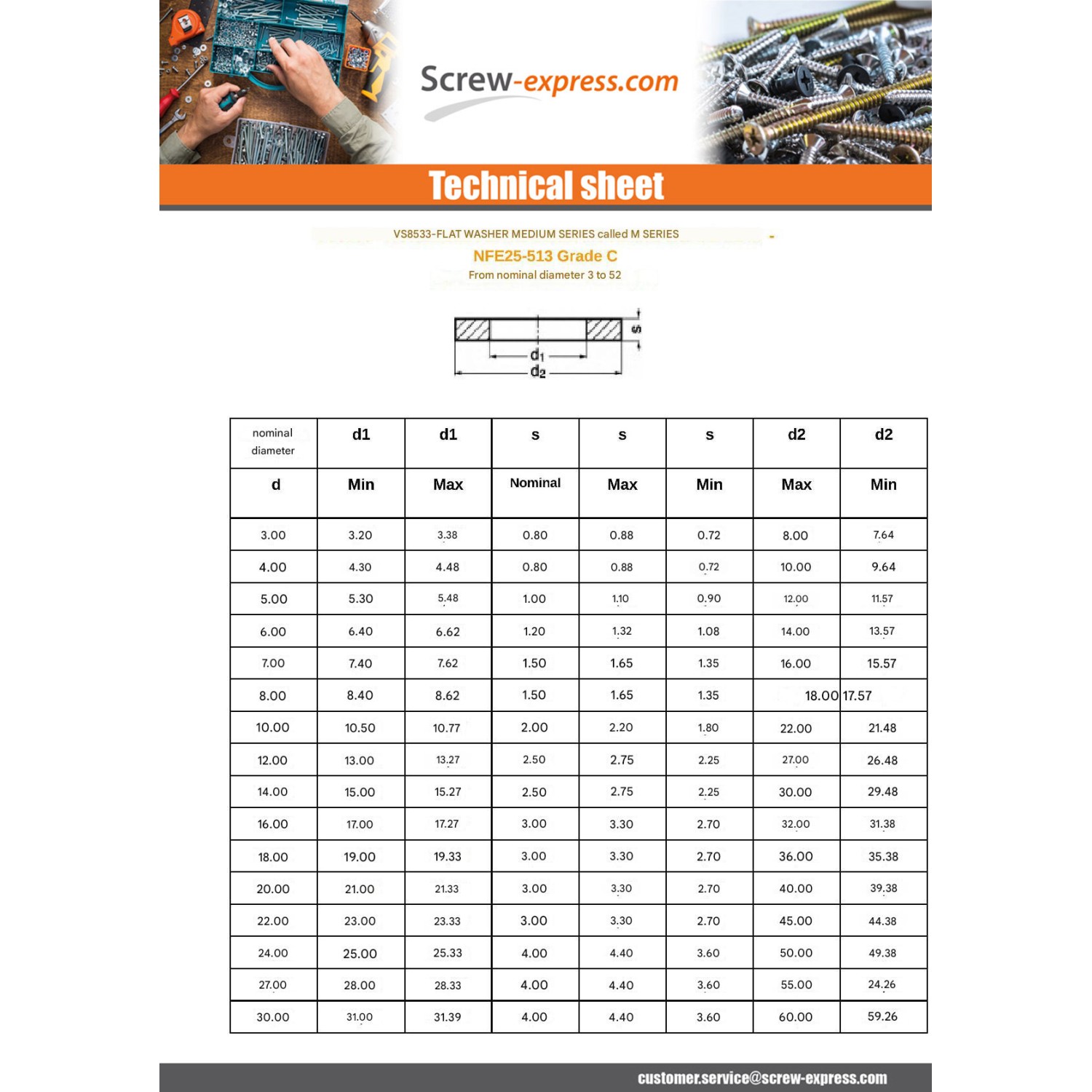

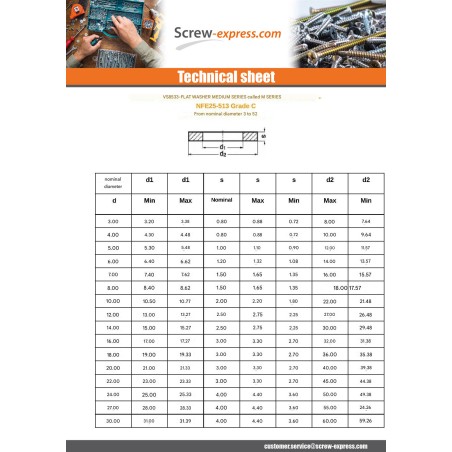

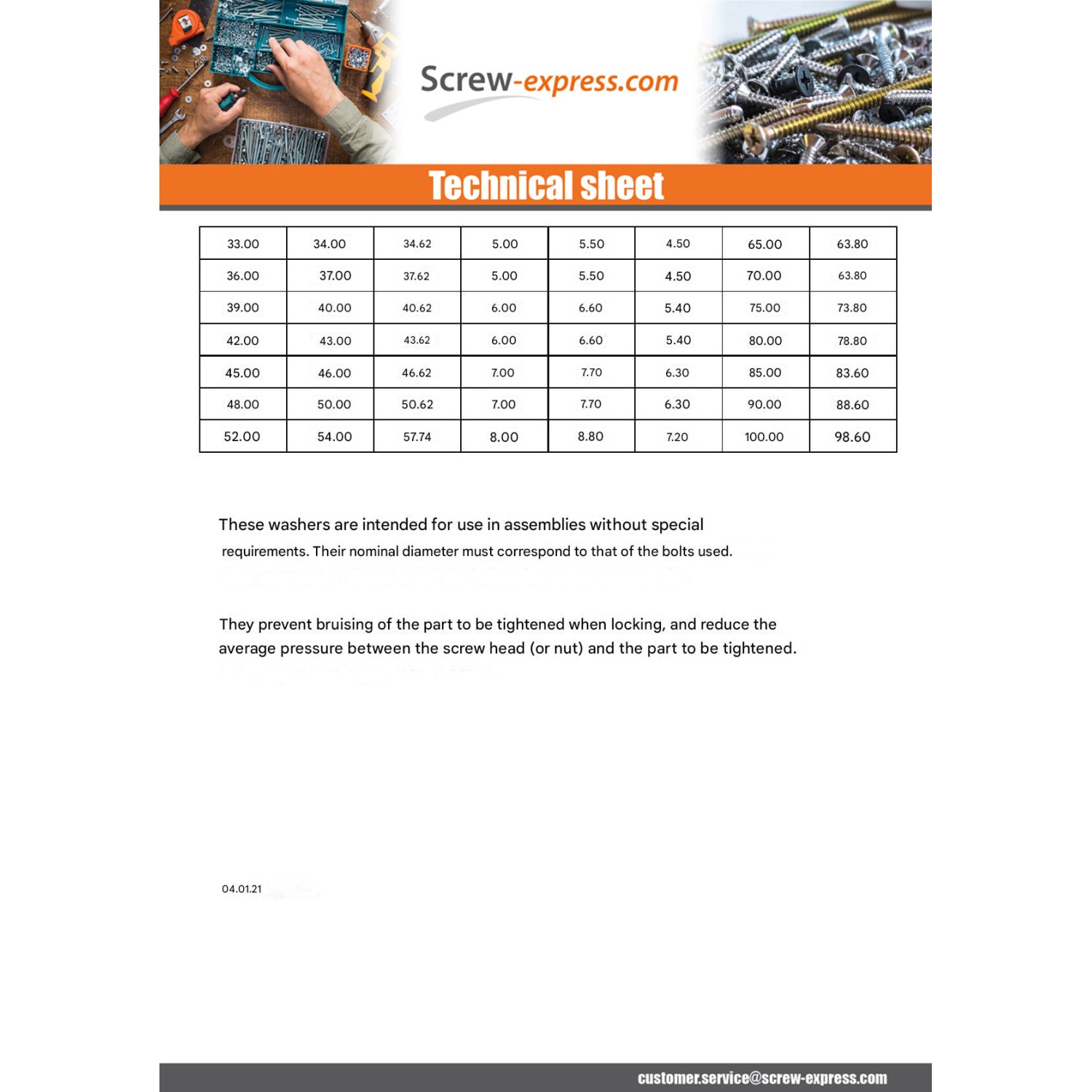

dimensional guide (mm)
Diameter M3 M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39 M42 M45 M48 M52
Interior diameter 3.2 4.3 5.3 6.4 7.4 8.4 10.5 13 15 17 19 21 23 25 28 31 34 37 40 43 46 50 54
Exterior diameter 8 10 12 14 16 18 22 27 30 32 36 40 45 50 55 60 65 70 75 80 85 90 100
Tickness 0.8 0.8 1 1.2 1.5 1.5 2 2.5 2.5 3 3 3 3 4 4 4 5 5 6 6 7 7 8

Other Reference : 6250128 130541 NQVR040 2204-801 RIPMA227 3663072168336
Bill B. (vis-express.fr)
2026-07-19

Washer to be inserted between the brass nut and flat gasket, mounted on a brass bulkhead fitting on a plastic water recovery tank Bulkhead fitting and nut 20/27. Normally the washer should have 0.1 mm of play.
