8533001018_1
In stock 173945 Pièces
€0.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 100 400
Lot price VAT included €0.50 €1.00 €1.20 €3.50 €13.40
NFE 25513,VS-NFE25513 GRADE C - Washer Flat M10X22X2 M Stainless Steel A2
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 100 units
  • 400 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter Internal
M10 (10.5 10.77 MM)
Diameter External
22 MM
Thickness
2 MM
Series (Washer)
Normal Serie
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
NFE 25513,VS-NFE25513 GRADE C
Unit weight
3.6 GR
173945 Items
3663072168251

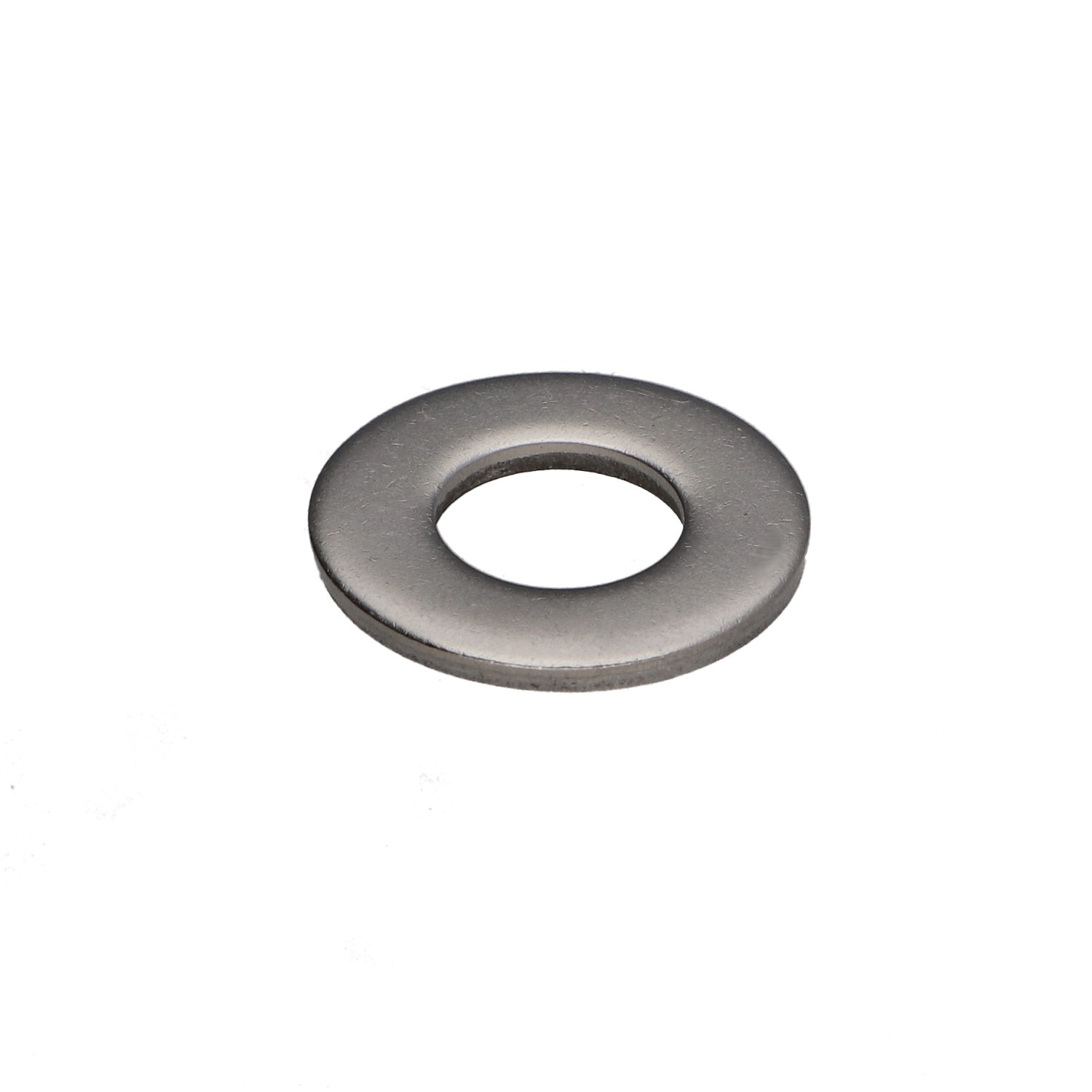

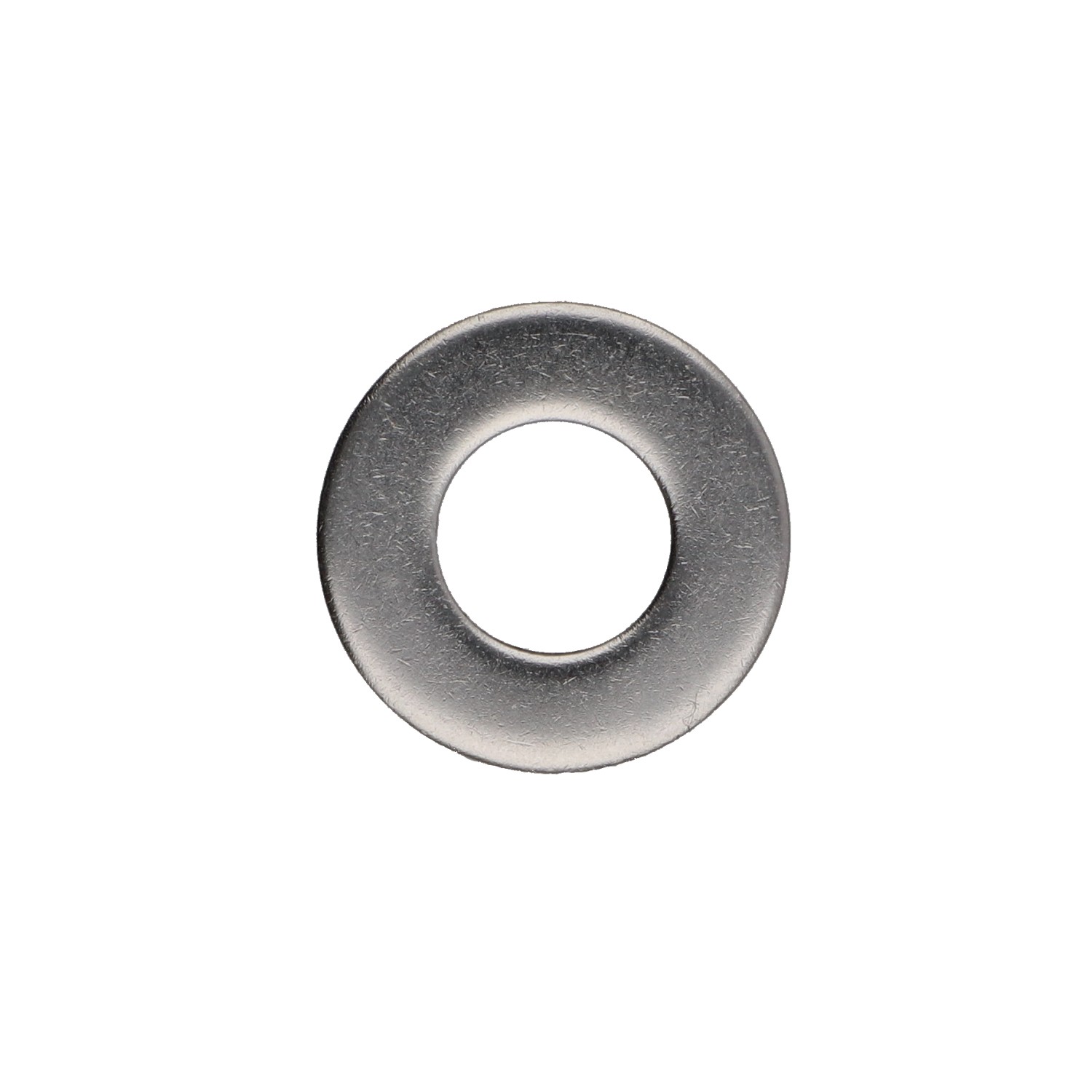

Washer Flat M10X22X2 M Stainless Steel A2
Thickness = 2 MM, Material = Stainless Steel A2, Norm = NFE 25513,VS-NFE25513 GRADE C

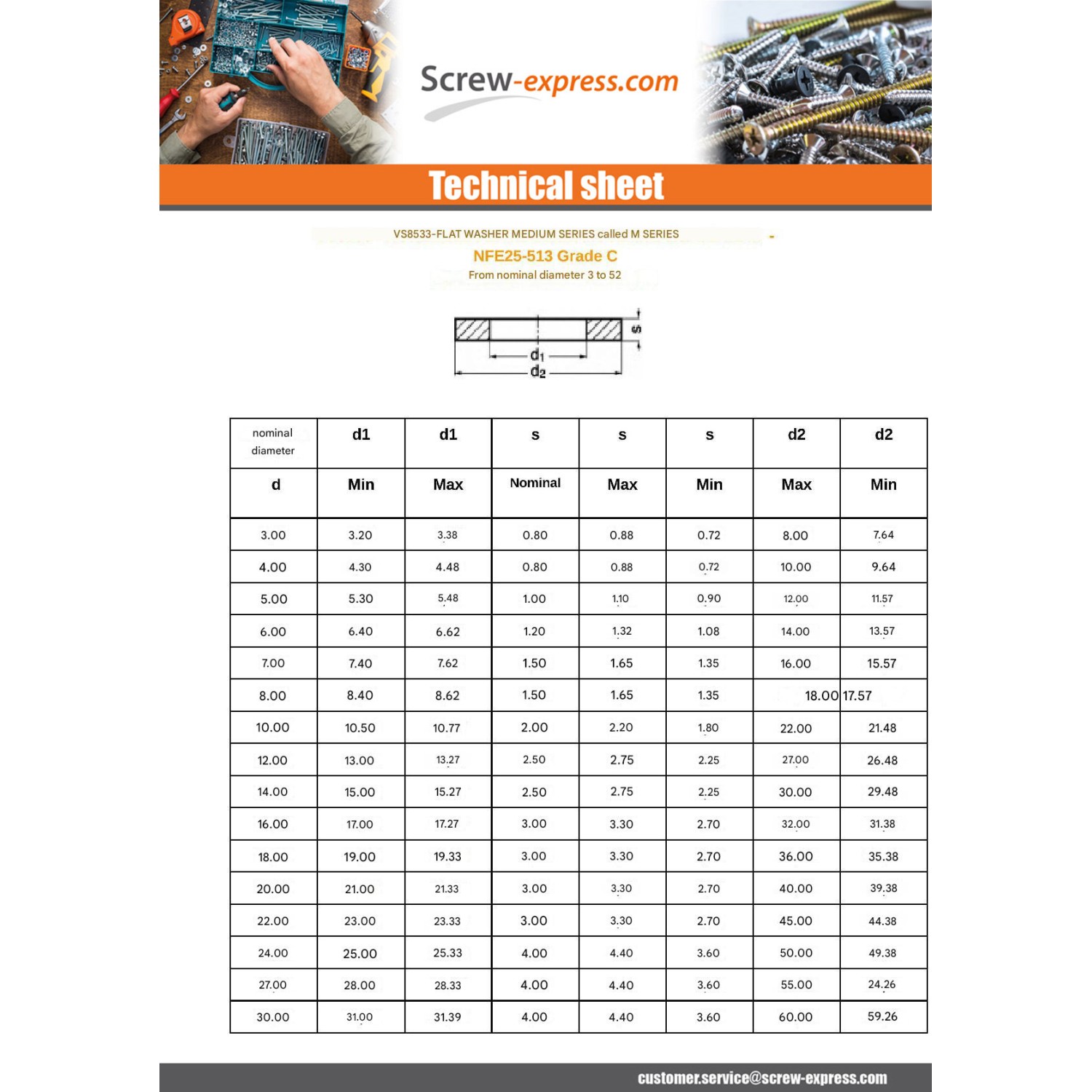

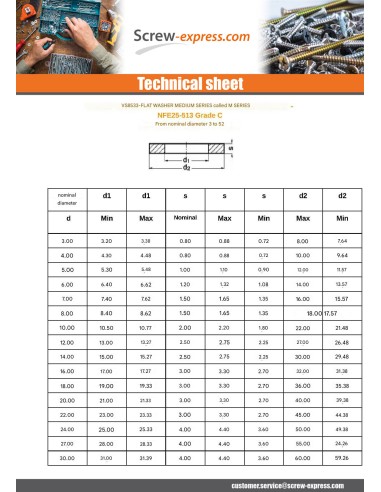

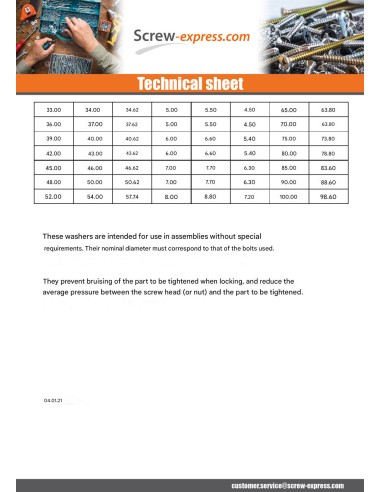

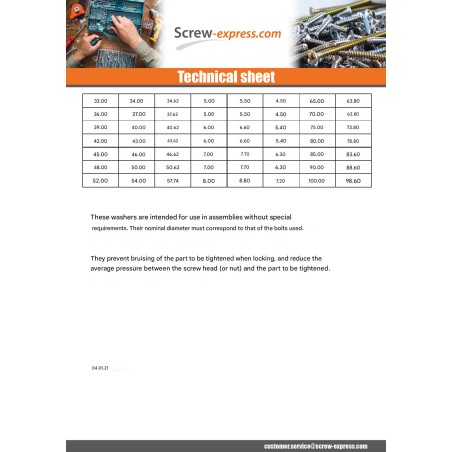

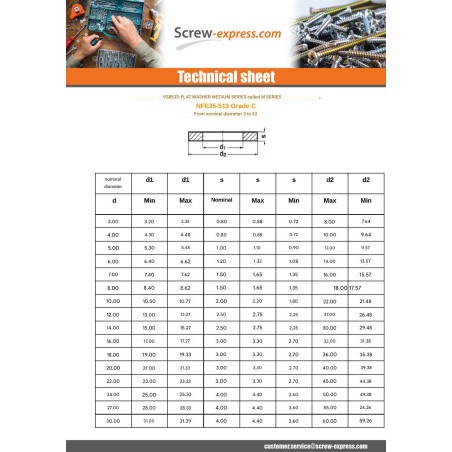

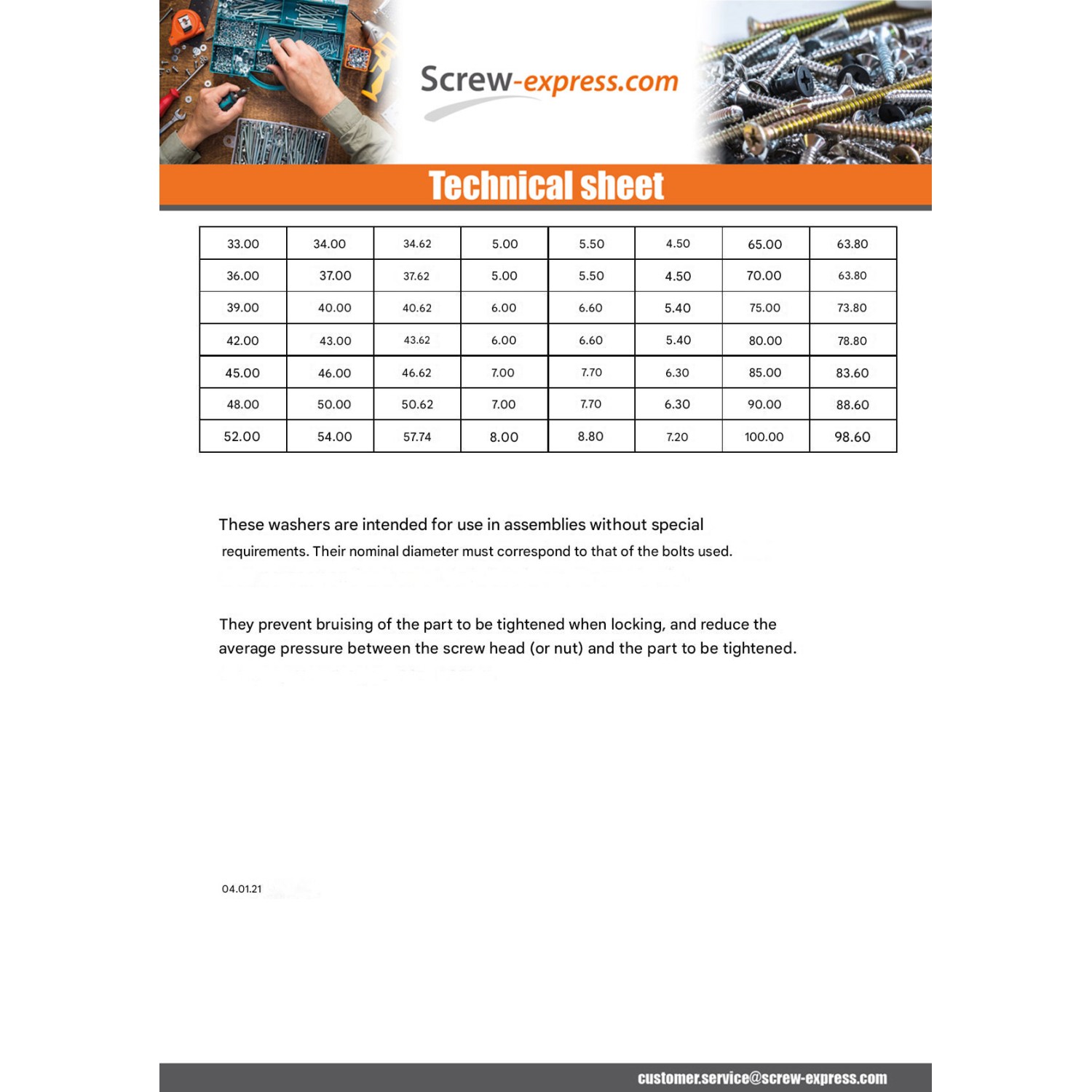

dimensional guide (mm)
Diameter M3 M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39 M42 M45 M48 M52
Interior diameter 3.2 4.3 5.3 6.4 7.4 8.4 10.5 13 15 17 19 21 23 25 28 31 34 37 40 43 46 50 54
Exterior diameter 8 10 12 14 16 18 22 27 30 32 36 40 45 50 55 60 65 70 75 80 85 90 100
Tickness 0.8 0.8 1 1.2 1.5 1.5 2 2.5 2.5 3 3 3 3 4 4 4 5 5 6 6 7 7 8

Other Reference : 6250110 A-00097 10 07684 155131 RDLINOX10 CMROM1000505 V01000001000 RI0010 1 BORI2PL10 78031090 A04514 1142016 RONDELLE*MU* 130525 814420 RONDI22X10 V001101 409122102 05608 RDMN10IN 05608 RONDM10-IN 20394 1201 2 22.11.040 23687106 3005027 812 QURON017A 2borp10i 031108 RDL-A2010 RONDM10INOX ACH6534 079966 C98-006371 RONDINPL10 RPA2M10 RONDELLEPLAT CV-06-006 A0015590 5s0401088 CQVR100 RONDEL-0017 14022138 VSE85330010 ARROND10INOX 23641022 20041 RONDELLEM10A 6148 304213 RD.10X22.IA2 11311002 A00027065 54485 M10I 6ROND01A210 G0003863 RI010 0681 MVIS003-M10- 103761 A101077 A330153 2998 V010102200 y5k06430 515071 MAVISRON023 AERONDELPL10 2520570000 FROI010 04606 245008 CO9624103 RBRM1022I SFXROI10100 SFXROI10100 A000057 LN0364 SFXROI10100 2002034 DR10INOX 2204.001 VRM10NA2 AR05828 516757 RONNFE25513D DS1504010 OBRPZ10 SD008016 RDX2110 6612015 9-125-A2-MU- AIRP10 30167 000835 151492-CH SI05560 RPSM10 CPF90 CV-06-0014 lm-m10/22-a2 A3012172 RIPMA210 VI2009A 33169-XA0-51 8108 RLI105 AB056 0400142 81 212 004 V010001000 QR-002 167495 10030405 MVRP10I A01316 B450006 19951010 3 QVI.225 PU01464 823110 EE2M10 QIRP_D10 A11020911310 CO600010 NI20394 565527 0603025 3605 040710 MP6863000 QUINCAI01211 1250214007 RSB10-A2 814420 3663072168251
