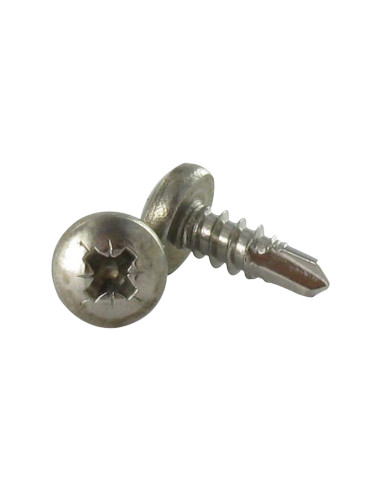

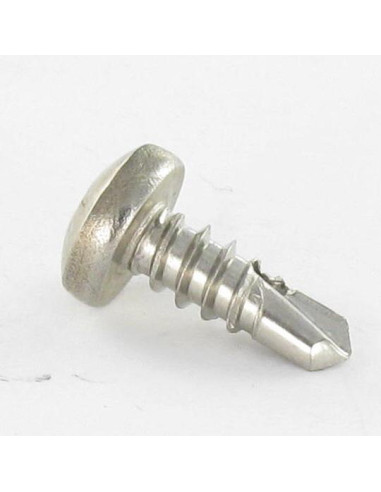

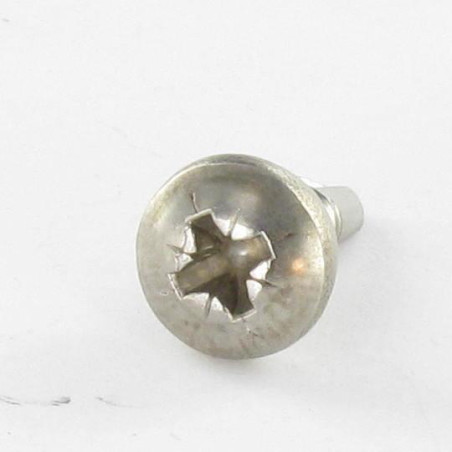

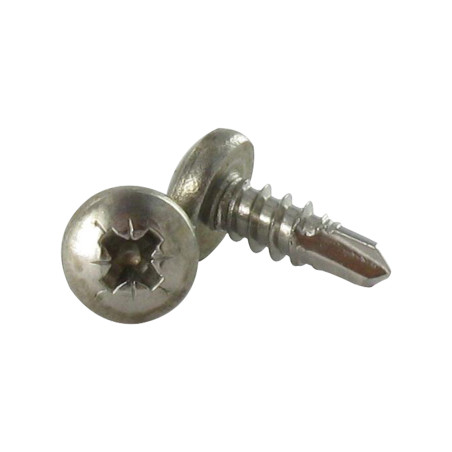

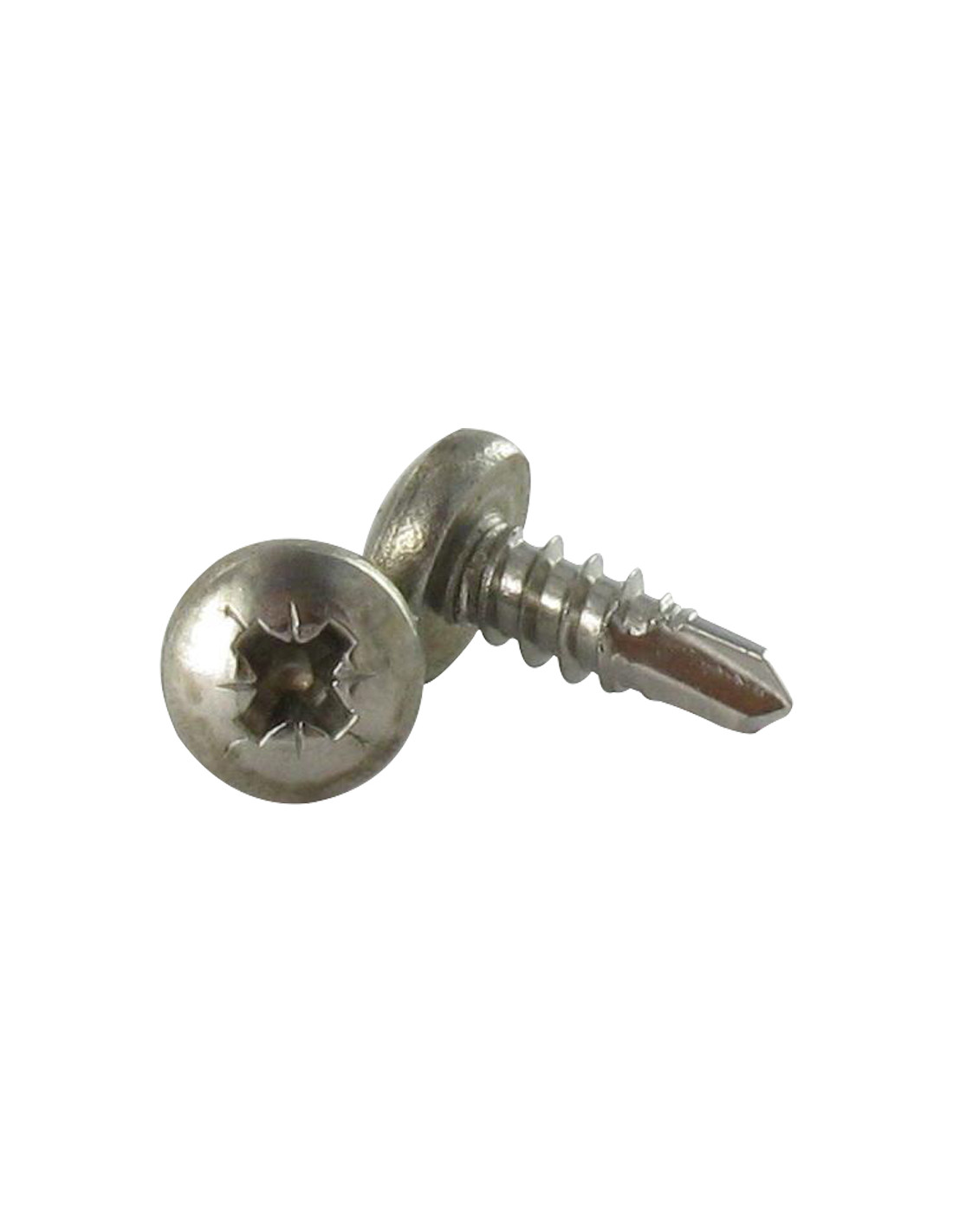

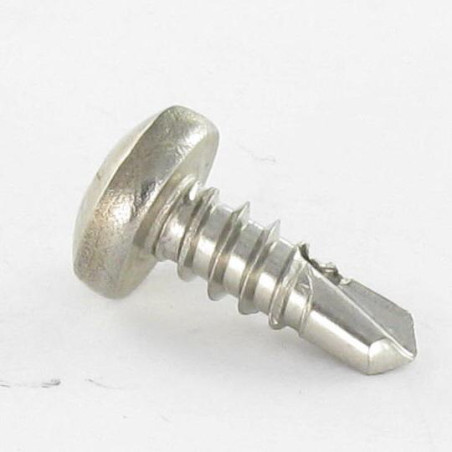

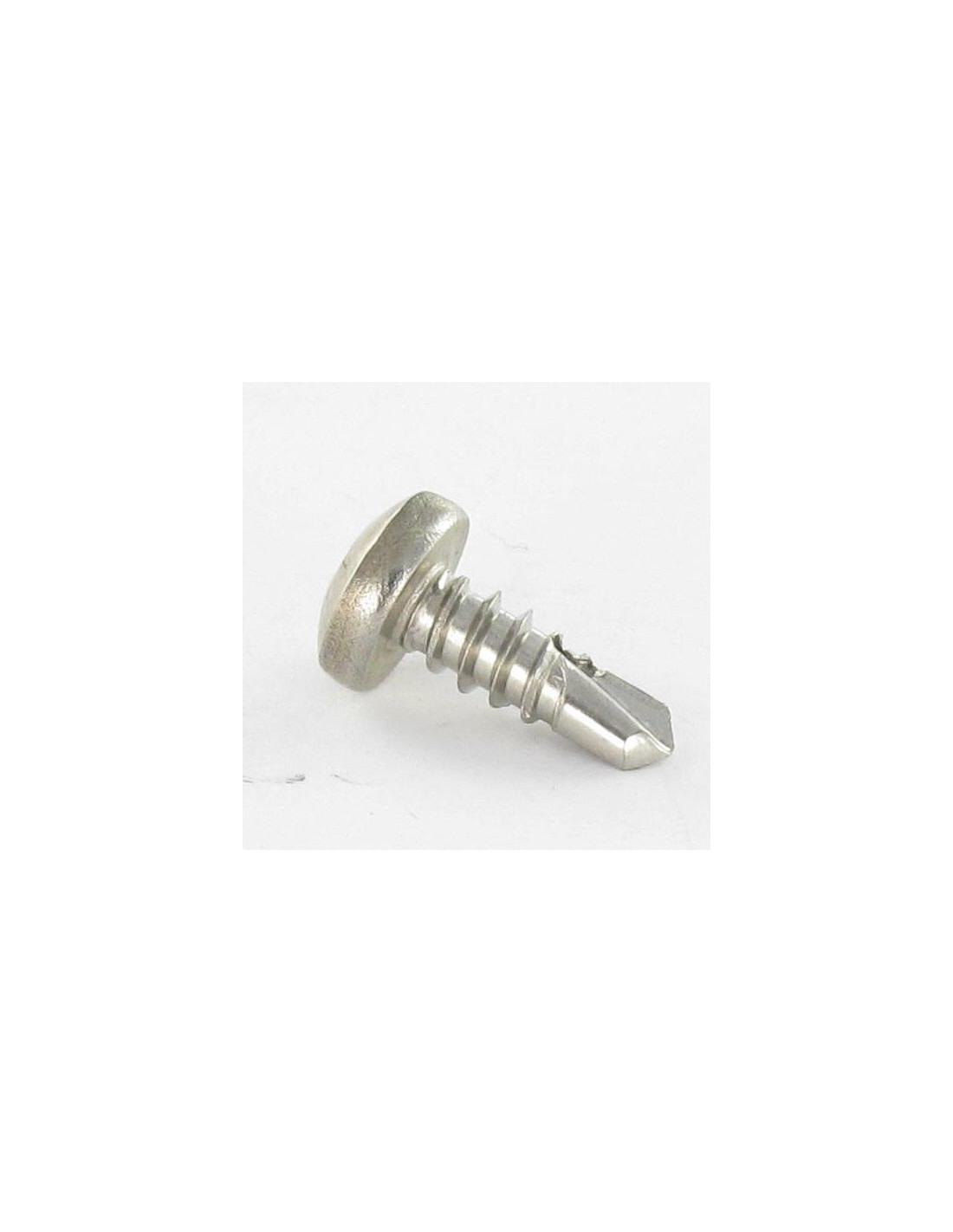

1 x Self Drilling Stainless Steel A2 Cylindrical Button Head Pozi 3.9X19
1 x Self Drilling Stainless Steel A2 Cylindrical Button Head Pozi 3.9X19
1 x Self Drilling Stainless Steel A2 Cylindrical Button Head Pozi 3.9X19

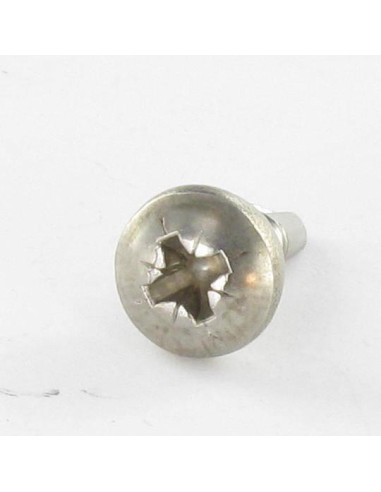

1 x Self Drilling Stainless Steel A2...
1 x Self Drilling Stainless Steel A2...
1 x Self Drilling Stainless Steel A2...

1 x Self Drilling Stainless Steel A2 Cylindrical Button Head Pozi 3.9X19

8326701918_1
In stock 9901 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included €3.85 €7.70 €9.30 €10.00
DIN 7504 N,VS3124 - Self Drilling Stainless Steel A2 Cylindrical Button Head Pozi 3.9X19
Only pierces aluminum
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
3.9
Length
19
Size Drive Type
KEY Of 5.5
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN 7504 N,VS3124
Sub product family
Cylindrical Head Pan Head
Mounting pressure (N)
150
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
3.4
Maximum thickness to be fixed
11.7
Unit weight
1.78 GR
Material to be drilled
Aluminium
9901 Items
3663072153660
Self Drilling Stainless Steel A2 Cylindrical Button Head Pozi 3.9X19
Diameter = 3.9, Length = 19, Material = Stainless Steel A2, Norm = DIN 7504 N,VS3124, Size Drive Type = Spanner 5.5


dimensional guide (mm)
Jauge number67810
Diameter3.53.94.24.8
Pitch6.97.58.29.5
Head Tickness2.62.83.053.55
Pozi1222

Other Reference : 624303,9X19 52557 MP09656 MP1400 FIO1459 S10004ABA390 MP1400 4629 FIO1459 2102AU0002 021113919 S10004ABA390 2102AU0002 3663072153660
Henri M. (vis-express.fr)
2025-01-12

metal construction
