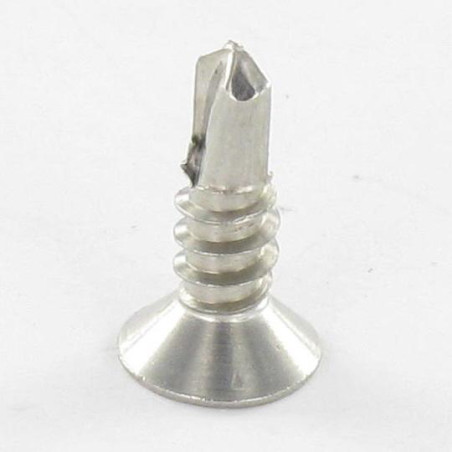

1 x Self Drilling Stainless Steel A2 Countersunk Head Pozi 3.9X25

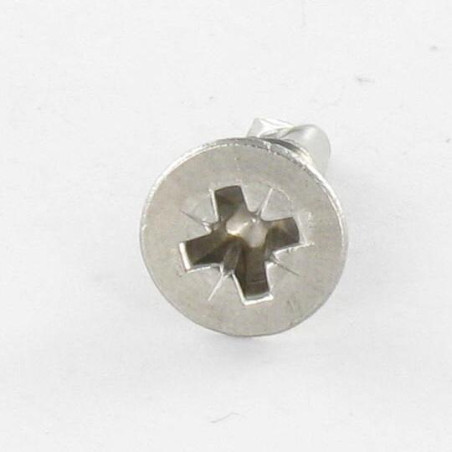

1 x Self Drilling Stainless Steel A2 Countersunk Head Pozi 3.9X25
1 x Self Drilling Stainless Steel A2 Countersunk Head Pozi 3.9X25

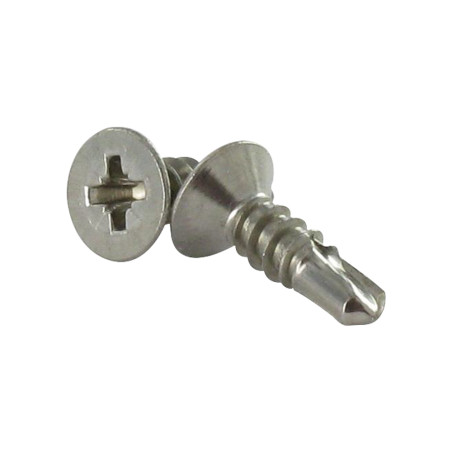

1 x Self Drilling Stainless Steel A2 Countersunk Head Pozi 3.9X25
1 x Self Drilling Stainless Steel A2...

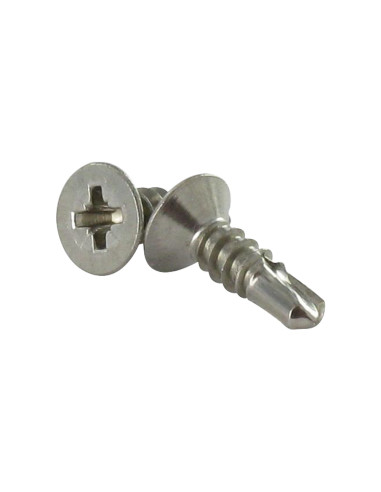

1 x Self Drilling Stainless Steel A2...

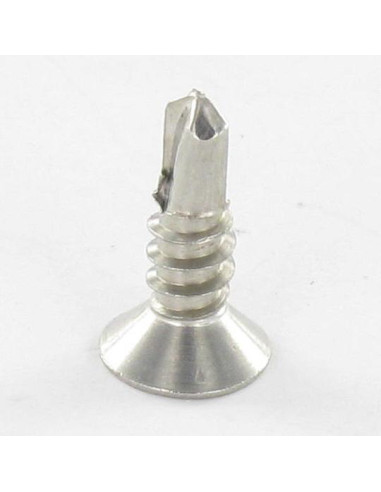

1 x Self Drilling Stainless Steel A2...

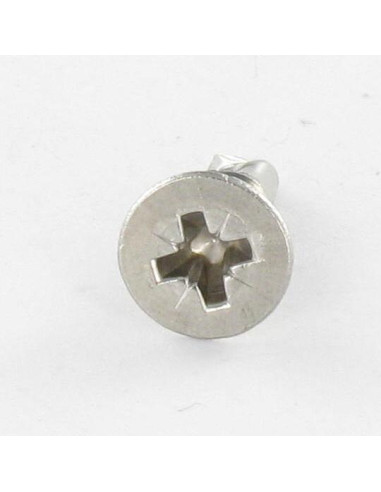

1 x Self Drilling Stainless Steel A2...

1 x Self Drilling Stainless Steel A2 Countersunk Head Pozi 3.9X25

8324702518_1
In stock 19302 Pièces
£3.69 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included £3.69 £7.33 £8.85 £9.55

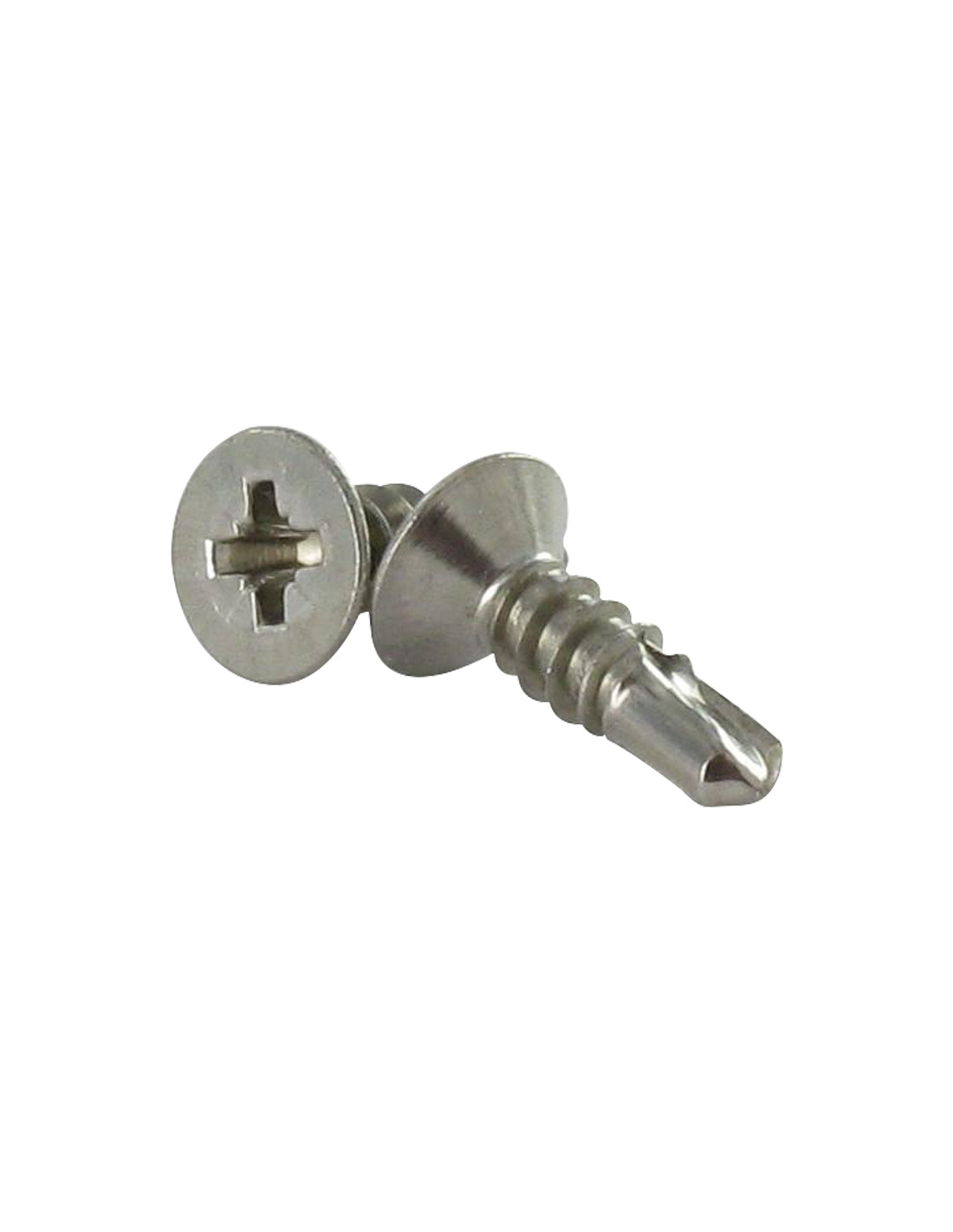

DIN 7504 P,VS3124 - Self Drilling Stainless Steel A2 Countersunk Head Pozi 3.9X25

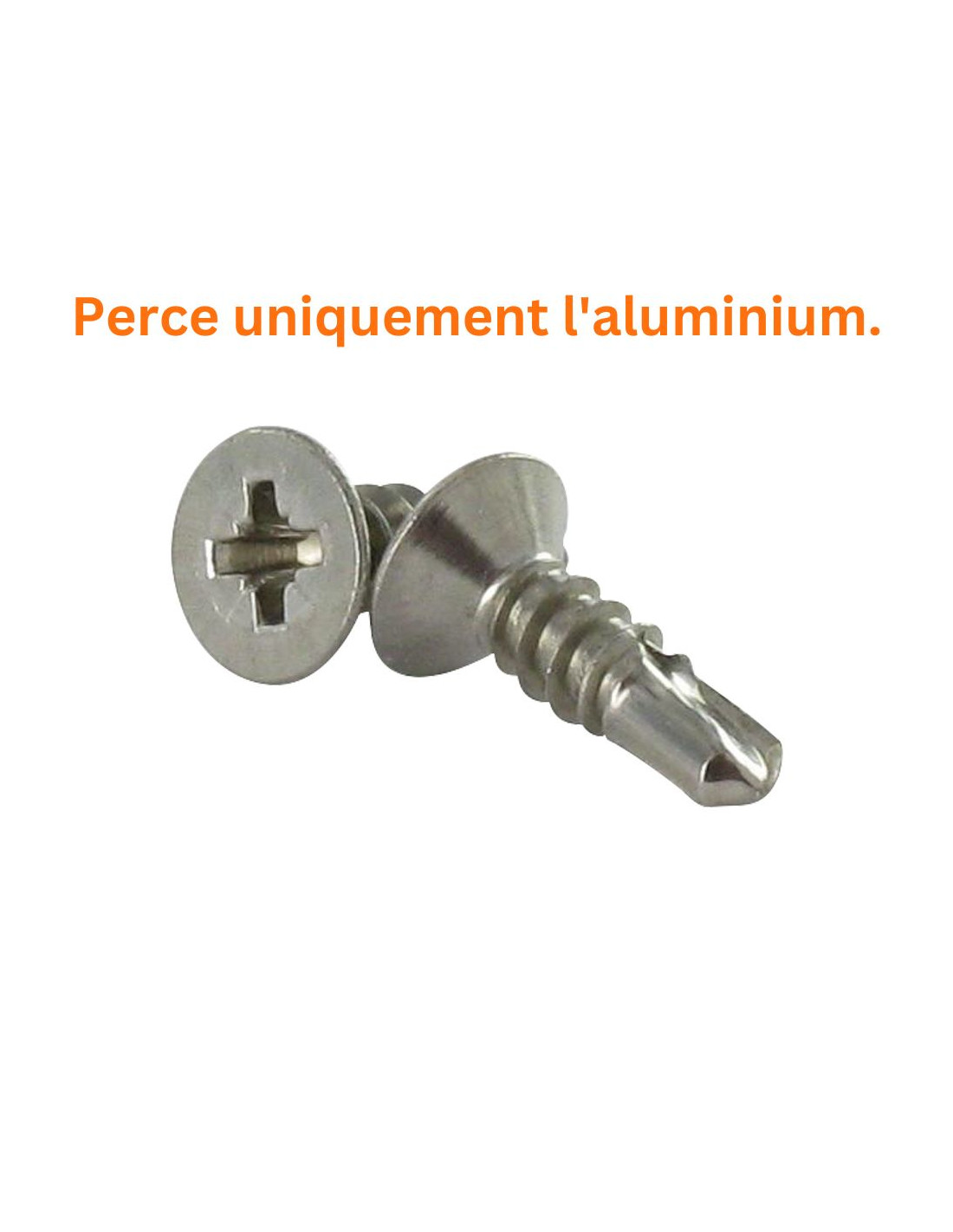

Only pierces aluminum
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
3.9
Length
25
Size Drive Type
KEY Of 5.5
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN 7504 P,VS3124
Sub product family
Countersunk Head
Mounting pressure (N)
150
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
3.4
Maximum thickness to be fixed
17.7
Unit weight
1.8 GR
Material to be drilled
Aluminium
19302 Items
3663072153394
Self Drilling Stainless Steel A2 Countersunk Head Pozi 3.9X25
Diameter = 3.9, Length = 25, Material = Stainless Steel A2, Norm = DIN 7504 P,VS3124, Size Drive Type = Spanner 5.5


dimensional guide (mm)
Jauge number 6 7 8 10
Diameter 3.5 3.9 4.2 4.8
Pitch 6.8 7.5 8.1 9.5
Head Tickness 2.1 2.3 2.5 3
Pozi 1 2 2 2
Avec une vis auto-perceuse en inox A2 ou A4, vous pourrez percer une tole en ALUMINIUM uniquement
Une vis auto-perceuse INOX ne perce pas l'acier ni l'inox.

Other Reference : 624323,9X25, MP09658 23111 1303242LV a3003 6401034 18487 VI3925AFTF 13421 /CDE NFF17077 18487 149-017-274 18487 13315 QV1910 23659 1303242LV 23659 V010007 3663072153394
